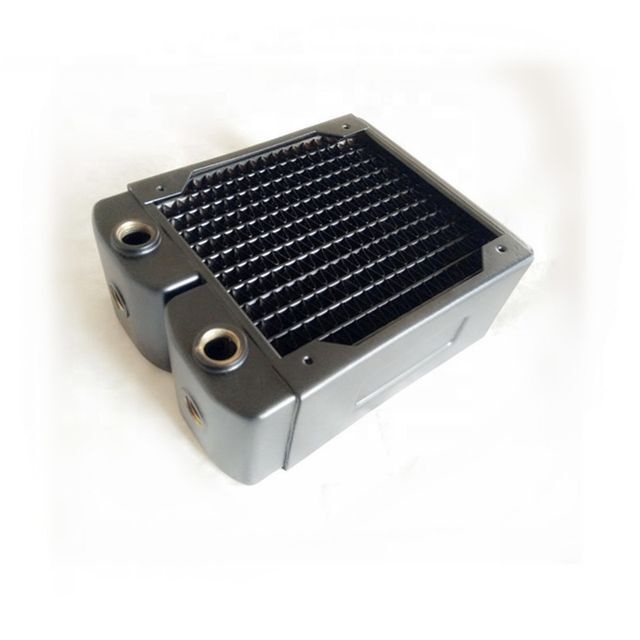

Manufacturer 120 Copper Tube Heat Exchanger Copper Radiator

120/240/360/480 Copper and Brass Liquid Heat Exchangers

Product Specifications

Mailing method

All shipping methods are designed to be the most convenient for you.

Sea or air shipping is best for large orders.

Trial order or sample confirmation can be made by express delivery such as DHL, FEDEX, TNT, etc.

Any other request method can be adjusted

payment terms

1.T/T is the general rule

2. Alibaba's trade assurance is acceptable to both parties' rights
3. When filling in buyer information, please make sure you have filled in all details such as address, contact person and phone number

Installation Precautions

If you are only using fans with a height of 25mm, use M3 screws that are 30mm long.

Be sure to double check the screw lengths before installing, or you might poke a hole in the radiator waterway.

The 120mm×120mm fan is recommended to be installed together with the radiator.

feature

Single pass parallel flow configuration utilizing up to 50% higher flow tubes

Internal traffic increases.
Custom compression core width to maximize airflow and enhance heat exchange.
Optimized custom 9FPI (fins per inch).
Built-in 7mm deep plenum for even core air pressure distribution.
M3 threaded screw holes for easier installation and greater adaptability.
Standard G 1/4''; female fitting.
Full high temperature brass construction for reduced weight and excellent corrosion resistance.
Compatible with high performance compact heatsinks, upgradeable to most 120mm fan size heatsinks.
Process using 100% non-corrosive water-soluble flux.
Fully RoHS compliant.
Matte black finish.
patent pending design
Clean all heat sinks to remove flux
Hydraulic and pneumatic tests (1.5bar and 30 seconds)
