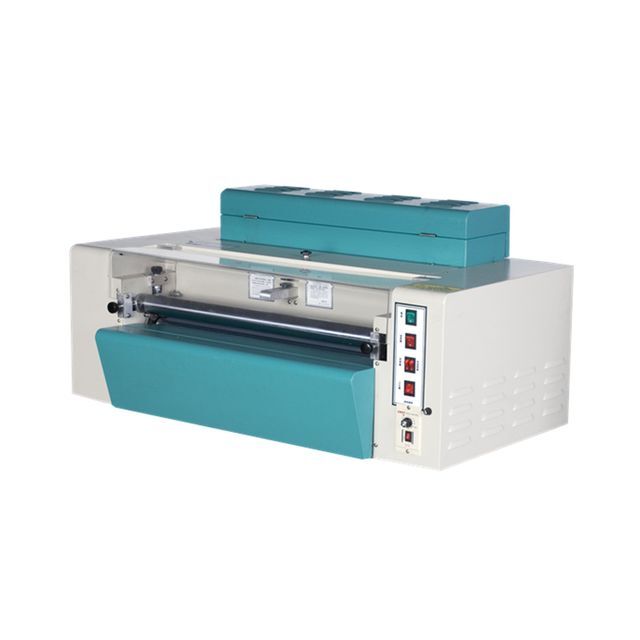

SIGO SG-D350 hot selling desktop uv coating machine

Product details
Marketing Type:Hot Products of 2019operate:Electric motor drive
Packaging Details:LMA14 inch UV coating machine A3 size 1pcs/wooden box Machine size: 740*650*520mm Carton size: 800*740*630mm GW: 100KGDrive Type:electrical
speed:0~7.7m/minHealth status:new
type:CoaterPackage dimensions:800*740*630mm
Packaging Preview:place of origin; place of origin:China
port:Ningbo/ShanghaiDimensions (L*W*H):740*650*520mm
Showroom location:not anyMaterials used for packaging:plastic, paper, wood
Video external inspection:ifweight:100KG
application:Daily necessities, photo/ink printing/art paper/stickerbrand:Seago
Coating width:350mm 14"After Warranty Service:Video technical support, online support, spare parts
Supply capacity:500 pieces per weekMechanical test report:if
payment terms:Wire Transfer, Western Unionstrength:2.2kw
Applicable industries:Hotels, Manufacturing Plants, Households, Food Stores, Printing Stores, Energy & Mining, Advertising AgenciesVoltage:AC220V 50HZ, 220V
Certification:Chief ExecutiveWarranty:1 year
Local service location:not anyCore components:programmable logic controller
Core Components Warranty:1 yearWay:ultra violet light
type of packaging:cartonMain selling point:easy to operate
Auto grade:automaticAfter-sales service provided:Online support, video technical support
Machine size:740*650*520mm
Product Description

What is a UV coating machine


UV coating machineis a very glossy, glossy liquid coating applied to the surface of printed paper and cured using UV light on a printing press or special machine. The coating hardens or cures when exposed to UV radiation.

UV coatingis a surface treatment that cures by UV radiation, or protects the underlying material from the harmful effects of such radiation Environmentally friendlyUV coatingIt is solvent free and cures without releasing volatile organic compounds or VOCs. Paper with UV coating can be recycled along with all other papers.What is the use of UV varnish?UV varnish is a special type of varnish that is finished using a UV dryer. It creates a more vivid, luxurious and tactile finish than non-UV varnishes and adds an instant professional look to any print projectIs the UV coating waterproof?UV coatings can extend the life of printed products that are handled on a daily basis, such as business cards. Although UV coatings cannot waterproof printed products like lamination, UV coatings are waterproof.

feature


What are the benefits of UV coatings? *Very high gloss. * Good abrasion resistance. * High definition. *Environmental friendly. *Instant drying time under UV irradiation.


LMA 14" 18" 24" Benchtop UV Coater
model
LMA 14"

LMA 18"
LMA 24"
Coating width
350mm
450mm
600mm
coating thickness
0.2-2mm
Speed ​​of work
7.7m/min
strength
2.2KW
3KW
4.4KW
ultra violet light
220V 2KW
220V 2KW
2 220V 2KW
Coating roll
alloy
scraper
stainless steel blade
fan
copper coil
dust cover
transparent acrylic
GW
100KGS
118KG
150KG
Package dimensions
800*740*630mm
940*730*640mm
1110*740*640mm
detailed image

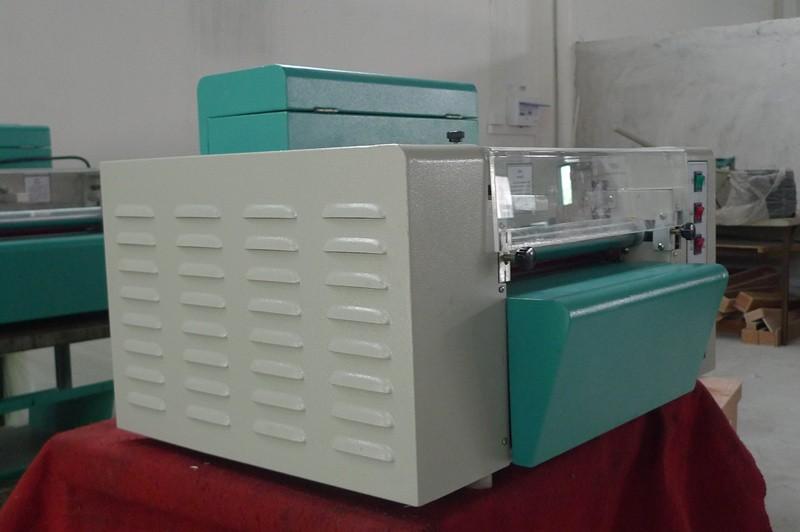

Unique design on both sides of the wall. It has cooling function.

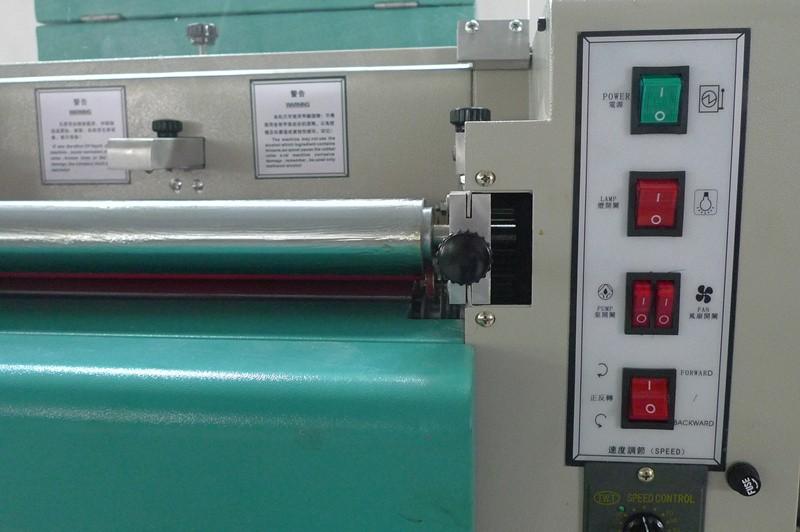

Clear buttons to suit your composition.

Easy to operate.

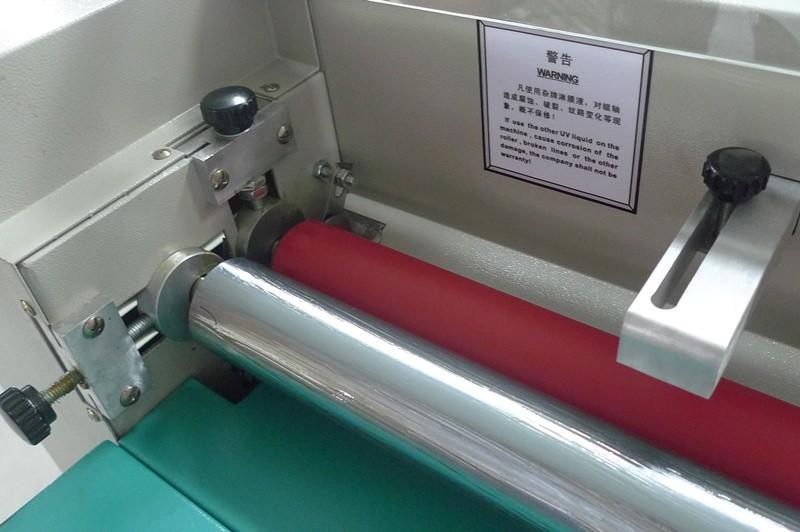

High quality aluminum rollers. Can be replaced with embossing rollers.
