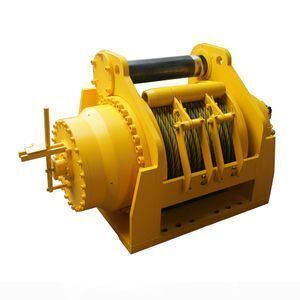

ISYJ Series Compact Logging Hydraulic Winch Forestry Low Loader Winch

Brief Introduction

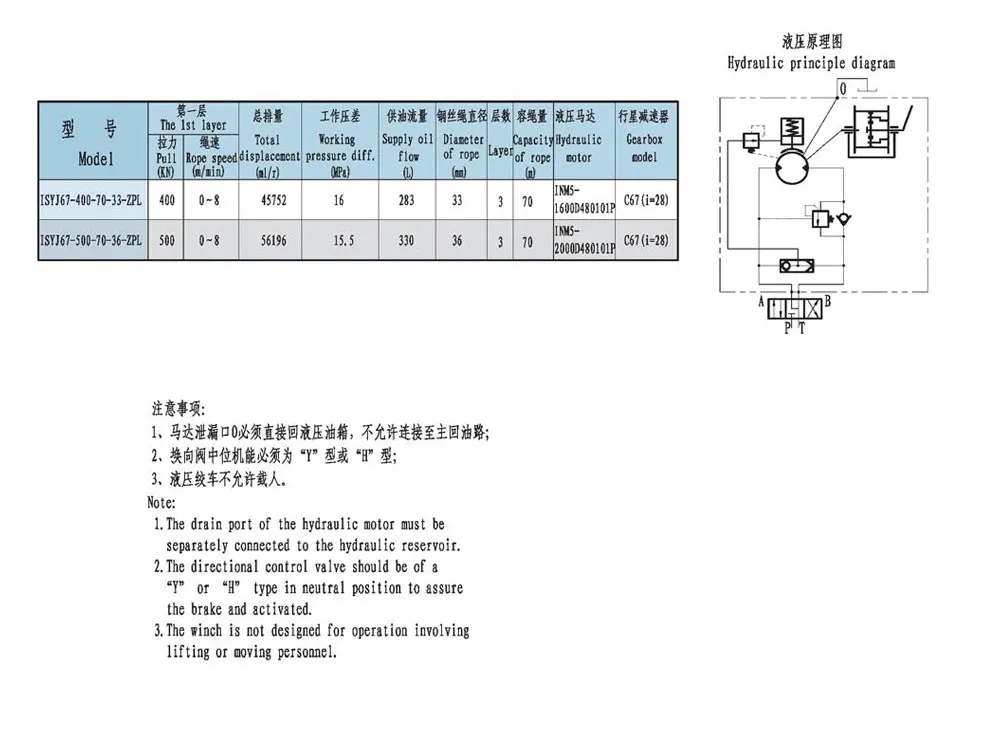

The ISYJ hydraulic winch series are patent products of our company and consist of a variety of distributors with shuttle valves controlling the brake and single or dual counterbalance valves, INM type hydraulic motor, Z type brake, C type planetary gearbox, drum, frame and so on(to see hydraulic diagram). The user only needs to provide a hydraulic power pack and directional valve. Due to the winches fitted with diversified valve block, it not only simplified the hydraulic system, but also improved the reliability of the winches. In addition, the winches feature a high efficiency at start-up and operation, low noise and energy consumption, and have a compact figure and good economic value. Therefore, the series have been widely applied to hoisting salvage vehicles, cross country vehicle, military heavy truck, bulldozer. It can be used to rescue various vehicles damaged or involved in mud and also used to pull heavy objects and to save self. ISYJ series hydraulic winches have been well sold in China and also have been exported to Netherlands, the Middle-east, the south-east Asia, Korea and so on.

Options Example

ISYJ2.5-10-103-8-ZPL represents that he modules of the gearbox of the winch is 2.5. The rated single pull on 1st layer is 10kN, drum capacity is 103m, rope diameter is 8 mm. The winch is fitted with brake, counterbalance valve and clutch.
