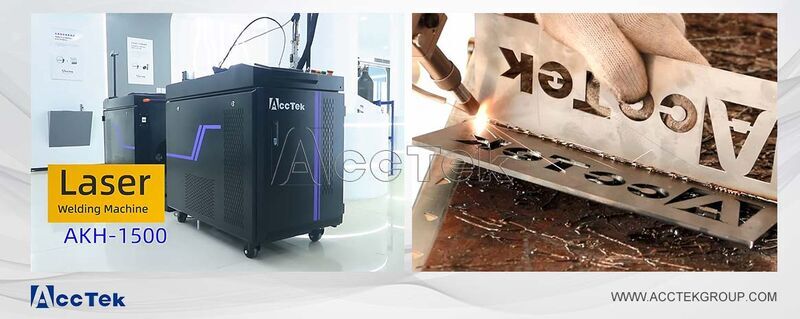

ACCTEK fiber laser welding machine adopts handheld welding head, which has the characteristics of no consumables, small size, flexible processing, and low operation and maintenance cost.
NO | Description | Parameter |
1 | Model | AKH-1000 / AKH-1500 / AKH-2000 / AKH-3000 |
2 | Laser Power | 1000W / 1500W / 2000W / 3000W |
3 | Range of adjustable power | 1-100% |
4 | Central wavelength | 1064nm |
5 | Line length | Standard 10m, maximum support 20m |
6 | Way of working | Continuous/modulation |
7 | Speed range | 0-120mm/s |
8 | Repeat precision | ±0.01mm |
9 | Welding gap requirements | ≤0.5mm |
10 | Cooling water | Industrial thermostatic water tank |
11 | Laser Type | JPT / Raycus / Reci / IPG / Max |
12 | Working humidity | <70% no condensation |
13 | Focal Spot Diameter | 0.2-2mm |
14 | Welding depth | 0.1 - 4mm |
15 | Pulse Frequency | 0.1-100Hz |
16 | Voltage | 380V |
