Jinrui environmental protection organic fertilizer production equipment animal manure waste composter

Supplier: Shandong Jinrui Heavy Industry Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Paul Qiu
Price: $9900.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Poultry manure fermentation treatment, livestock and poultry waste treatment	After-sales service provided:	On-site installation, video technical support, online support
Main selling point:	automatic	port:	Qingdao Port
brand:	Jin Ruifu , Jin Ruifu	payment terms:	Western Union, T/T, MoneyGram
type:	Organic Fertilizer Fermenter	place of origin; place of origin:	Shandong China
feature:	automatic	Applicable industries:	Food and Beverage Factory, Farm, Home Use
Packaging Details:	empty packaging	Marketing Type:	New Products 2020
Video external inspection:	if	Advantage:	Small footprint / short cycle / stable fermentation / no secondary pollution
Voltage:	380v	Health status:	new
Core Components Warranty:	1 year	Dimensions (LWH):	custom made
weight:	9600kg	Raw materials:	Stainless steel
usage:	Organic waste recycling, waste treatment, manure recycling	Showroom location:	the Philippines
Packaging Preview:		Warranty:	2 years
Total power:	41.2W	Core components:	PLC, engine, gearbox, motor
Moisture percentage after fermentation:	About 20-30%	Supply capacity:	10 sets per month
Mechanical test report:	if	Function:	Fermentation of livestock manure

Product Description

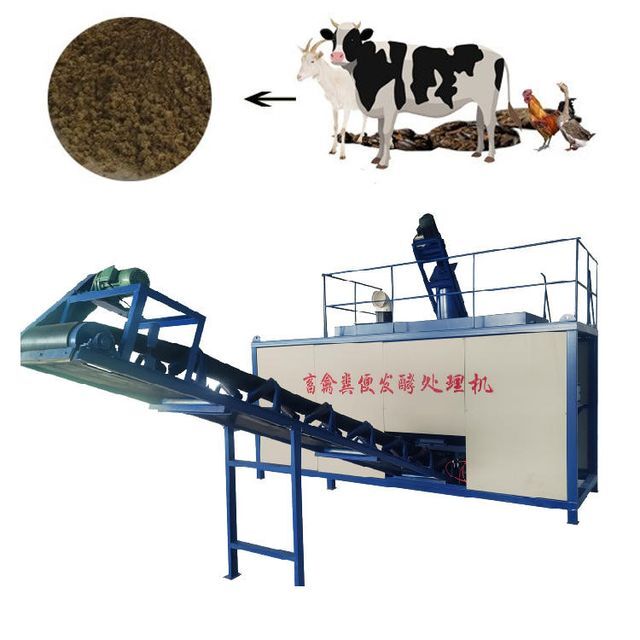

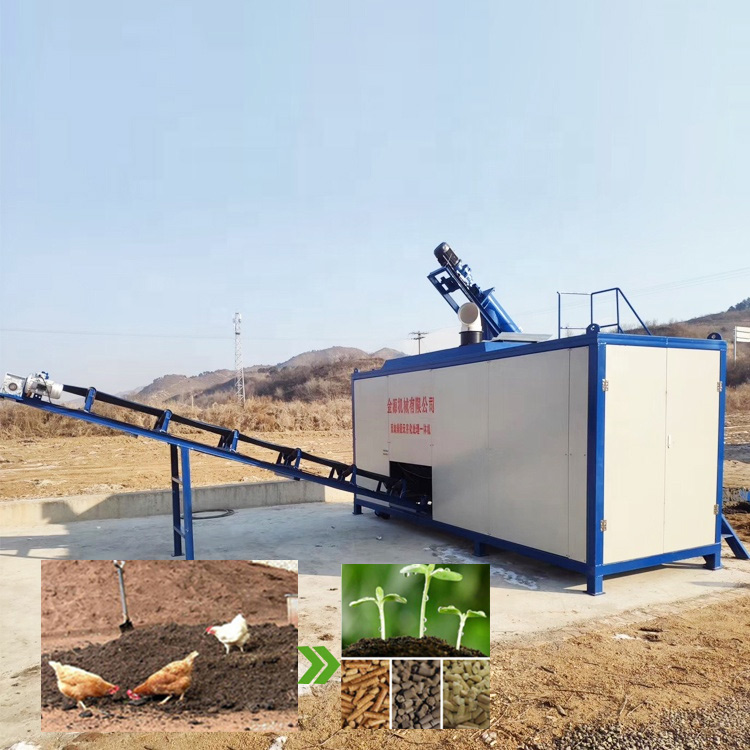

Chicken manure fermentation equipment,Chicken manure processing equipment,Livestock and poultry manure treatment equipmentAlso known asLivestock and poultry manure intelligent fermentation integrated machine:

High-temperature fermentation is carried out for livestock manure from farms and excess sludge from sewage treatment plants.It is suitable for different types of farms such as pig farms, dairy farms, chicken farms, etc.

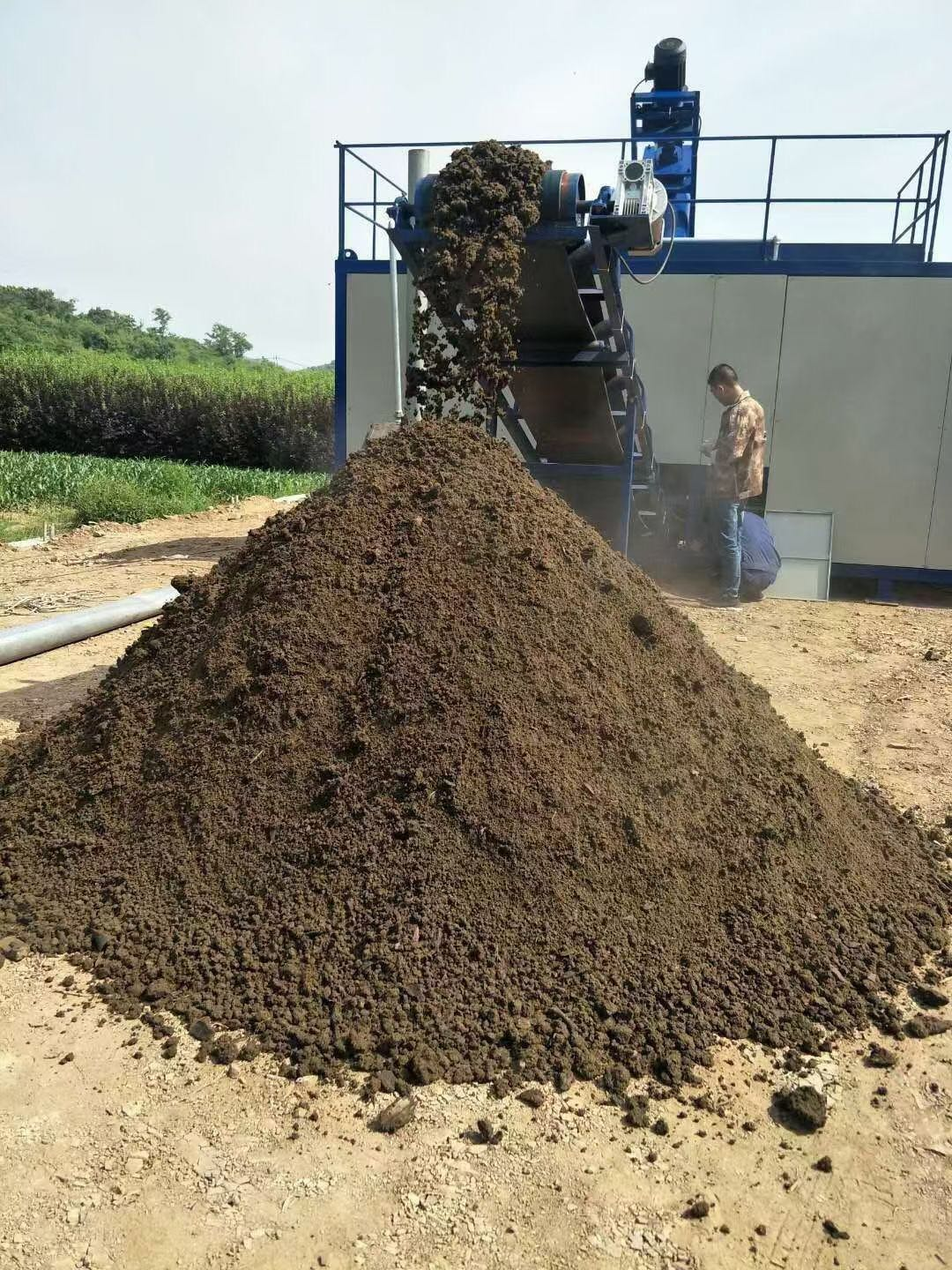

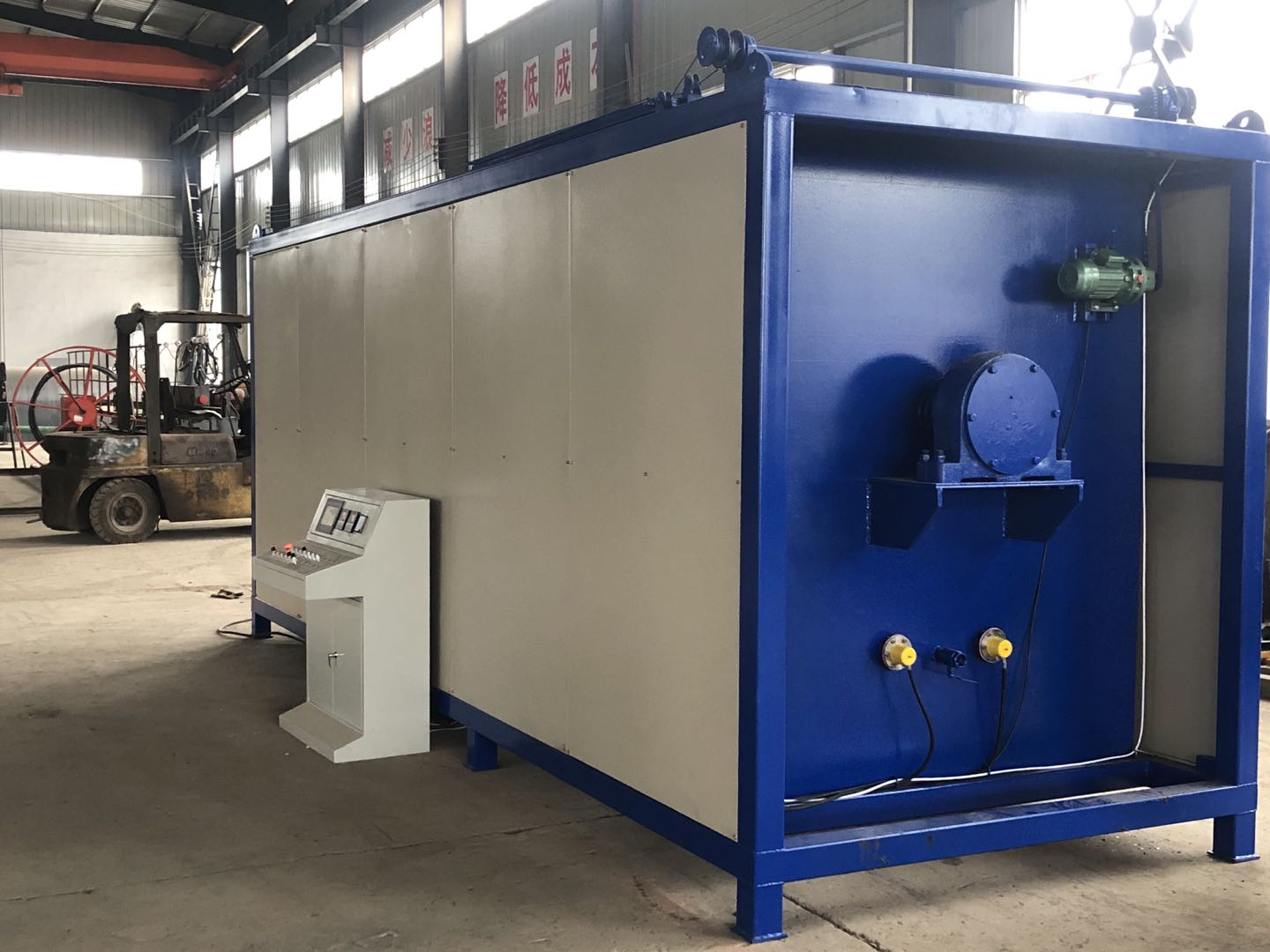

Self-developed biological bacteriaJinrui Heavy Industry MachineryCombined with feces, the feces can be deodorized in a short time after entering the equipment. The equipment is a trough structure, and the internal stirring shaft rotates regularly. Combined with the high temperature fermentation process, the eggs are sterilized and sterilized. The feces are fermented in the equipment for 8-10 hours and then discharged. After 5-7 days of stacking on the ground, it can be bagged.

All indicators of organic fertilizer far exceed national standards.

Model	JR11FFQ-6	JR11FFQ-8	JR11FFQ-10	JR11FFQ-15
capacity	6m³	8m³	10m³	15m³
main motor power	11kW	15kW	15kW	2*11kw
heating power	20kW	20kW	30kW	30kW
screw conveyor	325mm*6m	425mm*6m	425mm*6m	425mm*6m
Screw conveyor motor power	4kW	4kW	5.5kW	7.5kW
unloader	500mm*6m	500mm*6m	500mm*6m	500mm*6m
Unloader motor power	1.1kw	1.1kw	1.1kw	1.5kW
volume	5m1.8m2.1m	5.7m2m2.4m	6m2m2.4m	5.5m3.5m2.4m

product description:

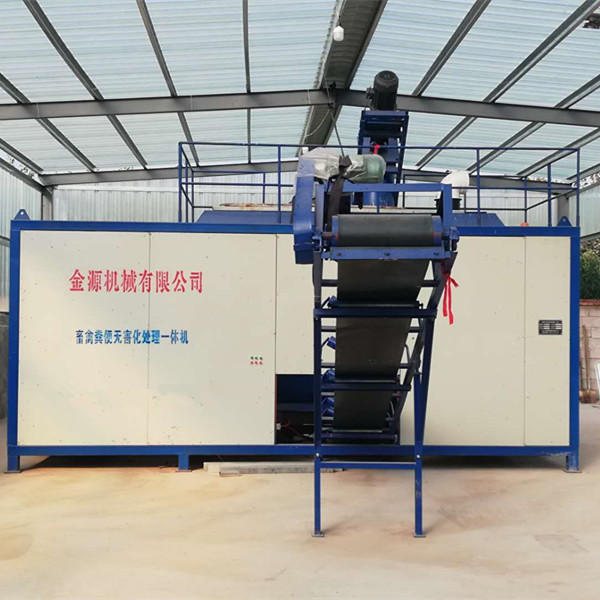

1. Box structure

The internal stirring shaft rotates regularly, combined with high temperature fermentation technology, to kill eggs and sterilize. The feces can be deodorized after 2-3 hours in the equipment, and can be discharged after 6-8 hours of fermentation. All indicators of organic fertilizer far exceed national standards.

2. Production raw materials

Rural garbage or livestock and poultry manure, accessories: cassava residue, mushroom residue, straw powder, peanut shell powder, corn cob, etc. Add auxiliary materials to enhance the permeability of the material and absorb the moisture in rural garbage or livestock and poultry manure. Regular mixing increases the oxygen content of rural waste or livestock manure during fermentation.Without auxiliary materials, the fermentation process is slow, the air permeability is poor, the microorganisms are greatly reduced, the processing is slow, and it is easy to produce peculiar smell. Oxygen is needed in the aerobic fermentation equipment, so that the microorganisms in the equipment can multiply and spread rapidly, and the organic fertilizer can be fermented.

3. Production process

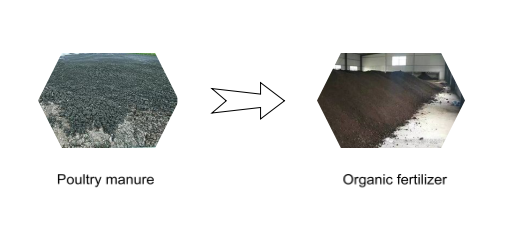

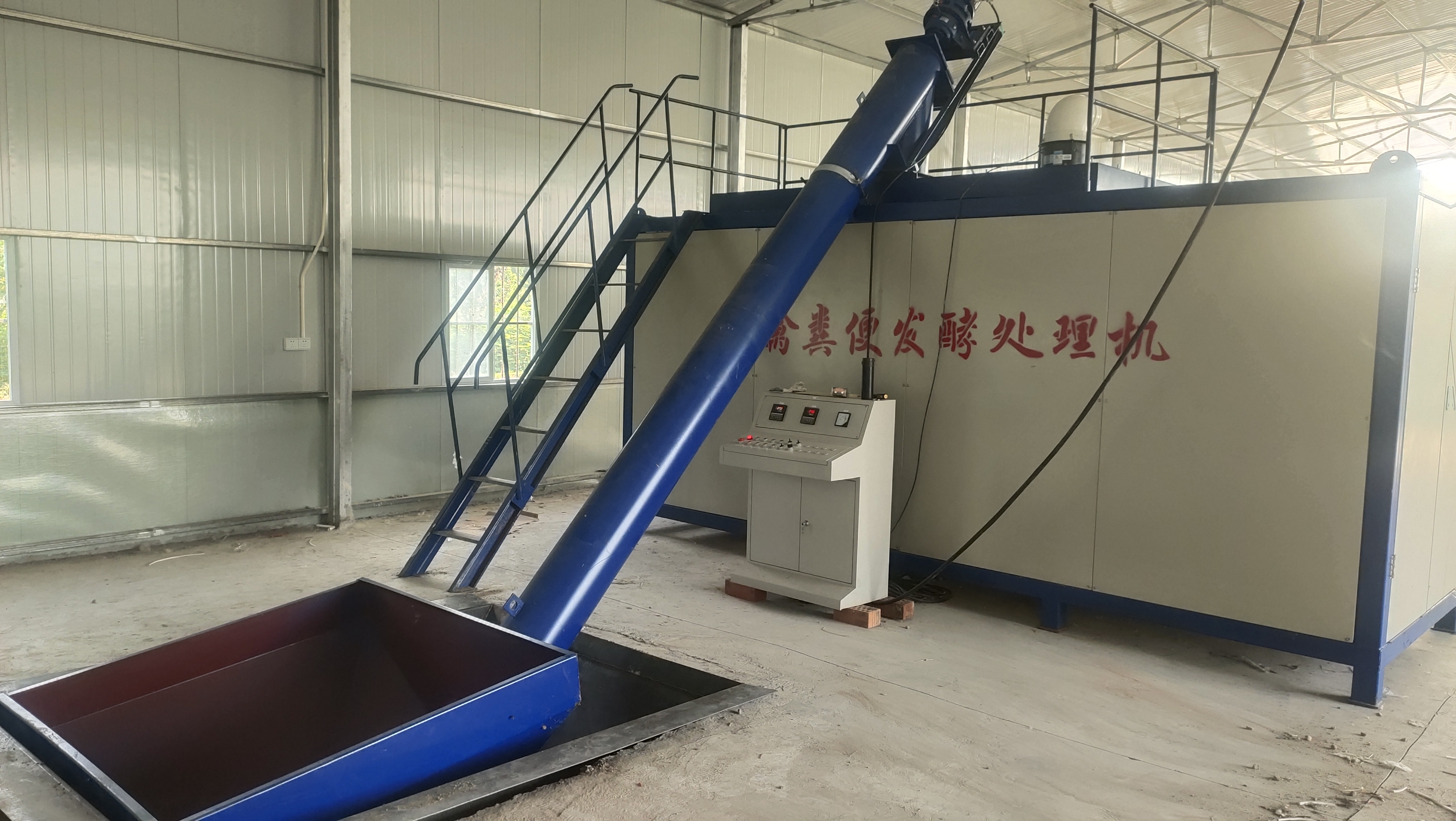

Rural garbage or livestock and poultry manure, auxiliary materials, microorganisms - adjustment of carbon and nitrogen ratio and moisture - transportation of feed - high temperature fermentation and deodorization, insecticide, dehumidification, decomposition - discharge.
