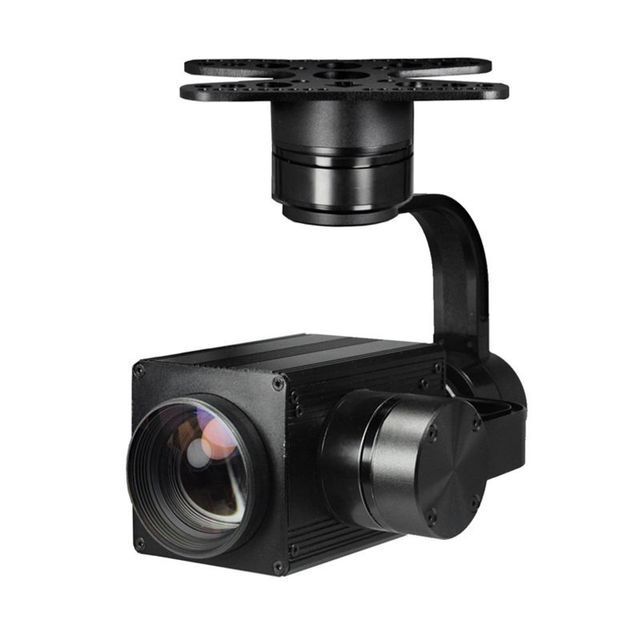

30X drone camera gimbal for drone drone multi-rotor aviation industry inspection/measurement/search/rescue

Product details
focal length:30x optical zoom, 4.5-135mmRecorded video:1080P/30 MP4
Supply capacity:500 sets per monthbrand:janda
place of origin; place of origin:Guangdong, Chinasensor:1/3 inch 3MP CMOS sensor
Operating temperature:-25° ~ +60°Video output:CVBS and 1080P/60HDMI
Wide angle:180°Color depth:24 bit
Private model:YesInput voltage:3S-4S

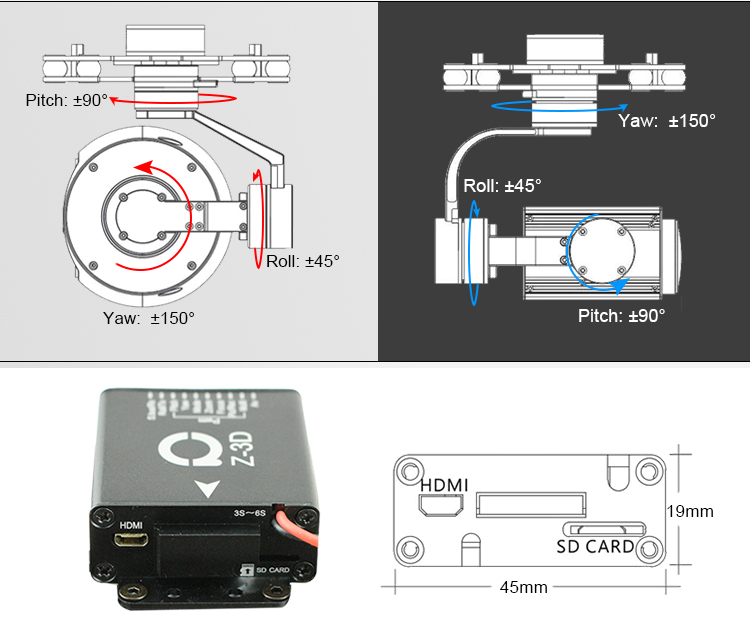

Rotation range:Pitch: ±90° Roll: ±45° Yaw: ±150°payment terms:Western Union, T/T, MoneyGram
media type:Micro SDAmount of Angular Jitter:Pitch and Roll: ±0.02° Yaw: ±0.03°
Control interface:PWM, S.Bus and Serial CommandsTotal weight (gimbal and camera):848 grams
Imaging sensor:CMOSport:Hong Kong, Shenzhen
screen size:0Scan element type:CMOS
Built-in memory size:0optical zoom:30X
Scanning speed:1model:Skyeye-30HZ

Watch the full video on Youtube:

https://youtu.be/VszoTkanzlg
https://youtu.be/dLjaUBJVZ_U

about shipment fees:
This product ships for free and ships via express courier including DHL, TNT, Fedex, SF or other express courier depending on your country. Usually, the estimated delivery time is 3~7 days.

Your purchase includes


1 x Sky Eye-30HZ 30X 1080P Optical Zoom Camera(square case)

1 x Sky Eye-30HZ three-axis high stability gimbal system





introduce

Sky Eye-30HZ is a gimbal specially designed for 30x zoom cameras for UAV aerial survey, surveillance, rescue and research missions, it can be easily installed in anymulti-rotor platform.It consists of a 1080P 30X optical zoom camera and a 3-axis high stabilization gimbal, which can shoot and record 1080P 30fps video to the onboard TF card, allowing you to stabilize your eyes in the sky, which can be controlled by a drone pilot or a second person Allows top views that can cover large amounts of ground quickly and efficiently. 30x zoom lets you keep your distance while zooming in on anything that needs your attention up close.

A great feature of the Sky Eye-18HZ is that it can be equipped with an Automatic Target Tracking Module (AOTM), which will allow the pilot to track moving objects very easily. Also, the AOTM is only 40 grams, don't add too much to the weight of the drone.
How it works: zoom in and place a moving object on the screen, then the camera will automatically lock and track the object.

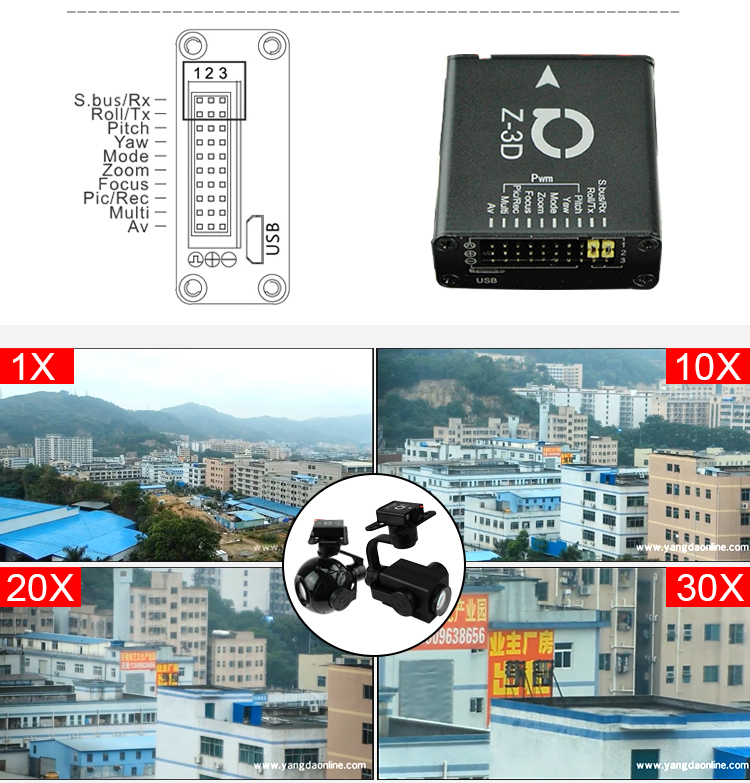

The Sky Eye-30HZ offers an excellent wiring hub design for RC receivers and video output ports (AV and HDMI), making wiring very easy. The gimbal also provides 2 smart speed modes: fast and slow. Quick mode is used for a small zoom range, making the gimbal control sensitive and fast. Low speed mode is used for a large zoom range, allowing you to aim objects more accurately.

Sky Eye-30HZ has two video output ports, HDMI (1920*1080*60fps) and analog, which can use traditional analog 5.8G video downlink or HD video downlink. Photo/video/playback functions can be selected via a 3-position switch on the radio.



feature

1) 590 grams, light weight.

2) 1/3 inch 3MP CMOS sensor.

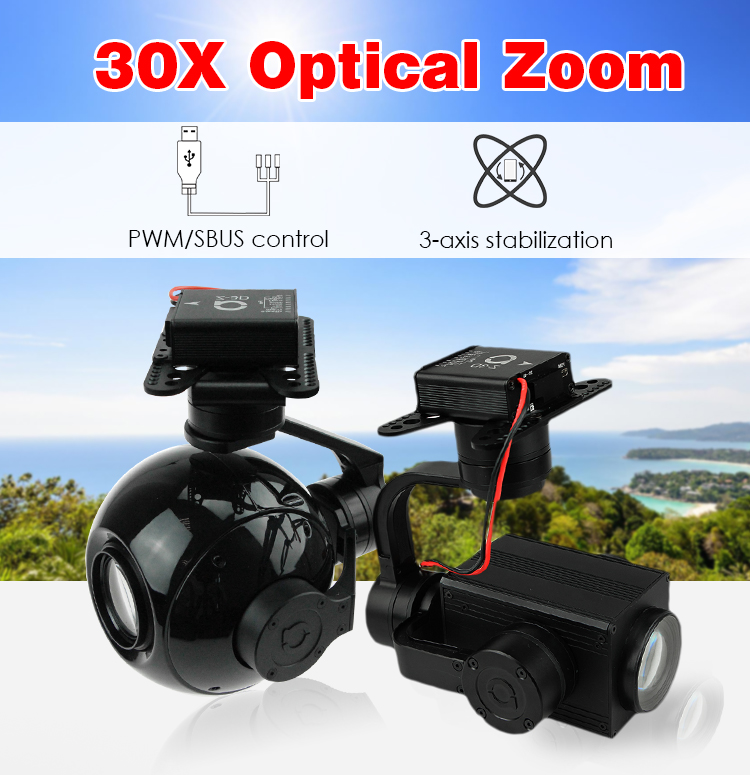

3) 30X optical zoom, CVBS and 1080P/60 HDMI output for video downstream.

4) Record 1080P/30 H.264 video for the onboard TF card.

5) Automatic object tracking (optional).

6) PWM control and serial command control.

7) Convenient wiring hub for RC receiver and video output (AV and HDMI).

8) Three-axis high stability gimbal system.

9) Adjustable control speed: slow and accurate with large zoom range. Fast, responsive, and fast with a small zoom range.

10) One-click back to middle.

11) Fully compatible with DJI Matrice 600 series platforms.

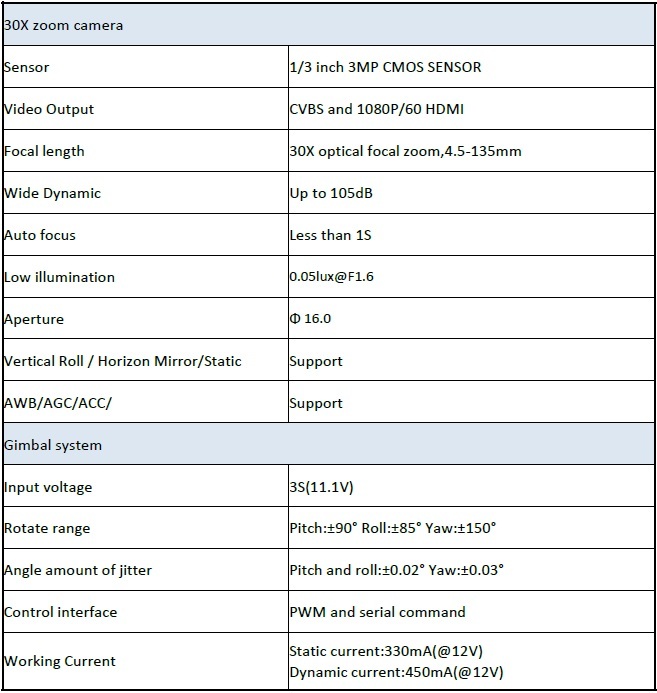

System Specifications

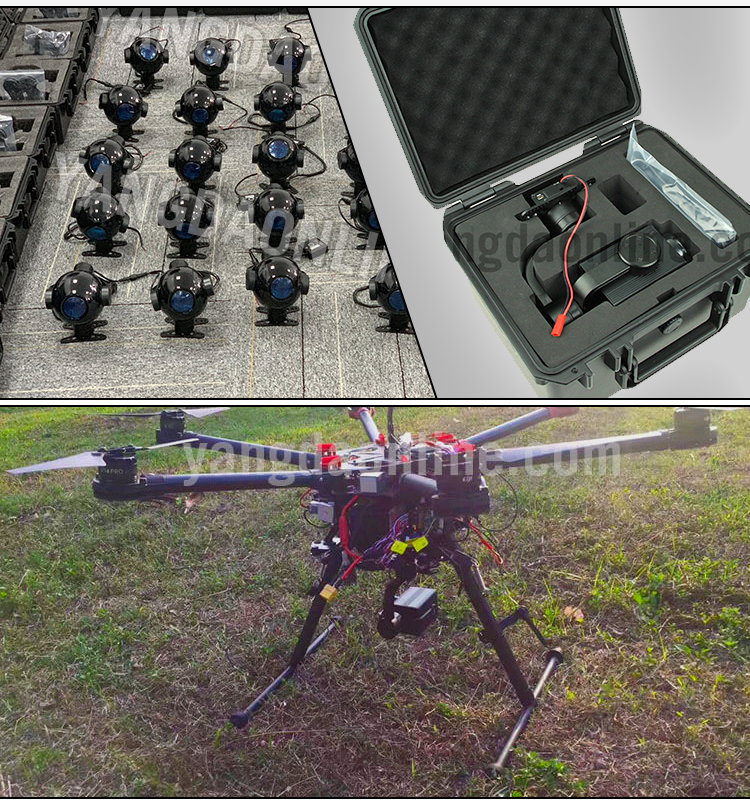

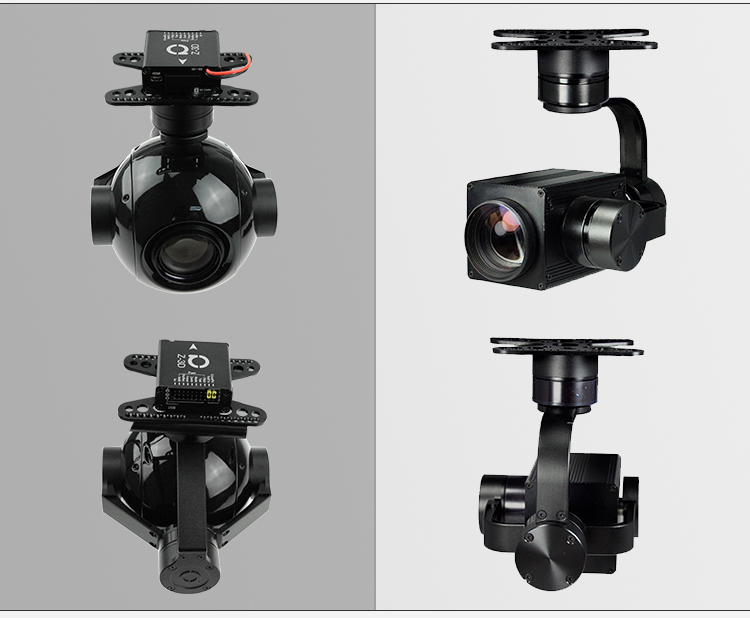

product photo

what we offer



We (Shenzhen Yangda Security Co., Ltd.) offer the latest equipment including RC planes, drones, drone cameras, gimbal cameras, FPV gear and accessories, everything you need to start flying.

If you have any questions, pRental Feel free to contact us via message.



who are we

Yangdao Online is an online remote control store under Shenzhen Yangda Security Co., Ltd., established in 2014, with deep technical experience and passion for drones.

The founder of the company, Jack Ma, has more than 6 years of multi-rotor design and manufacturing experience, and his background is more than 10 years of RC experience.
After years of working in the field, he founded the company with the aim of sharing his experience and resources with all those who dream of flying.

We are a young and passionate team, most of the team members are post-80s and post-90s. So we believe that we have the ability and knowledge to provide our clients with the best service they deserve. Our professional team also includes engineers from various disciplines as designers, full-time purchasing managers, and product testers. Our focus has always been the customer.
