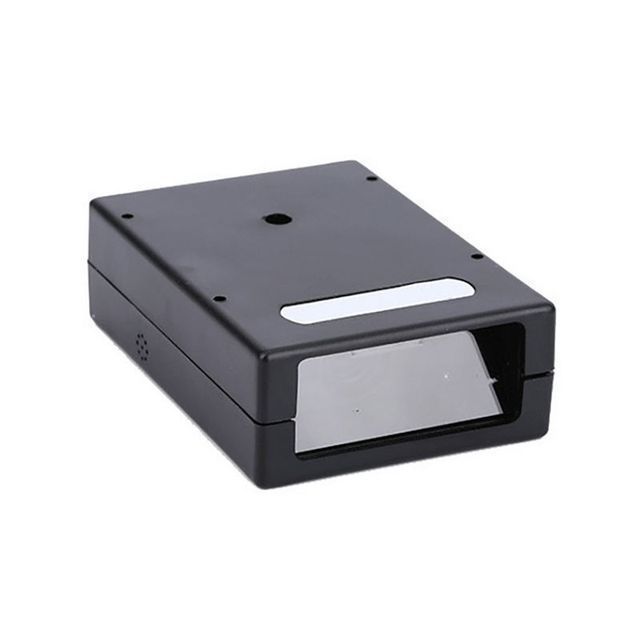

Wired 2d Thermal Scanner Qr Code and Fast Decoding Mini ccd/coms Barcode Reader Module

Supplier: Shenzhen Oscan Electronics Co., Ltd
Region: Guangdong, China
Contact: Ms Selina Huang
Price: $58.00 / 2 - 19 pieces
$55.00 / 20 - 49 pieces
$50.00 / 50 - 999 pieces
$32.00 / >=1000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Scan mode:	1D 2D Qr Code Barcode Scanner USB Cable	brand:	OSCY
Gross weight per piece:	0.500 kg	model:	OBC-202M
interface:	USB2.0	Packaging Details:	Best Price Wired Portable Handheld USB Barcode Reader Cheap 1D Laser Barcode Scanner Barcode Scanner, Scan Barcode Scanner, Handheld Barcode, 1D Barcode Scanner, Mini Barcode Scanner, Laser Barcode Scanner, Mini Barcode Scanner, 1D Scanner, 2D Scanner, 2D Code Scanner
Sales unit:	single product	Imaging sensor:	CMOS
place of origin; place of origin:	China	index:	Siren and LED lights
Color Depth:	32 bit	Single package size:	8X5X3 cm
Scan element type:	CCD/COMS	size:	70.35022.4mm
product name:	barcode scanning module	color:	Black
Scan speed:	100 times/second	Certification:	CE/RoHS
Warranty (year):	1 year	weight:	51 grams

Product Description

Two-dimensional wired CCD/COMS module barcode reader, which can scan two-dimensional barcodes on paper and on the screen at the same time

It can be embedded in various devices as a barcode reading component application. Widely used in production equipment, logistics warehousing, banking systems, medical systems, storage cabinets, exhibition halls, ticket inspection machines, vending machines and other fields

Model	OBC-202M
Infrared sensing distance	150 - 200 mm
light source	650nm visible red light emitting diode
Image Resolution	≥4 million
minimum contrast	≥30%
decoding speed	100 times/second
data port	USB
Dimensions (LxWxH)	70.3×50×22.4 mm
Weight (excluding cables)	51 grams
index	Siren and LED lights
Operating Voltage	DC5V
Maximum current	95 mA
recharging current	450mA
Storage temperature	-40°C ~ 60°C
Operating temperature	0°C ~ 50°C
Relative humidity	0 ~ 95%
height range	1.5m
degree of protection	IP52
barcode type	UPC/EAN/JAN,UPC/EAN with supplementals, UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll, Code39 Trioptic, Code128,Code128 Full ASCll Codabar, Code93, Discrete 2 of 5 IATA, RSS vanrians, Codabar, chinese 2 of 5, Interleaved 2/5, Interleaved 2 of 5, International General size barcode

application
