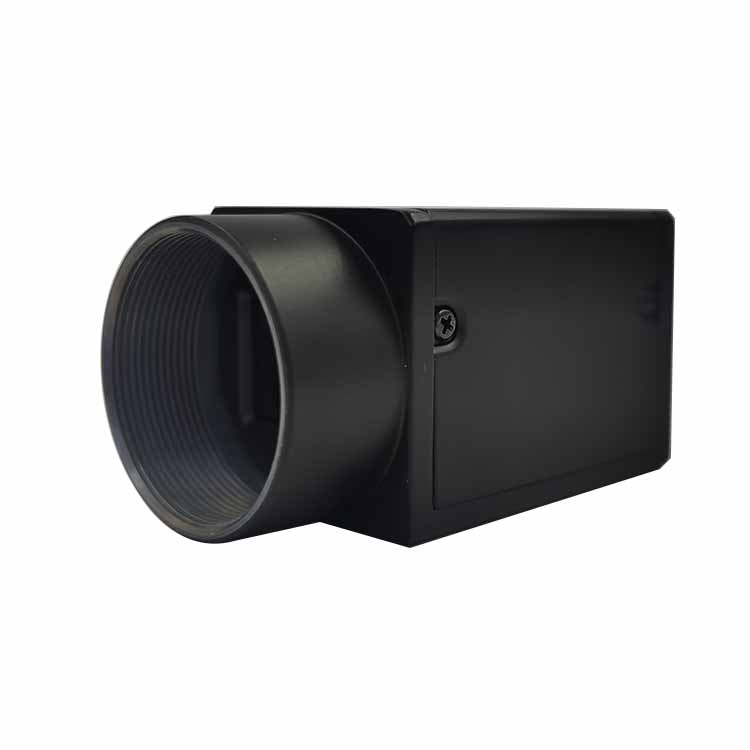

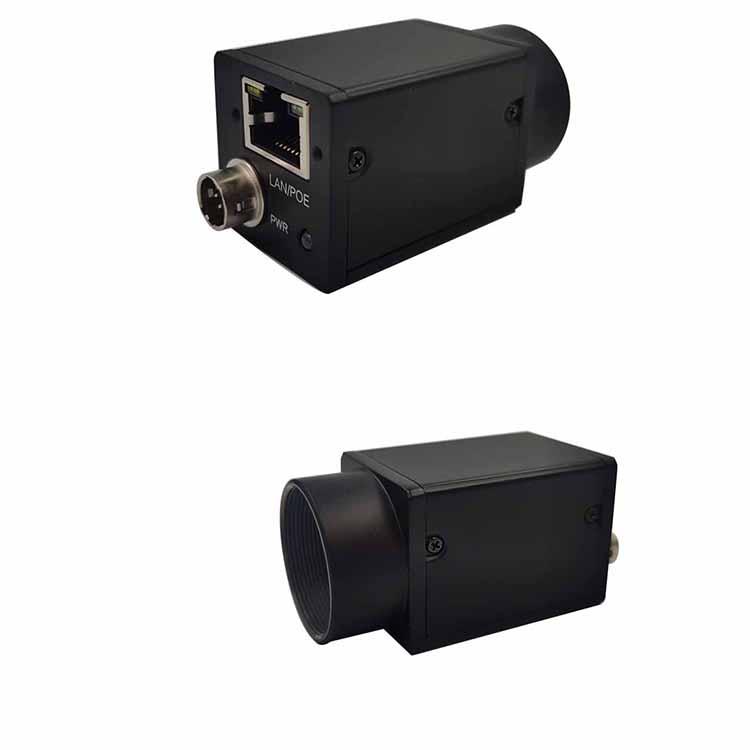

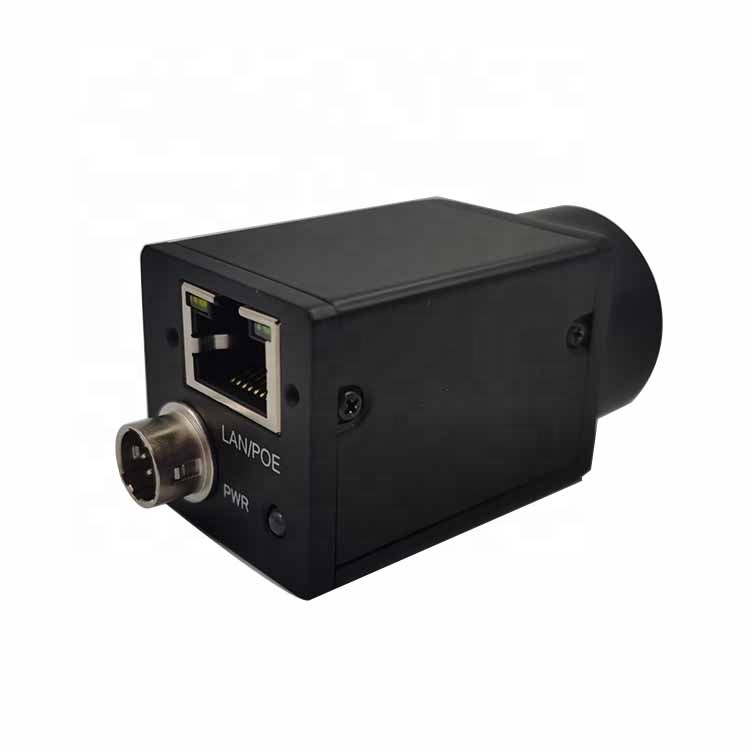

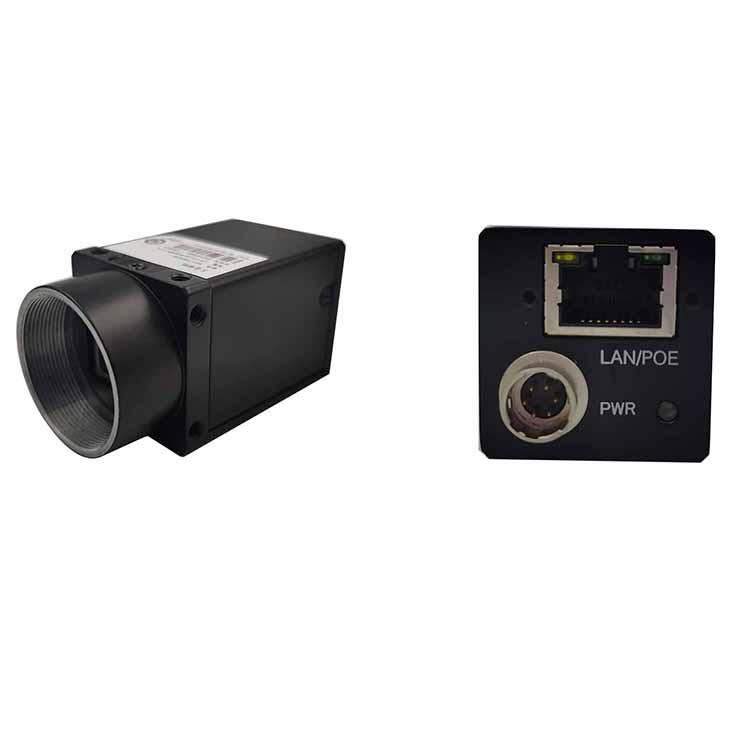

LANO Color Rolling Gigabit Ethernet Gige Industrial Camera Area Scan Camera for Machine Vision

  • Supplier: Lano Photonics Co., Ltd.
  • Region: Jilin, China
  • Contact: Ms Jasmine LI
  • Price: $360.00 / 1 - 499 pieces
    $180.00 / 500 - 999 pieces
    $98.00 / >=1000 pieces
  • Min. Order: 1 piece

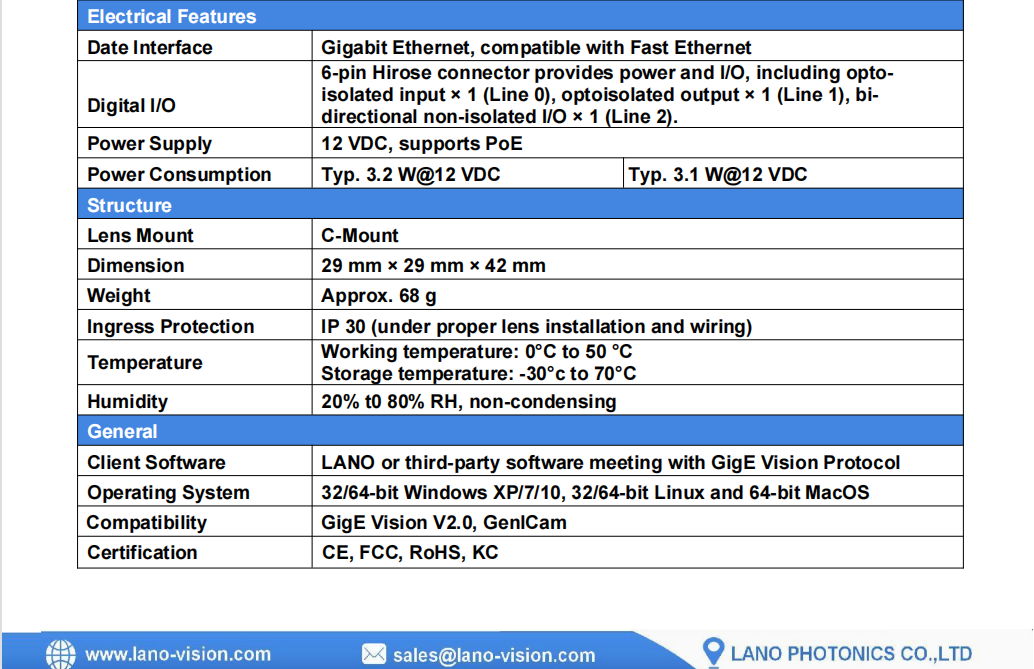

Product details

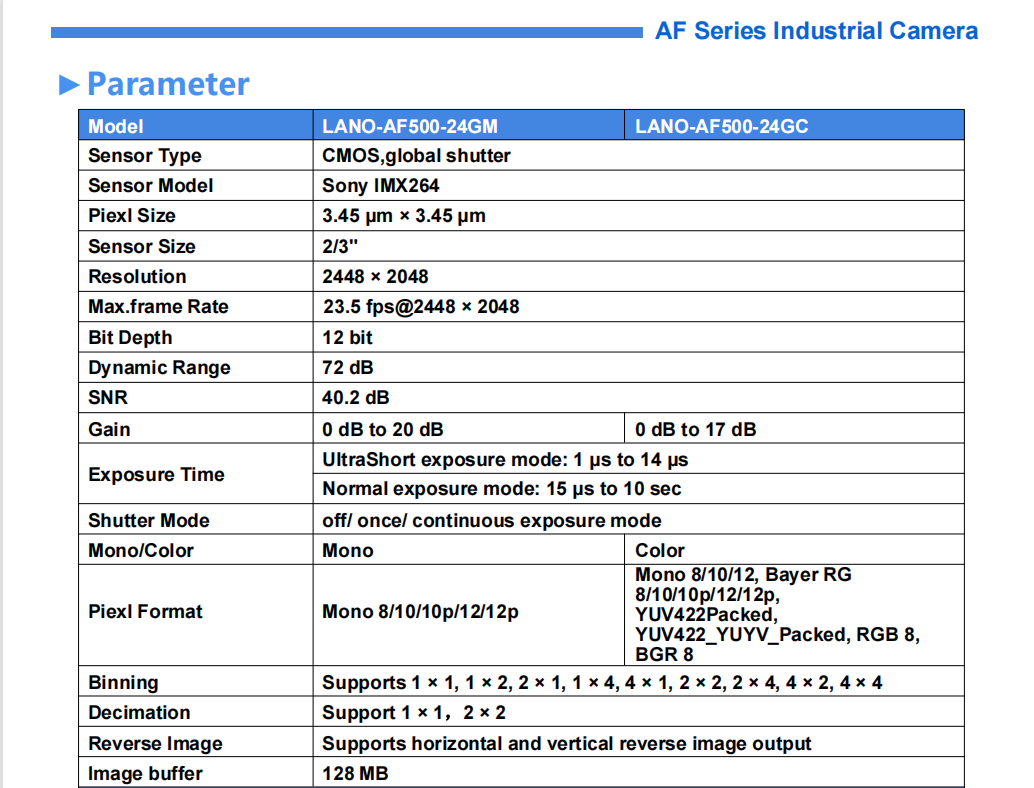

Package preview:solve:2448*2048
Maximum frame rate:23.5 frames/sec@2448 * 2048Imaging sensor:IMX249
Date interface:Gigabit Ethernet, Fast Ethernet compatibleLens mount:Type C interface
Sensor model:Sony IMX264Private Mold:Yes
sensor type:CMOS, global shutterImage buffer:128MB
model:LANO-AF500-24GMGCSensor size:2/3"
screen size:< 2"media type:DVD
Scan speed:23.5 frames/sec@2448 * 2048Origin:Jilin China
brand:LanoPixel Dimensions:3.45 microns*3.45 microns
Packaging Details:1. Packaging Details: A. Standard carbon and plastic bubble wrap. B. Safe green carton. C. Customized. 2. Delivery details: within 25 days. (also depends on quantity)payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal
Product Description
LANO-AF500-24GMGC adopts Sony IMX264 sensor and global shutter exposure, which has the characteristics of high definition, high precision and low noise;
Covering multiple resolutions, multiple data transmission methods, and stable performance;
It can be widely used in manufacturing quality control, electronics, semiconductor and component testing, food and beverage, medicine and other fields.
It can also work stably in various harsh environments. It is an industrial camera product with high reliability and high cost performance.
Product advantages
●Support ISP automatic or manual adjustment of sharpness, noise reduction, exposure time, gamma correction, brightness, contrast, etc.
Function.
●Support multiple image data format output, ROI, Binning, mirroring, etc.
●Support hard trigger, soft trigger and free running mode.
●Compact and strong structure, small size, suitable for more severe installation conditions.
Standard GigE Vision, Compatible with GenICam,
GenTL protocol, support third-party image processing software.

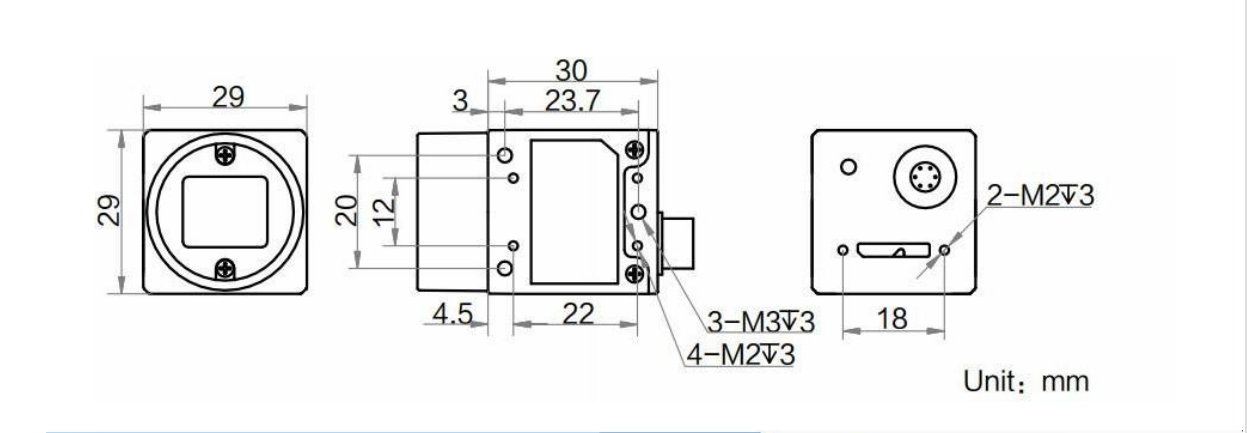

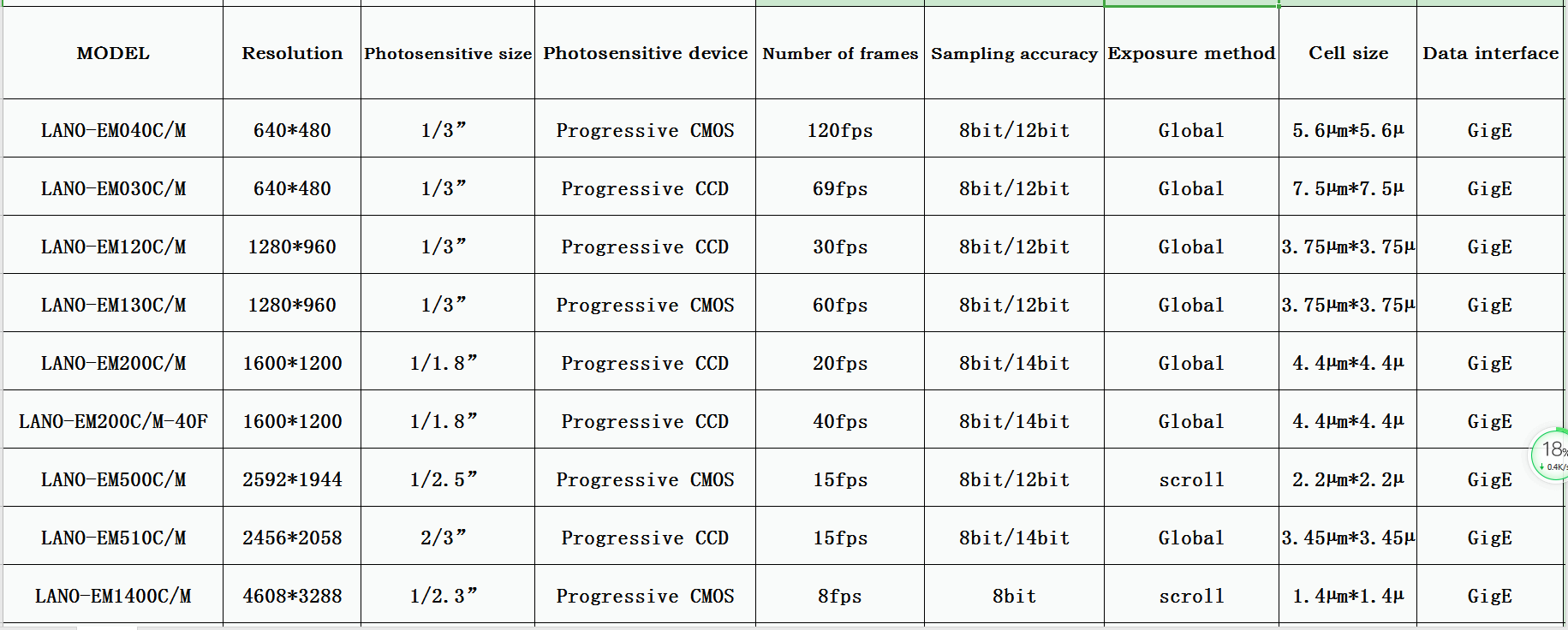

Size Information

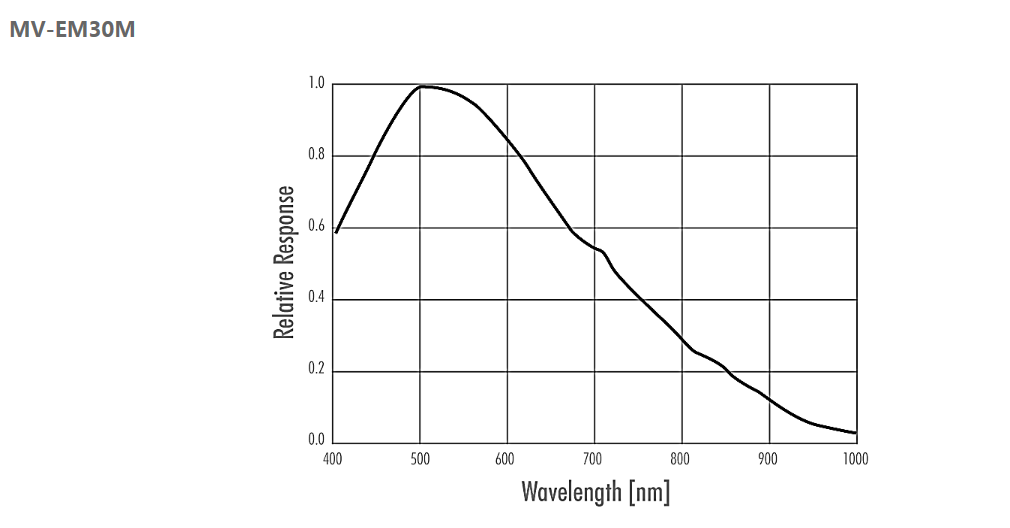

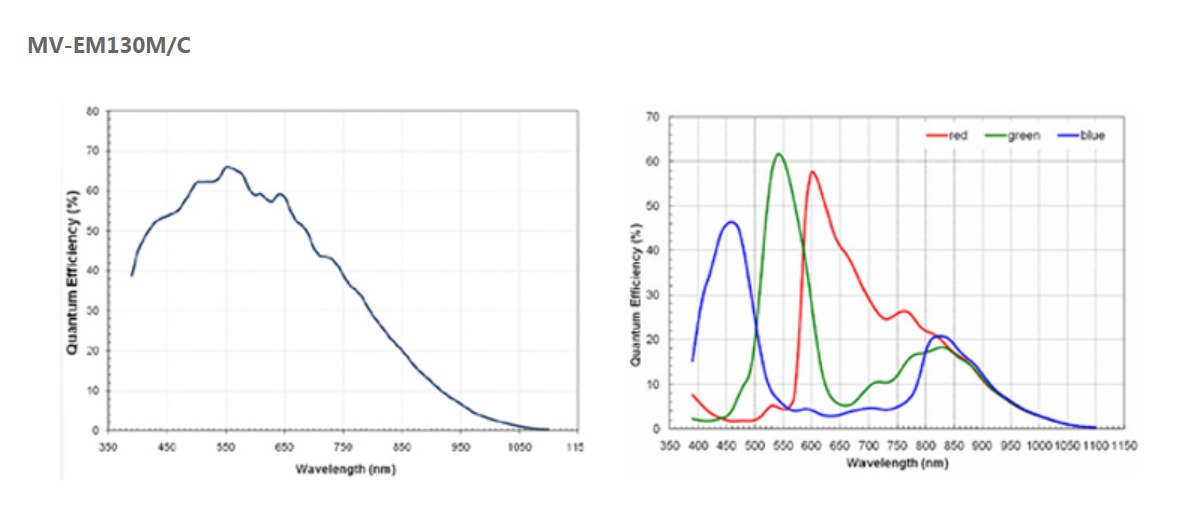

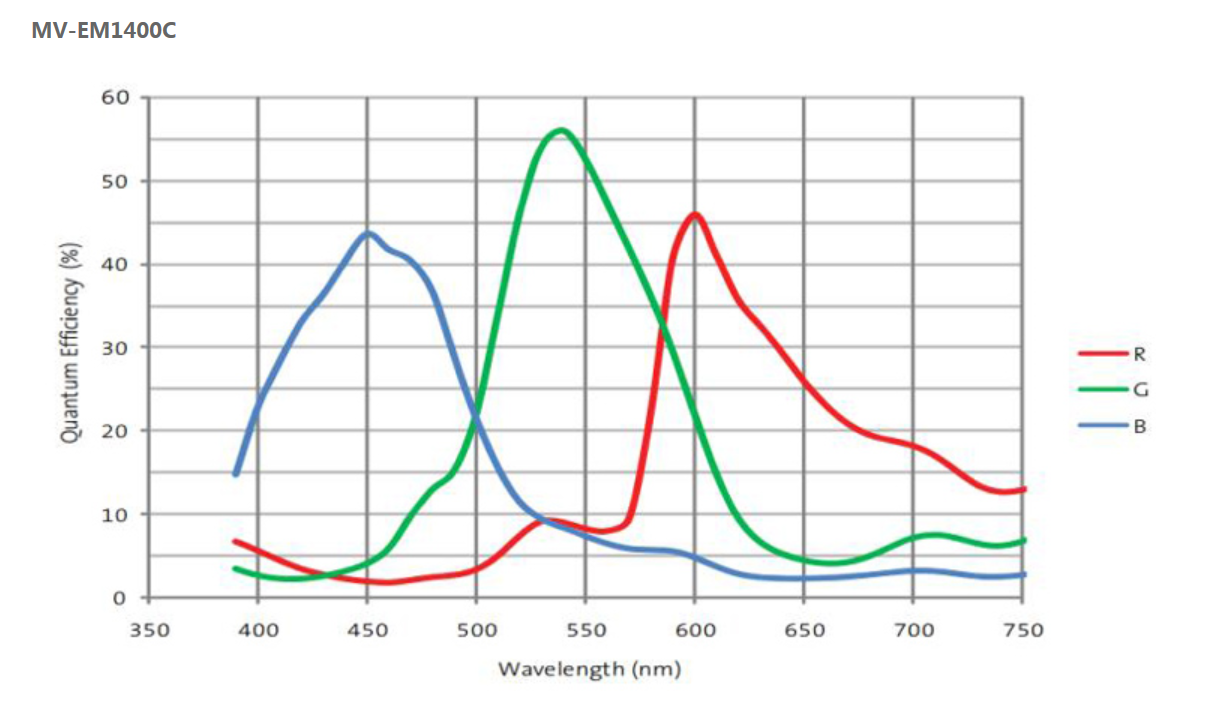

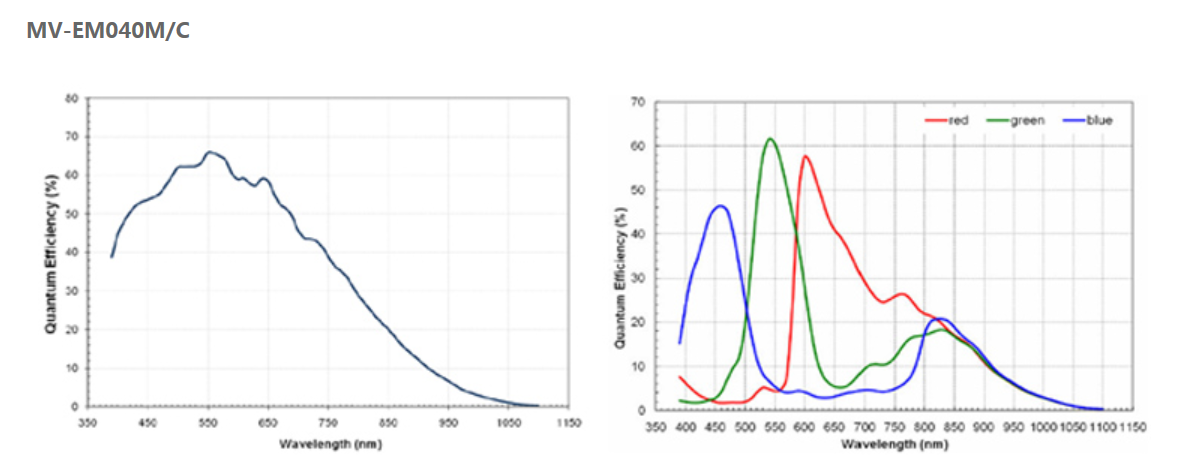

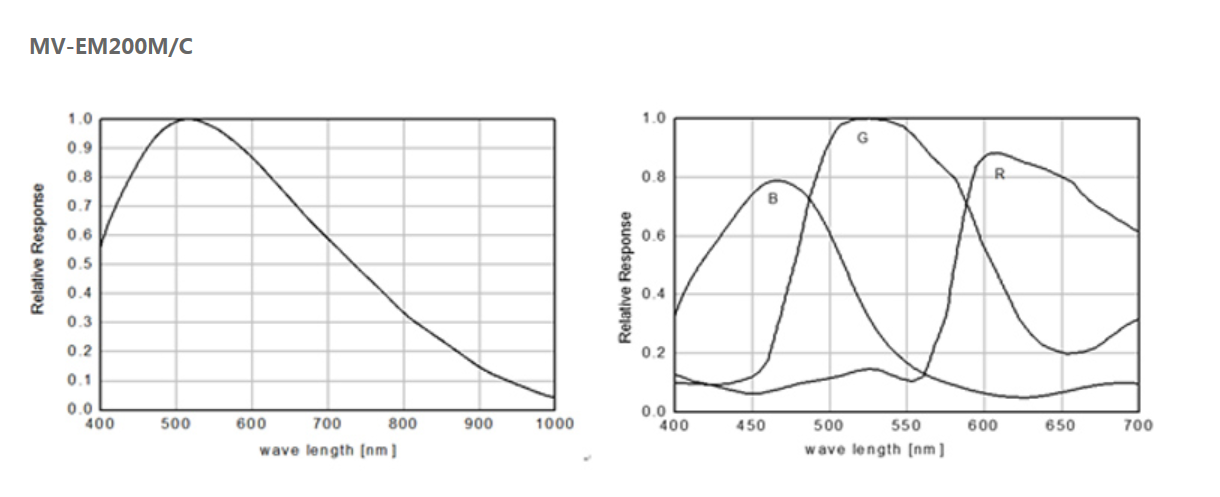

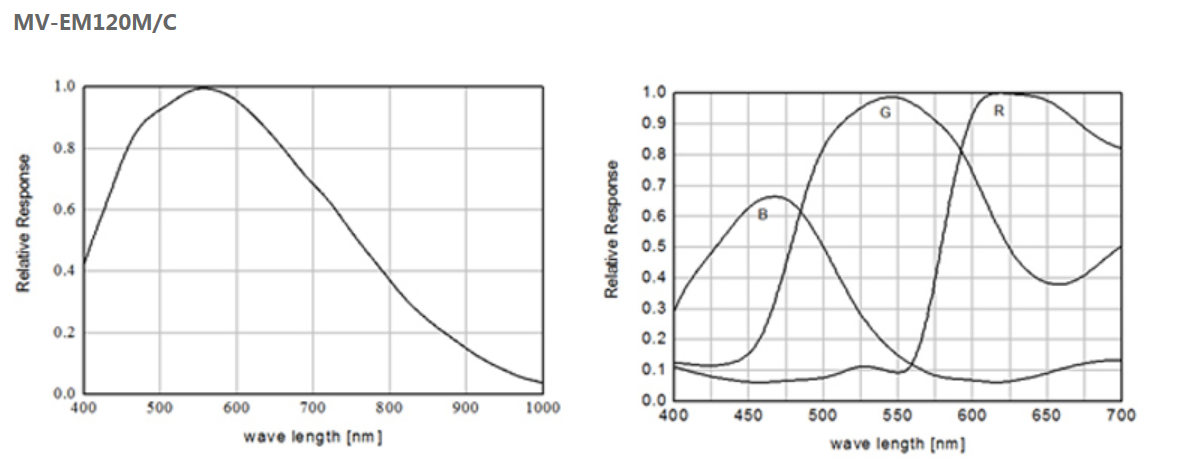

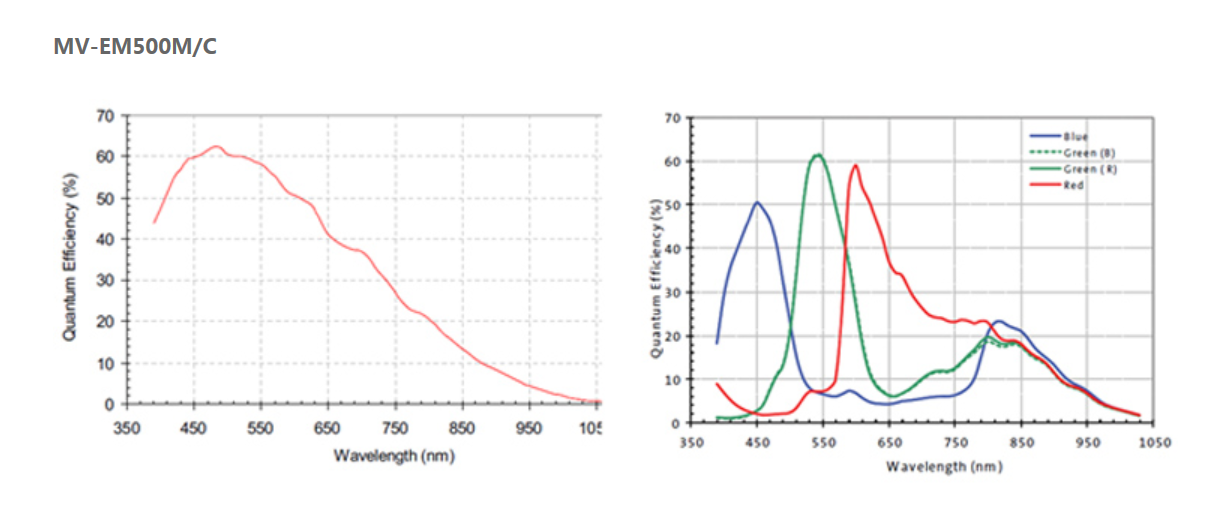

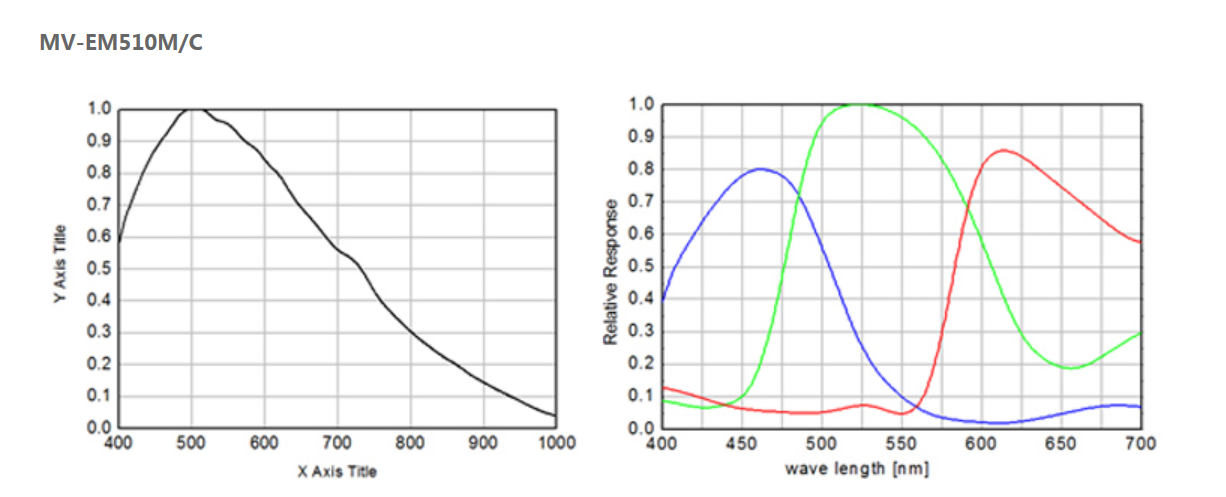

photosensitivity range
