Machinery Manufacturing CE Plate Heat Exchanger Penukar Haba Plat

Supplier: Gansu Nuochen Petrochemical Complete Equipment Co., Ltd.
Region: Gansu, China
Contact: Mr chen
Price: $500.00 / 1 - 4 sets
$450.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Gansu, China	Packaging Details:	Plywood Case/Custom Packaging
Liquid flow rate:	custom made	Maximum diameter:	25-450mm
Packaging Preview:		Certification:	ISO9001:2015
Showroom location:	not any	Marketing Type:	New Products 2022
range of working temperature:	custom made	Plate thickness:	0.5mm,0.6mm,0.7mm,0.8mm,1mm
Gasket Material:	NBR HNBR EPDM H-EPDM S-EPDM VITOM	Supply capacity:	500 sets per month
After-sales service provided:	Online support	Features:	Energy saving and long service life
brand:	Nuochen	Warranty:	1 year
port:	Tianjin harbor	Maximum working pressure:	custom made
Video external inspection:	if	Package:	wooden box
Plate hole:	0 hole, 1 hole, 2 hole, 3 hole, 4 hole	Core Components Warranty:	1 year
Voltage:	custom made	Health status:	new
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Trade Assurance service	Core components:	Plates and Spacers
Maximum flow:	7-450 cubic meters / hour	structure:	Plate Heat Exchanger
weight:	40kg	Applicable industries:	Hotels, food and beverage factories, restaurants, food stores, construction projects, food and beverage stores, others, suitable for mining, metallurgy, petroleum, chemical, machinery, textile, paper, shipbuilding, marine development and other industrial fields
Mechanical test report:	if	Dimensions (LWH):	Depends on specific model
Main selling point:	energy saving	Plate material:	SS304/SS316/SS316L/Titanium/Alloy C276

product description

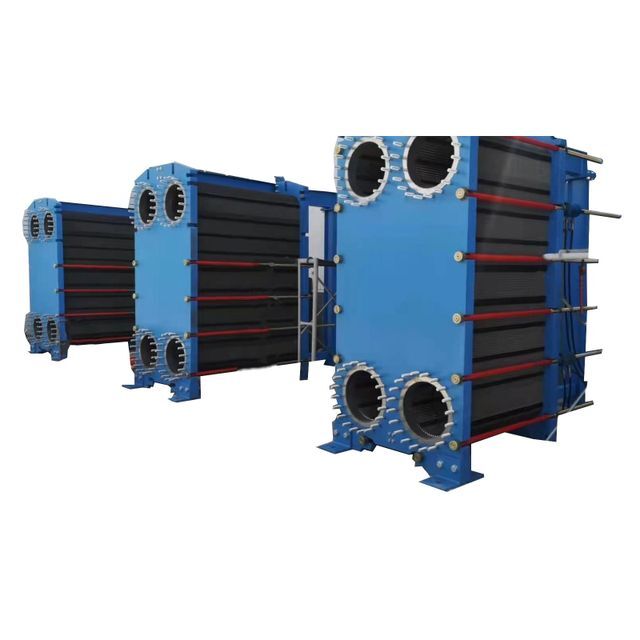

Detachable Plate Heat ExchangerIt is made of several heat exchange plates (corrugated metal plates) sealed with gaskets at a certain distance, heat exchange through the plates, and pressed with clamping studs. Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange.

Product features: high efficiency and energy saving, heat transfer coefficient between 3000 ~ 4500kcal/m2 °C h; the plates are closely arranged and the structure is compact; the splint is clamped by clamping bolts, which is easy to disassemble and clean; the sealing groove is provided with a drainage channel, Various media will not collude.

design pressure	3.0MPa
Connection size	DN25-DN500
Operating temperature	-40℃-180℃
Model	BR series
liquid flow rate	custom made
Certification	CE/ISO9001:2015
Scope of application	Metallurgy, mining, petroleum, chemical industry, electric power, medicine, food, chemical fiber, paper, textile, ship, heating, Other departments, can be used for heating, cooling, evaporation, condensation, sterilization, waste heat recovery, etc.

detailed picture

Click for more details

Product parameters

Plate material	for fluids
Stainless steel (SUS304.316)	Purified water, river water, edible oil, mineral oil
TI, T-palladium	Seawater, brine and salt chemicals
20Cr, 18Ni6Mo(254SMO)	Dilute sulfuric acid, dilute brine solution, inorganic aqueous solution
you	High temperature, high concentration caustic soda
Hastelloy (C276, D205, B2G)	Concentrated sulfuric acid, hydrochloric acid and carbonic acid

Gasket Material	Temperature range (℃)	Corrosion resistance
Nitrile rubber	-20-110	It has good corrosion resistance to chain hydrocarbons (propane, butane, etc.), mineral oils, animal and vegetable oils, aliphatic hydrocarbons, ethylene glycol, and dilute acid and alkali solutions.
Hydrogenated nitrile rubber	-20-165	It has good corrosion resistance to chain hydrocarbons (propane, butane, etc.), mineral oils, animal and vegetable oils, aliphatic hydrocarbons, ethylene glycol, and dilute acid and alkali solutions.
EPDM rubber	-50~150	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, ethylene glycol, organic acids, sodium hydroxide, ethanol, hexadecane, esters, etc.
EPDM rubber	-20~165	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, ethylene glycol, organic acids, sodium hydroxide, ethanol, hexadecane, esters, etc.
EPDM rubber	-20~130	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, ethylene glycol, organic acids, sodium hydroxide, ethanol, hexadecane, esters, etc.
fluororubber	-40~180	Excellent corrosion resistance. Suitable for high concentrations of inorganic acids and bases and polar chemical media, mineral oils, silicone oils and silicone resins, animal and vegetable oils, chain hydrocarbons (propane, butane, mineral oils, etc.), chlorinated hydrocarbons, fuels, non-gas resistant substances, etc.
Neoprene (CR)	-50~100	It is resistant to dilute non-oxidizing acids and bases.
silicon	-65~230	Resistant to dilute acid, alkali and salt water corrosion.
Compressed Fiber (AFM34 SIL-4400)	260	Oil, water and steam (up to 160 °C), gases, salt solutions, fuels, ethanol, organic/inorganic acids, refrigerants, hydrocarbons.
Teflon	-200~260	It has excellent corrosion resistance. Resistant to all chemical media (including concentrated nitric acid and aqua regia) except molten metal lithium, sodium, potassium, chlorine trifluoride, high temperature oxygen trichloride and large flow of liquid fluorine.
