payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | work: | Not applicable |
tolerant: | 1% | Coating, Housing Type: | Not applicable |
Available media: | Data Sheets, Photos, EDA/CAD Models, Others | Number of resistors: | 4 |
Power (Watts): | 62.5mW | Circuit Type: | isolated |
place of origin; place of origin: | Guangdong, China | model: | CAY16-1002F4LF |
Supplier Type: | Original Manufacturer,ODM,Agent,Retailer,Other | brand: | The original |
DC: | up to date | Number of pins: | 8 |
technology: | isolated | application: | General purpose |
Packaging/Case: | 1206 (3216 metric) | Temperature Coefficient: | 200ppm/°C |
Resist: | 1 MΩ to < 1 GΩ | Operating temperature: | -55°C ~ 125°C |
Packaging Details: | Raised face, long side terminal | application: | The original |
Card: | Resistor Network Array | type: | Chip resistors |
rated power: | 0.5W or below | Height - Seated (max): | 0.024 in (0.60 mm) |
Dimensions / Dimensions: | 0.126"L x 0.063"W (3.20mm x 1.60mm) | Installation type: | 1206 (3216 metric) |
Resistor Tolerance: | 1% | type of packaging: | surface mount |

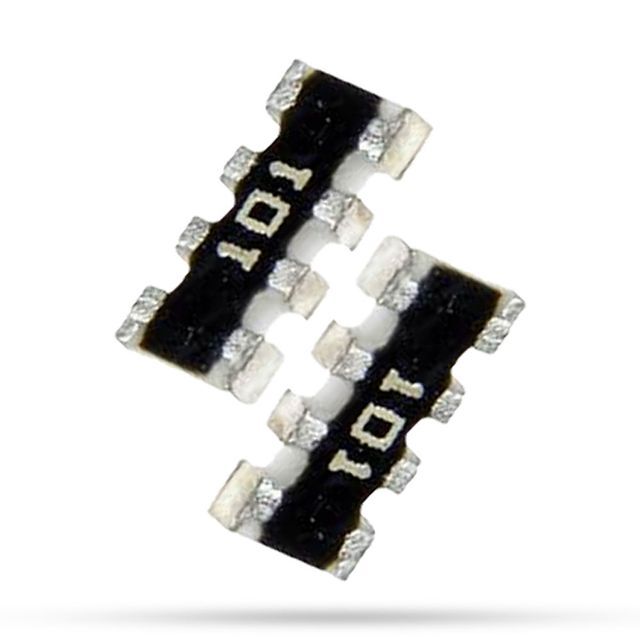

Electronic components original resistor patch 1206 CAY16-1002F4LF spot
type
|
describe
|
---|---|
category
|
Resistor
Resistor Networks, Arrays
|
manufacturer
|
The original
|
series
|
CAY16
|
pack
|
Tape and Reel (TR)
Cutting Tape (CT)
Digi-Reel®
|
Part status
|
positive
|
circuit type
|
isolated
|
Resistance (Ohms)
|
10k
|
tolerant
|
±1%
|
Number of resistors
|
4
|
Resistor matching ratio
|
-
|
Resistance Ratio Drift
|
-
|
Number of pins
|
8
|
power per element
|
62.5mW
|
Temperature Coefficient
|
±200ppm/°C
|
Operating temperature
|
-55°C ~ 125°C
|
application
|
-
|
installation type
|
surface mount
|
Packaging/Case
|
1206 (3216 Metric), Raised Face, Long Side Terminals
|
Supplier Equipment Package
|
1206
|
size/dimension
|
0.126"L x 0.063"W (3.20mm x 1.60mm)
|
Height - Seated (max)
|
0.024 in (0.60 mm)
|
Basic product number
|
CAY16
|
