Head and Block Finishes

  • Supplier: COMEC SRL
  • Region: Pordenone, Italy
  • Contact: Mr Carniel
  • Price: $20434.12 /piece
  • Min. Order: 1 piece
Product details
Main selling point:high productivityWheel diameter:355mm (405mm optional)
Power (kW):4Maximum workpiece width:355mm (405mm optional)
brand:COMECVoltage:400V/50Hz/3ph
Adjustable table feed rate:from 0 to 1500 mm/minAfter-sales service provided:Online support
Surface roughness (μm):1 micronSpindle speed:From 300 to 1500 rpm
Applicable industries:carHealth status:new
place of origin; place of origin:ItalyAfter Warranty Service:spare parts
Video external inspection:Not availableGrinding length (mm):100
Local service location:ItalyWeight (kg):1410
Useful desktop:920*230mmDimensions (L*W*H):2180*1320*1990
Core Components Warranty:2 yearsTable stroke (X) (mm):1310
Packaging Details:Crate/Cage 2300*1200*2240Marketing Type:normal product
Warranty:2 yearsMaximum workpiece length:1125mm
Core components:motorCNC or not:normal
Mechanical test report:Not availableMaximum working height:from 215 to 740 mm
Showroom location:Italypayment terms:wire transfer
Product Description

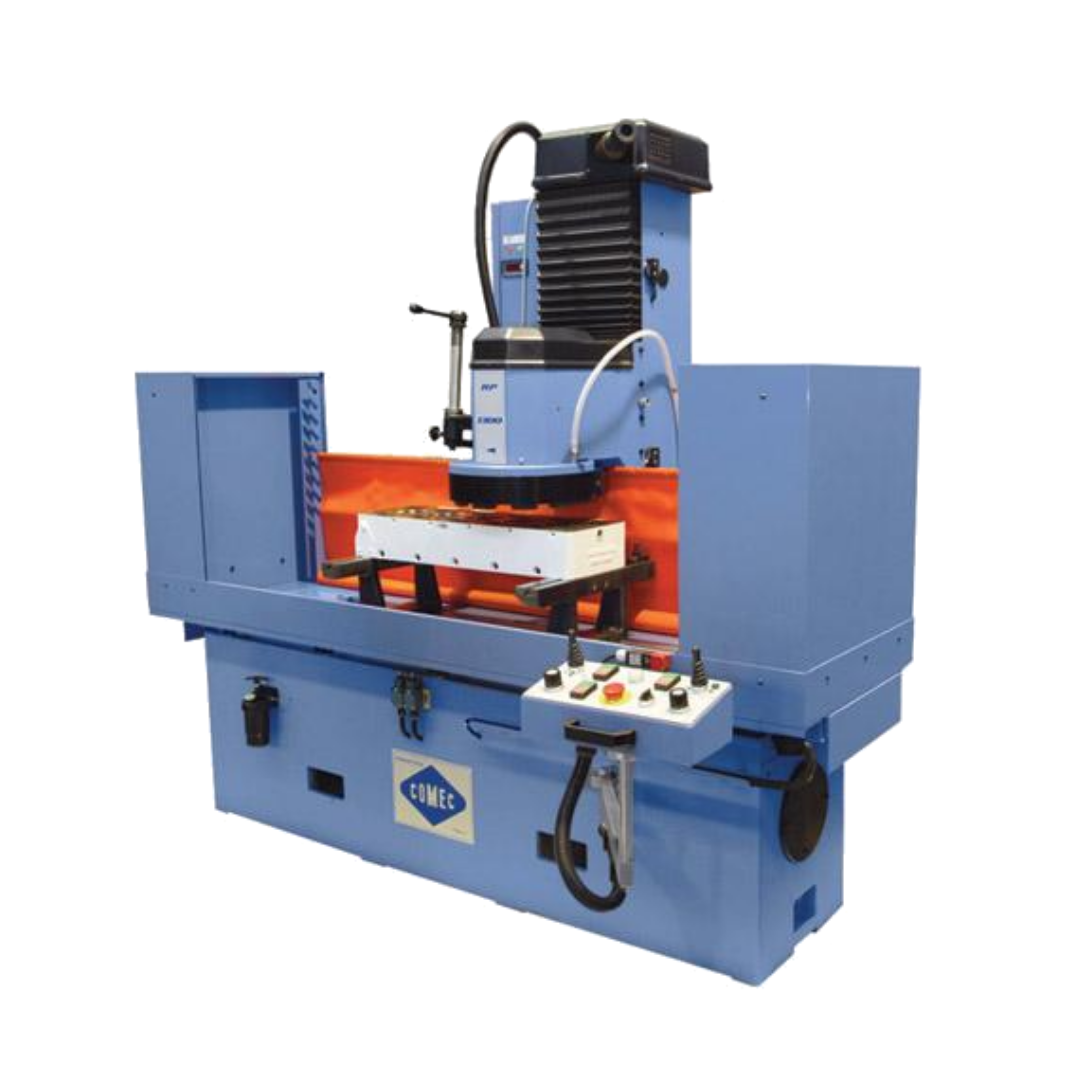

The RP1300 is a resurfacing machine designed for cylinder heads and blocks of cars and trucks, but also for all these flat surfaces
This requires extremely precise side contact.

This model combines tried and tested solutions such as flat surfaces on the base and V-shaped lube slides (guarantee excellent
running fluidity), with other more innovative features such as table feed via a recirculating ball screw, with a wide range of
regulation or inverter for spindle speed regulation. Additionally, the RP1300 has an efficient cooling system including a water tank
on wheels and wheel dressers. For easy and safe use of the machine, all control commands are located on the swing
Arm control panel for each operator;

Standard version includes a segmented grinding wheel for cast iron or aluminium and front chamber cylinder head resurfacing and
Brazing tools for aluminium machining.
Available as optional CBN-PCD tool holder plate for high-speed dressing of cast iron and aluminum bits
Specification
thing
value
CNC or not
normal
Health status
new
Grinding length (mm)
100
Surface roughness (μm)
1 micron
Table stroke (X) (mm)
1310
place of origin; place of origin
Italy
brand
COMEC
Voltage
400V/50Hz/3ph
Size (L*W*H)
2180*1320*1990
Weight (kg)
1410
Power (kW)
4
Warranty
2 years
Online support
main selling point
high productivity
after-warranty service
spare parts
Showroom Location
Italy
local service location
Italy
Marketing Type
normal product
Mechanical Test Report
Not available
Video checkout
Not available
Core Components Warranty
2 years
core components
motor
Applicable industries
car
Maximum workpiece length
1125mm
Maximum workpiece width
355mm (405mm optional)
maximum working height
from 215 to 740 mm
useful desktop
920*230mm
Wheel diameter.
355mm (405mm optional)
Spindle speed
From 300 to 1500 rpm
Adjustable table feed rate
from 0 to 1500 mm/min
