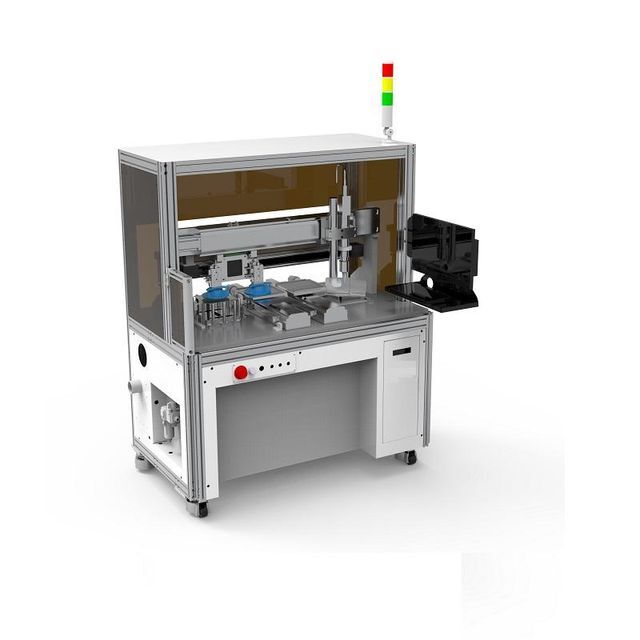

High-speed automatic solar cell laser dicing machine

Supplier: Jinan Artech Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Leon Xu
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	20 sets per month	place of origin; place of origin:	Shandong China
Weight (kg):	600kg	Certification:	ce
Showroom location:	not any	Local service location:	not any
Supported graphic formats:	DXF	brand:	ARTECH CBC
Laser head brand:	ARTECH	Applicable materials:	Monocrystalline silicon, polycrystalline silicon and solar cells
Applicable industries:	manufacturing plant	Warranty:	2 years
application:	laser scribing	cooling method:	air cooling
Packaging Details:	wooden box	controlling software:	automatic
Laser source brand:	Rex	After-sales service provided:	Online support
port:	any port in China	CNC or not:	Yes
After Warranty Service:	Video technical support	Laser Type:	fiber-optic laser
Health status:	new	Rail brand:	silver
Main selling point:	flexible manufacturing	Control system brand:	ARTECH CNC
payment terms:	letter of credit, wire transfer

1. Equipment introduction

It is suitable for laser scribing of monocrystalline silicon, polycrystalline silicon and solar cells, and can realize functions such as automatic feeding, battery positioning, laser scribing, and robotic arm loading and unloading. Professional control software, maintenance-free, easy to operate.

2. Technical parameters

Model	SFS-30AD
Laser power	30W
Laser wavelength	1064 nm
Scribing speed	Maximum 600mm/s
Line width	≤40μm
Scribing depth	20-120μm; (adjustment)
Scribing accuracy	±0.1mm
Targeting	Mechanical positioning
scribing ability	2000 intact cells/hour
damage rate	≤0.15%
Solar Cell Specifications	156×156-158×158mm
size	1260×760×1600
net weight	0.6 tons

3. Equipment Features

Advanced scribing technology:

Using Raycus laser source, the beam quality is good, the laser scribing is slender, the cutting surface of the solar cell is more uniform, the damage to the solar cell is small, and the cutting precision is high.

high efficiency

Fast laser scribing with a production capacity of 2000 whole cells/hour

Precise positioning

Automatic positioning of solar cells, positioning accuracy ≤±0.1mm

high degree of automation

Automatic loading and unloading of solar cells, automatic positioning, automatic marking. Stable performance, low failure rate, easy maintenance.
