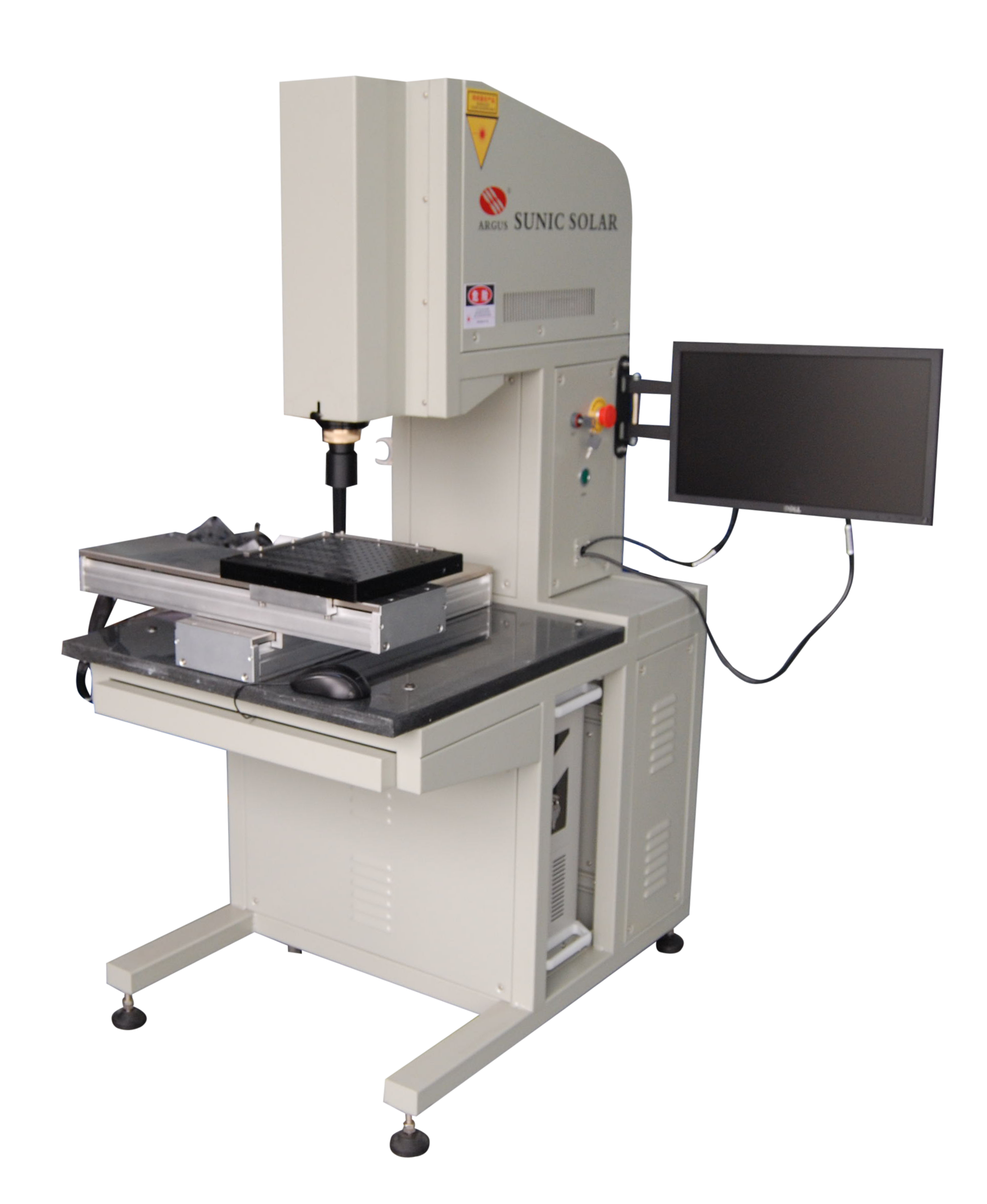

Wafer Slicer Wafer Slicer Wafer Saw
-
Supplier: Wuhan Sunic Photoelectricity Equipment Manufacture Co., Ltd. -
Region: Hubei, China -
Contact: Mr Zenger zeng -
Price: $12000.00 /set -
Min. Order: 1 set
Product details
| After Warranty Service: | Video technical support, online support | port: | China's main ports |
| Supply capacity: | 120 sets of solar cell liners per month | application: | laser scribing |
| Line width: | <30μm | Solar cell scriber accuracy: | ≤±10μm |
| controlling software: | SUNIC | Main selling point: | high accuracy |
| Laser Type: | fiber-optic laser | After-sales service provided: | On-site installation, commissioning and training, engineers can service machinery overseas |
| Health status: | new | Supported graphic formats: | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| Maximum scribing speed: | 200mm/s solar cell dicing machine | Packaging Preview: | |
| Control system brand: | Sunick | Warranty: | 1 year |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | cooling method: | air cooling |
| Laser frequency: | 20kHz~200kHz | Solar cell dicing machine cooling method: | air cooling |
| Laser source brand: | Rex | Weight (kg): | 100kg |
| Local service location: | UK, Mexico, Australia, Romania | Operating temperature: | 0-35℃ |
| payment terms: | L/C,T/T,Western Union | Applicable materials: | Monocrystalline, polycrystalline, amorphous silicon, solar cells. |
| Packaging Details: | Standard wood packaging for export, customs free for fiber laser scribers. | working desk size: | 210*210mm or 350*350mm solar cell dicing machine |
| CNC or not: | Yes | Solar cell dicing power supply: | 220V/50Hz (customized) |
| Certification: | ce,ISO,Sgs | Laser wavelength: | 1064 nm |
| brand: | Argus | place of origin; place of origin: | Hubei, China |
| Showroom location: | UK, Mexico, Romania, Australia |
Product Description
Laser Scribing Machine, Fiber Laser Scribing Machine, Solar Cell Cutting Machine, Solar Cell Laser Scribing Machine, Solar Cell
Scribing machine, silicon wafer fiber laser scribing machine.
1. New product sunic laser solar cell dicing machine laser dicing machine. The newly designed mechanical structure makes the whole machine
Simpler and easier to operate. Rewrite part of the source code of the solar cell dicing machine laser dicing machine software,
Make sure to run more and more stable and fast.
2. High quality laser dicing machine/solar cell dicing machine. Imported fiber lasers show better laser beam quality (standard
base model), thinner cutting seams and smoother cutting edges.
3. Independent research and development of photovoltaic cell laser cutting/solar cell dicing machine. International standard module design, no need
Maintenance can keep the new solar cell dicing machine laser dicing machine running continuously.
4. Easy to operate It is integrated into the machine, the equipment is smaller and the operation is more convenient. controlling software
Solar cell dicing machine Laser dicing machine is specially designed for fiber laser dicing machine by our company Sunic Laser.
5. The T-type double-sided worktable of the fiber laser dicing machine runs alternately to improve work efficiency.
The laser scribing machine can reach 20mm/s.
Scribing machine, silicon wafer fiber laser scribing machine.
1. New product sunic laser solar cell dicing machine laser dicing machine. The newly designed mechanical structure makes the whole machine
Simpler and easier to operate. Rewrite part of the source code of the solar cell dicing machine laser dicing machine software,
Make sure to run more and more stable and fast.
2. High quality laser dicing machine/solar cell dicing machine. Imported fiber lasers show better laser beam quality (standard
base model), thinner cutting seams and smoother cutting edges.
3. Independent research and development of photovoltaic cell laser cutting/solar cell dicing machine. International standard module design, no need
Maintenance can keep the new solar cell dicing machine laser dicing machine running continuously.
4. Easy to operate It is integrated into the machine, the equipment is smaller and the operation is more convenient. controlling software
Solar cell dicing machine Laser dicing machine is specially designed for fiber laser dicing machine by our company Sunic Laser.
5. The T-type double-sided worktable of the fiber laser dicing machine runs alternately to improve work efficiency.
The laser scribing machine can reach 20mm/s.
technical parameter
Technical indicators | technical parameter |
Model Specifications | SFS20 |
Laser wavelength | 1064 nm |
Laser power | 20W |
Laser repetition rate | 20Khz-100khz |
Maximum scribing speed | 200mm/sec |
Line width | ±10 microns |
Line width | <30μm |
Work platform size | 350x350mm |
power supply | 380V(220V)/50HZ/1.5KVA (customized) |
cooling method | forced air cooling |
Operating temperature | 0-35℃ |
Working humidity | 5-95% |
pack | Export standard wooden packaging, free of customs suffocation |
work platform | Double air chamber vacuum adsorption, T-shaped platform double station work in turn |
