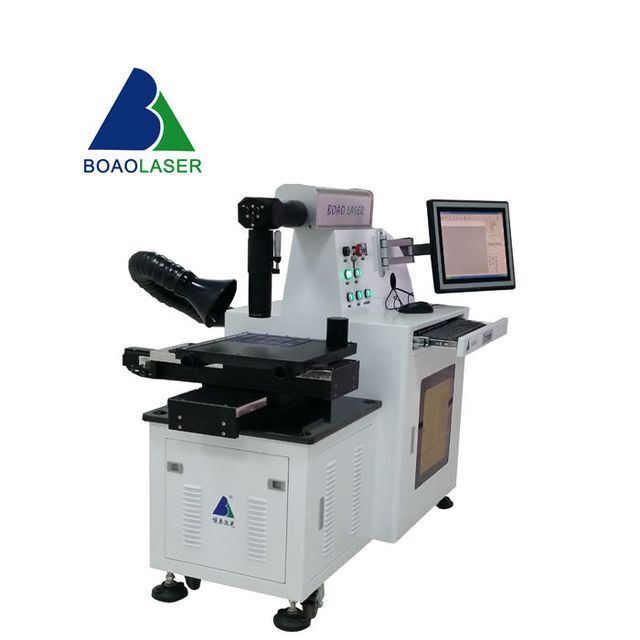

Fiber laser cutting machine with solar cells

Click here to contact

Product details

Supported graphic formats:	AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP	Weight (kg):	200kg
place of origin; place of origin:	Beijing China	port:	Tianjing, China
Supply capacity:	50 sets per month	Marketing Type:	New Products 2019
Video external inspection:	if	Cutting Size: 300x300mm:	Servo motor table
Local service location:	Italy	controlling software:	CNC
brand:	Boao Laser	Applicable industries:	Mechanical Repair Shop
CNC or not:	Yes	Applicable materials:	Leather, MDF, Metal, Paper, Plastic, Plexiglass, Plywood, Rubber, Stone, Wood
After Warranty Service:	Video technical support, online support, spare parts	After-sales service provided:	Provide overseas service center, online support
Health status:	new	application:	laser scribing
200,000 hours working life:	CE ISO 9001:2000	Packaging Details:	Wooden crate with bottom pallet
Showroom location:	Italy	Certification:	Certification, ISO
Warranty:	2 years	Solar cell cutting:	Solar cell scribing application
Mechanical test report:	if	Main selling point:	easy to operate
Core Components Warranty:	2 years	Core components:	laser source
cooling method:	air cooling	Scribing speed: 180mm/s:	air cooling
payment terms:	letter of credit, wire transfer	Laser source brand:	Boao Laser
Laser Type:	fiber-optic laser

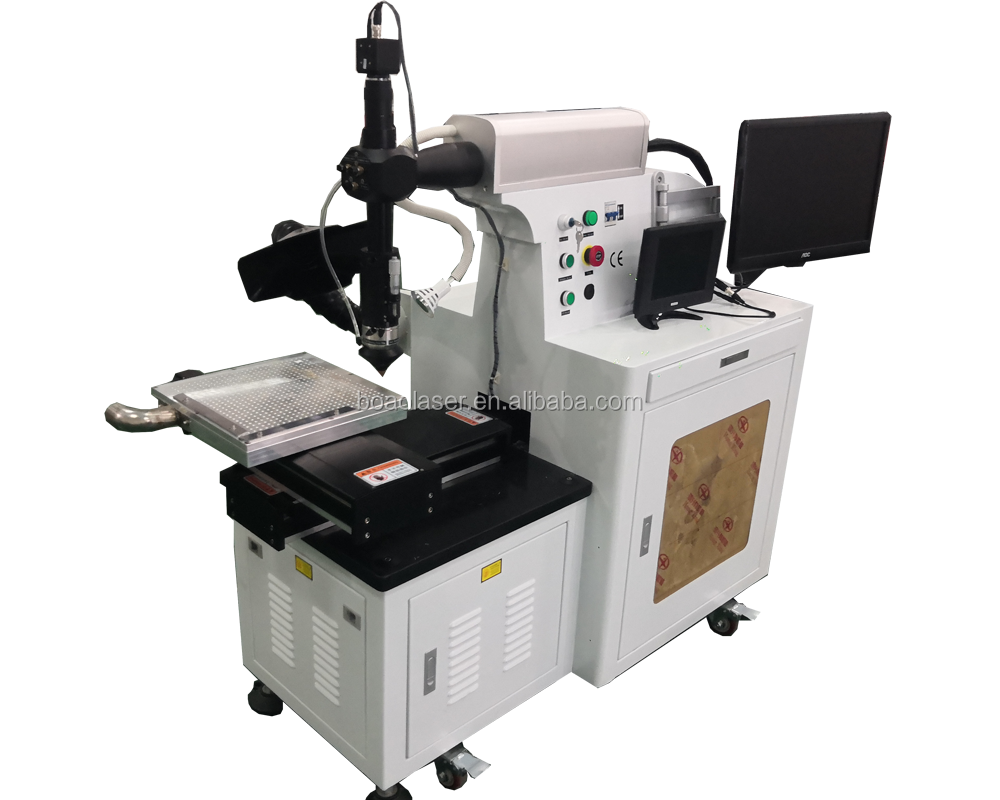

Machine introduction

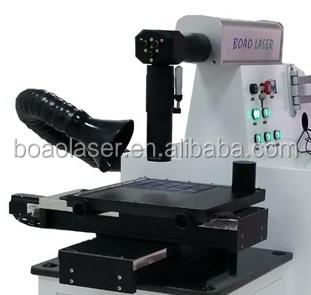

main part

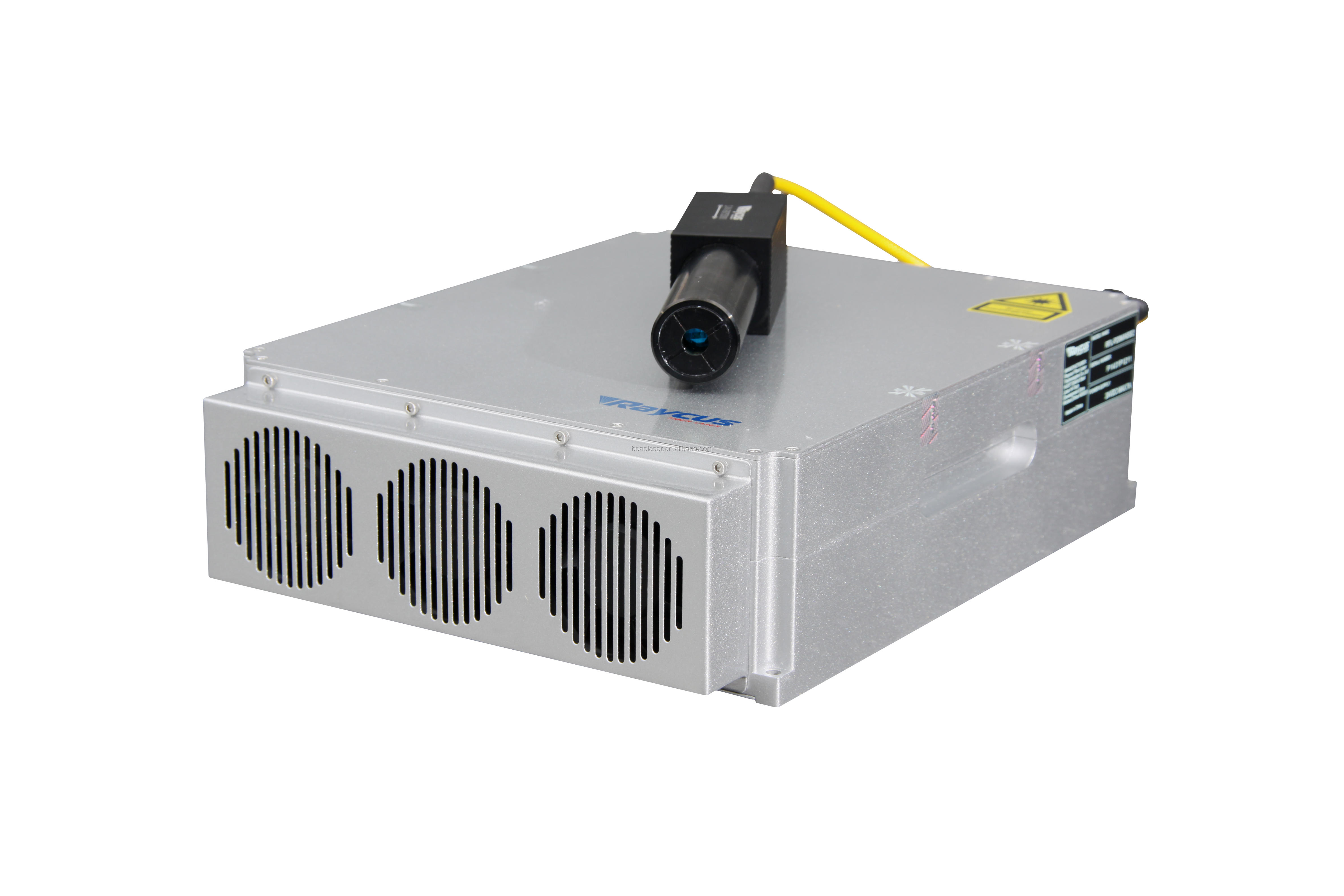

laser source

Original Raycus fiber laser source

Laser cutting head

Boao Laser China

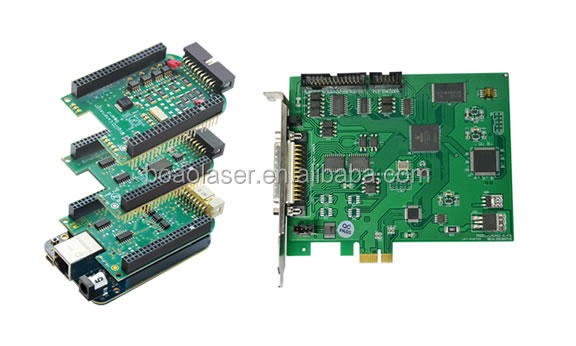

Laser Cutting Software

CNC2000/3000

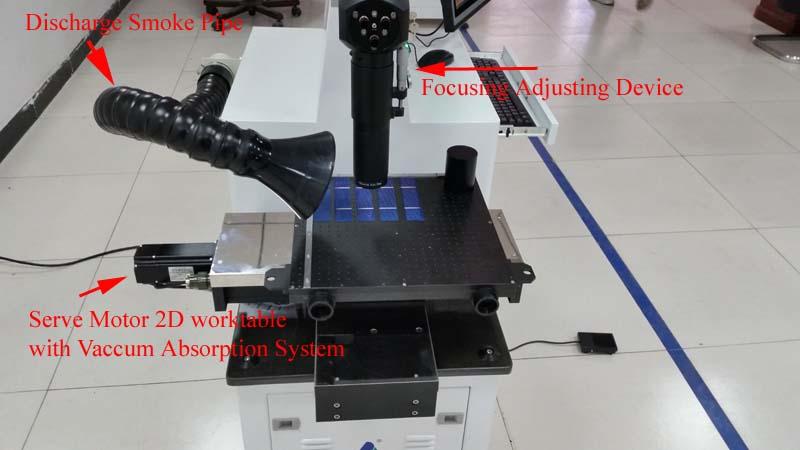

worksheet

300*300mm stroke, PC software control, accuracy +-0.015mm

Vacuum adsorption function

Vacuum suction function with table

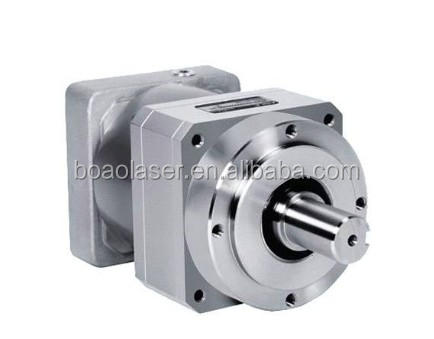

Servo motor system

Servo Motor Control Table

technical parameter

model:	BFC20/30/50/100
Laser type	Raycus China
Laser wavelength	1060nm
Laser maximum power	20W/30W/50W/100W
maximum. Cutting thickness	1.2mm-1.5MM
suitable material	silicon water, glass, solar panel
Cut size	300*300mm
Laser repetition rate	200Hz~50kHz
Scribe Accuracy	≤±10μm
Maximum scribing speed	150mm/s / 180mm/s
Minimum line width	≤0.15mm
Scribing accuracy	±10 microns
work platform	Adsorption of a vacuum pump on a 2D programmed mobile platform.
cooling system	air cooling
Continuous working time	24 hours
ambient temperature	0-35°C
Power requirements	220V(220V)/50Hz/1kvA
