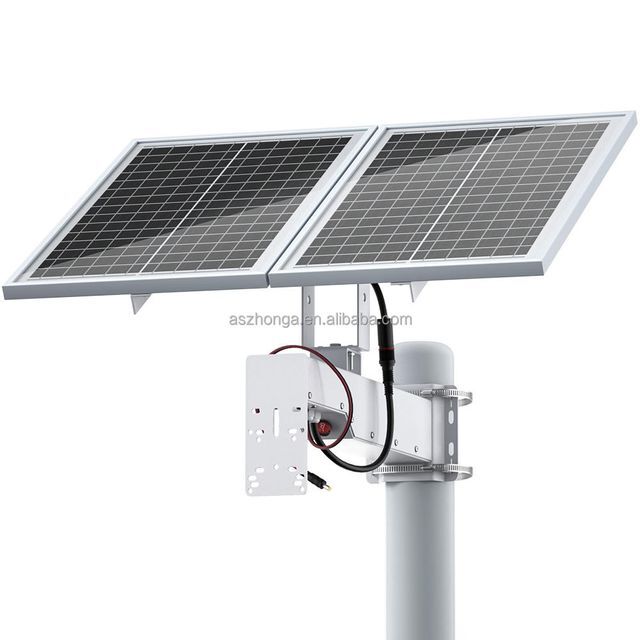

Solar System Off-Grid Energy Storage System Lithium Battery Family Farm Island Outdoor 4G Router Lighting Surveillance Camera

Supplier: Shenzhen Aoshi Zhongan Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr ZHANG
Price: $84.55 /set
Min. Order: 1 set

Click here to contact

Product details

DC output:	12V 5A	Output voltage (V):	12V
Output frequency:	DC output	Packaging Preview:
model:	SP60-20/30-221	Warranty:	1 year
Function two:	Over discharge protection	Solar Panel Process:	single crystal silicon whole cell
Installation type:	Roof Mount	Free installation service:	Do not
Function three:	Overcharge and overcurrent protection	Controller type:	PWM
Sales unit:	single product	Function one:	Short circuit protection
type of battery:	Ternary lithium battery, lithium ion	Gross weight per piece:	14.000 kg
Pre-sales project design:	Yes	application:	Family
Power Management Controller:	Built-in PWM	place of origin; place of origin:	Guangdong, China
Nominal capacity:	20/30Ah	Working hours (hours):	24 hours
Solar panel type:	Monocrystalline silicon	Packaging Details:	The whole set is packed in protective foam into a complete box.
Single package size:	63X43X24 cm	brackets:	2 in 1 Sun Angle Adjustment and Surveillance Camera Mounting Bracket
Load power (W):	60W	Rated maximum power (Pmax):	60W
brand:	azonga

Product Description

Solar System Off-Grid Energy Storage System Lithium Battery Family Farm Island Outdoor 4G Router Lighting Surveillance CameraDC 12V output

feature:

60WDC-18V outputMonocrystalline silicon solar panel

20/30AH power level ternary lithium energy storage battery

DC output12V 5ACompatible with commercially available 12V power supplymonitorcamera

Built-in solar only10A PWMPower Management Controller

Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc. Effectively extend battery life and protection.

2 in 1 Solar Angle Adjustment and Surveillance Camera Mounting Bracket.

Equipped with 4G outdoor waterproof router, reliable network transmission

Outdoor use, waterproof IP66

Multipurpose

Can be used for docks, islands, mountains, pastures, etc. without electricity supply. There is no need to install the power cord, the installation is convenient, and it is ready to use.

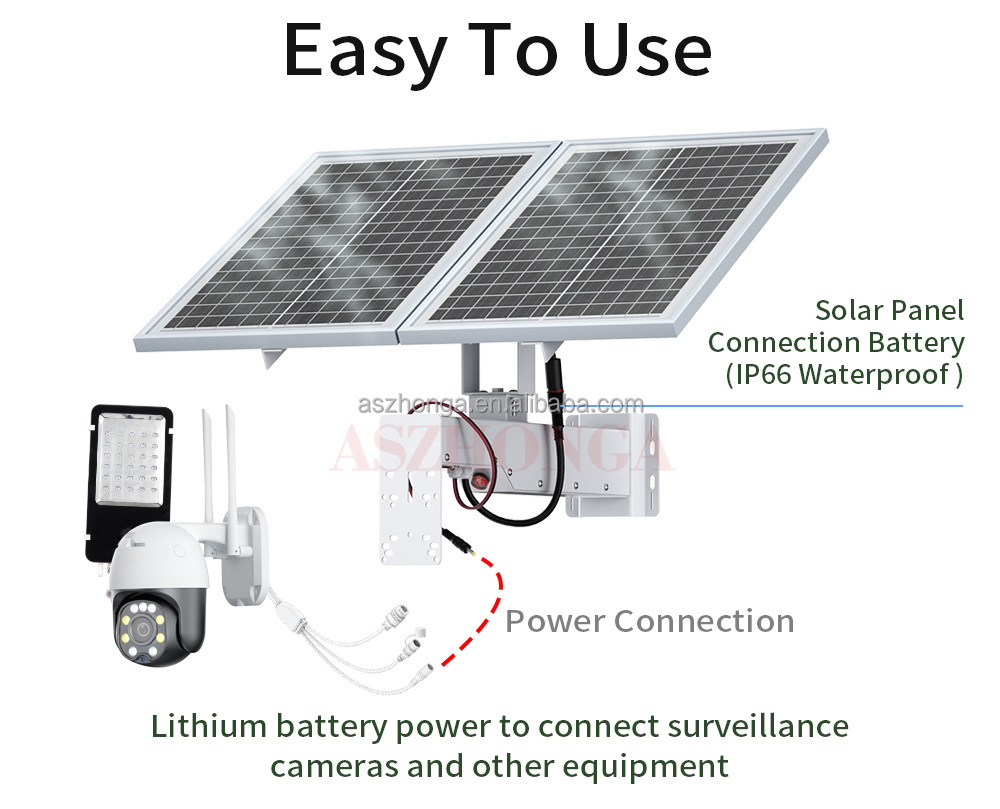

easy to use

In extreme conditions where sunlight is not sufficient to generate electricity, a fully charged battery provides up to 86 hours of uninterrupted monitoring power for the onboard camera. (The above data is from the test at 25°C and is for reference only. Please note: low temperature environment will cause power attenuation, please refer to the actual use time.)

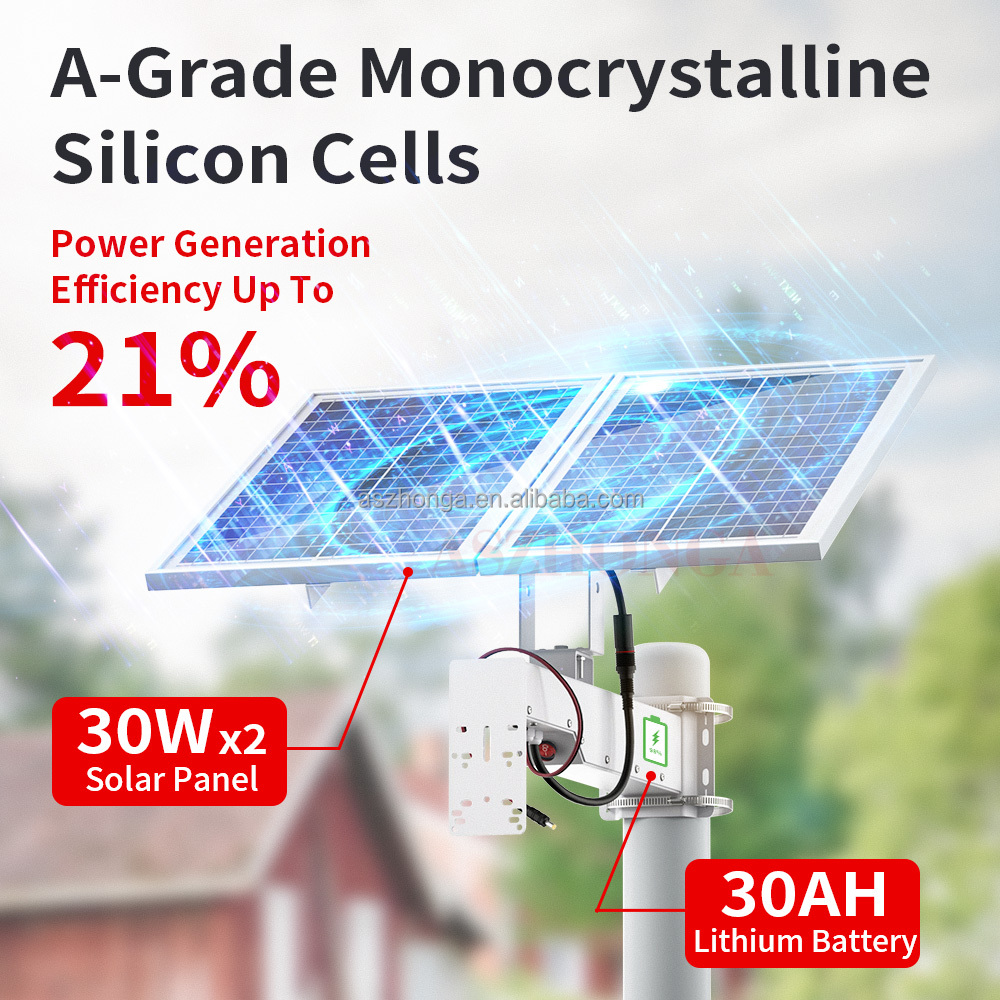

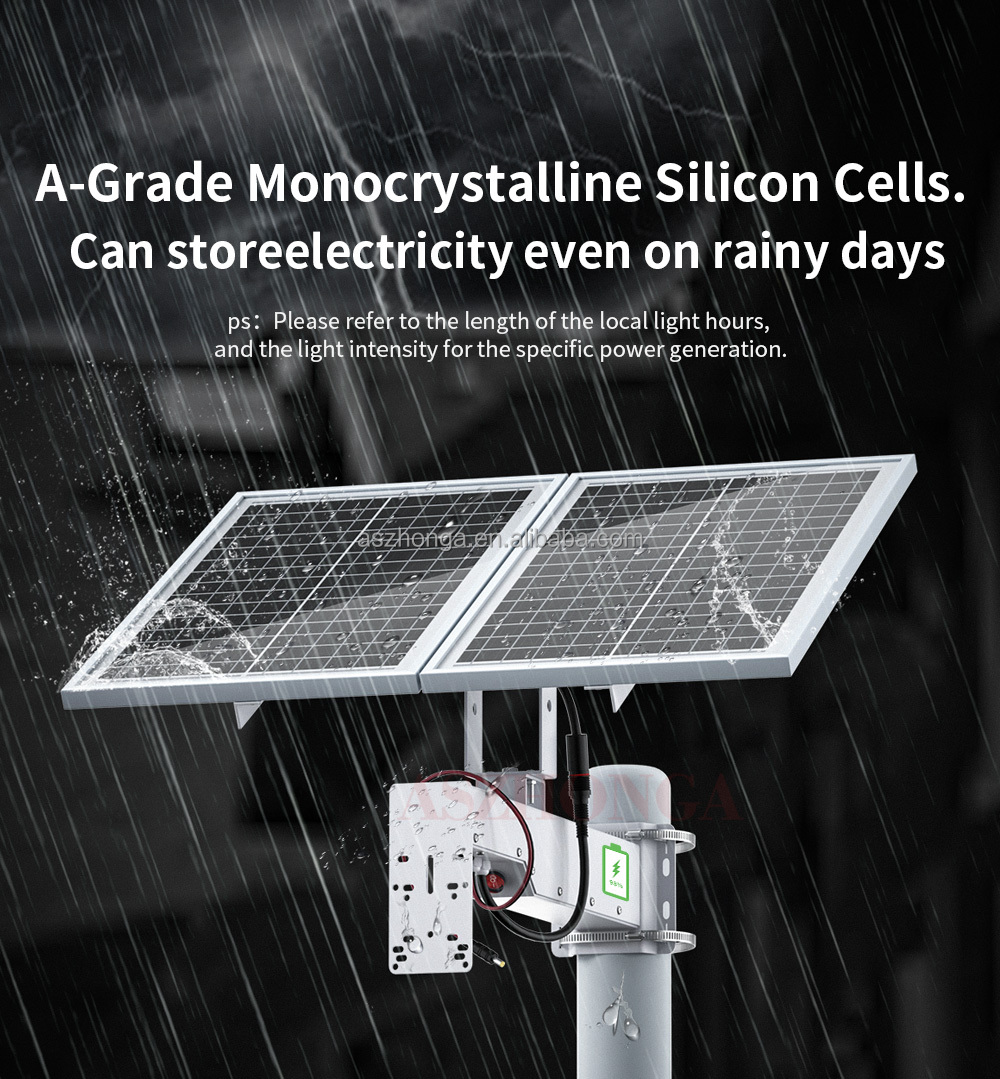

60W monocrystalline silicon solar panel

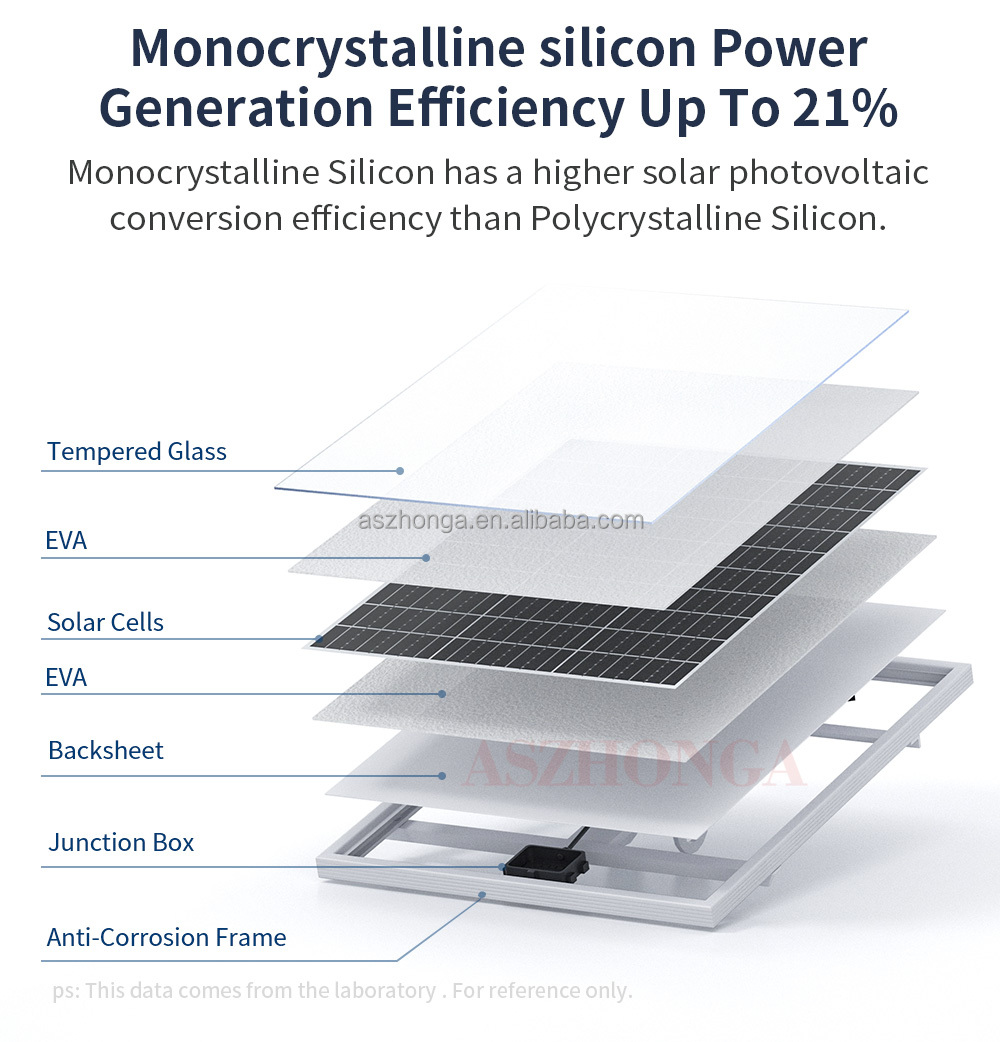

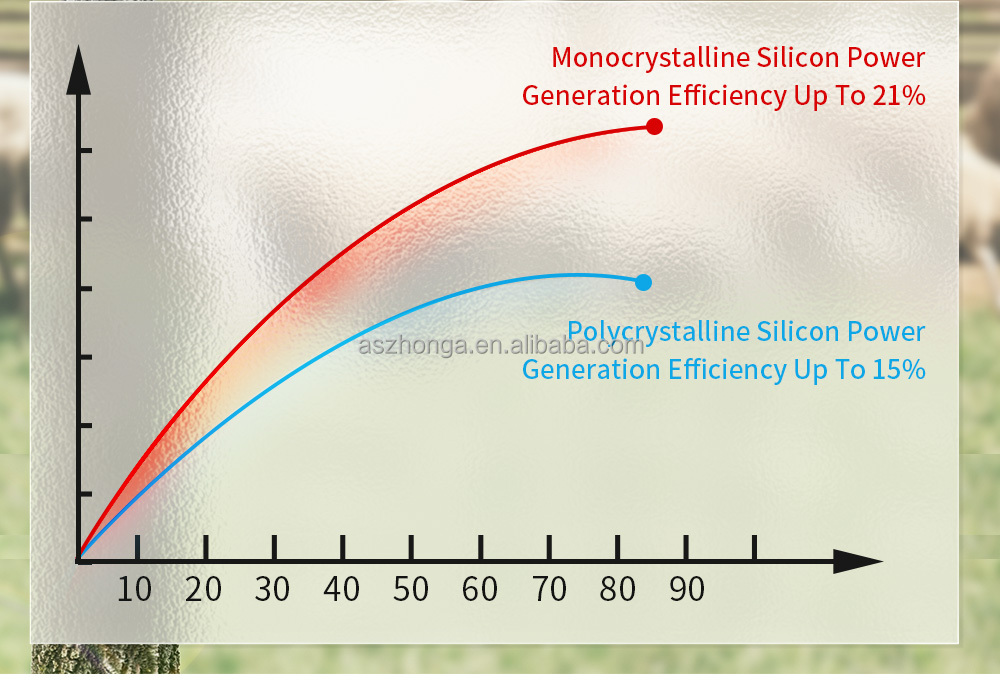

The solar panel is made of monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. The battery can be quickly recharged.

(notes:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation. The above data comes from the laboratory. )

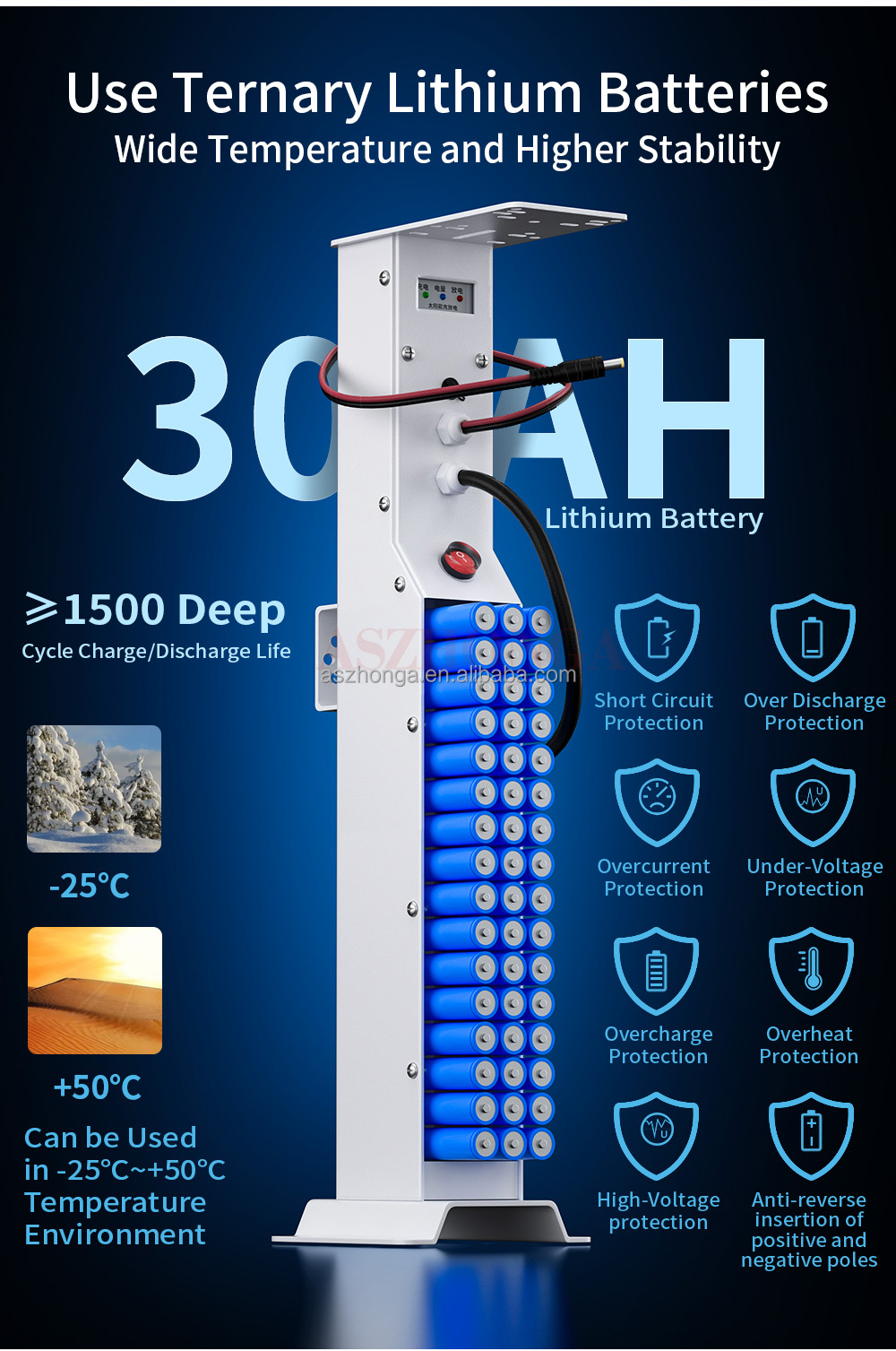

20/30Ah lithium battery

DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras

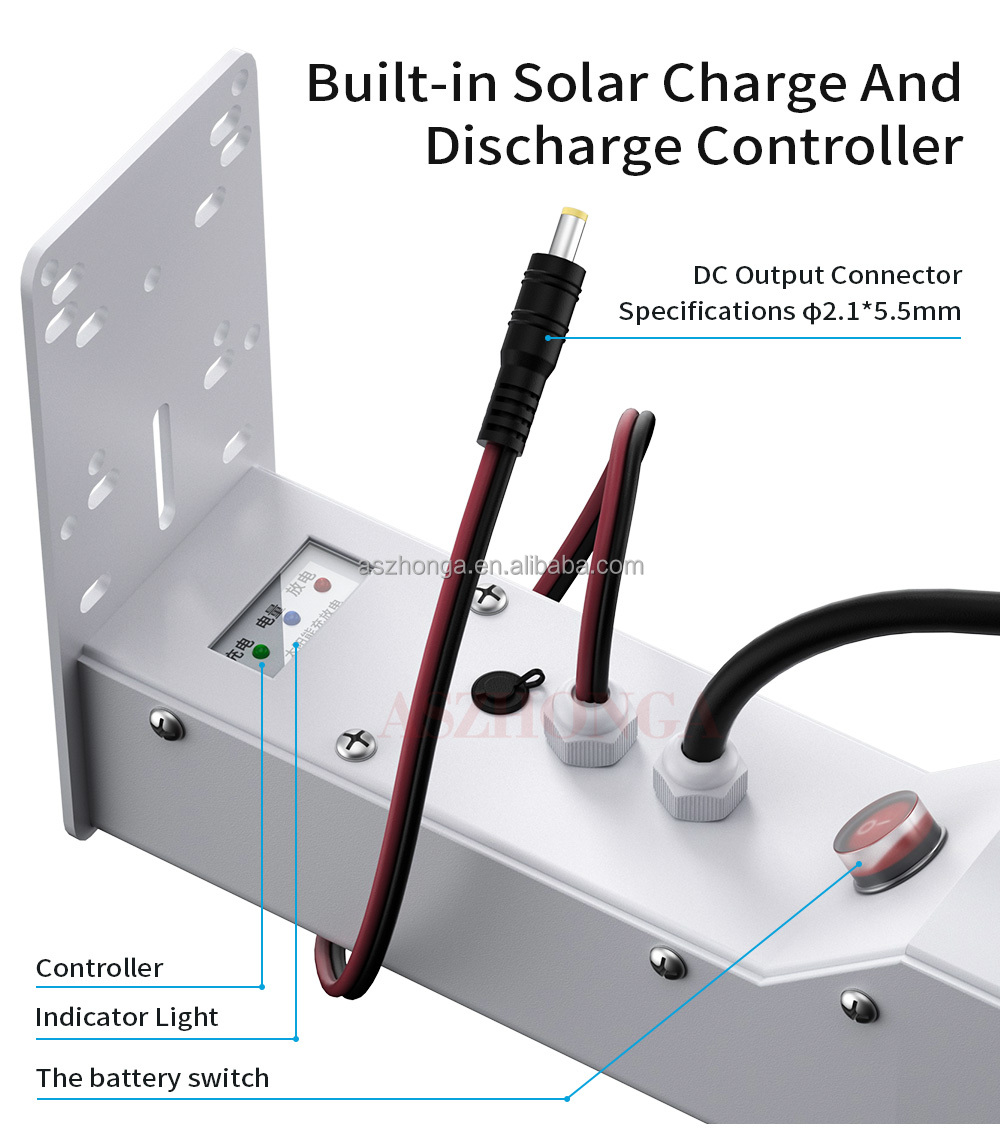

Built-in solar dedicated 10A PWM power management controller
Effective battery life for overload, reverse connection, over-discharge, over-charge, short circuit, anti-backflow, etc.
Extend and protect.

Battery voltage LED display, you can see the remaining power at a glance

notes(The above picture only shows the effect, please refer to the actual product for the number of built-in batteries)

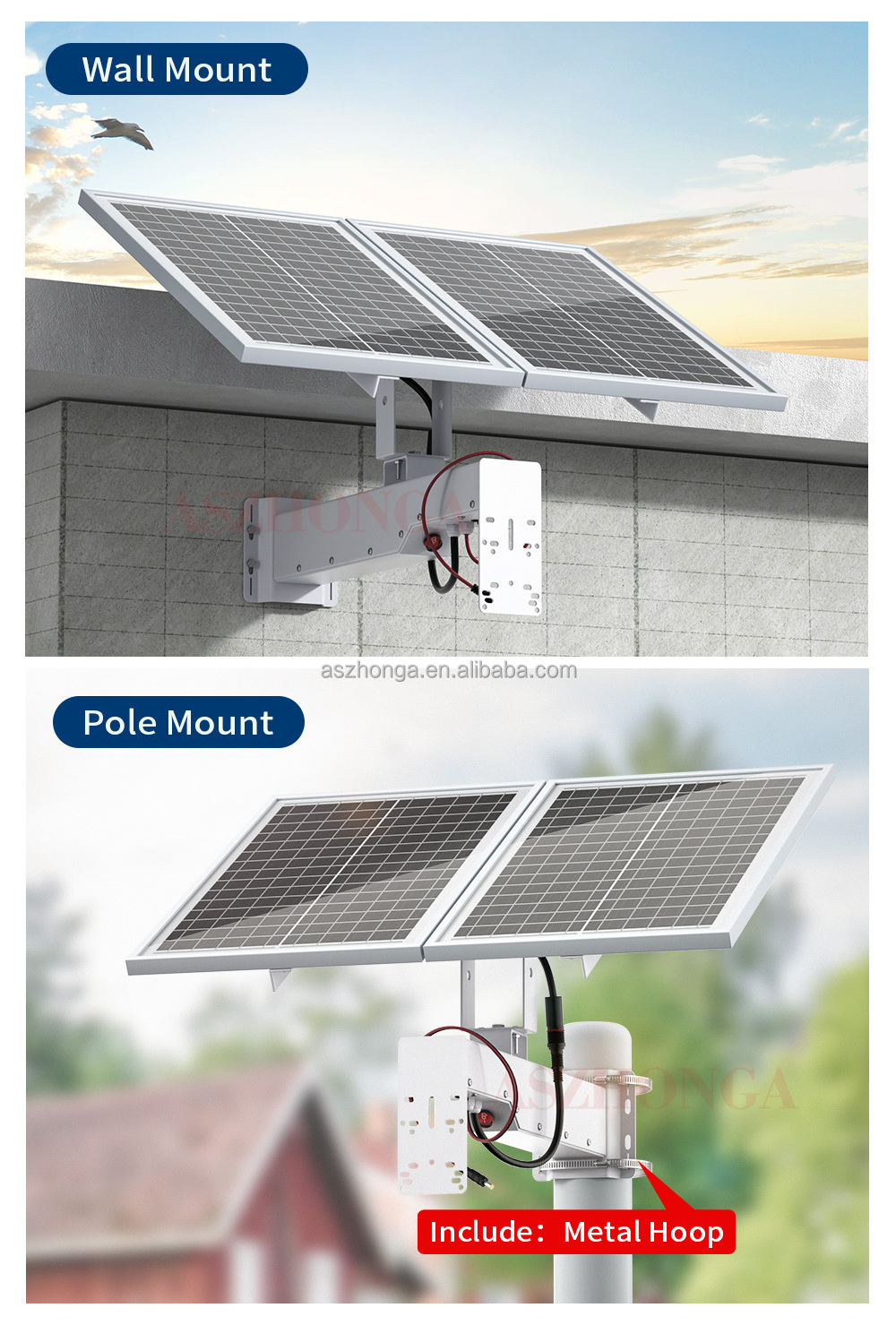

Multiple installation options

Use special brackets for multi-environment installations.

IP66 outdoor waterproof

Outdoor security camera with waterproof body and power adapter, working temperature is -20 degrees Celsius to 60 degrees Celsius, and it can work well in heavy rain or snow.

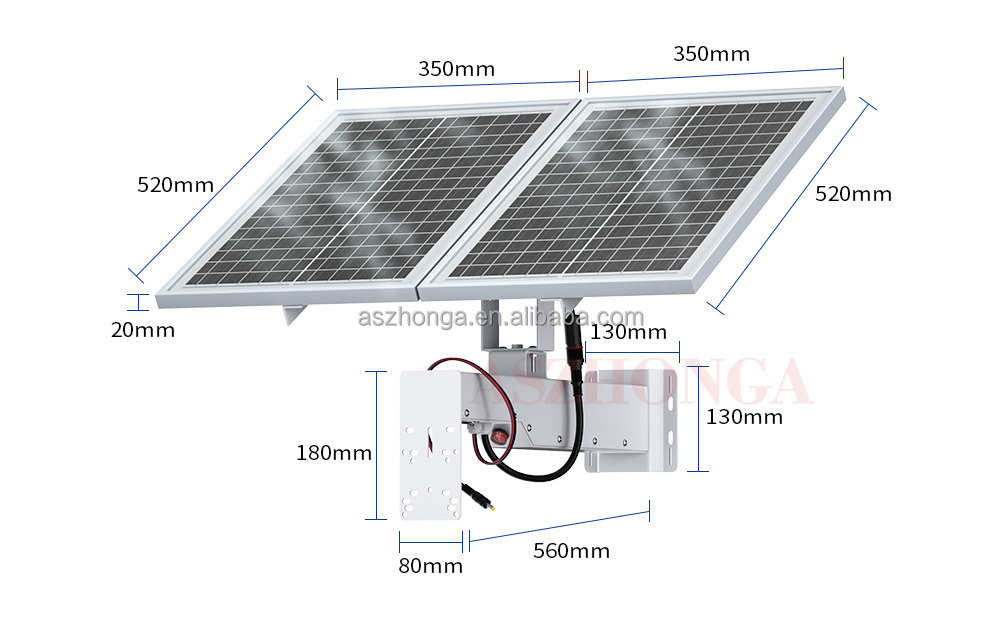

Dimensions and Product Details:

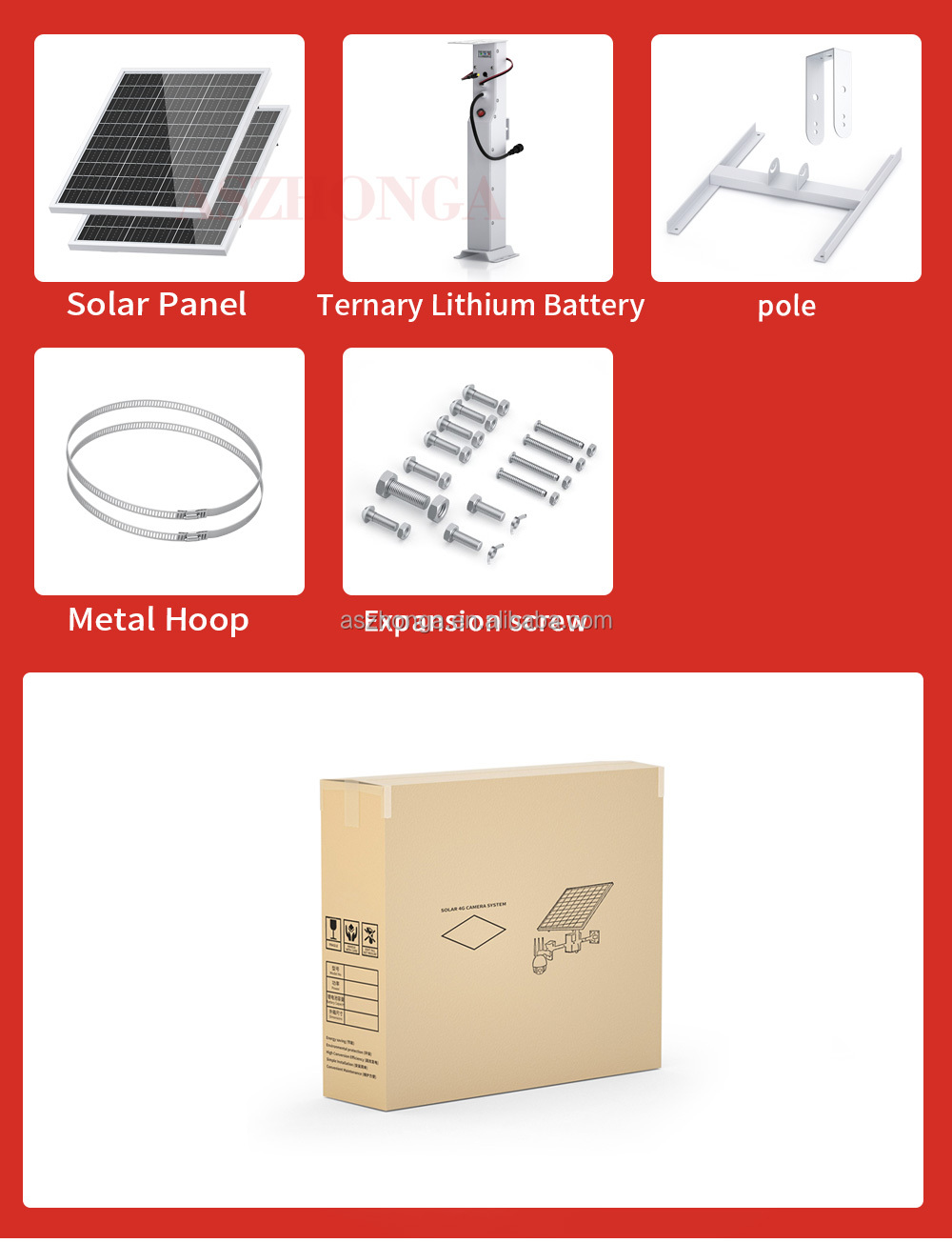

packing list:

2*30WSolar panels

1*20/30AhTernary lithium energy storage batteryMounting brackets.

2*metal hoop

Specification

Model	SP60-20/30-221
solar panel process	single crystal silicon whole cell
Rated maximum power (Pmax) [W]	60
Open circuit voltage (Voc) [V]	21.6
Maximum supply voltage (Vmp) [V]	18
Short circuit current (Isc) [A]	3.86
Maximum power current (Imp) [A]	3.49
Module efficiency [%]	21.5
Maximum system voltage [V]	1000
Panel size [mm]	67053525
power tolerance	0~+3W
Temperature coefficient of Isc (α_Isc)	+0.048%/℃
Temperature coefficient of Voc (β_Voc)	-0.27%/℃
Temperature coefficient of Pmax (γ_Pmp)	-0.35%/℃
Operating temperature	-25℃~70℃
STC	Irradiance 1000W/m², ﾠBattery temperature 25℃, AM1.5G
Battery Type	Ternary lithium battery
Nominal capacity [Ah]	20/30
Power Management Controller	Built-in PWM
Power supply voltage display	Real-time battery voltage LED display
DC input	12.6V
Solar input	DC-18V 2 core aviation cable plug
DC output	12V 5A
Protective function	Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc.
Operating temperature	-25℃~50℃
standard	11.1V
internal resistance	Fully charged battery 25°C
Temperature Affected Capacity (10 Hours)	40°C (104°F)	102%
		25°C (77°F)	100%
		0°C (32°F)	90%
		-15°C (5°F)	70%
Self-discharge 25℃ capacity	After 3 months of storage	92%
		After 6 months of storage	84%
		After 12 months of storage	65%
Charge constant voltage 25°C (77°F) float	The initial charging current is less than 10A, the voltage is 12.3-12.6V
Operating temperature	-20 to +60 degrees
Working humidity	10% to 95%
Material & Waterproof Rating	Side shell, outdoor use, waterproof IP66
Packing size(mm)	610410215
Packing weight (kg)	13.7
