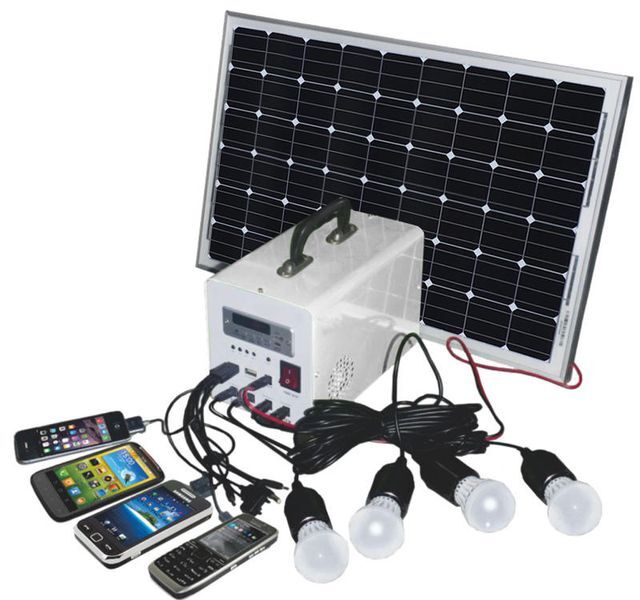

mini portable home 12v solar lighting system DC 10w-30w ups portable home mp3 solar solar lighting for indoor and outdoor camping kit
-
Supplier: Guangdong Xindun Power Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Cindy Lee -
Price: $25.00 / >=30 sets -
Min. Order: 30 sets
Product details
| Free installation service: | Do not | Packaging Preview: | |
| Warranty: | 3 months - 1 year | Name: | 10w-30w ups portable household mp3 lighting solar generator |
| model: | XD-107 | Supply capacity: | 10000 sets per month |
| Output frequency: | - | color: | blue green orange white |
| Controller type: | pmw/mppt | Packaging Details: | The solar kit is packaged in a carton or wooden box |
| type of battery: | lead acid, lead acid | Battery: | 12V/7Ah lead acid battery |
| application: | Family | Protect: | Short circuit protection |
| thing: | Lighting system | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Solar panel type: | Monocrystalline silicon | type: | Mini Portable Solar Kit |
| usage: | Home lighting use | Working hours (hours): | 1-24 hours |
| brand: | new shield | Pre-sales project design: | Yes |
| Load power (W): | 10W 20W 30W | load: | mobile phone charging usb |
| product name: | mp3 lighting solar kit | port: | Guangzhou, Shenzhen, Foshan |
| Certificate: | CE RoHS | Installation type: | BIPV installation |
| place of origin; place of origin: | Guangdong, China | Output voltage (V): | 7V 12V |
Related Products
Solar systems on this pageDC output only, andMinimum order quantity is 30 pieces.
if you need oneSolar system with AC and DC output,
I highly recommend you the following products,MOQ is 1 piece:
  |
|
 |
|
solar kit

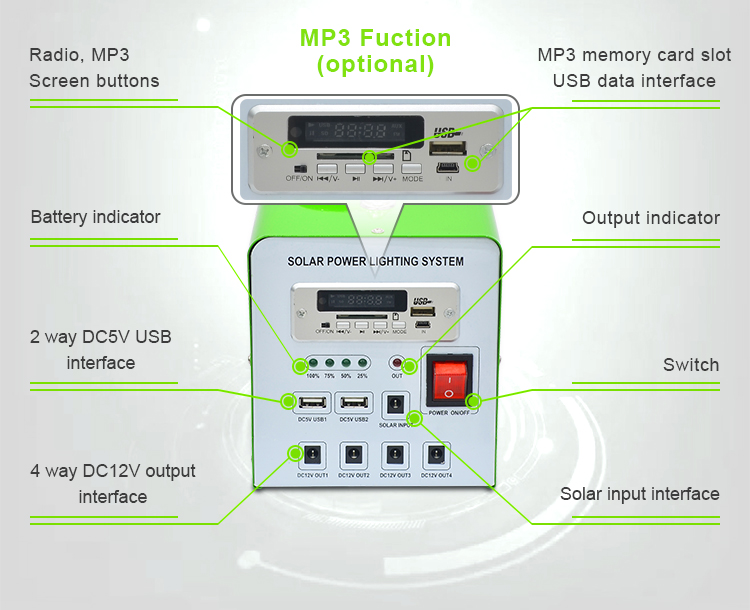

feature
1. Portable Mini Solar Kit with MP3 Power 10W 20W 30W.
2. Integrated chassis: 5V/12V output.
3. Suitable for charging all kinds of mobile phones
4. Solar power supply independently.
5. High photoelectric conversion efficiency.

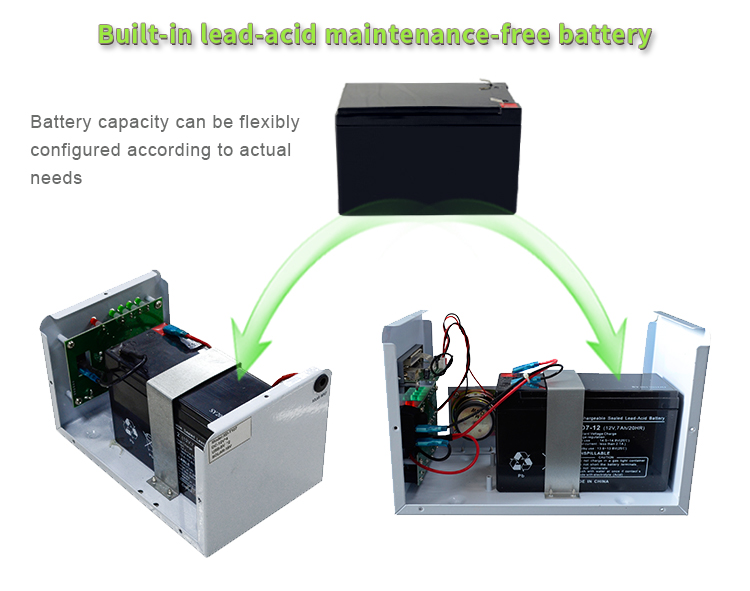

6. Built-in maintenance-free battery, safe and reliable.
7. The optional AC adapter charges the battery.
8. Multiple protections (charging/discharging, etc.).

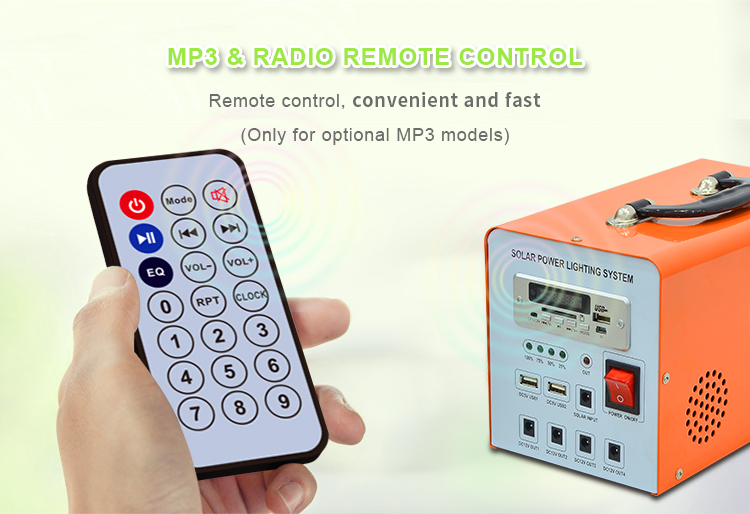

9. Mp3 player, radio function.
Product Details
parameter
| Specification | ||||||||||
| Model: XD-T | 107 | 109 | 1012 | 207 | 209 | 2012 | 307 | 309 | 3012 | |
| Rated voltage | 12VDC | |||||||||
| Rated current | 3A | |||||||||
| battery capacity | 7Ah | 9Ah | 12Ah | 7Ah | 9Ah | 12Ah | 7Ah | 9Ah | 12Ah | |
| solar panel power | 10W | 20W | 30W | |||||||
| efficiency | 99% | |||||||||

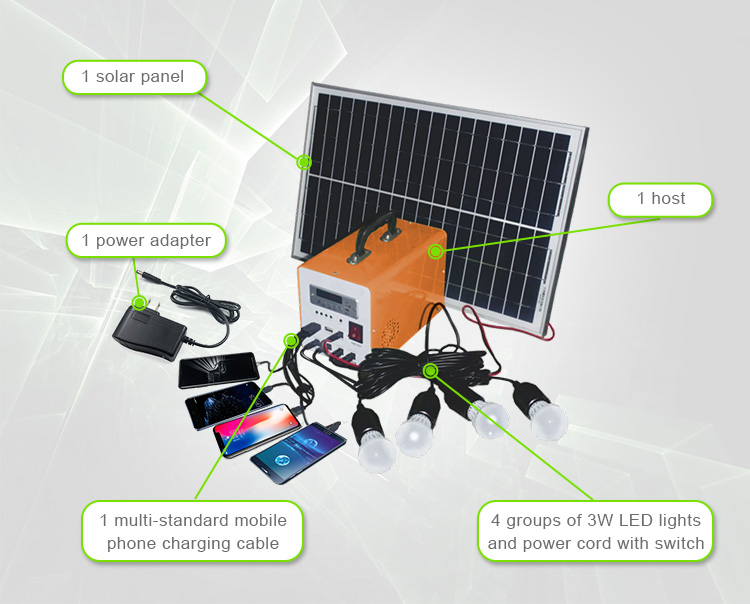

| Accessories | 4 3W LED Bulbs, 4 LED Bulb Cables, 1 Multifunction Phone Charging Cable, 1 Power Adapter | |||||||||
| Package Solar panels |
Product size (L*W*Hmm) | 355x250x17 (1 piece) | 465x350x17 (1) | 625x350x25 (1 piece) | ||||||
| Packing size(L*W*Hmm) | 375x275x125 (6 pieces) | 485x375x125 (6 pieces) | 645x375x175 (6 pieces) | |||||||
| Net weight(Kg)/ 1pcs | 1.1 | 2 | 3.3 | |||||||
| GW(Kg)/ 6pcs | 6.6 | 13.5 | twenty two | |||||||
| Package machine& Accessories (with MP3) |
Product size (L*W*Hmm) | 235x138x157 | ||||||||
| Packing size(L*W*Hmm) | 330x180x200 (1 set) / 570x345x421 (6 sets) | |||||||||
| Net weight (Kg)/ 1 set | 3.5 | 3.8 | 4.9 | 3.5 | 3.8 | 4.9 | 3.5 | 3.8 | 4.9 | |
| GW(Kg)/ 6 sets | 24.7 | 26.5 | 33.5 | 24.7 | 26.5 | 33.5 | 24.7 | 26.5 | 33.5 | |
| scope | ||||||||||
| PV input | Voltage | <25V | ||||||||
| current | 0.57A | 1.14A | 1.71A | |||||||
| The capacity is displayed as the charging voltage | 13V/25% 13.35V/50% 13.75/75% 14.5V/100% | |||||||||
| Charging voltage | 14.5V±0.5V | |||||||||
| Overcurrent Protection | >3A±0.2A | |||||||||
| Overvoltage protection | >25V±0.5V | |||||||||
| Low voltage protection | <10V±0.5V | |||||||||
| DC output | Voltage | (10V~15.5V)±0.5V | ||||||||
| current | (0~3A)±0.2A | |||||||||
| Capacity shown as discharge voltage | 12.5V/100% 12V/75% 11/50% 10.5V/25% | |||||||||
| Protect | Overload/Overcurrent/Short Circuit/High Voltage/Low Voltage | |||||||||
| USB output | Voltage | 5V | ||||||||
| current | 750 mA | |||||||||
| surroundings | temperature | -10℃~40℃ | ||||||||
| humidity | 20%~90% (no condensation) | |||||||||
| Storage temperature | -10℃~40℃ | |||||||||
| Storage humidity | 10%~90% (no condensation) | |||||||||
| Note: All specifications are subject to change without notice | ||||||||||
Accessories
application
Packaging and Shipping
pack
A carton for packaging, or a wooden case recommended to protect the samples during transport.
shipping
1. Fedex/ DHL/ TNT/ UPS sample, door to door.
2. Air or sea bulk cargo for CFL, air port/port receiving.
3. The customer designates the freight forwarder or negotiates the transportation method in person.
4. Delivery time: 7 days for samples; 10 to 25 days for bulk goods.
| pay | ||
| wire transfer | ex-factory price | 30% T/T prepaid, the balance paid before shipment |
| FOB | ||
| CNF(CFR) | 30% T/T advance payment, the balance will be paid with the copy of the bill of lading | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (optional) | ||
