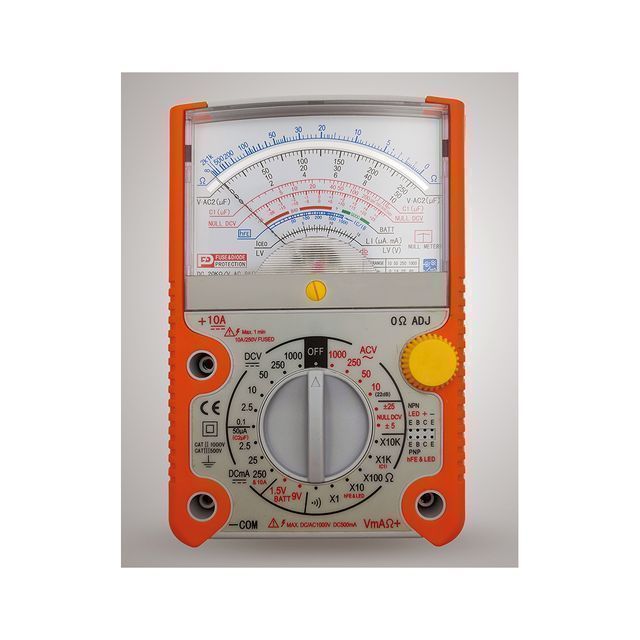

390 Series Advanced Analog Multimeter

  • Supplier: Wuxi Imhoo Technology Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Javen Wu
  • Price: $10.30 / 1 - 99 pieces
    $9.30 / 100 - 499 pieces
    $8.50 / >=500 pieces
  • Min. Order: 1 piece
Product details
GW:19kgcolor:orange
HS code:90303200Packaging Details:Gift Box CTN Size: 53x38x32cm 32pcs/CTN NW: 17.5 GW: 19.0 KGS
port:Shanghaiaspect:158*105*40mm
Measuring inductance range:Invalidbrand:with all due respect
Measuring capacitance range:100pF~25model:390
Supply capacity:5000 pieces per monthstandard packaging:32/box
Measuring resistance range:1~10KCarton size:53x38x32cm
Operating temperature:0~40℃Measuring voltage range:10~1000V
northwest:18kgplace of origin; place of origin:Jiangsu, China
Measuring current range:0.05~10Apayment terms:L/C,T/T,Western Union,Payment



Product Description





Analog Multimeter 50a Specifications:

  • 25 test ranges, 12 working functions
  • Perfect sliding protective holster beside
  • Perfect onshore protection, incl. Two fuses 0.5A and 10A
  • Adjustable rear tilt stand device with hook hole
  • Capacitance testing with add-on kit (CT-1)
  • Continuity test with buzzer
  • Leakage Current and Diode Testing
  • Transistor and LED Testing
  • Overvoltage Category CAT ||| 500V, Cat || 1000V
thing Specification.   accuracy
scope AC voltage 10/50/250/1000V ±4.0% of full scale
DC voltage 0.1/2.5/10/50/250/1000V ±3.0% of full scale
DC 0.05/2.5/25/250mA, 10A ±3.0% of full scale
resist X1. X10. X100. X1K(C1). X10K(0.2~20MΩ) ±4.0% of arc.
C1 100pF~0.025uF/2.5uF/25uF ±3.0% of full scale
C2 Provides bulk capacitance up to 2000uF directivity via tester jack
Invalid Center ±DCV 5V/25V test
High input impedance DC 20 KΩ/V. AC 9 KΩ/V
Decibel test 20~ +62dB external polyester capacitor 0.047uF/400V
battery test 1.5V. 9V
aspect 158*105*40mm
weight about 350 g
power supply 6F22 9V battery 1 AA size 1.5V battery 2

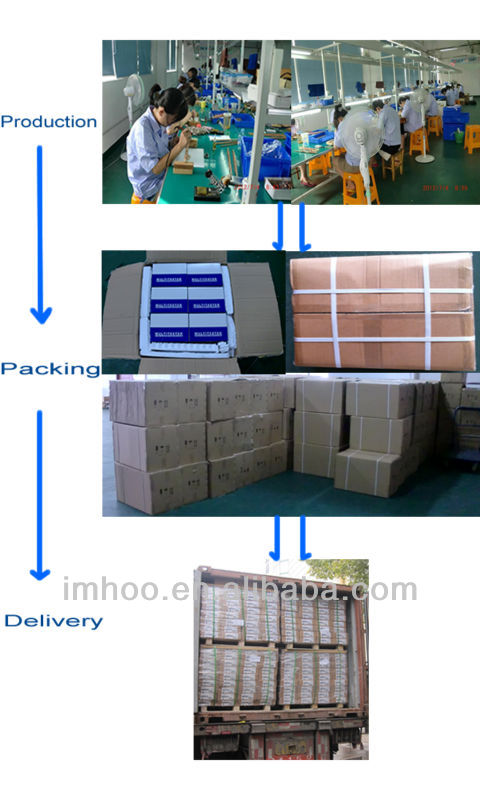

Packaging and Shipping















our service



  •   High quality, better price.
  • Integrity. Promise to the customer when to ship, be sure to ship on time.
  • If there is any quality problem after the customer receives the goods, we will replenish the goods according to the quantity calculated by the customer.
  • We can also do OEM.
  • We can research and develop new products according to customers' requirements.
