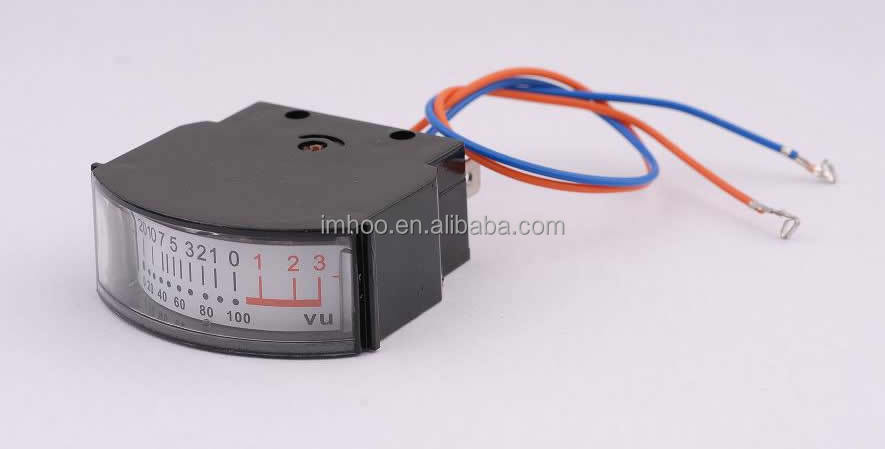

Edgewise Meter Analog VU meter TP-462 voltage display meter

  • Supplier: Wuxi Imhoo Technology Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Javen Wu
  • Price: $4.60 / 1 - 99 pieces
    $3.90 / 100 - 499 pieces
    $3.30 / >=500 pieces
  • Min. Order: 1 piece
Product details
Model Number:TP-462;Operating Temperature:-20~50Degree;
Accuracy Class:2.5;Packaging Detail:Export neutral packing;
Measuring Range:0-1A;Brand Name:IMHOO;
Payment Terms:L/C,T/T,Western Union,PayPal;N.W.:13KG;
Place of Origin:Jiangsu, China;Port:Shanghai;
Front material:PC;Display Type:Analog Only;
G.W.:14.5KG;Outer Carton Size:65x43x42cm;
Dimensions:46.7X19mm;Supply Voltage:null;
Supply Ability:20000 Pieces per Month;HS Code:85049020;
Case material:PC;

Product Description

Scale Plate:   The normal scale plate is made of alloy-aluminium material.

                         Scale plate with special requirements are available upon request.

                         Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Pointer:  Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available

             Upon request.

TP-462 Ammeter Specifications



  AC A DC A
uA 250uA,500uA 250uA,500uA
mA 1mA,10mA,50mA,100mA,150mA,200mA,400mA,500mA 1mA,10mA,50mA,100mA,150mA,200mA,400mA,500mA
A 1A,5A,10A,15A,20A,25A,30A 1A,5A,10A,15A,20A,25A,30A
with external CT(ACA)
with external Shunt(DCA)
X1A 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 300/1A 400/1A 500/1A 600/1A 1000/1A More Ranges can be customized 50mV
60mV
75mV
10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
X5A 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 300/5A 400/5A 500/5A 600/5A 1000/5A More Ranges can be customized

TP-462 Voltmeter Specifications



  AC V DC V
V 10V 25V 40V 50V 100V 150V 300V 450V 500V 600V 1V 10V 25V 50V 100V 250V 500V 600V



WITH BACKLIGHT





Our Services
  •   High Quality, Better Prce.
  •   Intergrity.  Promised to customer when to delivery, we must delivery on time.
  •   If any issue about quality after the customer received the goods, we will replenish the    quanlity which the customer count the total number of it.
  •   We can do also OEM.
  •   We can research and develp new product according to our customers requirement.
