Automatic chocolate machine chocolate forming production line

Supplier: Gusu Food Processing Machinery Suzhou Co., Ltd.
Region: Jiangsu, China
Contact: Ms Arlene He
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	depending on model	Core Components Warranty:	1 year
Warranty:	1 year	Showroom location:	not any
weight:	5000kg	Voltage:	custom made
strength:	depending on model	Packaging Details:	Standard export wooden box packing
Operation:	automatic operation	Mechanical function:	Bake, shape, tumble, vibrate, cool
Mechanical test report:	if	brand:	Suzhou
Raw materials:	chocolate	Supply capacity:	500 sets per year
Minimum order quantity:	1 set	feature:	easy to use
Health status:	new	After Warranty Service:	Online support
pack:	wooden box	Marketing Type:	New Products 2021
Output product name:	chocolate	Video external inspection:	if
product name:	Chocolate Styling Line	Packaging Preview:
place of origin; place of origin:	Jiangsu, China	Core components:	PLC, motor, pump
port:	Port of Shanghai, China	Applicable industries:	Food and Beverage Factory
payment terms:	letter of credit, wire transfer	Main selling point:	automatic
Application areas:	snack factory	usage:	make chocolate

What is the machine for?

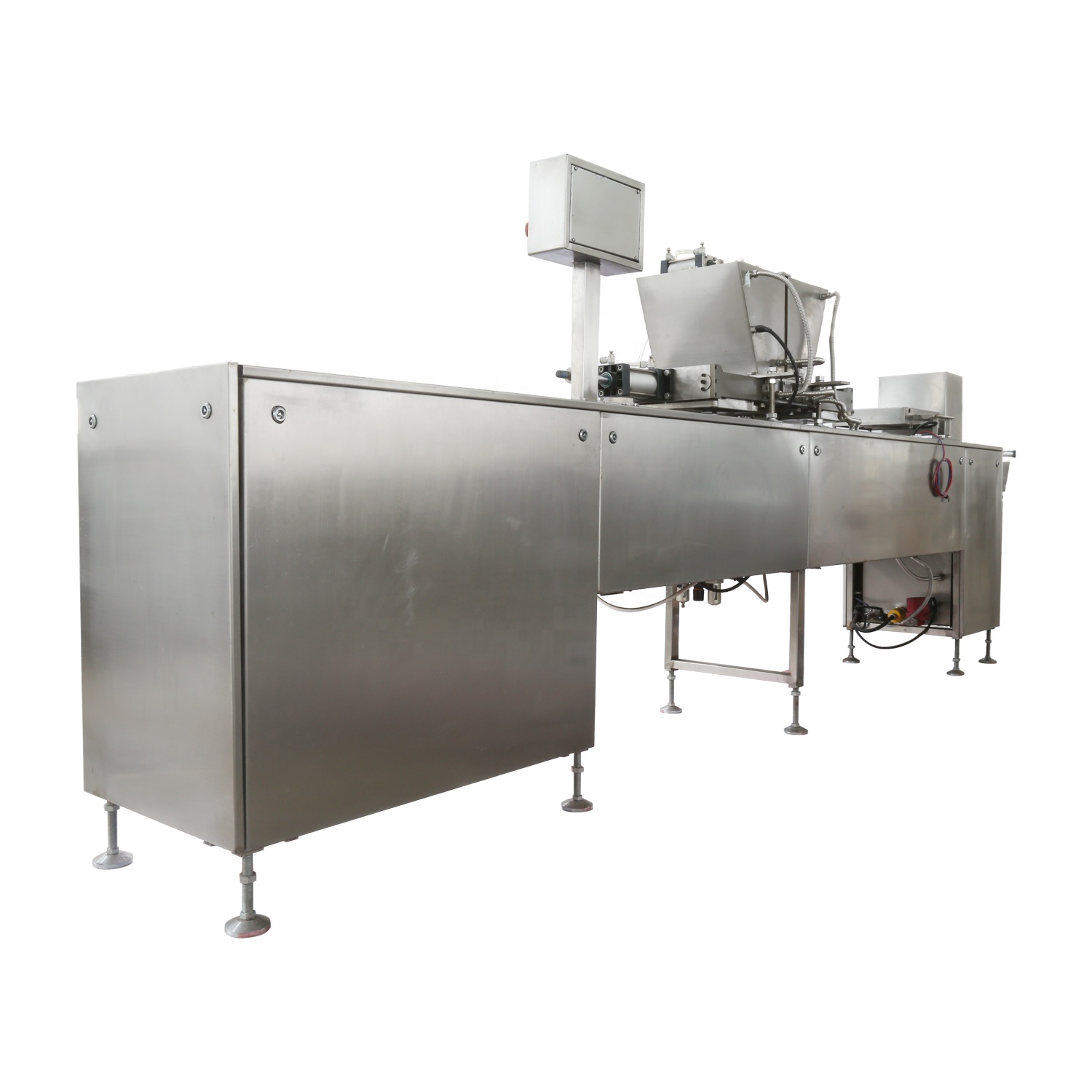

Chocolate Styling Line

The chocolate forming machine is an automatic chocolate forming machine with functions such as mould baking, mould pouring, mould vibration, conveying, cooling and demoulding. It not only produces pure solid chocolate, but also sandwich chocolate, nut mixed chocolate, etc.

feature

1) Application: Chocolate block, cream filled chocolate, nut chocolate, etc.
2) Template size: 275×175×30mm, 300×225×30mm, 280×200×30mm, 470*200*30mm, etc.
3) The pouring head adopts one-button servo or three pours for two fillings.

Need more information?

Model	Molding capacity (pcs/min)	Main motor power (kW)	Total power (kW)	The forming board is dimmed. (mm)	Dimensions (mm)
QJJ150 Servo single head	10-12	0.75	8.75	27517530	41005601600
QJJ150 pneumatic single head	10-12	0.75	5.75	27517530	41005601600
QJJ175 Servo single head	14-18	3	26.5	28020030	140507802500
QJJ175 Pneumatic single head	14-18	3	23.5	28020030	140507802500
QJJ510 Servo single head	14-18	4	31.14	51020030	1405010502500
QJJ510 Pneumatic single head	14-18	4	28.14	51020030	1405010502500

Which product needs to be produced?

Why choose Gusu?

Suzhou Food Processing Machinery Suzhou Co., Ltd.., formerly known as Suzhou Food Processing Machinery Suzhou General Factory,Founded in 1969, TooChina's first chocolate complete equipment manufacturerand known as"Mother of Chinese Chocolate".

For more than 50 years, Gusu has adhered to the corporate philosophy of people-oriented, loyal to customers, and honest management. With the goal of world-class equipment and technology, it has established contacts with the food industry, technology companies, and universities to continuously improve, innovate and develop products to provide customers with better products. good service. Products are sold all over the country and more than 120 countries and regions.

The purpose of Gusu is to climb the peak bravely and strive to be the pioneer in the industry. We will continue to devote ourselves to scientific research and innovation to provide customers with better and better services.

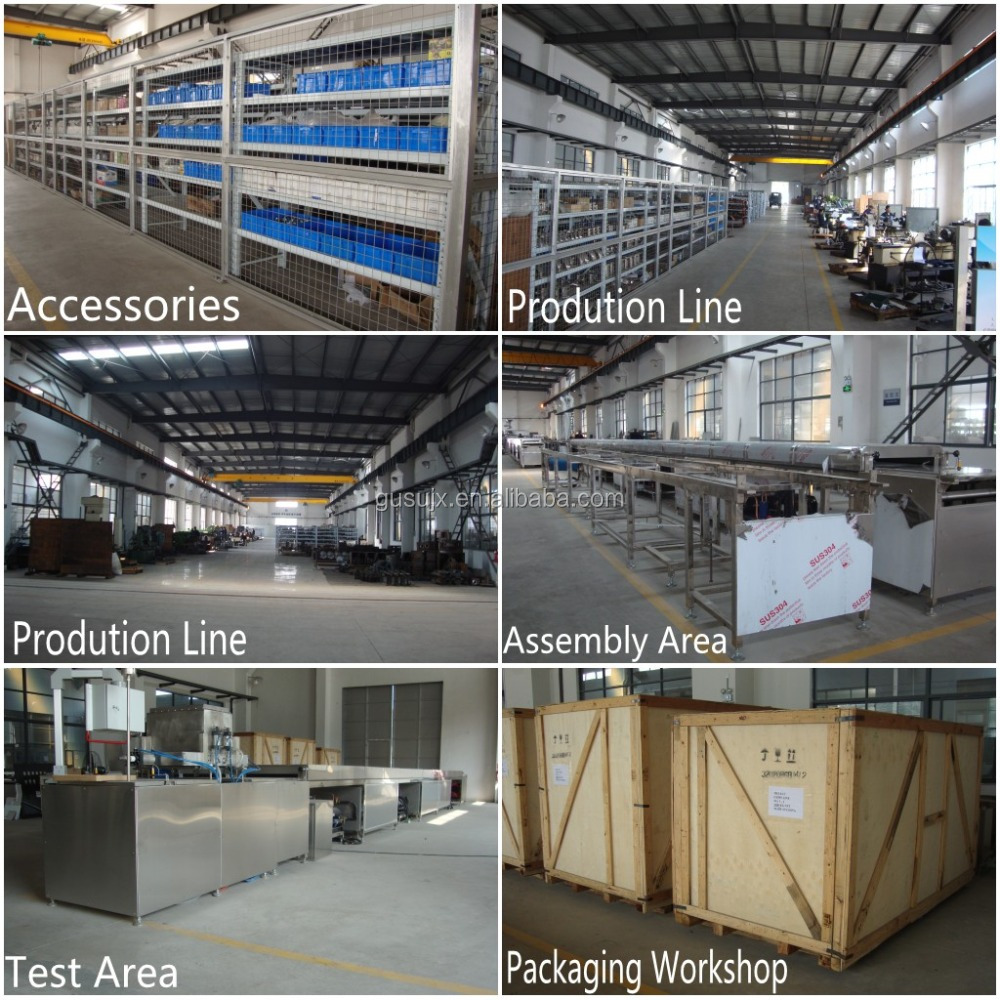

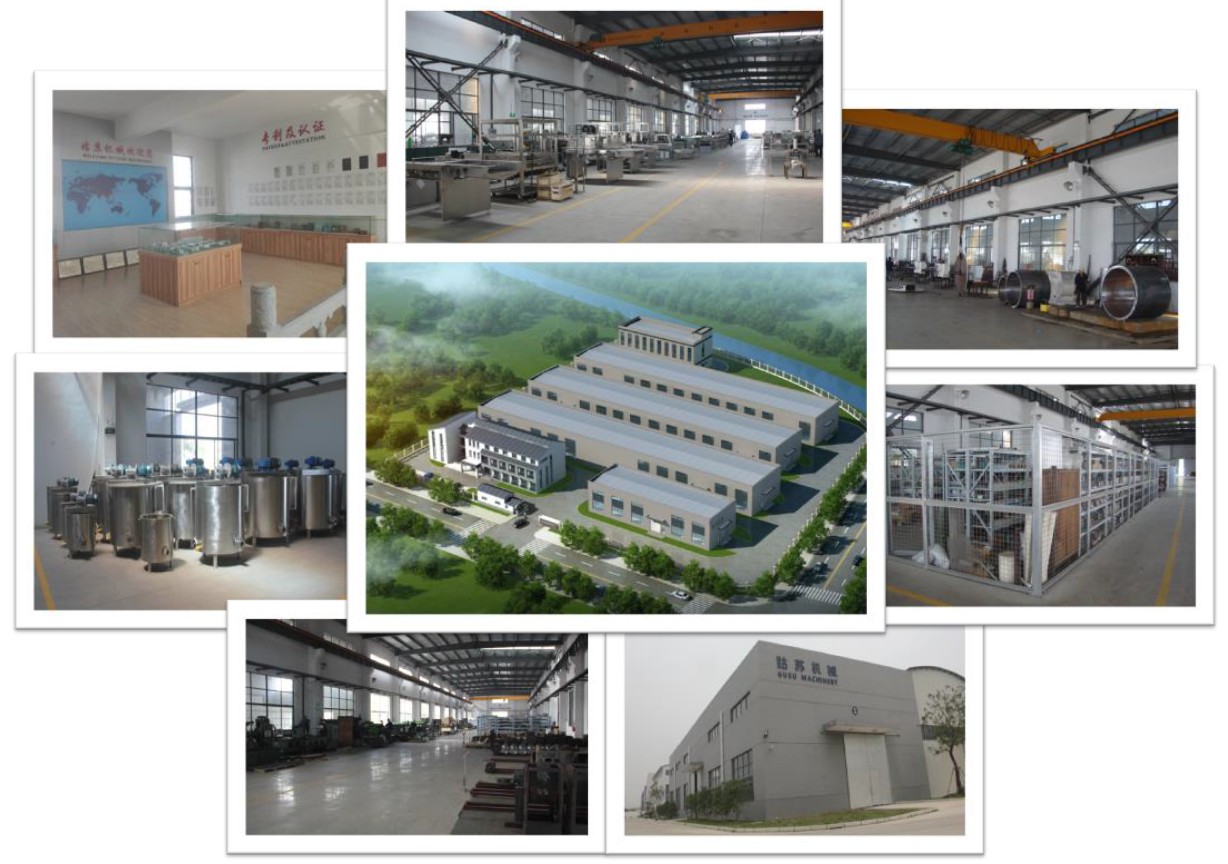

factory

exhibition

output to

Certificate

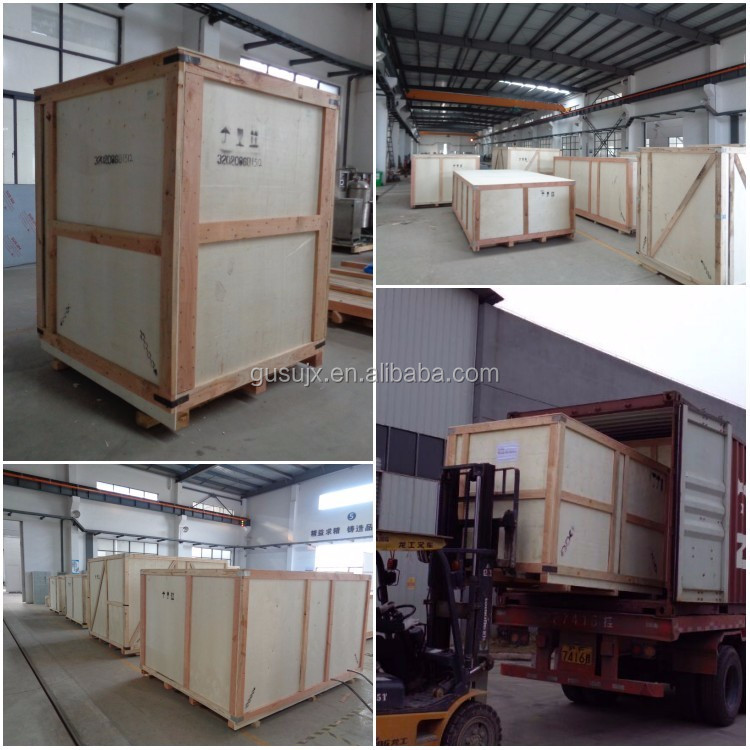

Product packaging

In order to better protect the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services. Our products will be packagedStandard wooden box.
