Product name: | Conveyor Backstop; | Precision Rating: | P6; |
Single package size: | 29X28X20 cm; | Seals Type: | Open; |
Height: | 207mm; | Delivery Detail: | 0 days after payment; |
Inner Dia.: | 60-80mm; | Delivery time: | 10-15 days; |
Model Number: | NF40; | Structure: | SPRAG; |
Outside Diameter: | 190 - 430 mm; | Application: | Conveyor Belt System, Bucket Elevator; |
Single gross weight: | 53 KG; | Selling Units: | Single item; |
Outer diameter: | 245mm; | Package: | Carton Box / Wooden Box; |
Package Type: | Carton Box; | Place of Origin: | Jiangsu China (Mainland); |
Material: | Bearing steel GCr15; | Brand Name: | SUMA; |
Torque: | 50-460Nm; | Bore Size: | 40 - 160 mm; |
Type: | Other Type; | Package Preview: | https://sc01.alicdn.com/kf/HTB1jr4TJXGWBuNjy0Fbq6z4sXXaH.jpg_640x640.jpg; |
NF40 One-Way Cam Clutch Bearing Conveyor Backstop
Backstop NF are used as:
Backstops
Overrunning Clutches
Specification | |
Model | NF 40 |
Materail | GCr15 |
Bore diameter | 60-80mm |
Outer diameter | 245mm |
Total Length | 350mm |
Torque capacity | 4000Nm |
Max rotation speed | 1500min |
Min Rotation speed | 420r/min |
Application | Electric Motor , Reducer, Conveyor |
Package | Carton package / Wooden package |
Delivery time | 7-10 days |
Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |

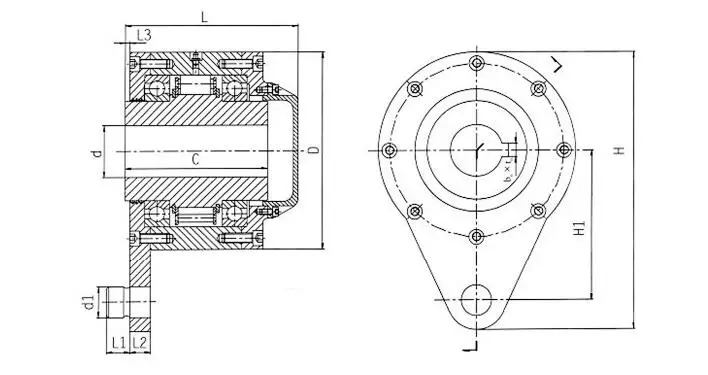

Catalogue of NF conveyor backstop for your choice
Model | Torque | Min Rotation | Max Rotation | Dimension | Weight | ||||||||
speed | speed | ||||||||||||
Nm | r/min | r/min | d | D | d1 | H | H1 | L | L1 | L2 | L3 | kg | |
NF10 | 1000 | 450 | 1500 | 40-50 | 190 | 28 | 273 | 150 | 172 | 25 | 20 | 5 | 28 |
NF16 | 1600 | 45-60 | 208 | 32 | 295 | 160 | 182 | 22 | 31 | ||||
NF25 | 2500 | 425 | 50-70 | 230 | 38 | 323 | 170 | 190 | 25 | 38 | |||
NF40 | 4000 | 60-80 | 245 | 42 | 350 | 185 | 207 | 28 | 30 | 49 | |||
NF63 | 6300 | 400 | 70-90 | 260 | 45 | 370 | 195 | 221 | 30 | 35 | 62 | ||
NF80 | 8000 | 80-100 | 275 | 48 | 396 | 210 | 226 | 35 | 35 | 73 | |||
NF100 | 10000 | 90-110 | 295 | 52 | 425 | 225 | 261 | 45 | 98 | ||||
NF125 | 12500 | 375 | 100-130 | 330 | 58 | 473 | 250 | 296 | 40 | 50 | 8 | 154 | |
NF160 | 16000 | 1000 | 110-140 | 360 | 62 | 512 | 270 | 306 | 55 | 175 | |||
NF200 | 20000 | 350 | 120-150 | 400 | 65 | 565 | 300 | 306 | 50 | 58 | 241 | ||
NF250 | 25000 | 130-160 | 430 | 70 | 620 | 335 | 316 | 63 | 256 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory) is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

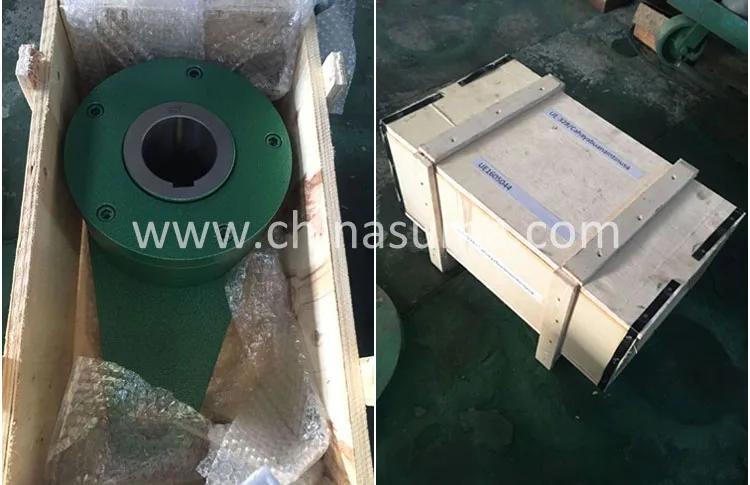

Q: How do you pack the NF conveyor backstop ?
A: Usually nf conveyor backstop are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of nf conveyor backstop from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the nf conveyor backstop in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
