OEM H-beam cutting machine electric metal cnc cutting machine for metal pipe processing cutting equipment

Product details
usage:cut sheetbrand:Huffs
Warranty:1 yearCutting thickness:0-150mm
Cutting speed:0-8000mm/minpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Core components:bearingVideo external inspection:if
rated power:1000WControl System:Fangling F2300A
Type of machine:Straight cutting machineCutting speed (mm/min):1 - 8000
color:RedPackaging Details:Wooden Box OEM H Beam Cutting Machine Electric Metal CNC Cutting Machine Tube
Marketing Type:normal productCertification:Chief Executive
Health status:newDimensions (L*W*H):2200*3500*400mm
Mechanical test report:ifApplicable industries:Energy & Mining, Home Use, Printing Stores, Food & Beverage Stores, Hotels, Food & Beverage Plants, Retail, Farms, Construction Works, Clothing Stores, Restaurants, Building Materials Stores, Food Stores, Advertising Agencies, Mechanical Repair Stores, Manufacturing Plants
product name:OEM H-beam cutting machine electric metal cnc cutting machine for pipeCutting Thickness (mm):1 - 150
port:Shanghai, Ningbo, etc.Weight (kg):800
Cutting method:Plasma cutting + flame cuttingSupply capacity:1000 pieces per month
Local service location:not anyCutting accuracy (mm):0.02
year:2020Voltage:220V
Work area:2200mm*6000mmCutting material:Metal Stainless Steel Carbon Steel
Output voltage DC:AC220±10v 50HzAfter-sales service provided:On-site installation and commissioning training, on-site maintenance and repair services, free spare parts, video technical support
Main selling point:high accuracyplace of origin; place of origin:Hubei, China
Showroom location:not anyCore Components Warranty:1 year
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
main products

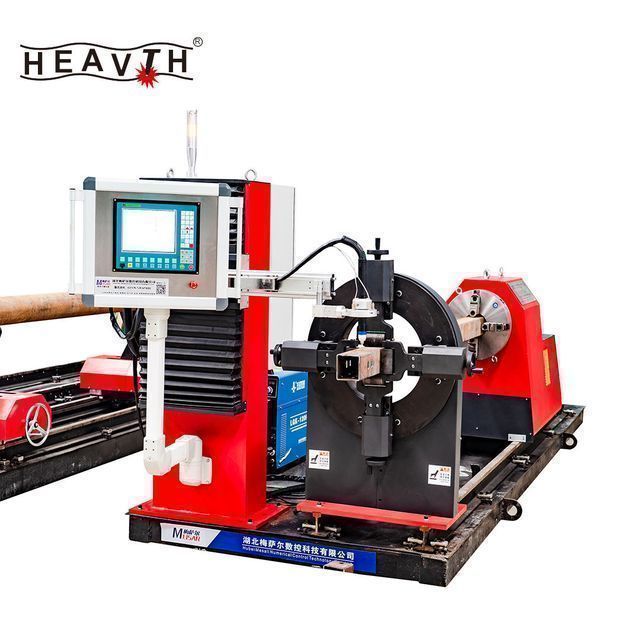

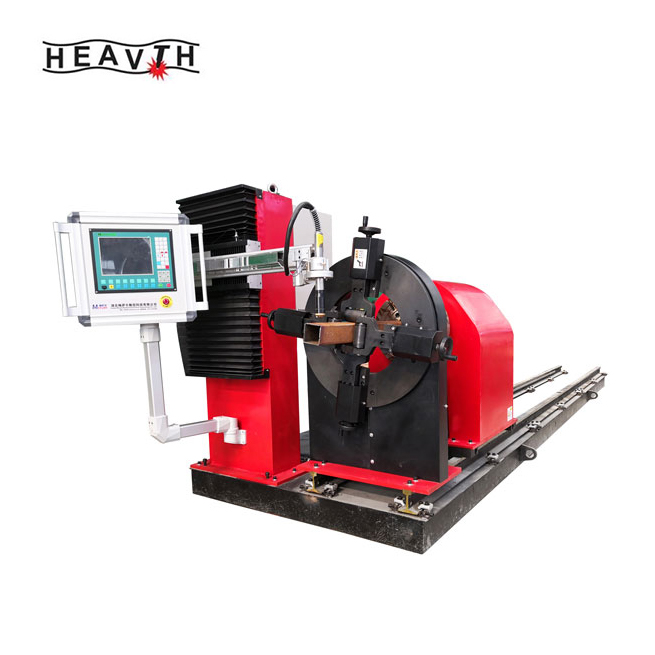

OEM H-beam cutting machine electric metal cnc cutting machine for pipe

Product Description



Intersecting wire cutting machineMainly used for various metal plates (such as: carbon

steel, stainless steel, aluminum, low-alloy steel, aluminum alloy), also have complex patterns

Processing of the above materials.

Technical Specifications

product name

Intersecting wire cutting machine

Model

MS-60XF

Control System

Fangling FX-430X

motor

servo motor

color

Red

cutting mode

Plasma cutting + flame cutting

flame cutting gas

Oxygen with propane or acetylene

Plasma torch gas

Compressed air/N2/O2

Work area

40*40-240*240mm, or customized

Cutting thickness

0-150mm

cutting speed

0-8000mm/min

Operation accuracy

0.2mm/m



main feature:



1. The system realizes six-axis linkage control, and the axis can be expanded

2. Support position control mode and EnterCAT bus servo driver.

3. Operation control card can realize motion interpolation, which is more stable.

4. Real-time display of 3D graphics cutting (subsequent upgrades will be added)

5. Support position control mode, pulse output mode: direction/pulse or double pulse.
