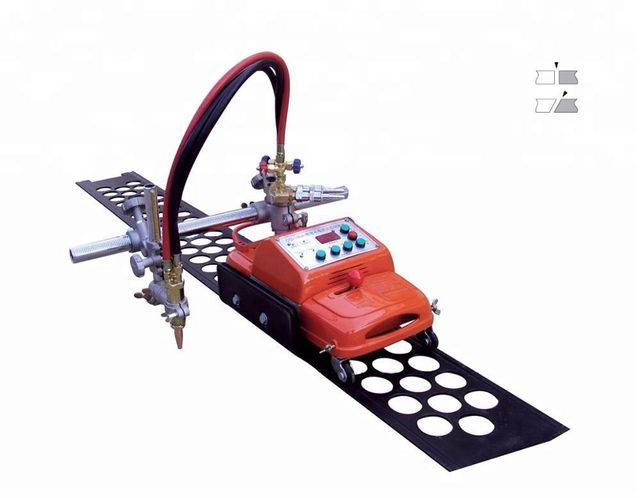

Gas flame linear cutting machine

Product details
payment terms:T/T, Western Unionrated power:30W
Health status:newweight:18.5 kg
Cutting circle diameter:200-2000mmApplicable cutting nozzle:acetylene or propane
Origin:Shandong ChinaAfter-sales service provided:Engineers available to service machinery overseas
Dimensions (L*W*H):470*230*250mmVoltage:AC220V/50Hz
Key words:Linear Gas Flame Cutting Machinebrand:Lehman
Certification:ceWarranty:1 year
Supply capacity:1000 sets per monthport:Qingdao, Shanghai, Yiwu, etc.
Cutting thickness:6-100mmCutting speed:50~750mm/min
Packaging Details:CartonTorch:1 unit
Product Description



CG1-30A, CG1-100A precision trolley-type gas/fire cutting machine is one of the main products of our company. The internal structure of the machine is reasonable and the appearance is beautiful. After listening to the user's suggestions, after many technical discussions, we have carried out a large number of technological innovations and process improvements. The machine adopts new materials, and the strict requirements on the processing technology of the parts have greatly improved the operability, durability and insulation capacity of the machine. The speed regulating system adopts integrated circuit, which is stable in running and equipped with fast switches, which greatly improves the working efficiency. The straightness of track processing is good, and it is not easy to deform. Suitable for shipbuilding, petroleum, metallurgy, metal structure and other factories.









Specification



Model

CG1-30A

CG1-100A

weight

18.5 kg

23 kg

cutting torch

1 unit

2 units

Groove

0-45°(one, five)

0-45°(I,V,Y)

aspect

470×230×250mm

Speed ​​regulation

integrated circuit

Voltage

AC220V/50Hz

cutting speed

50~750mm/min

Cutting thickness

6-100mm

Cutting circle diameter

ø200-ø2000mm

Applicable nozzle

1) G02 (acetylene)

2) G03 (propane)

engine

DC 110V 0.5A 30W Speed ​​3600-4600r/min
