cutting metal gas multifunction cutting machine

Supplier: Dalian Fyeboon Technology Co., Ltd.
Region: Liaoning, China
Contact: Mr David Wong
Price: $199.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting speed (mm/min):	50 - 750	port:	Liaoning Dalian Port
Core components:	PLC, gearbox	Straight track length:	1800mm/customized
Local service location:	Saudi Arabia, Mexico	Health status:	new
Marketing Type:	New Products 2020	motor:	1500 rpm
Cutting material:	carbon/mild steel	Supply capacity:	200 sets per month
Weight (kg):	43	Diameter circle cut:	290-540mm
Warranty:	1 year	Main selling points:	competitive price
Cutting thickness (mm):	6 - 100	rated power:	10W
Certification:	International Organization for Standardization	bevel:	IV 0-45°
Showroom location:	Saudi Arabia, Mexico	After-sales service provided:	Online support, free spare parts, video technical support
place of origin; place of origin:	Liaoning, China	Torch number:	a flame
Core component warranty:	1 year	Mechanical test report:	if
Cutting speed:	150-800mm/min	Video shipment inspection:	if
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal	Type of machine:	Linear cutting machine
Cutting accuracy (mm):	1	Cutting method:	flame
Round rail diameter:	900/1000mm	Applicable industries:	Energy and Mining, Advertising Agencies, Manufacturing Plants
After warranty service:	Video technical support, online support	Cutting thickness:	6-100mm
brand:	gallop	Packaging Details:	Size of each machine: carton (no need for fumigation or phytosanitary) Host: 420x250x290mm Net weight: 13kg Gross weight: 14kg Guide rails and accessories: 1820x190x35 mm Net weight: 28kg Gross weight: 29kg
Voltage:	220/110V

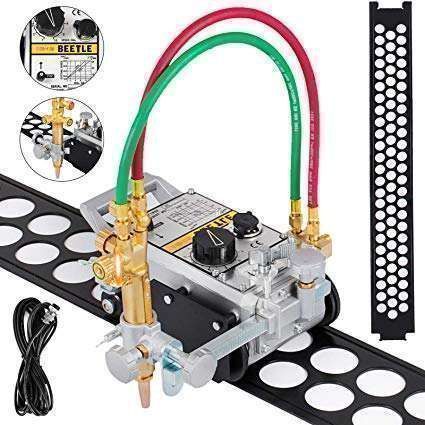

product information

Do not.	describe	Do not.	describe
1	Power socket: used to connect the power cord to provide electricity	6	Torch Side Handle: This handle adjusts the lateral position of the torch
2	Governor: Turn the knob clockwise, the machine travels faster	7	Handle: Hold the handle to carry the machine. and positioning
3	Clutch: Lever operation will stop driving	8	Heat Shield: The heat shield protects the machine from heating flames
4	Drive Wheels: Tilt the switch in the direction of the arrow to move the machine in that direction	9	Idler
5	Driving wheel: Engage the clutch (ON) to transmit the driving force, and the machine starts to drive

main features
1	The main body is made of high-strength aluminum die-casting
2	Light weight and compact structure ensure the machine is an ideal portable machine
3	The speed control system adopts mechanical adjustment, which can maintain continuous operation at high temperature
4	Advanced motor with fan cooling

HK-12 Beetle
Straight track length	1800mm	flashlight number	a flame
Rail diameter	900/1000mm	reducer	single cone system
Cutting thickness	6~100mm	wheelbase	160mm
diameter circle cut	290-540mm	bevel	One, five (45°)
cutting speed	150-800mm/min	motor	1500 rpm
