Payment Terms: | T/T,Western Union; | Certification: | ISO; |
After-sales Service Provided: | Online support,Video technical support; | Rated Cutting Current: | 100A/120A/160A/200A; |
Rated Input Voltage: | 380V; | Rated Power: | 17.8KVA; |
Weight: | 45-82kg; | Year: | 2019; |
Warranty: | 1 Year; | Place of Origin: | Shandong China; |
Voltage: | 380v; | Air pressure: | 0.4-0.6MPa; |
Product name: | huayuan 120A power source for cnc plasma cutting machine; | Dimension(L*W*H): | 675*320*605mm; |
Packaging Detail: | Wooden case for huayuan plasma cutter power source.; | Max. Output Current: | 200A; |
Quality Cutting Thickness: | Depend; | Application: | Industrial Metal Cutting; |
Open Circuit Voltage (OCV): | 300VDC 315VDC; | Supply Ability: | 100 Set/Sets per Month huayuan plasma cutter power source; |
Condition: | New; | Port: | Qingdao port.; |
Rated Duty Cycle @40°C: | 100%; | Brand Name: | Huayuan; |
Max. Output Voltage: | 160V; |

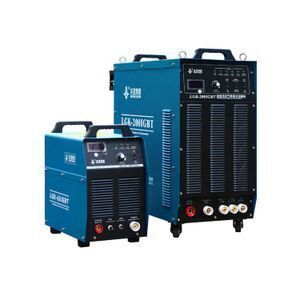

huayuan plasma cutter power source
Main Features
1, Adopting inverter soft switch technology, the cutting current is stable;
2, High duty cycle design suitable for heavy duty cycle;
3, Automatic compensation for grid fluctuation, cutting current is stable;
4, Cutting current up slope technology to reduce the wearing parts loss;
5, With fast cutting speed and high efficiency, the machine speed is 2~5 times faster than the traditional machine;
6, Good arc rigidity and cutting groove;
7, Cutting gas use the compressed air to reduce the cutting cost.
Parameter
Model | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT |
Rated input voltage | 3~380V/50Hz | |||
Rated input capacity | 17.8KVA | 22.4KVA | 32.2KVA | 46.7KVA |
Rated Output current | 100A | 120A | 160A | 200A |
Rated output voltage | 120V | 128V | 144V | 160V |
Rated load sustainability | 100% | 100% | 100% | 100% |
No-load voltage | 300VDC | 300VDC | 315VDC | 315VDC |
Regulating range of current | 30~100A | 30~120A | 40~160A | 40~200A |
High quality cutting thickness | 0.3~22mm | 0.3~25mm | 1~35mm | 1~45mm |
Maximum cutting thickness | 40mm | 45mm | 55mm | 65mm |
Use of plasma gas | compressed air | compressed air | compressed air | compressed air |
Working gas pressure | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.45~0.6Mpa |
The cooling method of cutting torch | air-cooled | air-cooled | air-cooled/ water-cooling | air-cooled/ water-cooling |
Arc ignition mode | Non contact mode | |||
Insulation grade | F | |||
Shell protection grade | IP21S | |||
Dimensions (length*width*height) | 675*320*605 | 675*320*605 | 800*380*650 | 800*380*810 |
Weight | 45kg | 46kg | 65kg | 82kg |
Product Details
