Factory Direct PC Pp Fully Automatic Horizontal Servo Motor LED Bulb Injection Blow Molding Machine With CE Certificate

Supplier: Dongguan Chenjia Plastic Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Doris Lee
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Shekou, Shenzhen, China	place of origin; place of origin:	Guangdong, China
Health status:	new	Screw speed (rpm):	10 - 180 rpm
Mould height (mm):	270 - 670 mm	Core Components Warranty:	1 year
Tie rod spacing (height) (mm):	670mm	Main selling point:	Multifunctional, energy saving, injection blowing
usage:	Injection molding machine for making plastic injection	Ejection force (kN):	90kN
Power (kW):	37kW	Injection weight (g):	219 g
Tie rod spacing (width) (mm):	670mm	Type of machine:	hydraulic
Warranty:	1 year	Key words:	Plastic Machinery
Machine size (mm):	7.222.4m	Video external inspection:	if
Oil pump motor power:	37kW	Voltage:	380V/ 50Hz 3P+N+E (variable)
Injector number:	9	payment terms:	L/C,Western Union,T/T,MoneyGram
Screw diameter (mm):	40 mm	type:	Injection blow molding
Function:	Production of plastic parts	Mechanical test report:	if
product name:	Mini Plastic Thermoforming Injection Molding Machine	model:	ZH-338T-IB
Supply capacity:	300 pieces per month	Weight (kg):	11700kg
Packaging Details:	container	Showroom location:	not any
brand:	Zhenhua	Distance between drawbars:	670*670mm
Core components:	Bearings, motors, pumps, gears, PLCs, others, pressure vessels, engines, gearboxes, screws, computers	Plastic Processing:	PP,PC,PET,ABS/PP
style:	horizontal	Theoretical injection volume (cm³):	1000 cubic centimeters
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company	Name:	China Injection Molding Machine
Ejector stroke (mm):	170 mm	Injection rate (g/s):	300 g/sec
application:	LED bulb light	Opening stroke (mm):	620 mm
Card:	Zhenhua	Marketing Type:	Injection blow molding machine

Specification

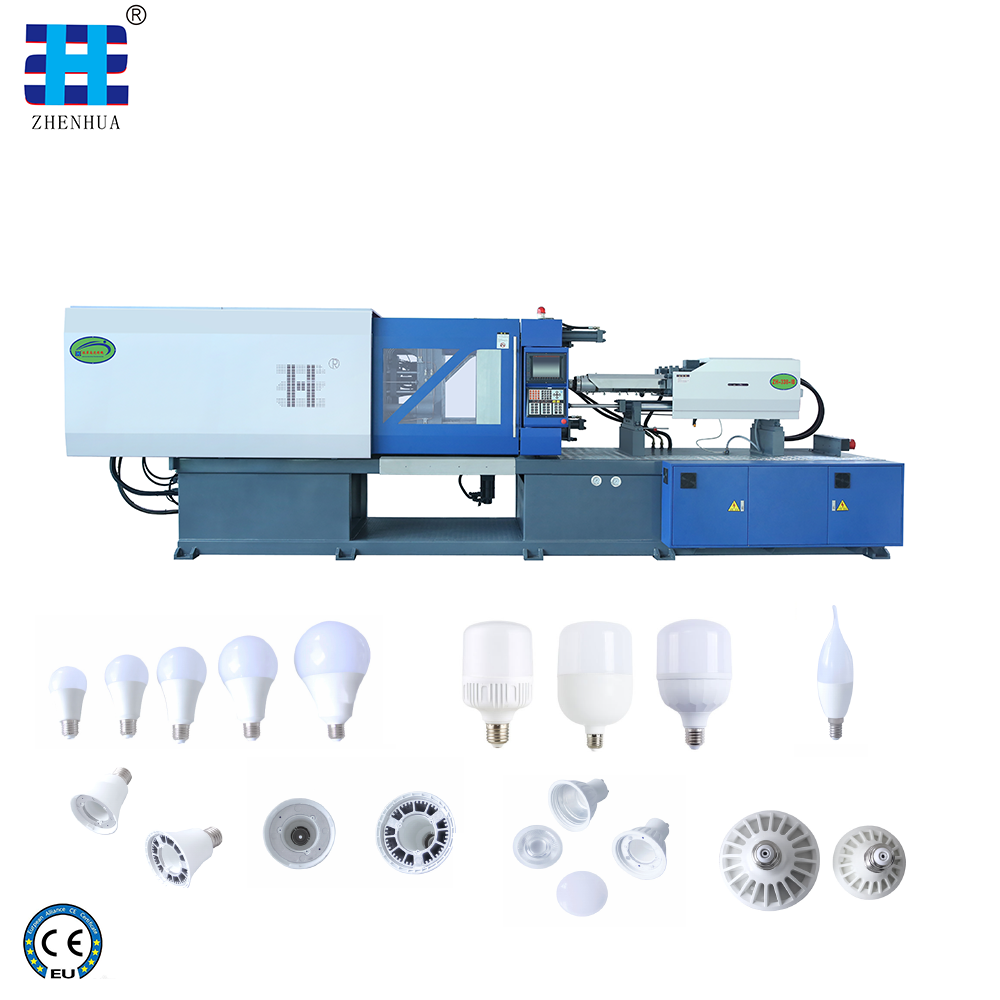

ZHENHUA-338T LED Bulb Injection Blow Molding Machine

--High speed: 24 cavities/15 seconds

--High production capacity: 32 cavities

--long lasting

--Stable production

--Provide machines of different tonnages

--CE certificate

technical parameter			unit	ZH-338T
			unit		One	Second	C
injection unit	Screw diameter	mm	40	45	50
		Theoretical injection volume	ounce	9.6	12.1	15
		inject energy	G	219	270	330
		injection pressure	MPa	242	188	150
		Screw speed	number of revolutions	0-180
clamp unit	clamping force	KN	1680
		A paradigm shift journey	mm	400
		space between titanium rods	mm	670*670
		Maximum die height	mm	670
		Minimum die thickness	mm	270
		popular travel	mm	170
		ejection force	KN	90
		Number of thimbles	personal computer	13
other	Maximum oil pump pressure	MPa	16
		Pump motor power	kilowatt	37
		Electrothermal power generation	kilowatt	19
		Machine size (LxWxH)	Meter	7.22.02.4
		machine weight	Ton	13.8

Machine Details:

Advantages: strong technical design ability, stable quality, large production capacity, well-known brand.

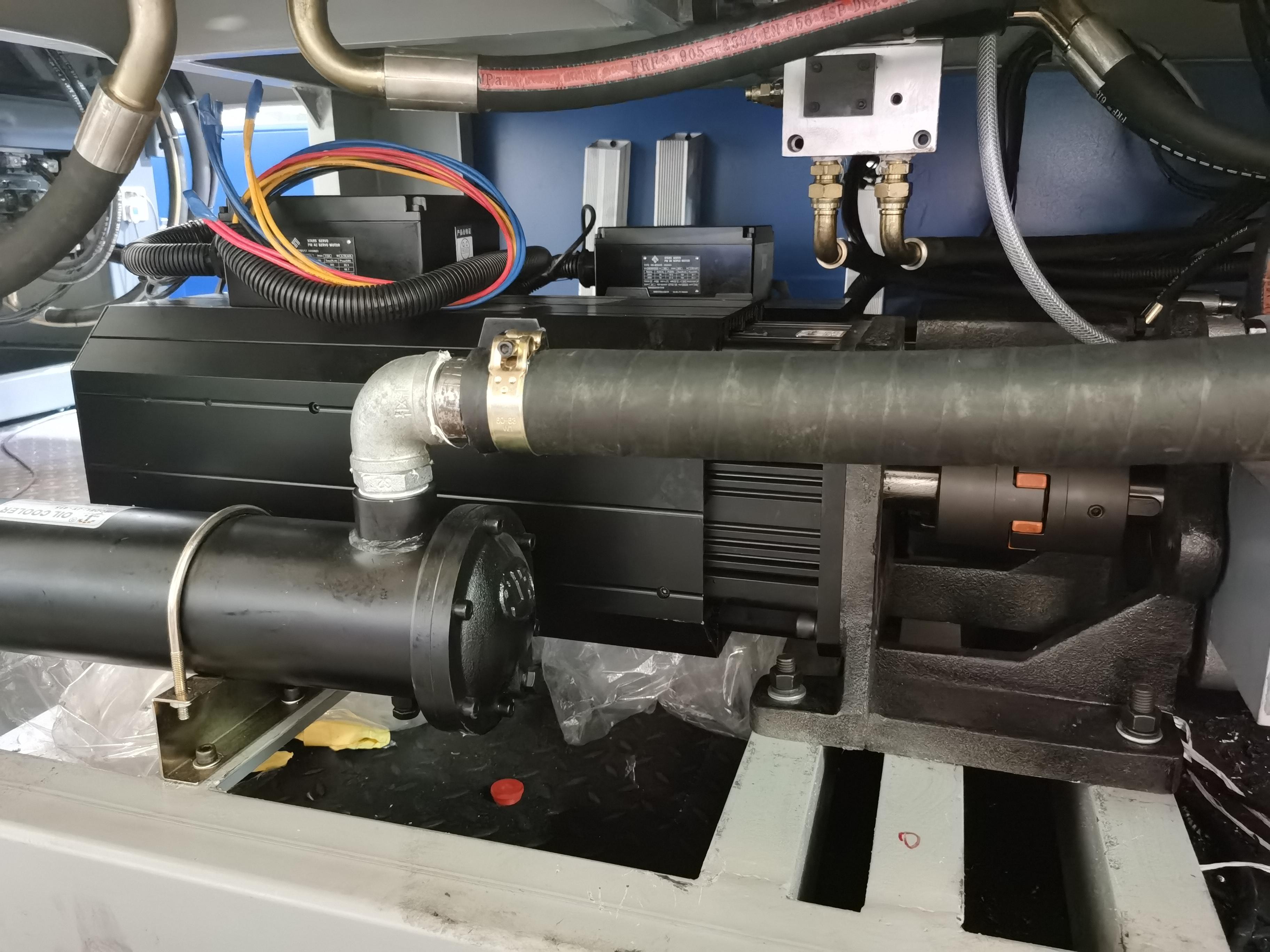

Zhenhua servo energy-saving injection molding machine, equipped with high-performance servo motor control system, the machine's
The output power can vary according to the load, which
Reduce energy consumption and noise. The motor rotates at low speed during the pressure holding stage and does not work during cooling.

Servo energy-saving molding machine performance:

- Servo motors optimize energy demand matching for automatic regulation.
- Improve injection accuracy
- Greatly save electricity and water, environmental protection and energy saving
- Fast response and low noise.

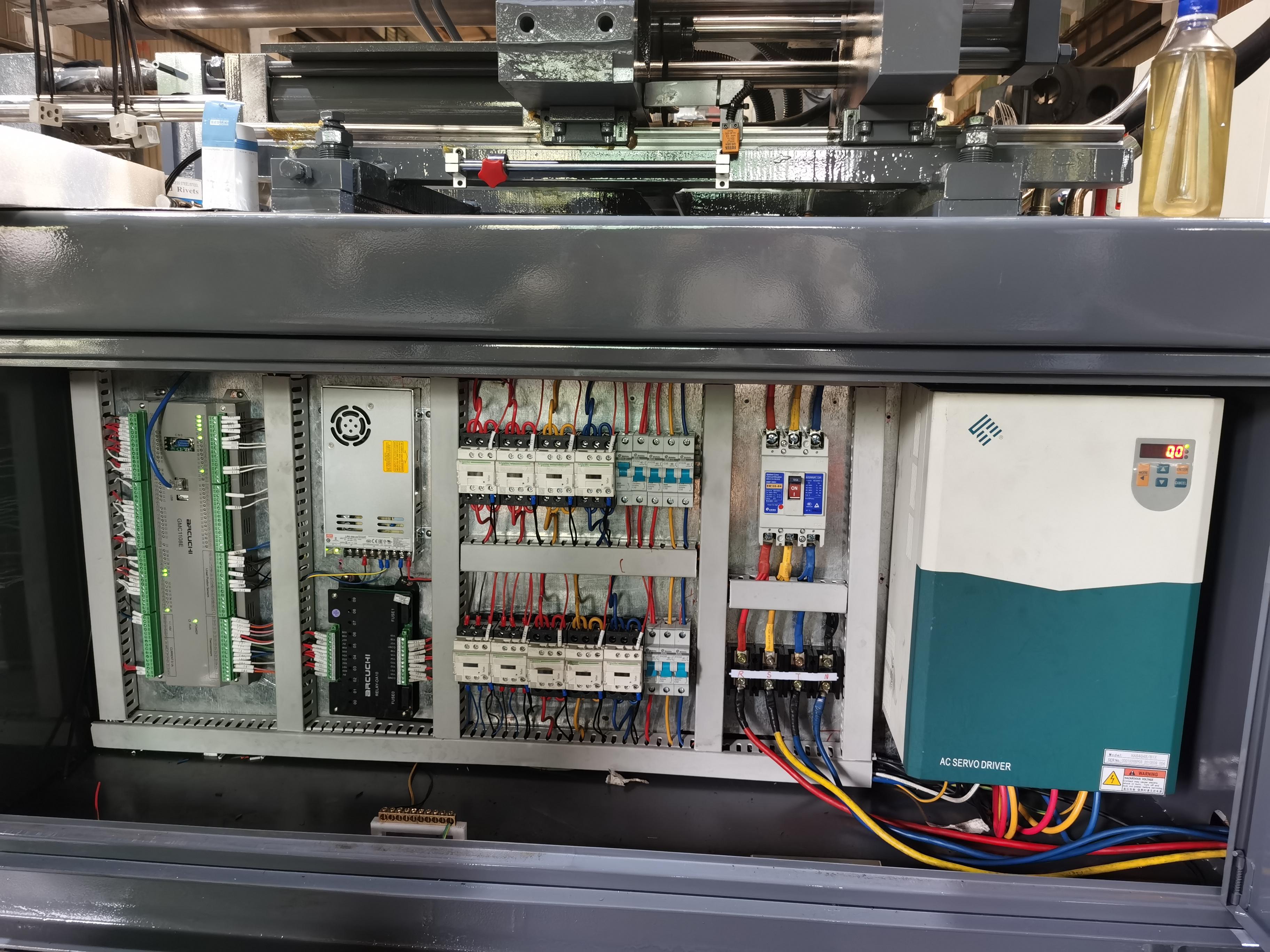

Famous brand control system ensures fast response and stable output

High-efficiency and energy-saving servo control system.

ensure accuracy

Imported famous brand oil pump

Precise and stable hydraulic power unit.

Durable to maintain precision and speed even under long-term high-intensity work

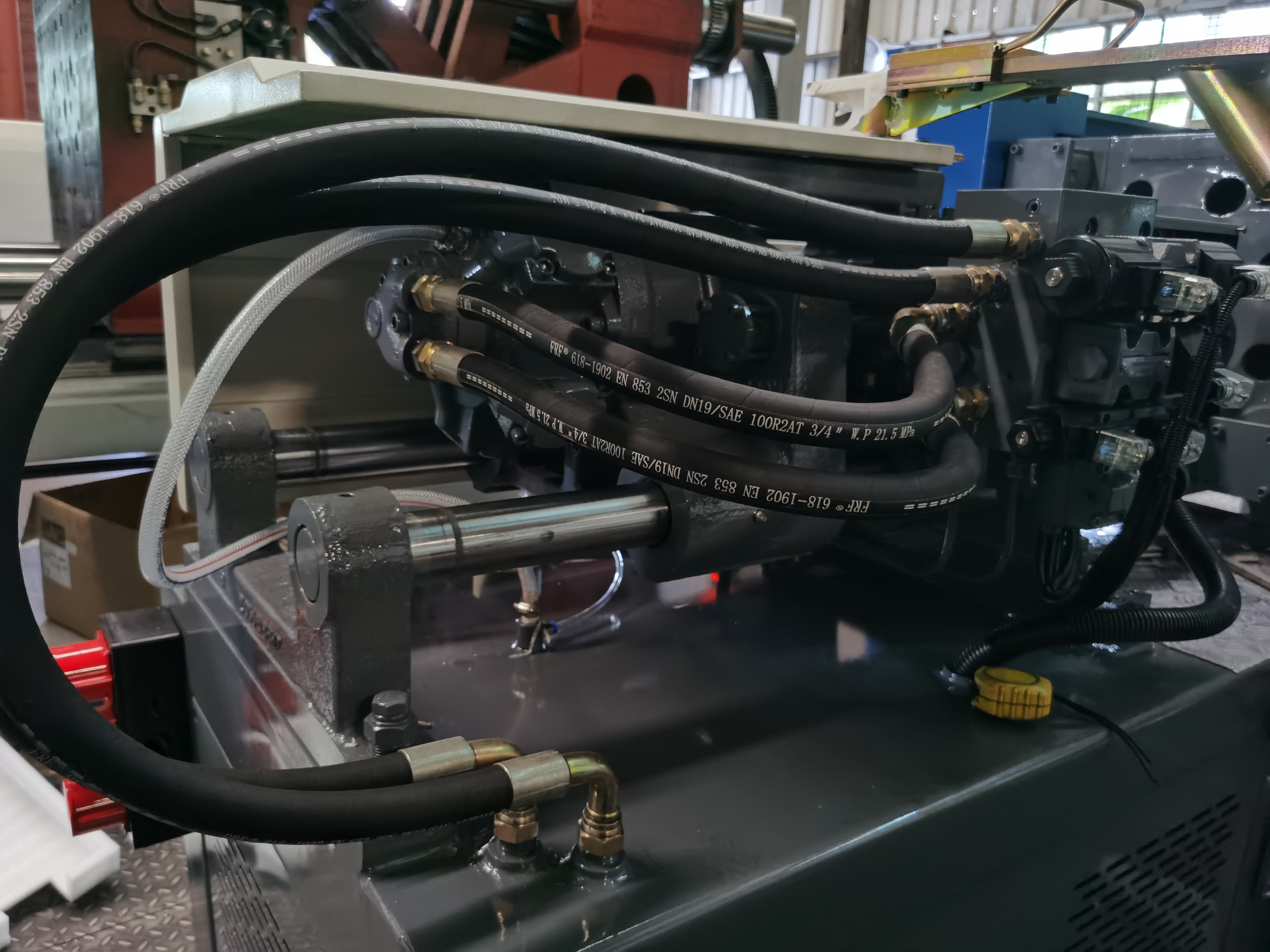

Superior hydraulic components

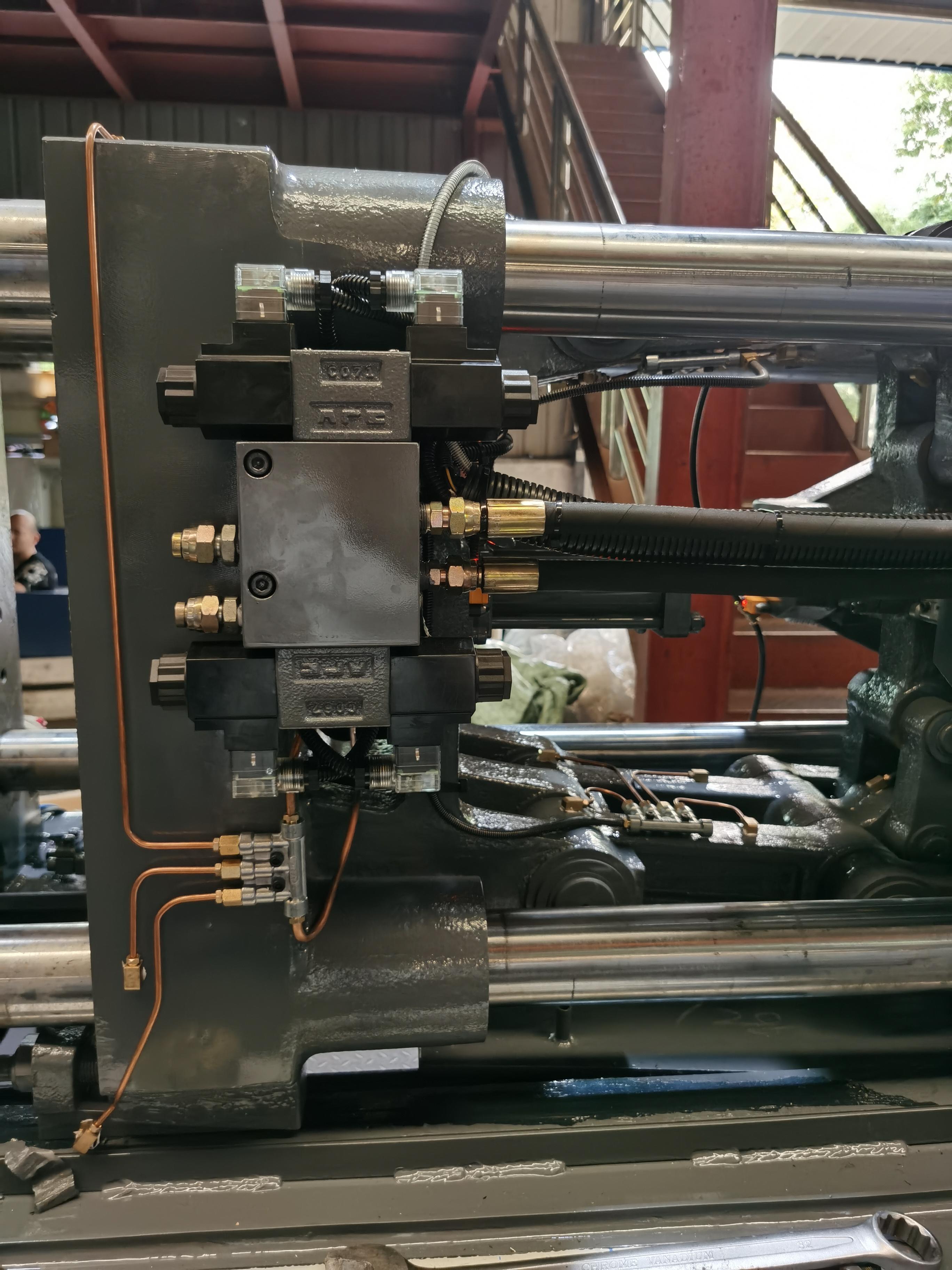

The hydraulic system adopts imported famous brand hydraulic components, and adopts the oil circuit combining plug-in type and hydraulic type.
The slide valve effectively improves the response speed of the system.
