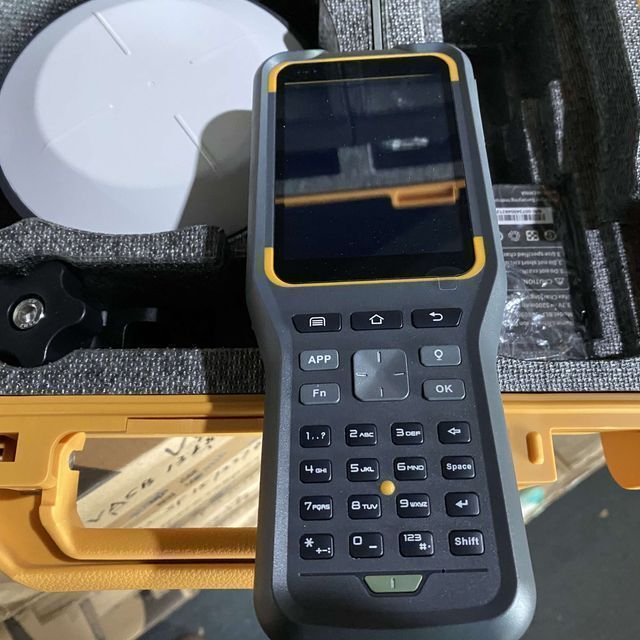

GPS RTK System Surveying and Mapping Geological Instruments

Measurement	220 channels
	Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
	High Precision Multiple Correlator for GNSS Pseudo-Range
	Unfiltered, low noise, low multipath error, low time domain correlation
	Very low noise GNSS carrier phase measurement with <1mm accuracy (1 Hz)
	Signal-to-noise ratio in dB-Ha
	Proven Pacific Crest low-altitude travel technology
	tracked satellite signals	GPS: L1C/A, L2C, L2E, L5
	at the same time	GLONASS: L1C/A, L1P, L2C/A (GLONASS M only), l2p
		SBAS: L1 C/A, L5
		Galileo: L1 BOC, E5A, E5B, E5ALtBOC
		BDS/Compass: B1, B2
		QZSS: L1 C/A, L1 SAIF, L2C, L5
position Performance	static and fast static	Level: l2.5mm+0.5ppm RMS
	GNSS measurements	Verticality: l5mm+0.5ppm RMS
	Postprocessing kinematics	Level: 1cm+1ppm RMS
	(PPK/Stop and go) GNSS measurements	Vertical: 2.5cm+1ppm RMS
		Initialization time: generally 10 minutes
		base while rover 5 minutes
		Initialization reliability: typically >99.9%
	Real Time Kinematics (RTK) Measurement	Horizontal.8mm+1ppm RMS
		Vertical.15mm+1ppm RMS
		Initialization time typically < 8 seconds
		Initialize reliability. Usually > 99.9%
	Code differential GNSS position	Horizontal.25cm+1ppm RMS
		Vertical.50cm+1ppm RMS
		SABS: horizontal 0.50m, vertical 0.85m
hardware	physical	Dimensions (W x H): 18.20cm x 9.80cm (7.17 in. x 3.86 in.)
		Weight: 1.25 kg (2.76 lb) without built-in battery
		Operating: -45°C to +65°C (-49°F to +149°F)
		storage temperature. -55°C to +85°C (-67°F to +185°F)
		Humidity: 100%, consider
		Waterproof and dustproof. IP67 dustproof, protection
		Temporary immersion depth 1 m (3.28ft)
		shock and vibration. Designed for survival
		A 3 m (9.84 ft) natural fall onto concrete.
	electric	Power 6V to 28V DC external power input
		Power consumption≤3.5w
		Automatic switching between internal and external power
		Rechargeable, Removable 7.4V, 5000mAh Li-Ion Battery
		Batteries in the internal battery compartment
	Internal battery life	Static 13-15 hours
		RTK rover (UHF/GPRS/3G) 10-12 hours
		RTK base 8-10 hours
	Input and output interface	1×Bluetooth
		1×Standard USB2.0 interface
		1×TNC UHF connector
		2 x RS232 serial ports
		2×DC power input (8-5-pin)
		1×Micro SD card interface
communicate & data storage	3G communication	Fully integrated, fully sealed internal 3G,
		Compatible with GPRS
		Network RTK (via CORS) range 20-50km
	Inside HI-TRAGERT UHF radio (standard)	Frequency: 450~470MHz, 116 channels
		Transmit power: 1W, 2W, 5W, adjustable
		Transmission speed: 9.6Kbps, 19.2Kbps
		Working range: 5km typical, 8-10km optimal
	Pacific Crest XDL Micro Internal UHF radio	Frequency: 403-473MHz
		Transmit power: 0.5W, 2W adjustable
		Transmission speed: up to 19.2Kbps
		Working range: typical 3-5km, optimal 8-10km
	Hi-Target External UHF radio (standard)	Frequency: 460MHz, 116 channels
		Transmission power: 5W, 10W, 20W, 30W adjustable
		Transmission speed: up to 19.2Kbps
		Working range: typical 8-10km, optimal 15-20km
	Pacific Crest ADL Advantage Pro External UHF Radio	Frequency: 390-430MHz or 430-470MHz
		Transmit power: 4W to 35W adjustable
		Transmission speed: up to 19.2Kbps
		Working range: typical 8-10km, optimal 15-20km
	Support other external communication equipment	For example, an external GSM modem.
	Data Format	CMR: sCMRx, CMR, CMR+ I/O
		RTCM: RTCM2.1 2.2 2.3 3.0 3.1 3.2 I/O
		Navigation output ASCII: NMEA-0183
		Navigation output binary: GSOF
		1 pulse per second

* Features of Geodetic RTK GPS Base and Rover:
Linux operating system
ARM 9G20 400MHz CPU, embedded Linux OS, support faster data transfer.

Smart operation
*Equipped with smart speaker guidance throughout operation. The voice assistant helps you quickly master V60 operation. Language can be customized.
*Industrial LED display on the front control panel, showing all the information and status of the work.
*Multiple one-click operations to make your work easy. Set the base with one click and automatically select the base coordinates from the base list.
* Automatic system logging makes receiver diagnostics easy.

RINEX storage
Static data can be saved directly in RINEX format. The V60 is fully compatible with other brands of receivers.

Quick upgrade
Simply copy the updated firmware to the V60 and reboot to complete the upgrade in seconds.

Multi-constellation tracking
* 220 tracking channels.
*Support GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS certified antenna.

High Power Transceiver UHF Radio
* Transceiver UHF radio switches operating modes between base and rover.
*5 watt (max) HI-TARGET internal UHF radio and 2 watt (max) Pacific Crest micro XDL internal UHF radio are optional
*Pacific Crest TrimTalk© internal UHF radio is compatible with other RTKs.

Works seamlessly in CORS systems
*Built-in GPRS/GSM/3G module makes V60 perfectly match with network RTK positioning.

long life battery
*Powered by 5000mAh Li-ion battery.
*Static working time 13 - 15 hours
*RTK Rover(UHF/GPRS/3G) working time 10 - 12 hours
*RTK base working hours 8 - 10 hours

Rugged design, IP67
*IP67 dust/waterproof.
* Withstands 3 meters natural drop to concrete.
* Fast tracking and perfect avoidance or reduction of obstacles and multipath effects, ensuring excellent positioning capabilities.
