Professional Proton Magnetometer Price

Supplier: Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Region: Chongqing, China
Contact: Ms Michelle Li
Price: $10.00 /set
Min. Order: 1 set

Click here to contact

Product details

Precision:	1nT;	Measure:	Magnetic field on earth;
Data Stored:	5000Nt/m;	Application:	Geophyiscal Proton Magnetometer;
Place of Origin:	Chongqing China (Mainland);	Supply Ability:	200 Set/Sets per Month;
Product name:	Proton Magnetometer;	Keyboard:	22 keys;
Measuring range:	20000nT~100000nT;	Packaging Detail:	Wooden Case or Alloy Box for Proton Magnetometer for Geophysical Survey Metal Mining;
Weight of Mainframe:	2.5kg(include batteries);	Operating Mode:	Electric Power;
Port:	Chongqing;	Brand Name:	Gold;
Model Number:	WCZ;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Color:	Orange;

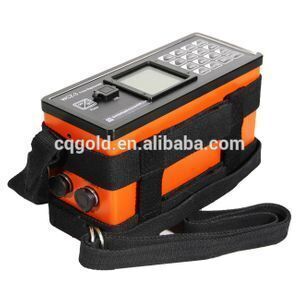

Proton Magnetometer for Geophysical Survey Metal Mining

Introduction

WCZ proton magnetometer is developed especially for home practical instance by referring abroad technique. It can measure magnetic in precision of 1nT. The resolving power can reach 0.1nT. These are in accord with the requirement of former Ministry of Geologic and Mineral, China. Its large memory, high resolution, agility make it a portable, mobile, base station fitted magnetometer. By changing the structure of the sonde, it can make the horizontal gradient measurement and the vertical gradient measurement at a resolution of 0.1nT.

>> Proton Magnetometer for Geophysical Survey Metal Mining

Main Applications

1. Mineral prospecting, such as iron ore, lead-zinc mine,copper mine.

2. Cooperative mine prospecting, study the ore body's burial depth, dipping and continuity, study the ore body's shape,size,estimate mineral bed's scale.

3. Prospecting for gas or oil, research geoligic structure relevant to gas or oil.

4. Geologic survey, geologic mapping.

5. Ground diurnal variation for aero-magnetic and marine magnetic survey.

6. Faults orientation.

7. Archaeology

8. Hydrology.

9. Engineering prospecting,e.g, pipeline finding.

10. Earthquake monitoring, volcano monitoring and other environmental disaster.

11. Small ferromagnetic objects' finding.

>>Proton Magnetometer for Geophysical Survey Metal Mining

Specifications

Name:	Proton Magnetometer
Measurement Range:	2000nT~100000nT
Measurement Precision:	1nT
Allowed Gradient:	5000Nt/m
Data Stored:	100,000 out-power protection
LCD Screen:	240*128
Keyboard:	22keys
Interface:	RS-232C standard serial port
Power:	Outside rechargeable batteries,12V/2.3Ah, also power outside
Bulk of Mainframe:	230mm155mm65mm
Weight of Mainframe:	2.5kg(include batteries)
Bulk of Sonde:	Φ75mm*155mm
Weight of Sonde:	0.8kg
Operating Temperature:	-10°C~+50°C
