capacity: | 50KN | product name: | geophysical winch |
Custom Support: | logging winch | Packaging Details: | Export case object detection well winch |
port: | Chongqing physical exploration well winch | Voltage: | logging winch |
Certification: | ISO9001 | model: | GDJ logging winch |
Supply capacity: | 100 sets/moon detection well winches | Energy source: | electrical |
Winch depth: | 300m, 500m, 1000n, 2000m, 3000m | motor: | logging winch |
brand: | gold | application: | car |
Warranty: | 1 year, 3 years | place of origin; place of origin: | Chongqing, China |
usage: | geophysical winch | depth: | 100m to 3000m |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Long cable pulling winches, cable pulling winches and geophysical logging winches, long cable pulling winches, cable pulling winches and geophysical logging winches
describe
logging winch
Long cable pulling winches, cable pullers and geophysical logging winches

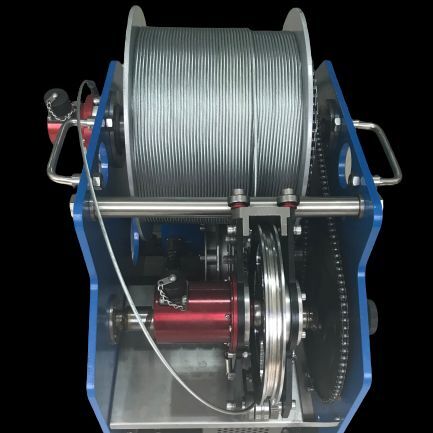

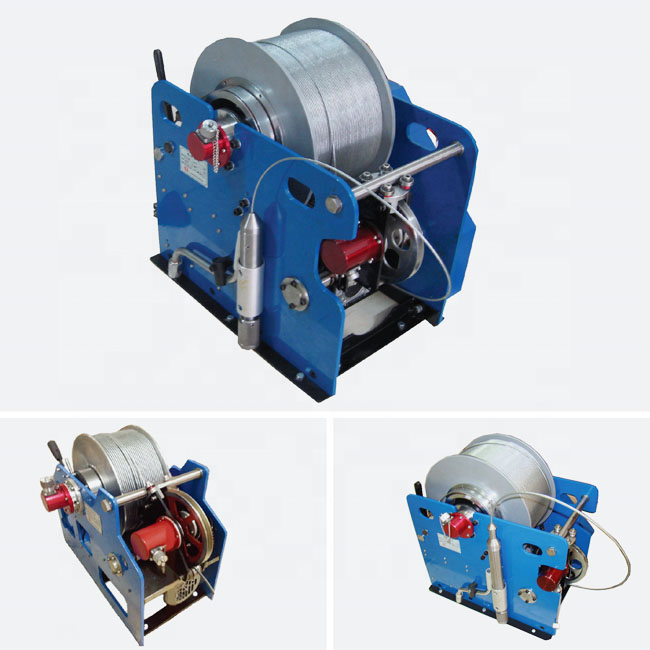

GDJ series winches are special equipment for geophysical exploration and geological survey. It is mainly used with GDQ-2D integrated digital logging equipment, and can also be used with other logging equipment. Most of GDJ series winches adopt anti-magnetic design, stepless speed regulation, and automatic wiring. This performance can be applied to various geological exploration fields. GDJ series winch equipment adopts frequency conversion motor, DC motor and AC asynchronous motor as power source, which has the characteristics of wide speed regulation range, stable speed change, convenient operation and simple maintenance. It can be used for geophysical prospecting and geological survey work on the earth's land, ocean, plateau (below 5500 meters above sea level) and other environments.
scope
Long cable pulling winches, cable pullers and geophysical logging winches
1. Cable length measurement: automatic measurement
2. Photoelectric pulse generator: SG9208, each transmission pulse is 1800P/R
3. Transmission: JLH0710
4. Self-locking brake and manual brake
5. Motor insulation grade: F grade; enclosure protection grade: IP56
6. Use environment: below 5500 meters, ambient temperature -20℃~+45℃, relative humidity below 99%; power supply: 220V current 5A
Geophysical winch model is optional
Long cable pulling winches, cable pullers and geophysical logging winches
capacity | cable | conductor | speed | Lifting force | automatic / manual |
(male) | Outer diameter (mm) | (m/h) | (kN) | ||
300 | Steel, 3.12 | 1 | 600/1200 | 1.8/0.9 | Yes |
300 | Steel, 4.76 | 4 | 600/1200 | 1.8/0.9 | Yes |
650 | Steel, 4.76 | 4 | 800/1960 | 2.6/1.1 | Yes |
1000 | Steel, 3.12 | 1 | 800/1960 | 2.6/1.1 | Yes |
1200 | Steel, 3.12 | 1 | 800/1960 | 2.6/1.1 | Yes |
1000 | Steel, 4.76 | 4 | 800/1800 | 5.9/2.6 | Yes |
2000 | Steel, 4.76 | 4 | 660/1725 | 10/5.1 | Yes |
2500 | Steel, 4.76 | 4 | 660/1725 | 10/5.1 | Yes |
3000 | Steel, 4.76 | 4 | 660/1725 | 10/5.1 | Yes |
