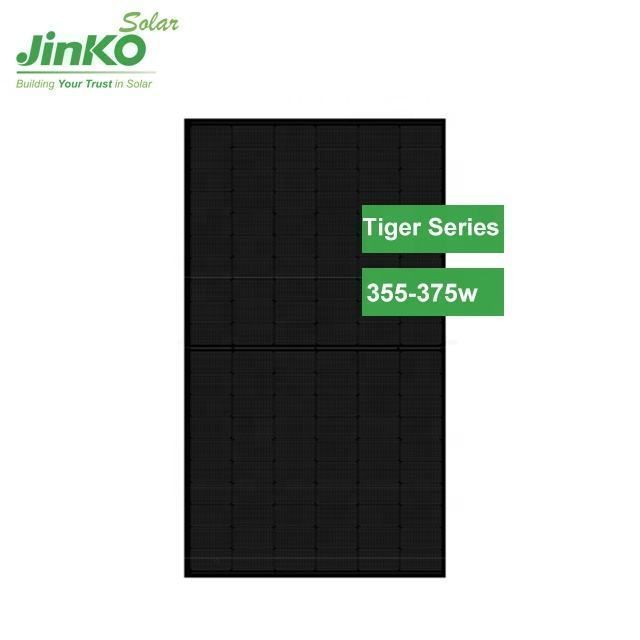

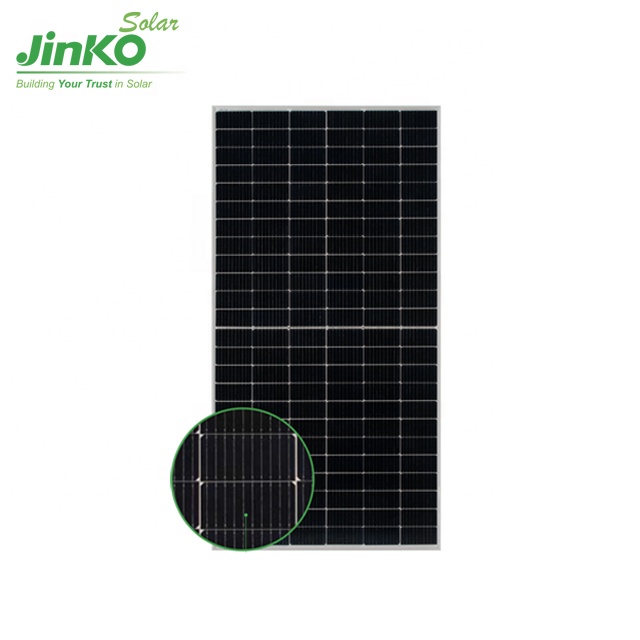

Jinko Solar PV Module Energy 320W 355 watt 500w 400w 550W 535W 545W Jinko Solar Panel Price

Supplier: Nanjing Prosky New Energy Technology Co., Ltd
Region: Jiangsu, China
Contact: Ms Farry Li
Price: $0.18 / >=355 pieces
Min. Order: 355 pieces

Click here to contact

Product details

Certificate:	TUV CE IEC61215 IEC61730 ISO9001	cell type:	N-type single crystal
Supply capacity:	50,000 pieces per week	Output cable:	TUV 1*4.0mm
color:	all black	payment terms:	L/C,D/P,D/A,T/T,MoneyGram
Panel size:	1692102930mm (66.61"40.51"1.18")	model:	60TR 355-375W
port:	Shanghai, Ningbo, Qingdao, Yantai and other ports	brand:	Jinko
weight:	19.0 kg (41.89 lb)	Warranty:	25 years
Panel Efficiency:	21.53%	Packaging Preview:
frame:	Anodized aluminum alloy	type:	All black, N-TYPE
place of origin; place of origin:	Jiangsu, China	Front glass:	3.2mm anti-reflection coating
Cell size:	182mmx182mm	Junction Box:	IP68 rating
Glass:	3.2mm high transparency	Packaging Details:	Wooden box or carton pallet packing.

Product Description

Main features

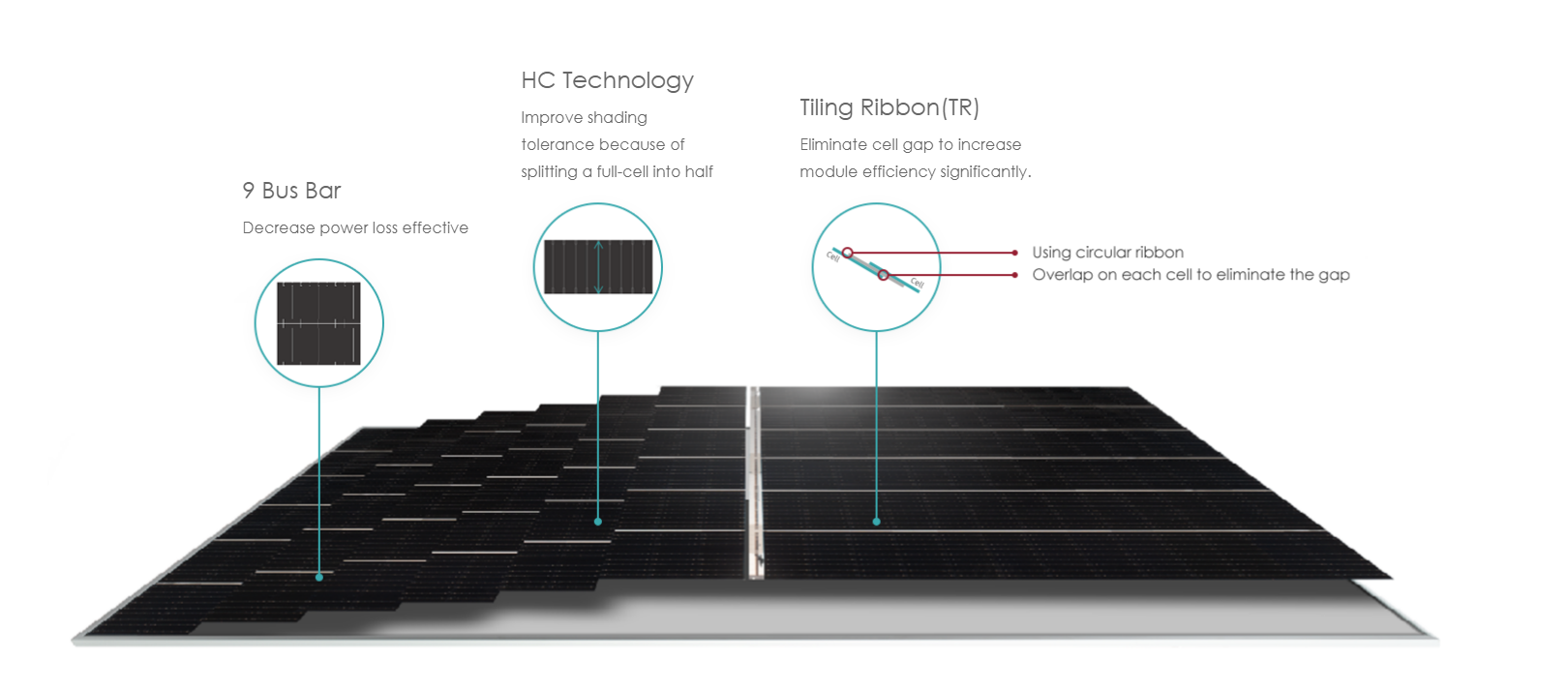

Multiple busbar technology

MBB solar cells use new technology to improve module efficiency and have a more beautiful appearance.

Hot 2.0 Technologies
N-type modules with Hot 2.0 technology have better reliability and lower LID/LETID.

PID resistance
Excellent anti-PID performance is guaranteed by optimized mass production process and material control.

Enhanced mechanical load

Certified to withstand: Wind Loads (2400 Pascals) and Snow Loads (5400 Pascals).

Durability in extreme environmental conditions

Resistant to salt spray and ammonia.

module type	JKM355N-6TL3-B	JKM360N-6TL3-B	JKM365N-6TL3-B	JKM370N-6TL3-B	JKM375N-6TL3-B

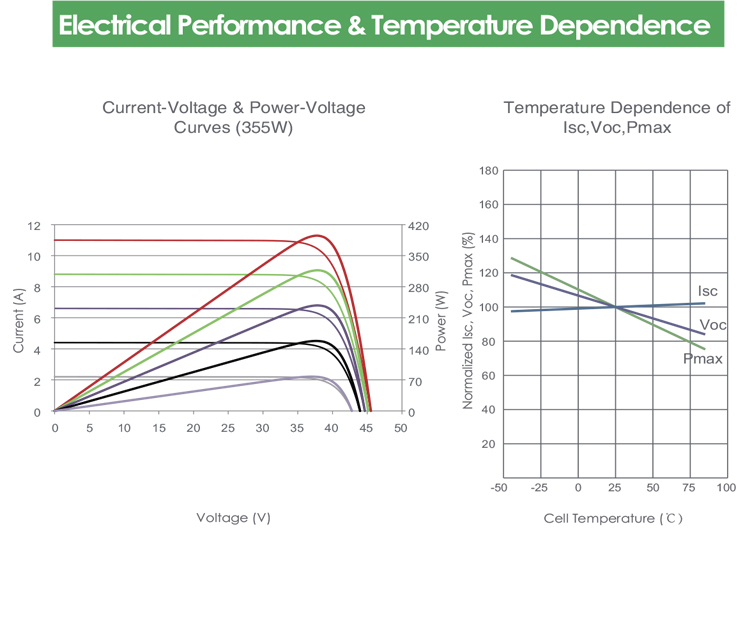

	STC
Maximum power (Pmax)	355W	360W	365W	370W	375W
Maximum supply voltage (Vmp)	34.30V	34.49V	34.67V	34.84V	35.02V
Maximum power current (Imp)	10.35A	10.44A	10.53A	10.62A	10.71A
Open circuit voltage (Voc)	41.92V	42.11V	42.29V	42.48V	42.67V
Short circuit current (Isc)	10.93A	11.02A	11.11A	11.20A	11.29A
Module efficiency (%)	20.38%	20.66%	20.95%	21.24%	21.53%
Working temperature (℃)	-40℃~+85%
Maximum system voltage	1000VDC (IEC)
Maximum Series Fuse Rating	20A
power tolerance	0~+3%
Temperature coefficient of Pmax	-0.34%/℃
Temperature Coefficient of Voc	-0.28%/℃
Temperature Coefficient of Isc	0.048%/℃
Nominal Operating Cell Temperature (NOCT)	45±2℃

detailed picture

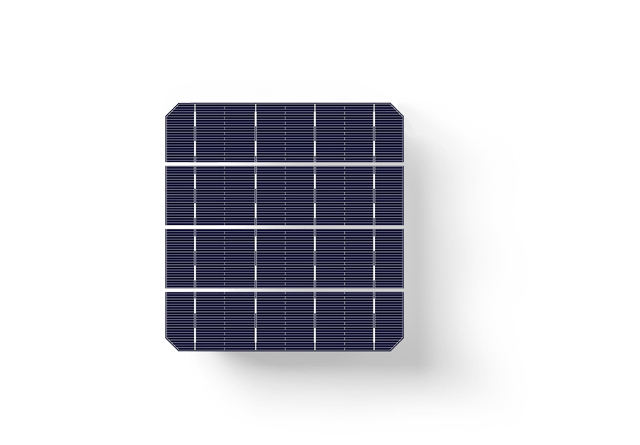

Solar battery

* Anti-PID
* Appearance consistency
* High efficiency photovoltaic cells
* Color sorting ensures a consistent look for each module

Glass

*Anti-reflective glass*Self-cleaning function
*Module efficiency increased by 2%
*Lifetime up to 25 years (30 years optional)

* Translucency increased by 2% for normal brightness

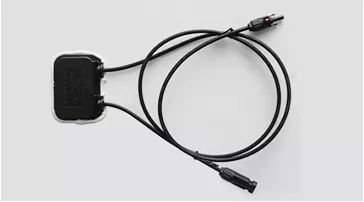

Junction Box

* heat dissipation
*long lasting
*IP68 protection grade
*High quality diodes ensure safe operation of the module
*Regular stand-alone version and engineering customized version

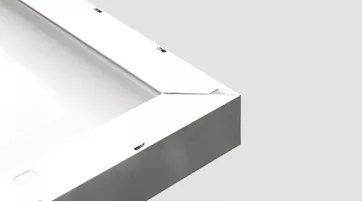

frame

* regular frame
* Sealing lip design with glue injection
* Available in silver or black frame
* Sawtooth clip design tensile strength
*Improve bearing capacity and prolong service life
