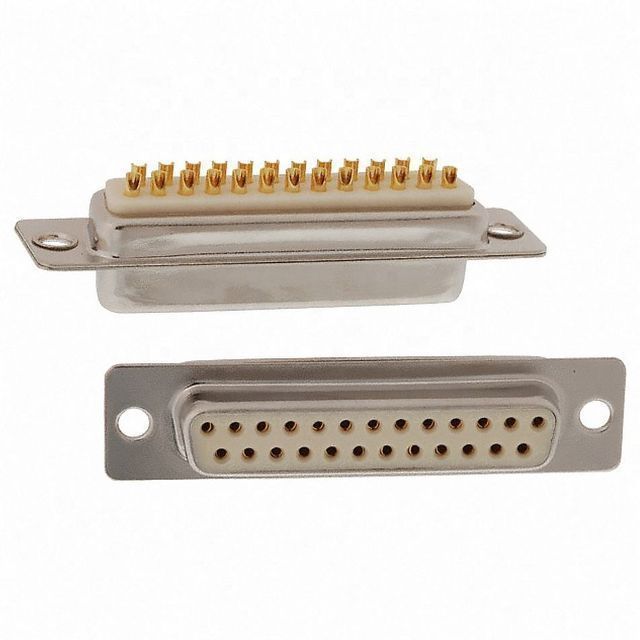

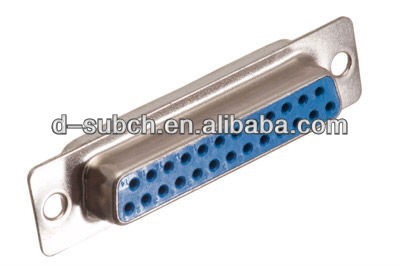

d sub 25 pin connector, db 25 female type connector

Supplier: Dongguan Zechao Hardware Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ruan
Price: $0.35 / 100 - 999 pieces
$0.30 / 1000 - 4999 pieces
$0.20 / >=5000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

DC:	Do not	model:	DB25 connector
PIN Contact:	Phosphor bronze or gold plated brass	describe:	d-sub connector
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Bale:	box
Insulation resistance:	1000MΩMIN.(AT 500V DC)	type:	D-Sub Adapter
temperature:	-55°C to +105°C	insulator:	PBT & glass fiber reinforced
Packaging Details:	Packed in plastic bag with carton. PE bags, according to customer requirements.	Card:	Ze Chao
Do not. Contact:	09 15 25 26 37 44 50 62 78	contact details:	P: plug S: socket
shell:	Steel, tin or nickel plated	Supply capacity:	1,000,000 pieces/month
place of origin; place of origin:	Guangdong	Contact Plating:	A: Gold Glitter (C: 5U D: 10U E: 15U F: 30U)
port:	Shenzhen Guangzhou	Insulator Color:	B: blue K: black W: white
Dielectric strength:	500V for one minute

Product details

Specifications: d-sub crimp connector
Material:
Standard insulator	PBT thermoplastic, 30% glass filled (UL94V-0 rated)
Insulator color	blue/black/white
Contact material	brass
Contact plating	gold plated
Shell material	SPCC
Shell plating	Nickel plating (or tin, zinc, gold)
Metal plating	Steel, nickel (or tin, zinc, gold) plating

electric:
specified load	0.5A 30V DC
Contact resistance	30MΩ max
Insulation resistance	100 MΩ Min.AT 500V DC
Insulation withstand voltage	500V AC for 1 minute
Mechanical:
Insertion force	0.75 lb max
Pull out force	0.44 lb min.
Life	5000 times
Temperature class:
Operating temperature:	-40°C to +70°C
Bale:	Plastic bag (inner) + carton (outer)

Advantages description:
1. Professional and experienced engineers
2. Competitive price
3. Timely service
4. Product Warranty
5. Years of export experience.
6. High tech
7. Delivery time: short delivery time
