D-SUB Standard 15 connector Metal cap of solder cup contacts

Supplier: Dongguan Zechao Hardware Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ruan
Price: $1.55 / 50 - 499 sets
$1.35 / 500 - 49999 sets
$0.99 / >=50000 sets
Min. Order: 50 sets

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, T/T	Supply capacity:	100,000 pieces per month
Package:	Bag	type:	D-Sub Backshell
Origin:	Guangdong, China	model:	ZC-2454
Packaging Details:	Delivery time is usually 7-15 days Carton size: 39.5 * 36 * 17.5 cm 35 * 25 * 25 cm 35.5 * 31 * 25 cm 32 * 22 * 22 cm Packing details Blister box + carton / PE bag + carton 1 Packing details: 100 pieces / carton, then as your request or standard packing 2 Neutral or customized packing also accepted	Package Preview:
brand:	Zechao	describe:	D-SUB Connector Cover

Detailed image

Cable exit angle	Straight/Right Angle/45 Degree/Side Entry
Number of Pins	9.15.25.26.37.44.50.62.78P
Material, back cover	Die-cast metal (zinc alloy)
color	Nickel, Chrome, Black, Gold, Silver
Cable entry (diameter)	With cable rubber sleeve
Engine hood parts:	Clamps, jack screws, kits, cable grommets,
certified product	ROHS、SGS

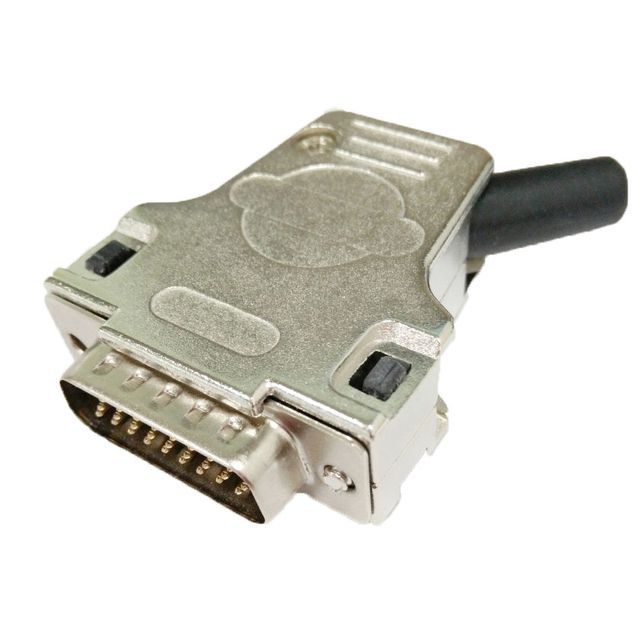

_{15Pin Male Female High Quality D-Sub Connector Cover}

• EMV D-Sub connector complete with metal shroud
• Two UNC 4-40 knurled thumbscrews
• Better than 40dB attenuation from 30 MHz to 1GHz
• Zinc die cast with silver/nickel finish
• Cable diameter 4,0...16,0mm
• Temperature range -40...+120°C

^application

1. There are 5 industry sizes/positions to choose from (9, 15, 25, 37, 50).
2. Using die-casting technology, the shielding effect exceeds 70 dB.
3. Easy to assemble and reduce manufacturing costs.
4. Provide non-conductive grommet/strain relief to enhance shielding and provide proper strain relief.

Automotive Diagnostics Telecom, Data, Consumer, Industrial & Instrumentation, Military & Medical and More…

No long screw typeMetal shell for DB15p connector with SGS IOS9001 ROHS certification. We also support 3D drawing/creativity to customize your shell logo, color, etc.
