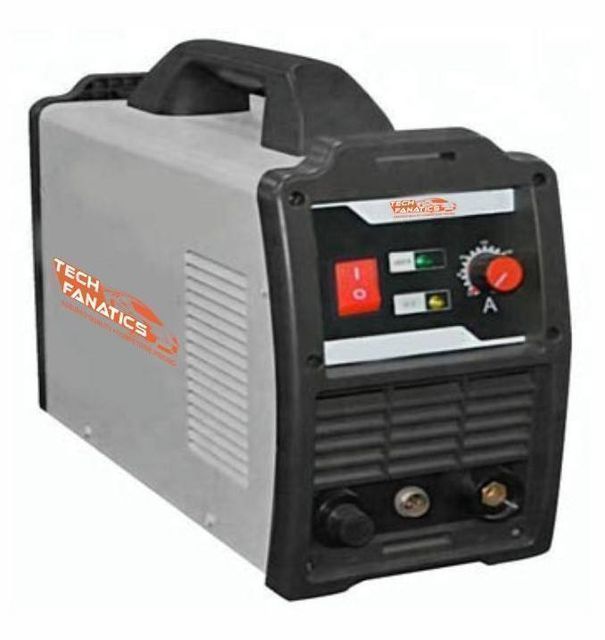

Plasma Cutting Machine (TF-50)

Product details
Arc start:touchOutput current range:15-40A
Insulation level:SecondRated output current:Not applicable
place of origin; place of origin:Delhi, Indiastage:Not applicable
Duty cycle:35.00%Input supply voltage:AC220V single phase 50/6Hz
Custom Support:OEMefficiency:80.00%
port:TKD and PPG New DelhiRated output voltage:94V
Warranty:Not applicablepayment terms:wire transfer
Protection class:IP23Dimensions (LxWxH):410x165x260 mm
Rated input power:30Amodel:TF-50
weight:8kgNo-load voltage:230V
Supply capacity:500 pieces per monthbrand:Tyco Equipment Co., Ltd.
Product Description
* IGBT inverter innovation.
* Small size, light weight, high efficiency and energy saving.
100% ABS plastic body with amazing protection and corrosion resistance.
* Cutting speed is 1.8 times faster than flame cutting.
* Effective, fast and economical cutting of thick sheet metal.
* Suitable for cutting stainless steel, copper, carbon steel, aluminum, etc.
* Basic activity, smooth cutting surface.
*HF bending starts from contact.
Specification
thing
value
Warranty
Not applicable
Custom support
OEM
place of origin; place of origin
India
Delhi
brand
Tyco Equipment Co., Ltd.
model
TF-50
stage
Not applicable
Rated output current
Not applicable
weight
8kg
Dimensions (LxWxH)
410x165x260 mm
Input supply voltage
AC220V single phase 50/6Hz
Rated input power
30A
No-load voltage
230V
Output current range
15-40A
Rated output voltage
94V
duty cycle
35.00%
efficiency
80.00%
Insulation level
Second
Protection class
IP23
arc
touch
