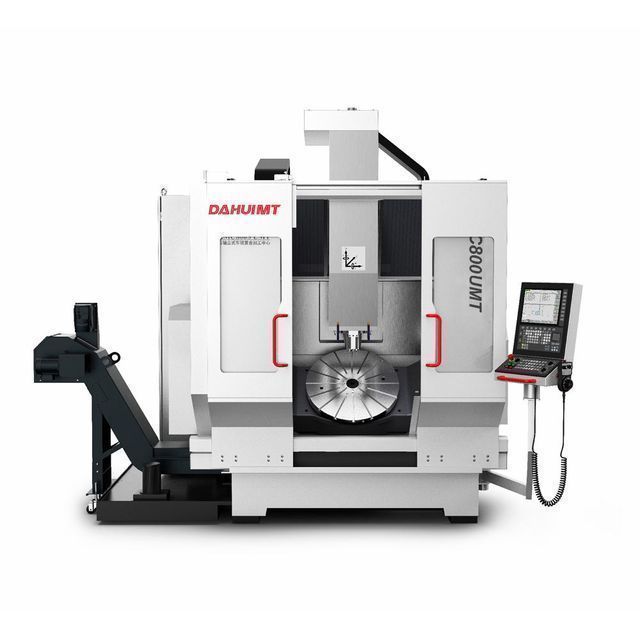

CNC control system: | Code GNC61 3D graphics CNC system | type: | vertical |
Control System: | Fanuc, Siemens, etc. | Applicable industries: | Mechanical repair shops, manufacturing plants, construction works |
port: | Port of Dalian, China | Number of spindles: | 5 |
Product Category: | Centros De Mecanizado CNC/ CNC Vertical Machining Center | Marketing Type: | New Products 2020 |
Warranty: | 1 year | minute. Tool change time: | 8 |
Spindle speed range (rpm): | 14000 - 18000 rpm | After-sales service provided: | Provide overseas service center |
Health status: | new | Showroom location: | France, Germany, Saudi Arabia, Mexico, Russia, Thailand, Morocco, Argentina, Chile, Colombia, Bangladesh, South Africa, Kazakhstan, Ukraine |
Voltage: | 380V, 50HZ, 3PH | Video external inspection: | if |
Table travel (Z) (mm): | 550 mm | Positioning accuracy (mm): | 8 microns |
feature: | High precision and high speed | Shaft linkage: | 5 |
Supply capacity: | 40 sets/month vertical CNC machining center | maximum. Table load (kg): | 1400 kg |
usage: | Metal parts processing | Table travel (Y) (mm): | 800 mm |
Tool magazine capacity: | 42 | Spindle motor power (kW): | 30 |
Weight (tons): | 17 tons | Number of axes: | 5 |
place of origin; place of origin: | Liaoning, China | payment terms: | L/C,D/P,D/A,T/T,Negotiable |
Main selling point: | multifunctional | Repeatability (X/Y/Z) (mm): | 5 microns |
Dimensions (L*W*H): | 4470*4181*3205 | Table stroke (X) (mm): | 800 mm |
Core Components Warranty: | 1 year | brand: | DMTC |
Table size (mm): | 800*630 | Core components: | motor |
Spindle taper: | BT40 | Mechanical test report: | if |
Packaging Details: | 1. Suitable for shipping; 2. The first layer of plastic sheeting, the second layer of canvas, and finally packed in a wooden box with a pallet at the bottom of the wooden box. |

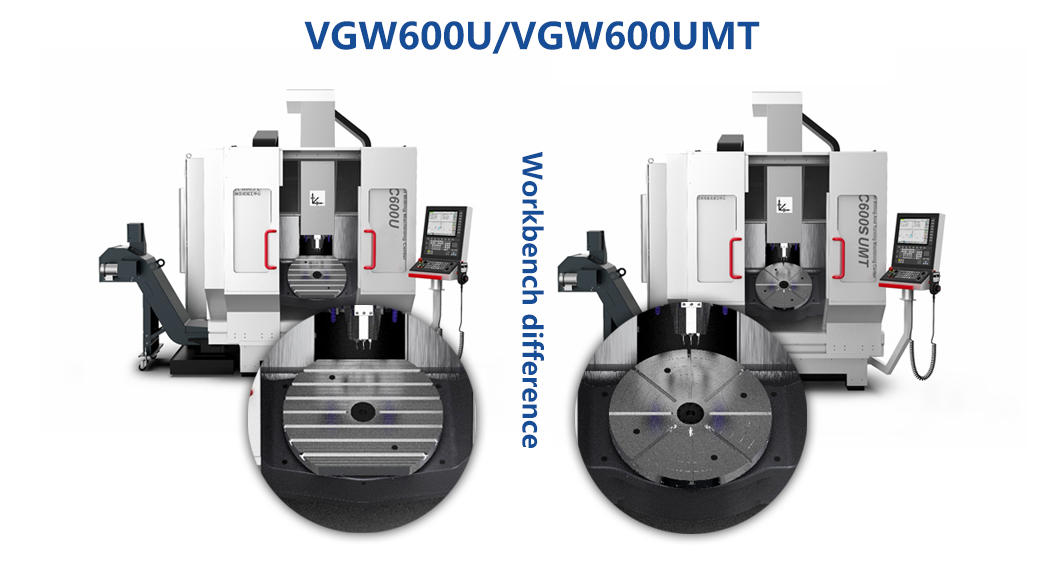

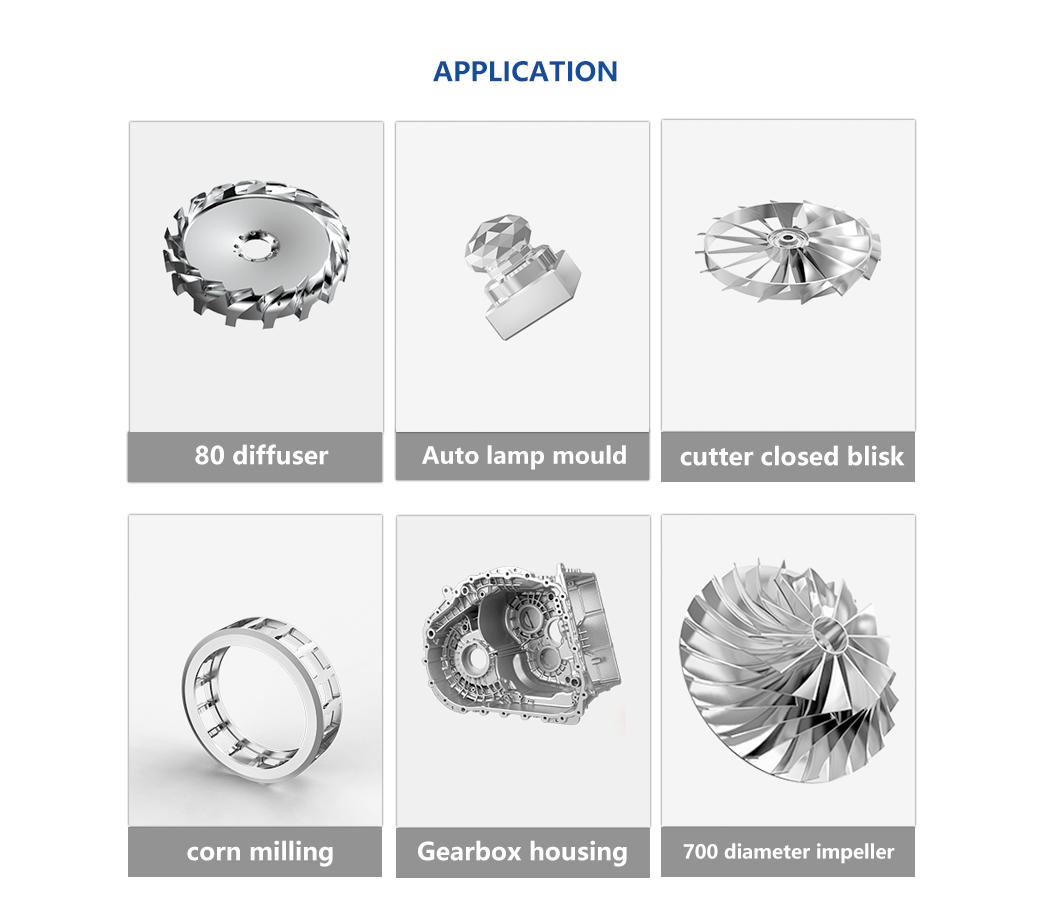

thing | unit | VGW400S-U | VGW400UMT (with rotation) | VGW600U | VGW600UMT (with rotation) | VGW800U | VGW800UMT (with rotation) | ||
Processing range | maximum. Workpiece turning diameter | mm | Φ580 | Φ580 | Φ800 | Φ800 | φ1100 | φ1100 | |
Table diameter | mm | 370×φ450 | Φ370 | 370×Φ450 | Φ370 | φ800×630 | φ800×630 | ||
Workpiece weight | Kilogram | 300 | 150 | 300 | 150-300 | 450 | 450 | ||
X/Y/Z axis motion | mm | 450-460-350 | 450-460-350 | 650 / 650 / 450 | 650 / 650 / 450 | 800-800-550 | 800-800-550 | ||
A-axis rotation range | mm | 130 ~130° | 130 ~130° | 130 ~130° | 130 ~130° | 130 ~130° | 130 ~130° | ||
C-axis rotation range | mm | unlimited | unlimited | unlimited | unlimited | unlimited | unlimited | ||
travel | Distance from spindle face to table | mm | 90~540 | 150-500 | 90~540 | 90~540 | 90~540 | 90~540 | |
top speed | —— | 20000 | 20000 | 20000 | 20000 | 14000//18000 | 14000//18000 | ||
Tool Spindle | rated power | kilowatt | 30 | 30 | 30//30▲//26.5▲ | 30 | 30 | 30 | |
tool handle | —— | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 | ||
positioning lock | —— | Not available | usable | Not available | usable | usable | usable | ||
A-axis drive | A-axis drive mode | —— | Torque Motor Dual Direct Drive | Torque Motor Dual Direct Drive | Torque Motor Dual Direct Drive | Torque Motor Dual Direct Drive | Torque Motor Dual Direct Drive | Torque Motor Dual Direct Drive | |
Rated torque | New Zealand rice | 1200 | 845 | 1200 | 1200 | 1200 | 1200 | ||
C-axis drive | C-axis drive | —— | Torque Motor Direct Drive | Torque Motor Direct Drive | Torque Motor Direct Drive | Torque Motor Direct Drive | Torque Motor Direct Drive | Torque Motor Direct Drive | |
Rated torque | New Zealand rice | 860 | 379 | 860 | 700 | 750 | 750 | ||
maximum feed rate | X-axis/Y-axis/Z-axis | m/min | 48 | 50 | 48 | 50 | 52 | 52 | |
an axis | number of revolutions | 30 | 30 | 30 | 30 | 30 | 30 | ||
Caix | number of revolutions | 80 | 80 | 80 | 80 | 100 | 100 | ||
Full closed loop control Full closed loop control | X/Y/Z axis | mm | standard | standard | standard | standard | standard | standard | |
Air conditioning shaft | mm | standard | standard | standard | standard | standard | standard | ||
positioning accuracy | X/Y/Z axis | mm | 0.008,0.005 | 0.008 | 0.008,0.005 | 0.008,0.005 | 0.008,0.005 | 0.008,0.005 | |
Air conditioning shaft | mm | 8,5 | 8, 8 | 8,5 | 8,5 | 8,5 | 8,5 | ||
Repeatability | X/Y/Z axis | mm | 0.005,0.003 | 0.005 | 0.005,0.003 | 0.005,0.003 | 0.005,0.003 | 0.005,0.003 | |
Air conditioning shaft | —— | 5,3 | 5,5 | 5,3 | 5,3 | 5,3 | 5,3 | ||
Tool magazine | Tool magazine capacity | bar | 36 | 36 | 36 | 36 | 36 | 36 | |
maximum. Tool diameter | mm | Φ80 | Φ80 | Φ80 | Φ80 | Φ80 | Φ80 | ||
maximum. Tool length | mm | 300 | 300 | 300 | 300 | 300 | 300 | ||
maximum. Tool weight | Kilogram | 8 | 8 | 8 | 8 | 8 | 8 | ||

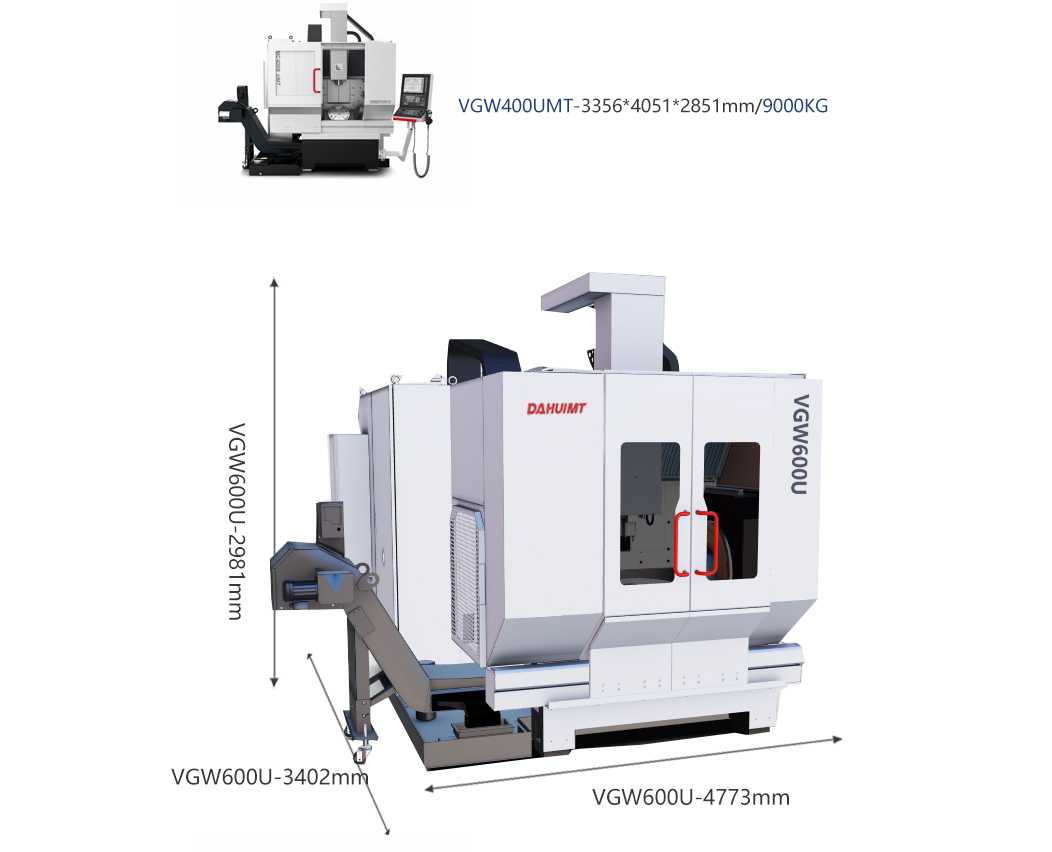

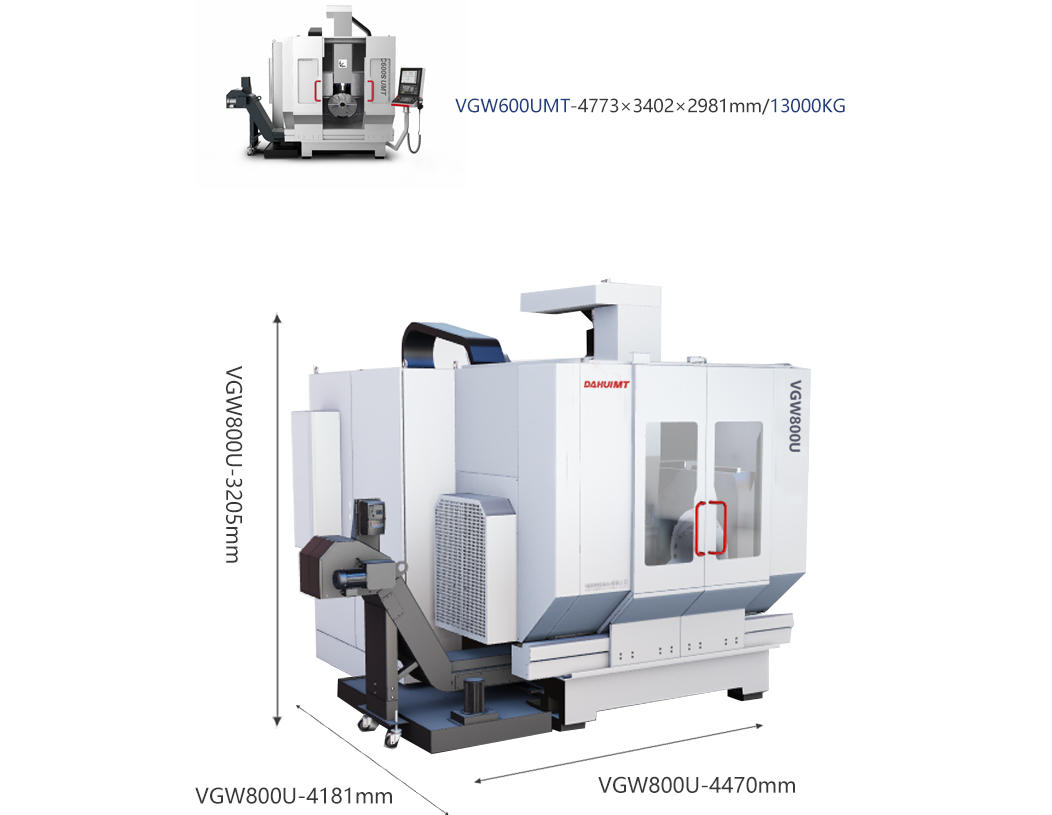

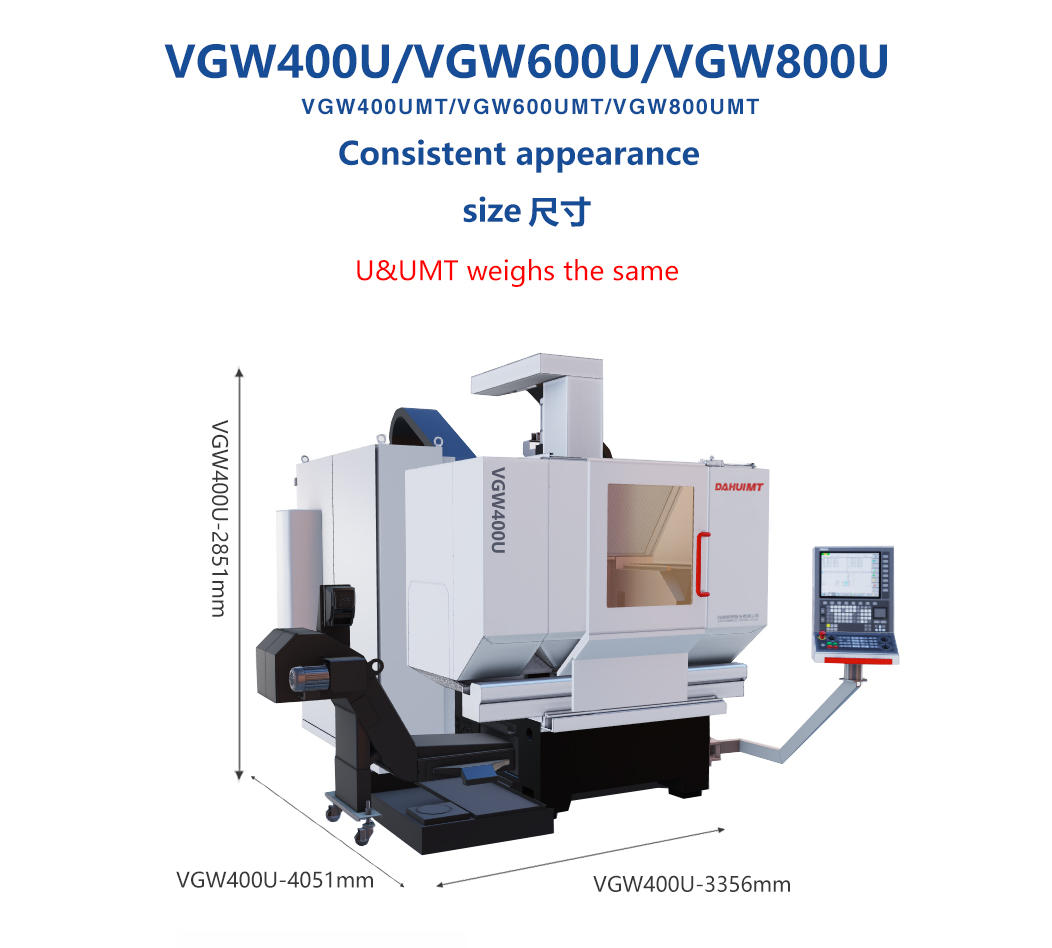

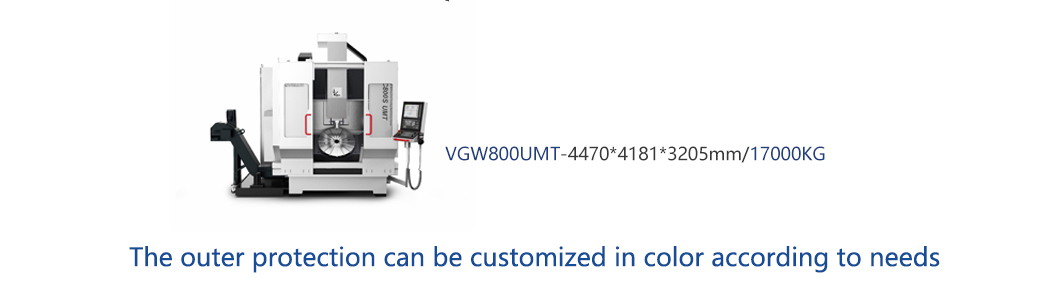

Machine size | mm | 3356×4051×2851 | 3356×4051×2851 | 4773×3402×2981 | 4773×3402×2981 | 4470×4181×3205 | 4470×4181×3205 | ||
machine weight | Kilogram | 9000 | 9000 | 13000 | 13000 | 17000 | 17000 |
