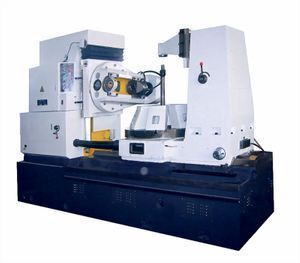

Y31125E 16 modulus Big Gear Hobbing Machine

Product details
Port:DALIAN;Warranty:1 year;
After-sales Service Provided:Online support;CNC or Not:Normal;
Certification:ISO9001 CE;Brand Name:DMTC;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;Max modulus:12/16mm;
Power(W):11KW;worktable diameter:950mm;
Supply Ability:40 Set/Sets per Month manual gear hobbing machine;Weight (KG):13000;
Weight:13000kg;Dimension(L*W*H):3700*2040*2400;

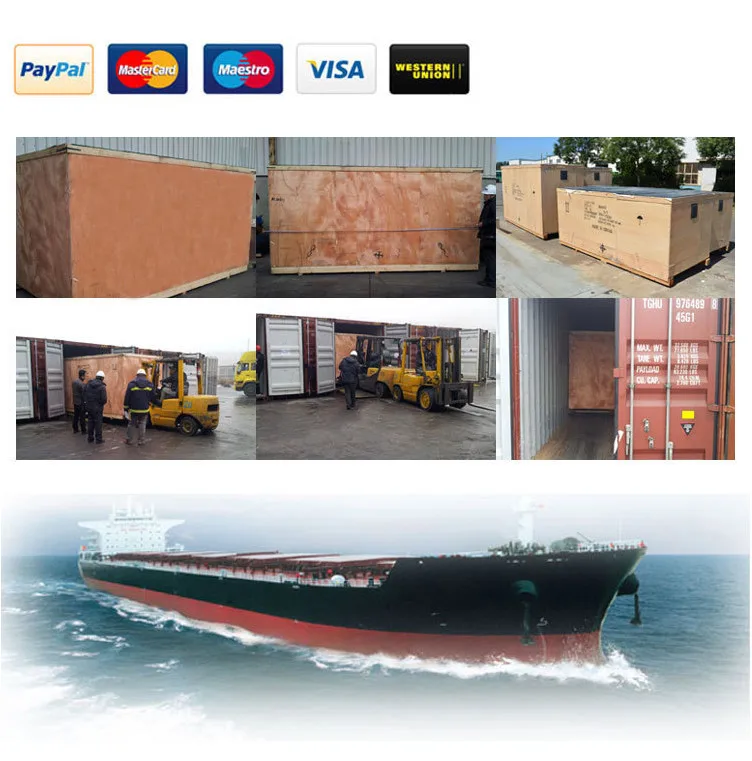

Packaging Detail:1.Suitable for sea transport 2.Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.;Condition:New;
Place of Origin:China;Max maching width:450mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Main motor:11kw;
Spindle taper:Morse 6;Max maching diameter:1000/1250mm;
Voltage:380V50HZ;Key Selling Points:Competitive Price;
Type:Gear Hobbing Machine;Max diameter of hob:245/220;





Product Description

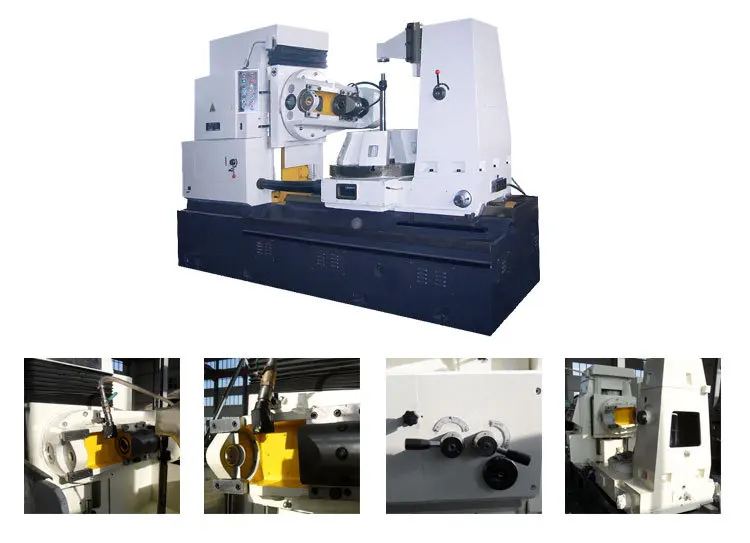

  Y31125E universal gear making machine cutting worm wheel





Description



In batch processing of the same specifications of cylindrical gears, the central distance between worktable and hob should be precisely adjusted. After finishing first gear ,move knob 17(see figure 3), so that the worktable exit driven by the rapid rolling cylinder, remove the processed gear, load gear embryo, revert the tool head to the original position with fast axial motor, move the knob 17, move the worktable forward driven by the hydraulic rapid cylinder. At this moment, the worktable return precisely to position of cutting the first gear, then the second gear can be cut. So when process gears of same specifications, adjust the machine precisely only when cut the first gear. Only when the machine tool wear to influence precision, the center distance between worktable and hob should be adjusted once again.



Feature



1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket,chain wheel making machine, Straight gears engage,worm wheel,bevel wheel,helical gear,spiral wheel ,transmission of helical gear, helical gearing,Helical double gear cutting machine.


2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.



Technical Parameters



Index name

unit



Max machining diameter

With rear column

1000mm

Without rear

column

1250mm

Max modulus

Steel

12mm

Cast iron

16mm

Max machining width

450mm

Max diameter/length of hob

245/220mm

Worktable diameter

950mm

Scope of main tool turning speed and grade

16-125rpm/7

Arbor diameter

27/32/40/50mm

arbor diameter of work piece

60mm

Max axial travel of tool

100mm

Max turning angle of hob

±60°

Worktable aperture

200mm

Main motor

11kw

Spindle taper

Morse 6

Distance from hob center to worktable face

200-700mm

Distance from hob center to worktable axes center

100-750mm

Machine size(length× width× height)

3700×2040×2400mm

Weight

About 13000kg
