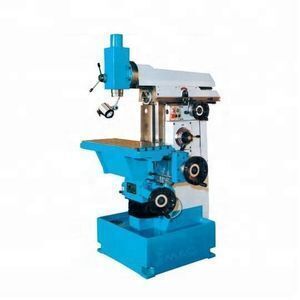

chinese high quality TM40A tool milling machine

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	TM40A;	Dimension(LWH):	205017602080mm;
CNC or Not:	Normal;	Range of Spindle Speed(r.p.m):	according the product;
Voltage:	380V;	Power(W):	1.5/3kw;
Payment Terms:	L/C,D/A,D/P,T/T;	Packaging Detail:	standard packing;
name:	chinese tool milling machine;	Type:	Vertical;
Warranty:	1 Year;	Certification:	CE;ISO;
Weight:	2300kg;	Condition:	New;
Place of Origin:	Jiangsu China (Mainland);	Supply Ability:	41 Set/Sets per Month;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	shanghai.china;
Table Travel (mm):	according the product;	After-sales Service Provided:	Field maintenance and repair service;
Brand Name:	SMAC;

Product Description

chinese tool milling machine TM40A

*Milling machine for tool construction;

*Automatic feeds on all 3 axes;

*Outer arbor supporting for horizontal milling;

*Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;

*Streamlined arrangement of operating controls on the right side;

*Vertical head quill for drilling, with hand lever feed;

*Quill stroke 80mm;

*Central lubrication;

*Hardened guide ways;

*Can be equipped with Digital Position Indicator

Original structure, broad versatility, high accuracy, easy to operate.

With various attachments to extend range of application and raise utilization.

Model XS8140A: with programmable digital display system, resolving power is up to 0.01mm.

The following special accessories are available if

opdered

Universal table

Rotary angular table

Parallel vice

Dividing head

Slotting head

Boring frame

Milling cutter

Application of machine:

This machine is designed to be a Universal Tool Milling Machine, can perform procedures such as milling,boring, drilling, and slotting, etc., and is suitable for machining cutter, fixture, die and mould, and other components with comples figuration. With the aid of various special attachments, it can machine all kinds of components such as arc, gear, rack, spline, and so on.

Data

chinese tool milling machine TM40A

Main specification		TM32A
Working talbe	Horizontal working table	320x750mm
	Vertical working table	250x850mm
Longitudinal/Transversse/Vertical travel		400/300/400
Universal table	Horizontal swivel	360
	Inclination to front and rear	30
	Inclination on left and right	30
Vertical spindle head	Vertical travel of quill	60mm
Vertical spindle head	Axis inclination on left and right	90
Horizontal spindle	Taper hole	ISO40
	The height from axis to ground	1330mm
	Min distance between axis and surface of horizontal table	40mm
Vertical spindel	Taper hole	ISO40
Vertical spindel	Min distance between nose and surface of horizontal table	10mm
Horizontal and vertical spindle speed: steps/range		18 steps 40-2000rpm
Longitudinal, transverse and vertical feeds: steps/range		18 steps 10-500mm/min
Axial feed of quill of vertical spindle: steps/range		3 steps 0.03-0.12mm/rev
Power of main motro/Feed motor		3KW/1.5KW
Max. table load / Max. cutter load		300kg/500kg
Packing size		1990x1640x2110mm

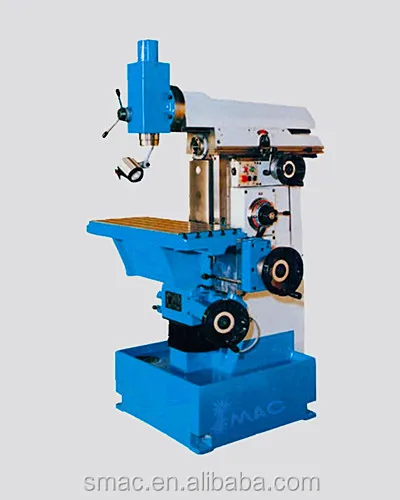

product show
