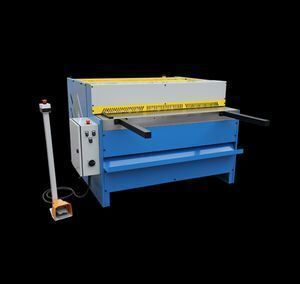

Q11-3x1250A TTMC Electric metal shearing machine with light curtain

Supplier: Tengzhou Tri-Union Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alfred Shen
Price: $6890.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	300 Set/Sets per Month TTMC Electric metal shearing machine can supply by FCL;	Material / Metal Processed:	Brass / Copper,ALLOY,Carbon Steel,Aluminum,Stainless Steel;
Port:	Qingdao or Shanghai;	Packaging Detail:	Wood case for TTMC Electric metal shearing machine;
Motor Power:	4000 W;	Packing size:	187x116x143 cm;
After-sales Service Provided:	Online support,Video technical support;	Warranty:	12 Months after delivery;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Can pay cash / paypal for TTMC Electric metal shearing machine;	Power (kW):	4;
No. of stroke:	28 per minute;	Shearing angle:	2°;
Max. shearing width:	1250 mm;	Brand Name:	TTMC;
Warranty:	1 Year;	Place of Origin:	Shandong China (Mainland);
Machine weight:	980 kg;	Item No:	386108 TTMC Electric metal shearing machine;
Max. shearing thickness:	3.0 mm;	Back gauge:	635 mm;

Product information

Features:

1. Sheet catcher by pneumatic cylinder
2. Foot pedal with emergency stop
3. Front sheet pallet for stacking

4. Manual back gauge with measuring 0-635mm, motorized back gauge can be optional
5. Back safety system with light curtain is used to prevent access by persons in the process of cutting into the rear space of shears.

Specification:

Item No.	386108

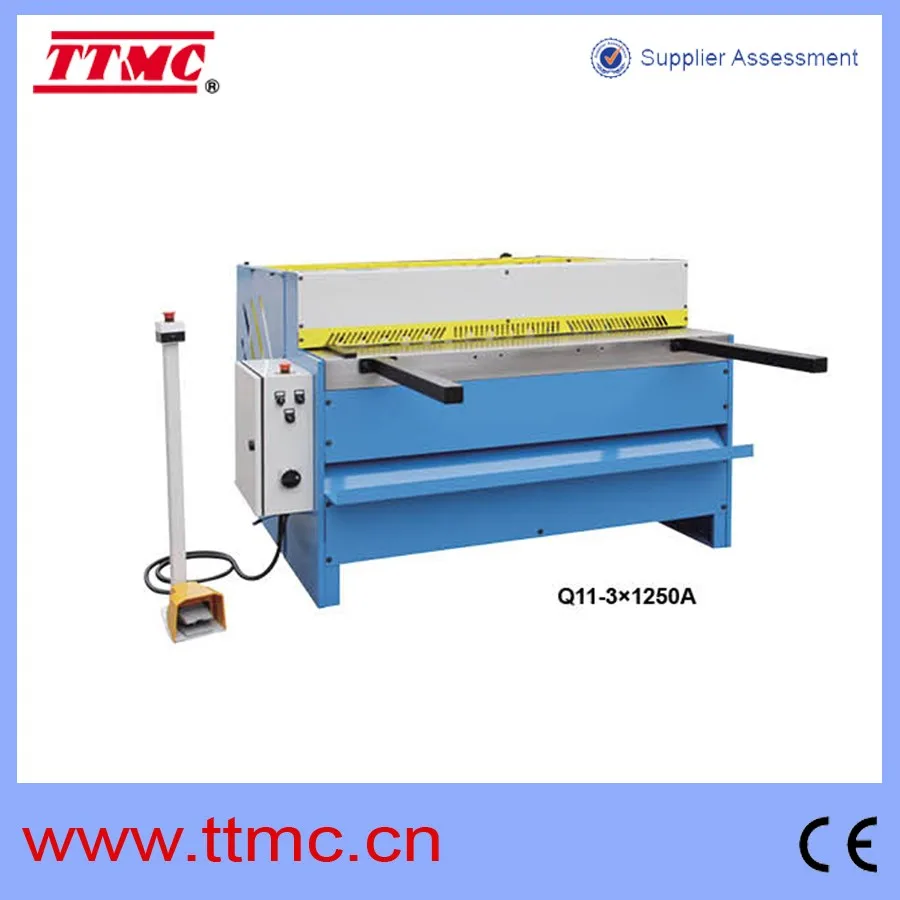

Model	Q11-3x1250A
Max. shearing thickness	3.0 mm
Ma. shearing width	1250 mm
Shearing angle	2°
No. of stroke	28 / minute
Motor Power	4 kW
Back gauge	635 mm
N.W./G.W.	980 /1140 kg
Packing size	187x116x143 cm

Accessories:

Standard accessories:
Shearing blade
Foot pedal switch
Manual Back gauge
Light curtain
Optional accessories:
Motorized back gauge

Detailed Images

Packing & Delivery

Ply wood case packing and Seaworthy export packing
