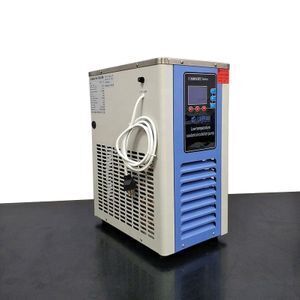

Lab 5L Chemical Glycol Dlsb Mini Small Chiller

Product details
Condition:NEW;temperature display mode:liquid crystal;
Tank volume (L):5;Item:chiller mini;
Total machine power (W):420W;Selling Units:Single item;
Applicable Industries:Food & Beverage Factory,Food Shop,Construction works ,Food & Beverage Shops;Brand Name:Lanphan;
Using temperature range (℃):room temperature--15;Certification:CE,ROHS;
Power(W):420w;After-sales Service Provided:Video technical support,Online support;
Weight:28KG;lowest no-load temperature(℃):-15;
Place of Origin:Henan China (Mainland);Dimension(L*W*H):400*260*530 mm;
Sensor index:Pt100;Name:small chiller;
Package Preview:https://sc02.alicdn.com/kf/HLB10WDPVXzqK1RjSZFvq6AB7VXah.jpg_640x640.jpg;Environmental relative humidity (%):≤70;
Delivery Detail:0 days after payment;Single package size:55X42X78 cm;
Single gross weight:50 KG;Type:Water-Cooled;
Warranty:1 Year;Instrument adjusting range (℃):±150;
Voltage:110v/220v/380v;Package Type:Packing : carton or wooden case package, customized package is available.;

Lab 5L Chemical Glycol Dlsb Mini Small Chiller

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees

Product Description

The application of Low temperature circulating pump:DLSB low temperature pump adopts mechanical refrigeration low temperature circulating equipment and provide constant current and constant voltage circulating liquid to meet the requirement of the decreasing instrument (electric microscope, electricity probe,x-ray machine,laser reactor and accelerator) so as to guarantee the required working temperature
The machine is an essential to make sure the normal working condition for the device adopting constant current and constant pressure to cool in the condition of lacking water place ,bad quality of water and higher temperature.It can provide low temperature liquid to have multiple function of chemical reaction and medicine storage collocated with rotary evaporator,vacuum drying oven,circulating water multiple pump,magnetic force stirrer.It is especially used for different kinds of chemical biology ,physical lab which needed low temperature.It is the essential lab instrument for pharmacy,food industry,metallurgical industry and college scientific research.

Model nameDLSB 5L-10°C
Tank volume (L)5
lowest no-load temperature(°C)-15
Using temperature range (°C)room temperature—-15
best temperature range(°C)5~25
Environmental relative humidity (%)≤70
Working power supply (V/HZ)single phase220-50
temperature display modeliquid crystal
temperature stability(°C)±2
Sensor indexPt100

Instrument adjusting range (°C)±150
set wayArbitrary adjustment of Settings in the range of use
safety protectiondelay,leakage,over current,overheat
output refrigerating capacity (W)10°C620
0°C460
-10°C280
-20°C-
Total machine power (W)420
Machine current (A)2.1
refrigerant134A
Circulating pumpPower(w)100
Flow rate(L/min)20
Lift(M)4~6
external loop interfaceThreaded joint 1\2 inches
opening size(mm)160×160
tank shapesquare
Internal diameter and height of liquid storage tank (mm)170×170×170
Overall appearance size (mm)400×260×530
Machine weight (kg)28
fuse5A
matching partsone set



Turn on and off:
The right turn to turn on the machine: Add the appropriate refrigerating medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the refrigerator switch—open the cooling equipment
The right turn to turn off the machine.Turn off the cooling equipment—turn off the refrigerator switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.
