automation: | automatic | Core components: | PLC, motor |
Core Components Warranty: | 1 year | blow: | blow |
strength: | 18.5KW | Station No: | 3 |
automatic: | Yes | Material: | PC, PS, PMMA |
car: | Fully automatic | weight: | 5 tons |
Blow molding type: | Injection blow molding | port: | Guangzhou, Shenzhen |
application: | lampshade, lamp, ball | Dimensions (L*W*H): | 3.8X1.5X3.2M |
Operating mode: | step | year: | 2020 |
Supply capacity: | Price for 50 injection blowers per month | Showroom location: | not any |
Mechanical test report: | if | Voltage: | 380V 50HZ |
Plastic Processing: | PC, PCTG, PS, PMMA | Video external inspection: | if |
place of origin; place of origin: | Guangdong, China | Applicable industries: | Food and Beverage Factory, Others |
Main selling point: | energy saving | After Warranty Service: | Video technical support, online support |
Volume of hollow part: | not any | Certification: | Chief Executive |
payment terms: | L/C,D/P,T/T,Western Union,MoneyGram | Warranty: | 1 year |
Marketing Type: | New Products 2020 | Health status: | new |
Local service location: | not any | brand: | JASU |
Packaging Details: | Injection molding machine: plastic woven film | After-sales service provided: | Engineers can repair machinery overseas |

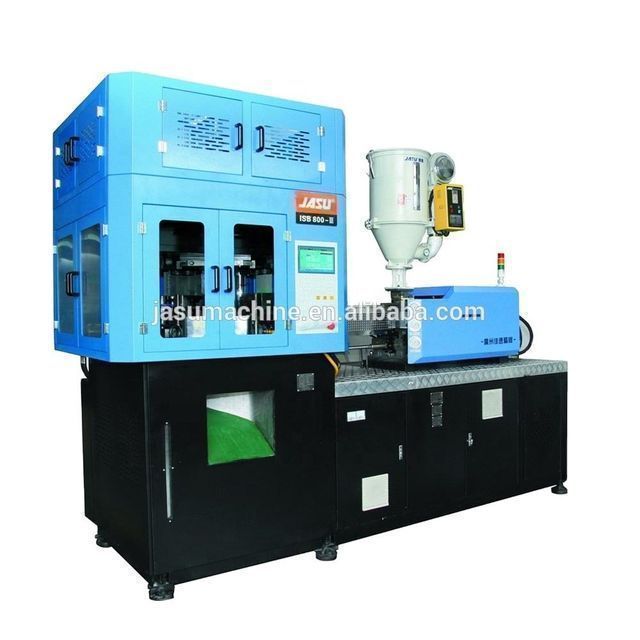

High Quality LED Shade IBM Injection Blow Molding Machine ISB800-3
JASU one-step blow molding machine includes
Injection blow molding machines and injection stretch blow molding machines.
These machines are three stations, injection preform, blow/stretch blow and product release. The raw material is injected from the hopper to the injection screw to inject the preform; the plate is heated by itself to rotate the preform to the blow/stretch blow station without reheating for blow molding,
Then the product will be rotated to the release station and lowered, it is a fully automatic cycle rotation working mode.
Compared with the traditional blow molding machine, the JASU one-step blow molding machine has many advantages. First, there is no need for reheating. The preform itself is heated during injection blowing, which is very energy-saving and shortens the molding time. The step-by-step bottle blowing machine transfer process avoids the pollution caused by the transfer process, especially for medicine and food containers, saves labor and transfer costs, reduces production costs, and improves product competitiveness.
Models ISB800-3 and ISB800A-3 (larger size)
Suitable for PC, PS, PMMA shades, LED shades, Christmas flashlights, garden and street lights.
Suitable for PET high transparency, much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck can, PET medicine bottle
Suitable for PP high transparency, baby bottle, sports bottle
Suitable for PCTG, Tritan drinking water bottles, sports bottles.
Moulds and moulds, we have our own mould workshop, advanced CNC machines and intelligent design engineers, we can handle products of different materials and sizes from different customers all over the world.
Auxiliary machine, we will equip you with the necessary high-quality auxiliary machine to ensure the smooth progress of the production plan, we can provide you with one-stop service.
Model |
International Bureau of Standards 800-3 | |
injection model | ||
Screw diameter | 40mm | |
Screw aspect ratio | 20.5:1 | |
Screw speed | 0-190RPM | |
Theoretical injection capacity | 238cm3 | |
injection pressure | 174Mpa | |
maximum. hydraulic | 140 kg/cm | |
Actual injection volume (PS): | 225g(ps)/8Oz | |
Screw stroke: | 190mm | |
clamping part | ||
Blow clamping force: | 80Kn | |
Fixture Tonnage: | 400Kn | |
Wheel diameter: | 800mm | |
maximum. Bottle height: | ISB:145/IB:140 | |
Turn on vertical mode travel: | 430mm | |
other | ||
maximum. Pump pressure: | 16Mpa | |
Oil: | 18.5Kw | |
electricity: | 12.2Kw | |
tank: | 400L | |
Dimensions (L*W*H): | 3.8m*1.45m*3.0m | |
weight: | 5000kg |
If you are interested in our products
Click here to send us a message Send an inquiry >>>
We have someone tell you about solution products
With the increasing requirements for high quality and elegant appearance in the packaging fields of food, beverages, cosmetics, etc., the plastic containers produced by the old-fashioned extrusion blow molding machine can no longer meet the needs of customers. However, with a one-step injection stretch blow molding machine, the process from raw material to product is completed in one step. The entire process includes preform injection, stretch blowing and demolding. No trim, no runner gate material, but perfect neck, bottom and lines, higher transparency, higher rigidity. Thin-walled stretch blow molded products save material.
One-step injection stretch-blow molding machines complete high-speed molding without reheating the preform. Utilize the heat from the preform injection to stretching and blow molding, no reheating is required, and the preform cooling time is shortened to save energy.
The one-step injection stretch blow molding machine optimizes the working structure, eliminates the unfavorable factors of molding, cuts off the complicated process, makes the molding more reliable, and improves the scrap rate.
One-step injection stretch blow molding machine reduces conveying costs and avoids secondary pollution, especially for food and pharmaceutical companies. Take the transit 19g 500ML bottle as an example, if you use a 1m³ trunk, you can hold 1024 bottles, or 9280 preforms, but if you use raw materials, you can produce 56421 bottles. The material logistics cost is 98.2% lower than that of the transfer bottle; compared with the cost of the transfer preform, the cost can be reduced by 83.6%.
Compare with one-step and two-step methods:
forming | process | structure | Manpower/Energy/Space | product quality |
step | From prefab to product | a machine | small | Not affected by moisture, less pollution; various shapes |
two steps | Injection and blow molding are two separate processes |
1. Injection molding machine 2. Preform conveyor 3. Reheating, stretching, demoulding machine |
more | susceptible to moisture and contamination; single shape |
The advantages of JASU one-step injection stretch blow molding machine model ISB800-3/ISB800A-3 are as follows:
1. Wheel rotation is driven by electric servo motor, not hydraulically driven.
2. Fully automatic control system, easy to operate.
3. The temperature of barrel and hot runner is precisely controlled by PIT.
4. More cost savings than traditional machines.
5. Compact structure; less space required.
6. Injection molding:
Hot runner and temperature controls are standard. Change molds only for making new products;
Stretch Strike:
Standard configuration hydraulic mold clamping, core insert, stretch blow, bottom mold;
product release:
Comes with standard injectors.
Guangzhou Jiasu Machinery Co., Ltd. has been researching, designing and manufacturing blow molding machines since 1989. Specializing in the manufacture of one-step blow molding machines and injection stretch blow molding machines. Our solutions for high-quality, high-precision plastic containers at low cost and low energy consumption have attracted the attention of the market.
More than 100 employees and 30 professional technicians are dedicated to the JASU® brand series of machines, and our R&D department is dedicated to the continuous development of new blow molding technologies. We have set up 30 representative offices and a 24-hour maintenance service network across the country.
JASU® has established a high reputation among domestic and foreign customers, especially overseas customers in Southeast Asia, Middle East, Africa, Europe, South America and so on. At the end of 2014, exports accounted for 60% of annual sales.
Located in the Pearl River Delta region, close to ship ports and air freight services, especially close to Hong Kong Airport, we have the competitive advantage of a fast delivery system and a centralized supply chain center. We sincerely invite trading partners and import buyers to visit our showroom and workshop to discuss possible cooperation.
