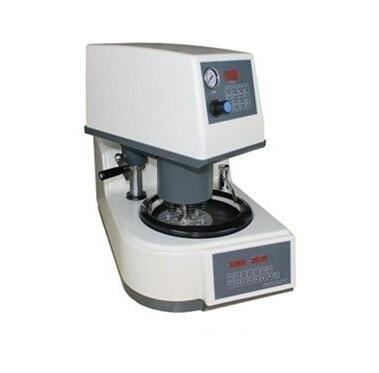

HUATEC Automatic Grinding and Polishing Machine HAP-1000

Click here to contact

Product details

type:	grinder	brand:	Huatek
net weight:	74 kg	place of origin; place of origin:	China
Custom Support:	OEM	Grinding head speed:	50-200n/min
model:	HAP-1000	Disc Diameter: Standard:	250mm (optional 230mm, 200mm)
Motor:	220V, 50/60Hz, 550W	speed:	0-1000n/min, (customized)
payment terms:	Western Union, wire transfer	Packaging Details:	in carton
Dimensions:	710x430x640mm	air pressure:	0.5-0.8MPa
After-sales service provided:	Does not provide overseas services	Name:	Automatic grinding and polishing machine

Automatic grinding and polishing machine HAP-1000

Features

Can polish six Φ30mm samples at the same time

Single-point pneumatic clamping, no demo fixture

The grinding and polishing process (coarse and fine) is carried out continuously without machine transition

Inverter control, three-level constant speed mode and variable speed mode:

1. Three-level constant speed: customers can customize three common speeds of pre-grinding, grinding and polishing

2. Variable speed mode: grinding speed 0-1000n/min

3. Eight-stage programmable control, automatic shutdown, convenient for customers to perform metallographic demonstration

Beautiful appearance and good quality

Technical Specifications

Disc diameter: standard 250mm (optional 230mm, 200mm)

Speed: 0-1000r/min, (customized)

Grinding head speed: 50-200r/min

Air pressure: 0.5-0.8MPa

Motor: 220V, 50/60Hz, 550W

Overall dimensions: 710x 430 x 640 mm

Net weight: 74kg

Standard accessories

Name	quantity	Name	quantity
Magnetic Work Plate (254mm)	1	Anti-stick disc (254mm)	1
One side stick sandpaper (250mm) 320#, 1000#	10/each	One side sticky polishing cloth (250mm), flannel	1
Diamond Polishing Fluid, 6 microns, 200 ml	1 bottle	Lubricant Coolant, Blue, 200ml	1 bottle
waterproof ring	1	Inlet pipe adapter	1
water inlet pipe	1	power cable	1
outlet pipe	1	machine certification	1 set
Machine Manual	1 set	packing list	1 set
Machine warranty card	1 set

Optional accessories

metallographic paper	GSC250A	l 100 pcs/pack l Material: black emery l Sand size: P80# 120# 180# 320# 600# 800# 1000# 1200# 1500# 2000# l Size: Φ250mm l Waterproof single-sided adhesive, can be directly attached to the grinding disc
anti stick disc	magnetometer	l Anti-stick disk 5 pcs/box l Diameter: Φ254mm l Special anti-stick layer on the surface coating, which can be directly pasted with sticky paper and polishing cloth, which is easy to replace and has no sticky marks. l Reusable l Can replace the same production of BUEHLER and STRUERS
polishing cloth	FT250A	l Polishing cloth 10 pieces/pack l Flannel (long floss) / canvas (short floss) / woolen cloth (short floss) / silk cloth (no floss) l Φ250mm l One side is sticky and can be directly attached to the grinding disc
Diamond grinding and polishing liquid	DSU.	l Diamond grinding and polishing liquid, 500ml/bottle l The diamond is suspended in the liquid, which can be automatically dripped or watered, and evenly distributed l Size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for different materials
