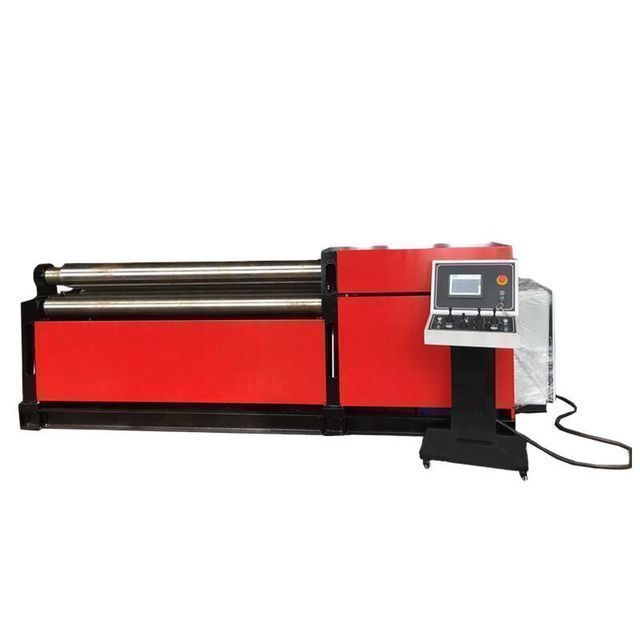

W12-6X2000 Four-roll hydraulic plate bending machine

Product details
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesLocal service location:Peru
Marketing Type:high precisionport:Dalian Port
Video external inspection:ifCore Components Warranty:1 year
Core components:PLC, bearing, motor, pumppayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
Number of rollers:4place of origin; place of origin:Jiangsu, China
Mechanical test report:ifMotor power (kW):5.5kW
automation:manualWorking length customization:Yes
Certification:ISO 9001:2000maximum. Working Length (mm):6 mm
application:stainless steel bendingtype:horizontal
brand:LongshengExtra Services:Plating/Coating
Weight (kg):4000kgApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
maximum. Plate thickness (mm):2000 mmRolling speed (m/min):4 - 6
Voltage:220V/380V/415V/440V/customType of machine:Roll bender
Health status:newSupply capacity:30 sets per month
After-sales service provided:Engineers can go overseas to service machinery, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical supportMaterial/Metal Finishing:Aluminum, Carbon Steel, Brass/Copper, Alloy, Stainless Steel
usage:sheet metal rollingTrade or Manufacturer:manufacturer
Warranty:2 yearscolor:customer choice
Main selling point:automaticproduct name:Rolling machine
Packaging Details:Ordinary packaging is a wooden box (dimensions: length*width*height). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer special requirementsRaw materials:Sheet/Platform Rolling
Showroom location:Peru
Product Description

Applications

This machine is a four-roll bending machine, which is used in the cylinder pressure vessel manufacturing industry and has the functions of rounding, pre-bending, rounding, and rough leveling.

Rolling Machine Specifications
1
maximum. rolling thickness
6mm
2
working length
2100mm
3
Maximum sheet bending width
2000mm
4
Symmetric scrolling
T6xB2000*min300mm(σs≤245Mpa)
5
Asymmetric rolling
T5xB2000*min300mm(σs≤245Mpa)
6
Upper roll diameter
φ200mm±3
7
Bottom roll diameter
φ180mm±3
8
Side roll diameter
φ180mm ±3
9
main motor
5.5kW
Certification
detailed image

Townmain ironcharacteristic

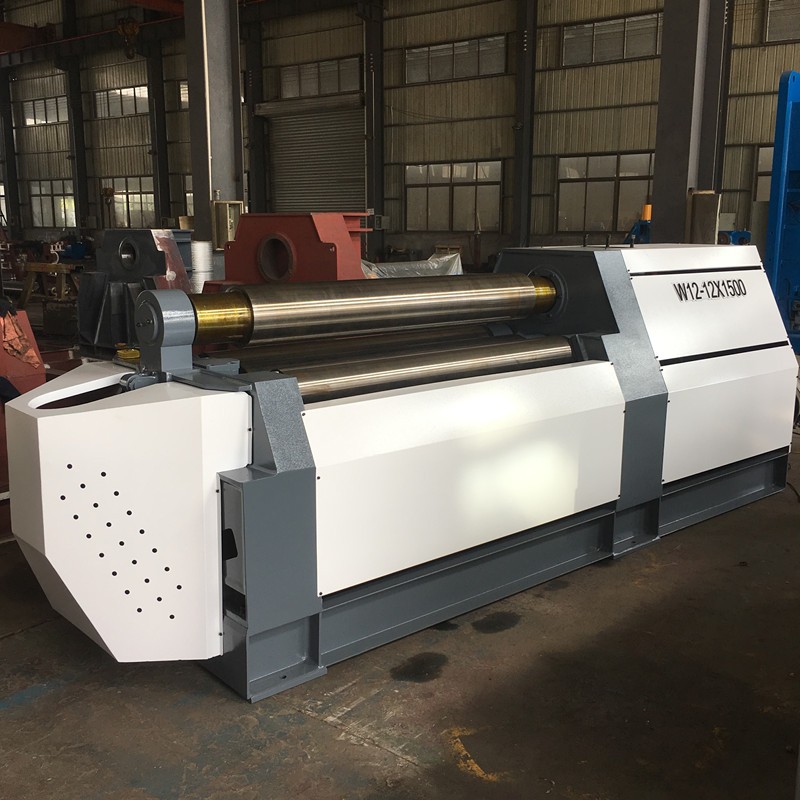

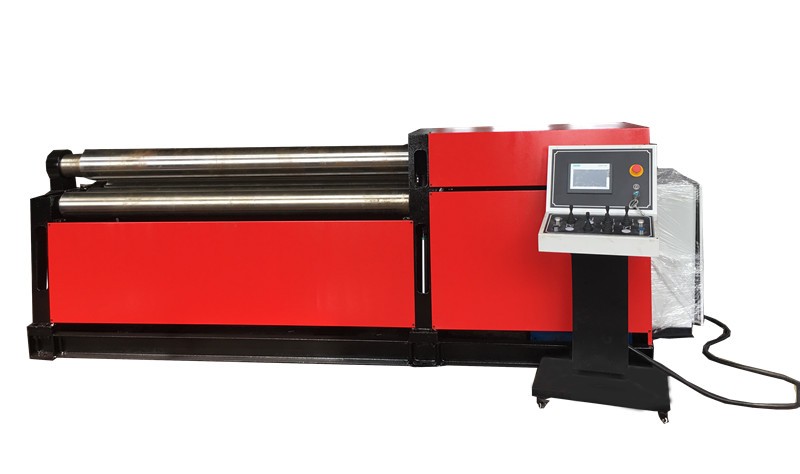

Name:Four-roll hydraulic bending machine
Card:Longsheng
The original:China

CNC machine, PLC fully automatic control, can bend the end without additional processing steps.

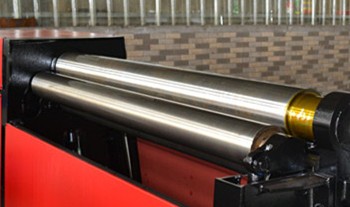

Machine part: 42CrMo alloy steel work roll

The upper roller is similar to the roller and cooperates with the idler roller, which can continuously bend the sheet of any thickness.

The hydraulic oil tank drives the lower and side rollers.

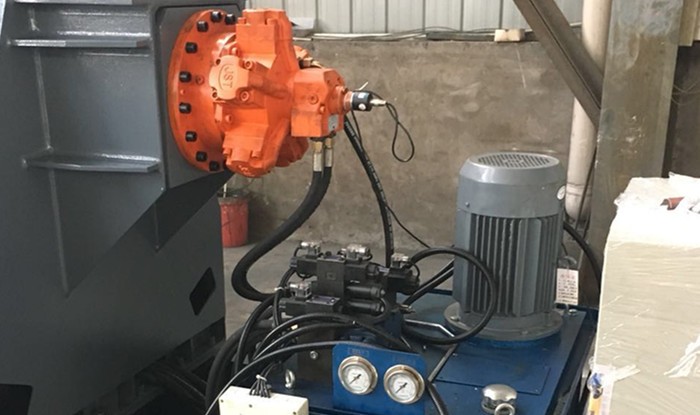

Machine part: hydraulic system

With exclusive technology, it can develop cones as easily as competing machines develop cylinders.
It eliminates scarring on the shell or roll surface and, in most cases, the need to grind lamination (knurling) on ​​small diameter edges.
Nippon Yuken valve.

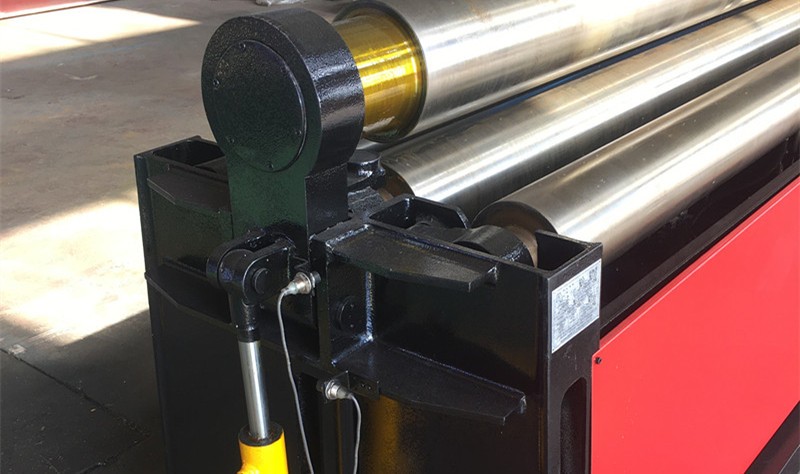

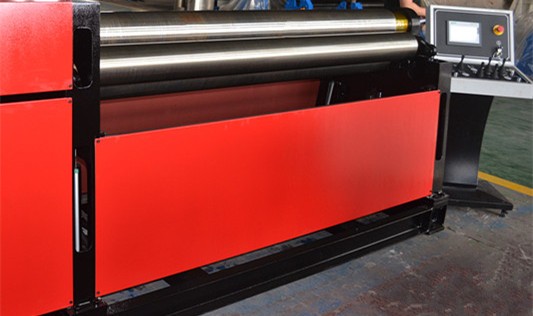

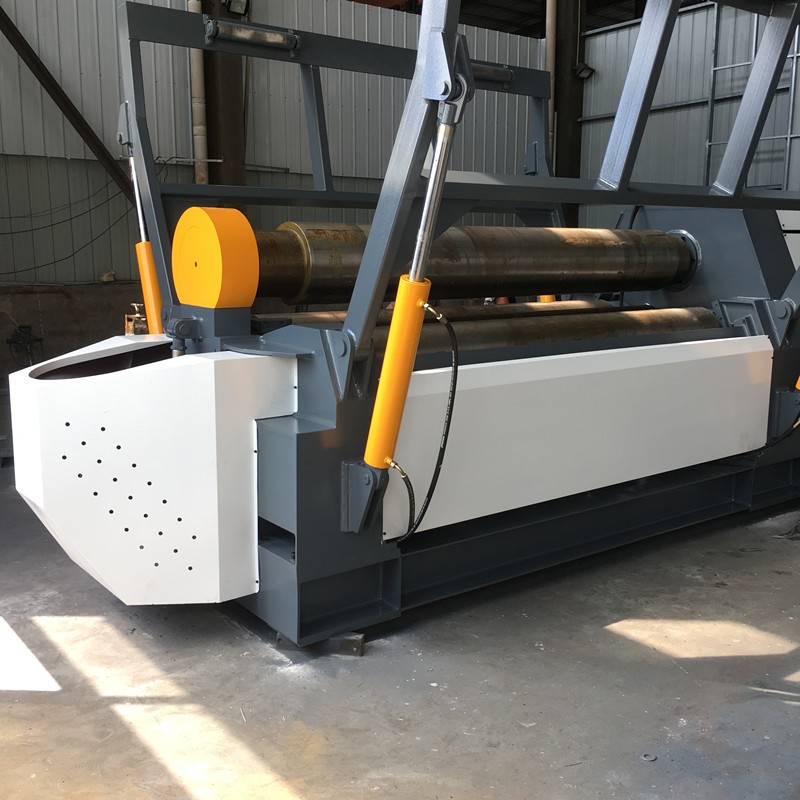

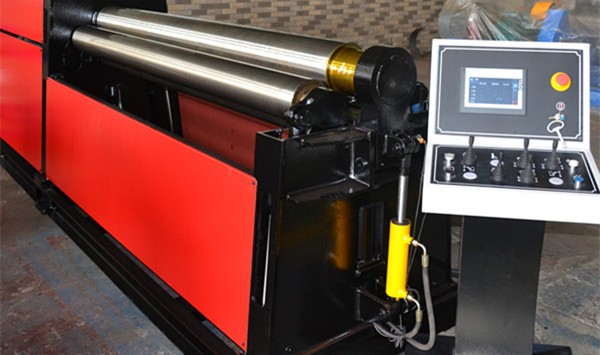

Machine part: release device

Hydraulic drop end for easy removal of finished ferrules.

Machine part: main motor

Main driving force: Chinese famous brand.

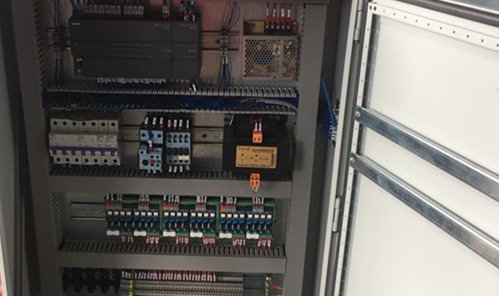

Main electronics: Components: Made by Siemens, Germany.

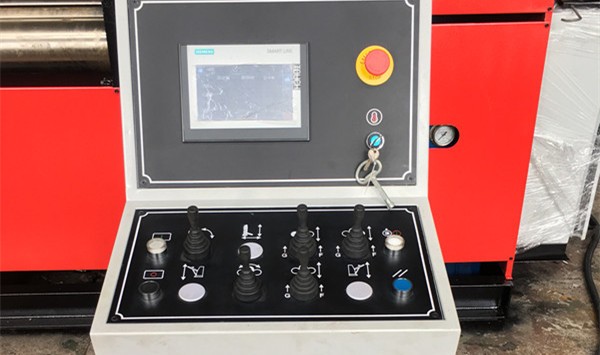

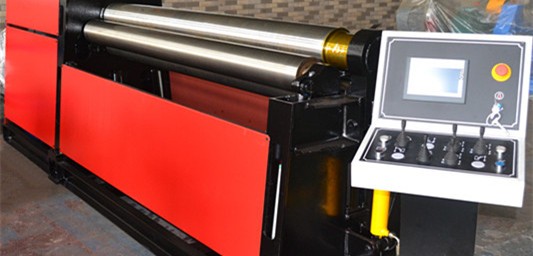

Machine part: PLC control system

HMI (Human Machine Interface), intelligent operation. Self-compensation, single-person operation, efficient, safe and convenient.
A variety of models are available, economical CNC models.
The PLC control system ensures that the bottom and transverse rollers of the machine run synchronously. Up to eight steps can be programmed using the touchscreen.

Machine Parts: Spherical Roller Bearings

The top roller is guided by spherical bearings.

All rollers are fitted with spherical bearings.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* View our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.

FAQ

1. When can customers contact us?
We are available Monday to Saturday. Beijing time from 8:00 am to 12:00 pm. We also provide customers with 24-hour online service.
2. How can I order a rolling machine from you?
If you have any questions or need assistance with our roller presses, please email or call us. We will reply as soon as possible.
We provide OEM and ODM services.
3. Payment terms
1) T/T 30% prepayment, 70% balance before shipment
2) L/C at sight
4. How is the quality of your rolling machine?
Longsheng is a mature brand in China. Through our thirteen years of research into rolling machine technology, our designs, including construction and detailing, have greatly improved safety and precision and can match all CE standards or more stringent standards. Wherever there is our plate rolling machine, there is good reputation and end-user satisfaction.

contact us

                                                                 GGood feedback from customers

contact details

Jiangsu Longsheng Machinery Manufacturing Co., Ltd.
Address: Hai'an Lippo Development Zone, Jiangsu Province
Tel: +86-513-88281688
Mobile: +86-15951415788
Email: lucy@longshengmachine.com
http://www.longshengmachine.com

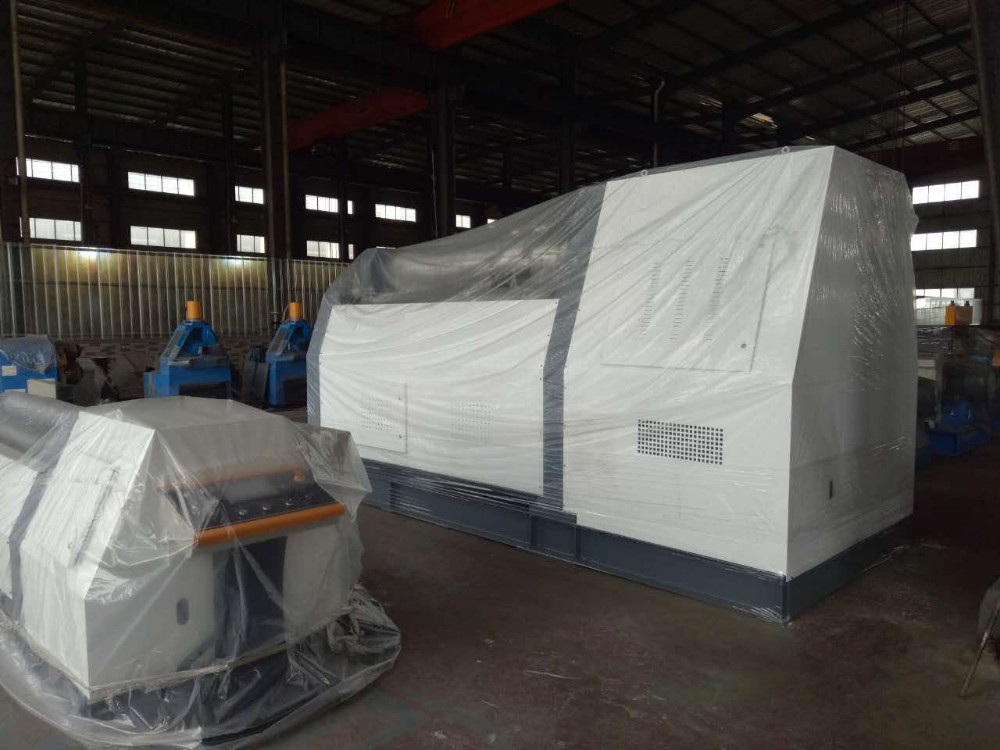

Packaging and Delivery
Bale
size
3200(L)*1500(W)*1900(H)
weight
12 tons



Packaging Details
Ordinary packaging is plastic film (dimensions: length*width*height). If you need wood packaging, we can also provide it for an extra charge. If exported to European countries, the wooden box will be fumigated. Also, if the container is too tight, we still recommend customers to use pe film packaging.
