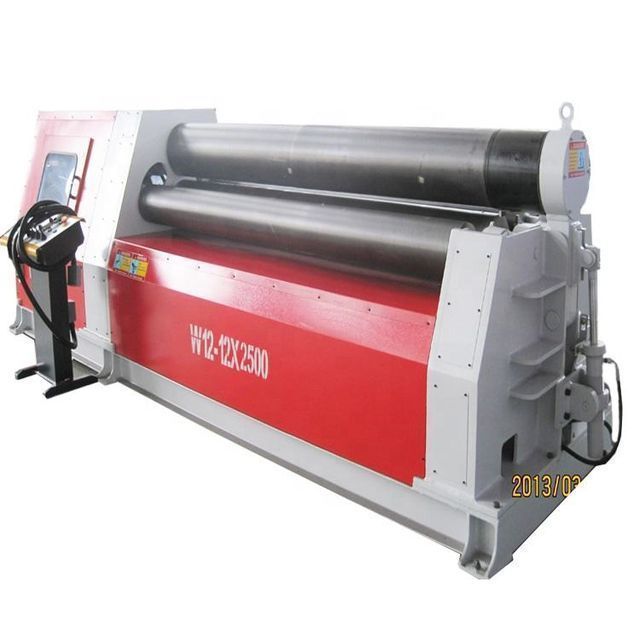

Professional manufacturer of W11S 12*2000 mechanical plate rolling machine, the price is negotiable

Supplier: Anhui Mage Cnc Technology Co., Ltd.
Region: Anhui, China
Contact: Mr William Yin
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Video external inspection:	if
place of origin; place of origin:	Anhui	maximum. Working Length (mm):	3000 mm
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops	Maximum rolling thickness:	6mm~200mm
Control System:	CNC control	Mechanical test report:	if
Machine name:	Three-roll plate rolling machine	port:	Shanghai
Showroom location:	Argentina, Chile, Sri Lanka, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Vietnam, Indonesia, Pakistan, Mexico	Number of rollers:	3
Core Components Warranty:	1 year	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Extra Services:	processing	Material/Metal Finishing:	Aluminum, carbon steel, alloy, stainless steel
Supply capacity:	10 sets per month	Main selling point:	easy to operate
maximum. Plate thickness (mm):	20 mm	Type of machine:	Roll bender
Marketing Type:	New Products 2022	Electrical System:	Schneider
Packaging Details:	Wooden case and other sea packing	automation:	automatic
color:	blue (customizable color)	After-sales service provided:	Provide overseas engineers
year:	2022	product name:	Steel plate rolling machine
Core components:	gearbox, motor, gear	Motor power (kW):	15kW
application:	Steel plate rolling	Warranty:	1 year
Maximum roll width:	1500mm~6000mm	Weight (kg):	7500kg
type:	W11S Hydraulic 3 Rollers	Packaging Preview:

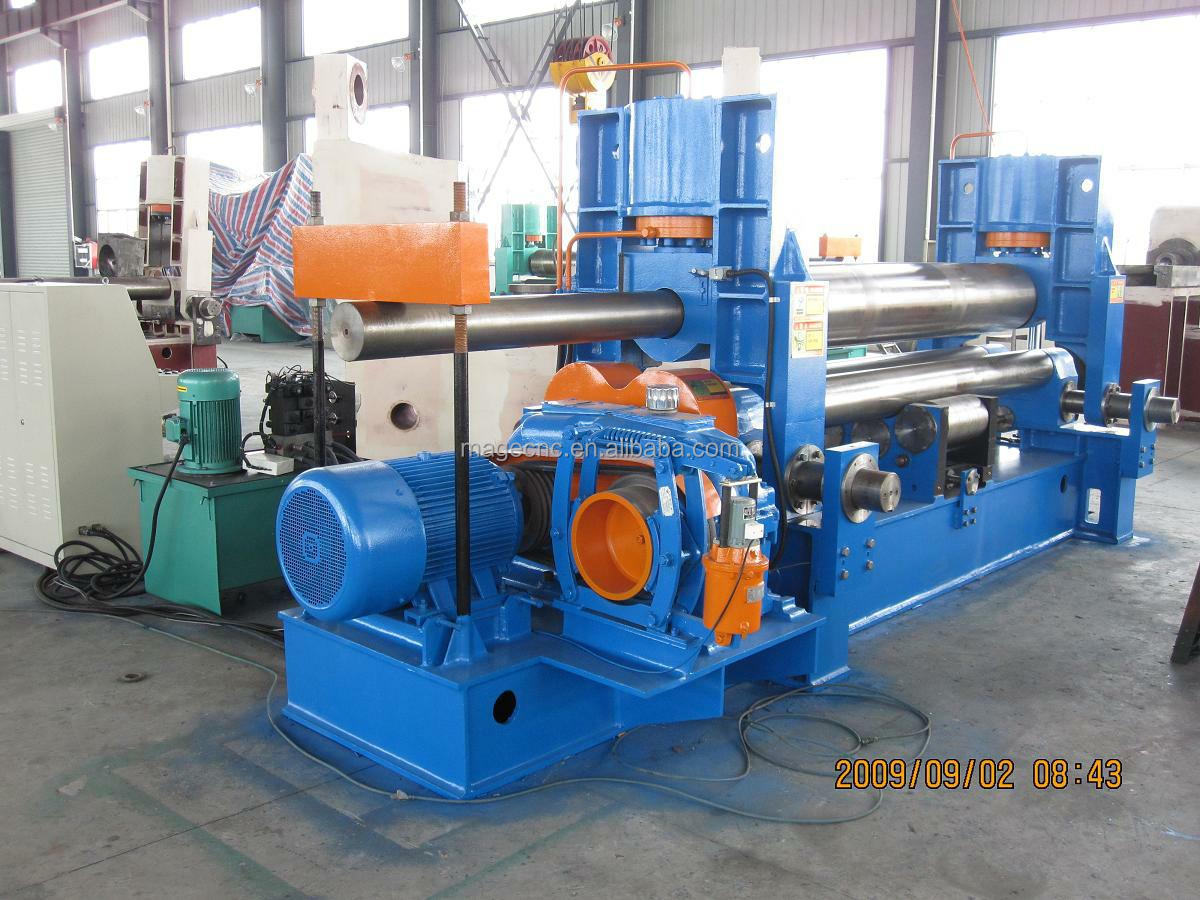

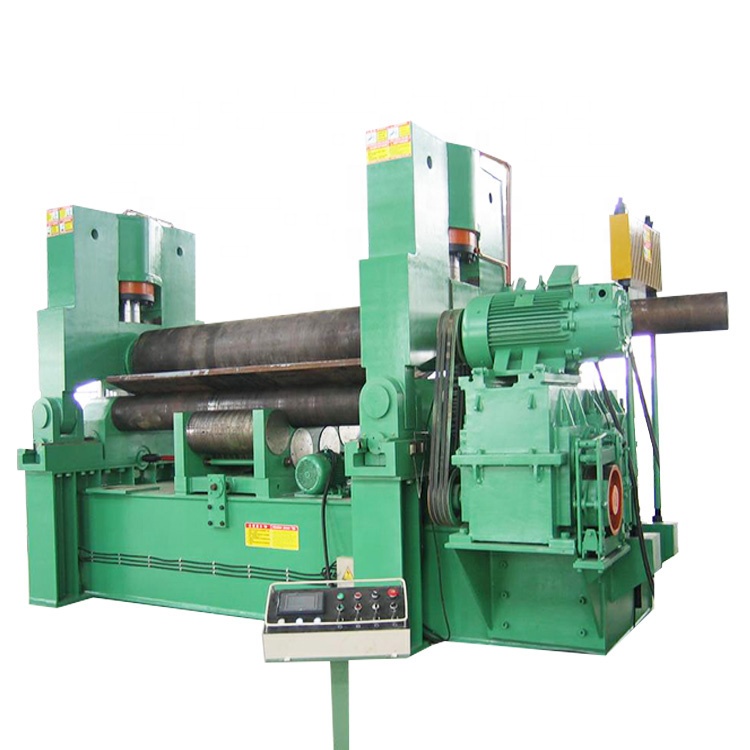

Product Description

1. Specifications.

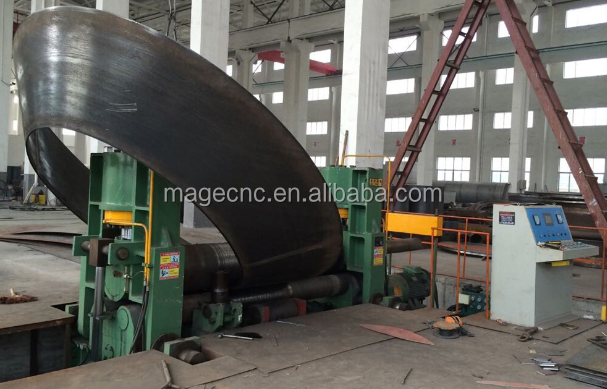

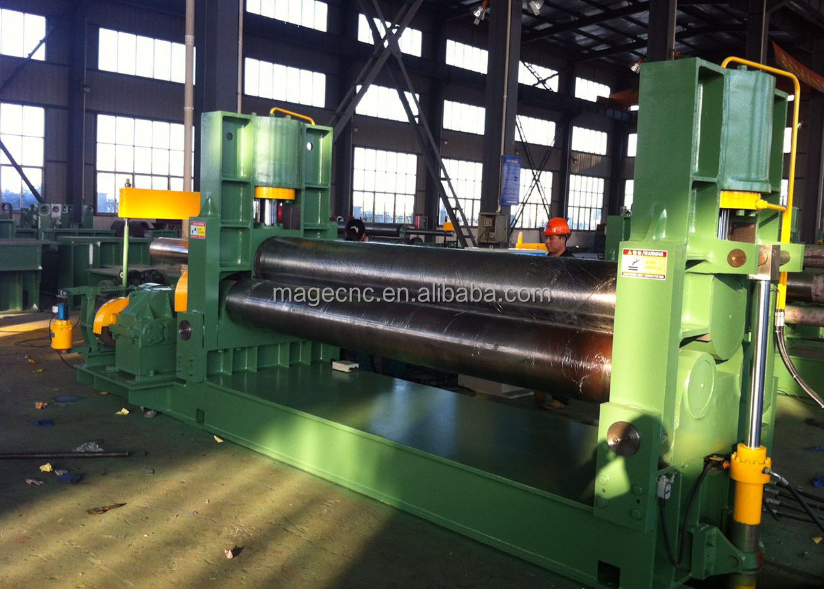

▀ Hydraulic three-roll plate rolling machine is widely used in metal processing industry to make metal plate into cylindrical shape,
Arc, etc., Japanese advanced technology.
▀ The upper roller can move vertically or horizontally, both of which are displayed digitally.
▀ This machine also has a pre-bending function.
▀ Pre-bending is realized by adjusting the relative asymmetrical positions of the upper and lower rollers.
▀ The two lower rollers are driven by motor and reducer to move, and the product has high precision.
▀ The height of the lower roller remains unchanged, and the operation is convenient.

▀ Bending machine is mainly composed of body, hydraulic system and control system.
▀ The machine body consists of upper roller device, lower roller and horizontal drive device, roller device, turning device,
Balance device, lubrication device, left and right frame, foundation.
▀ The upper roller device is composed of upper roller, main oil cylinder, upper roller bearing seat and double row self-aligning
bearing. Two oil cylinders provide working pressure, the working pressure is 20Mpa. The raw material of the upper roll is 42CrMo, and the heat treatment reaches HB220-280.

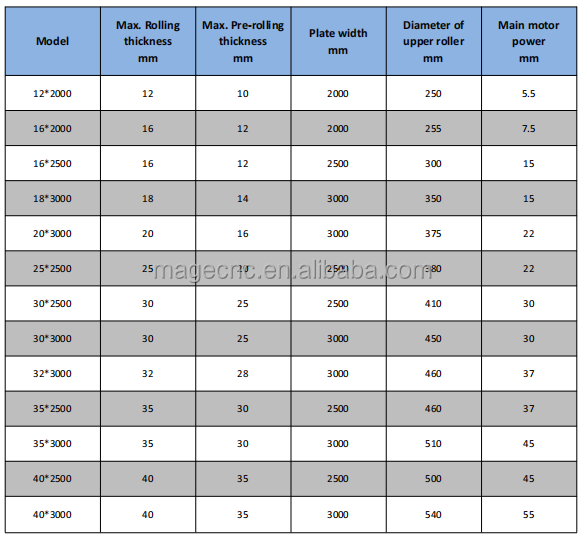

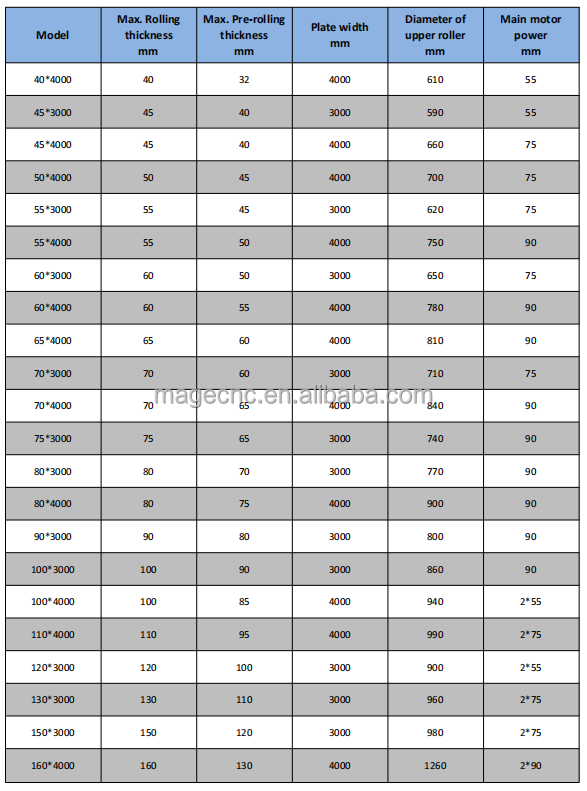

Product Specifications

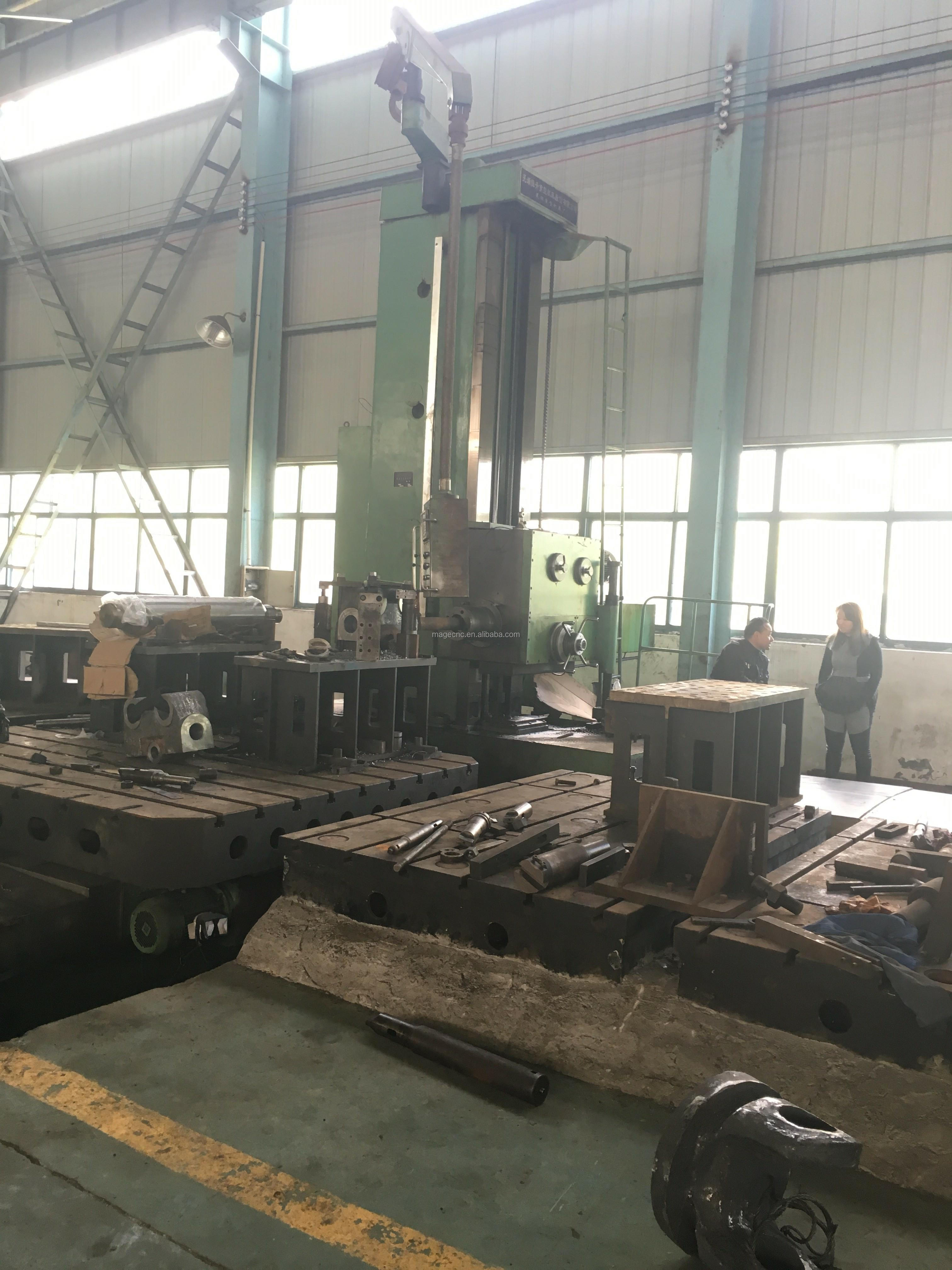

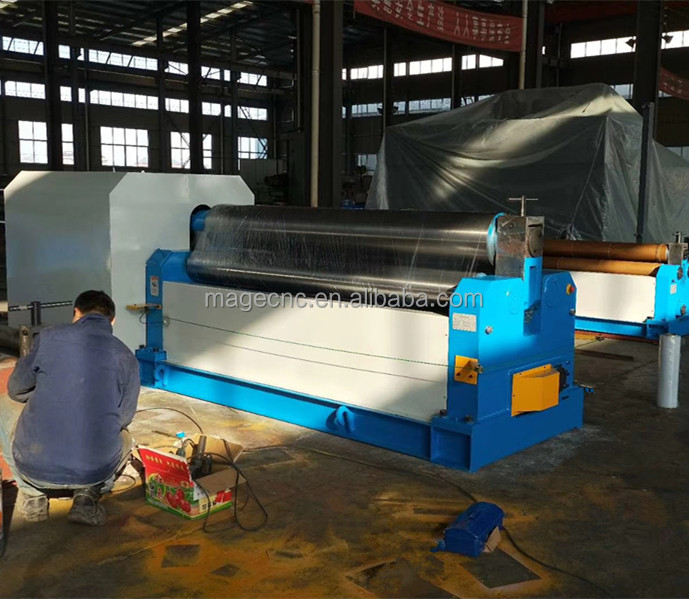

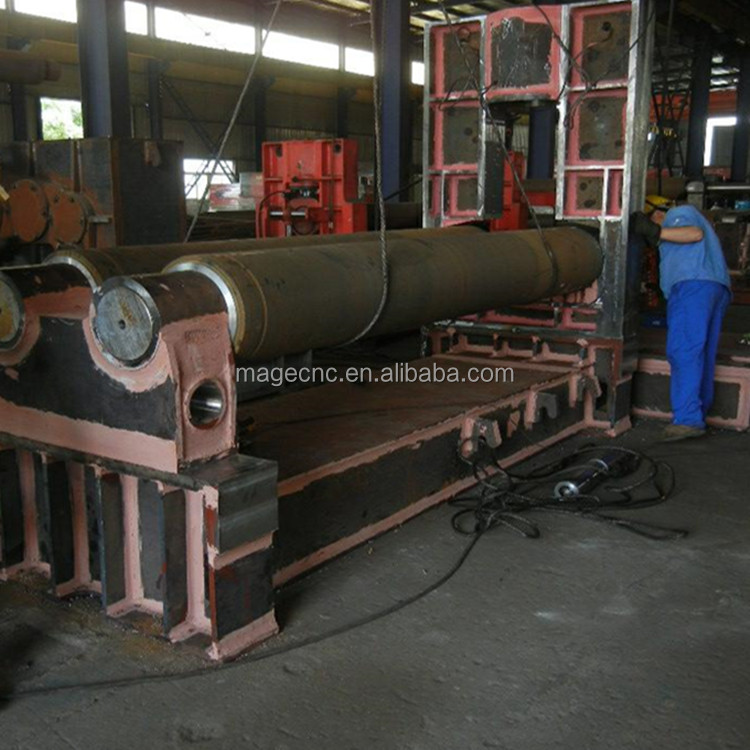

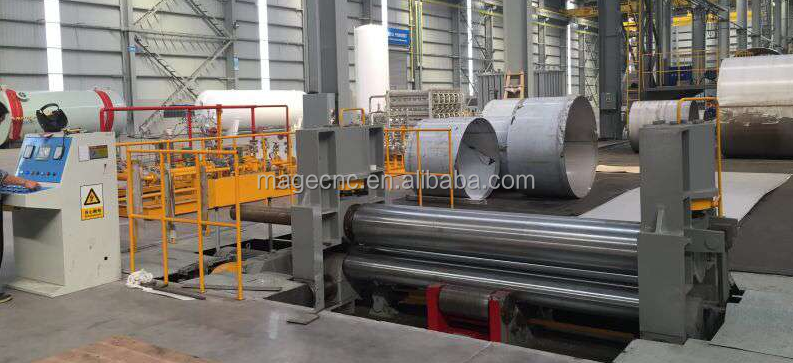

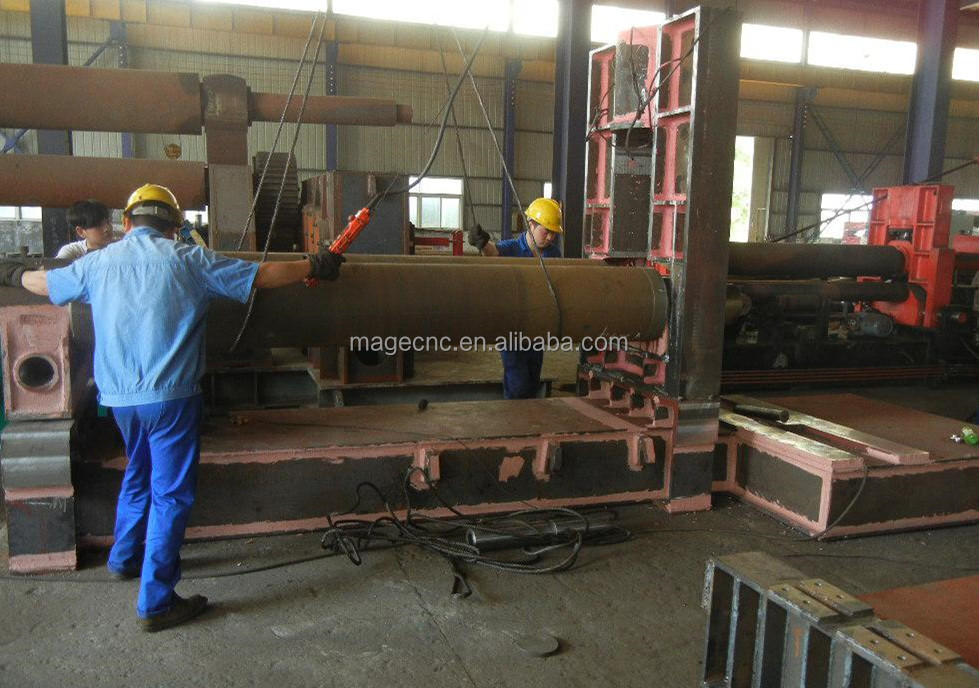

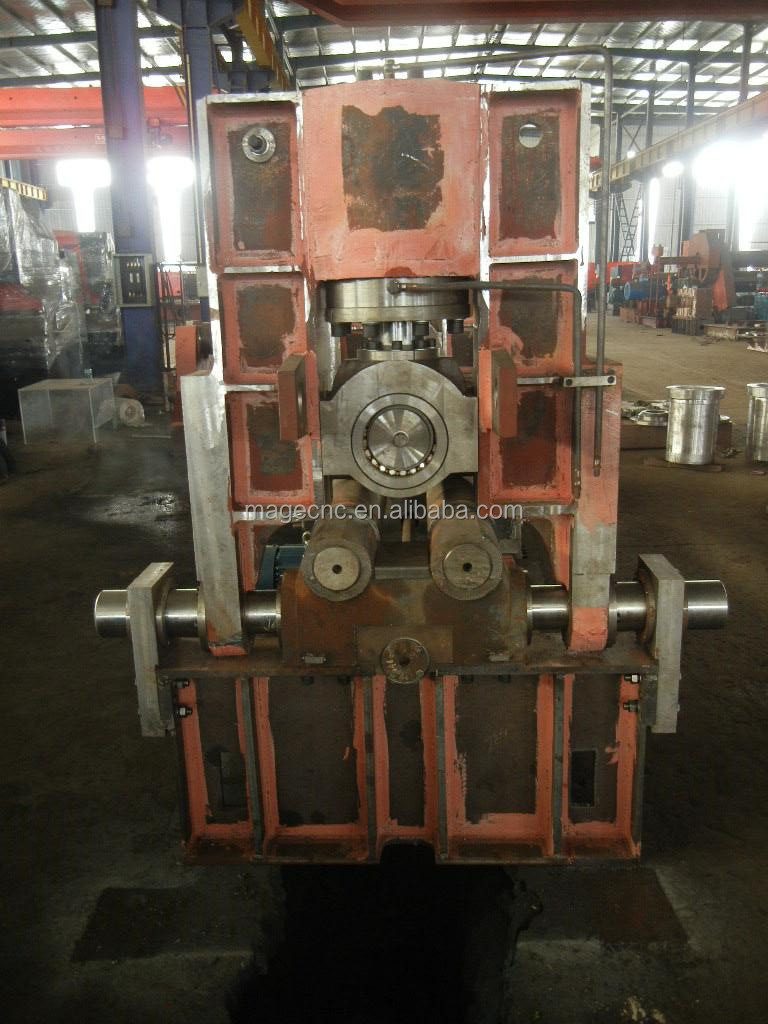

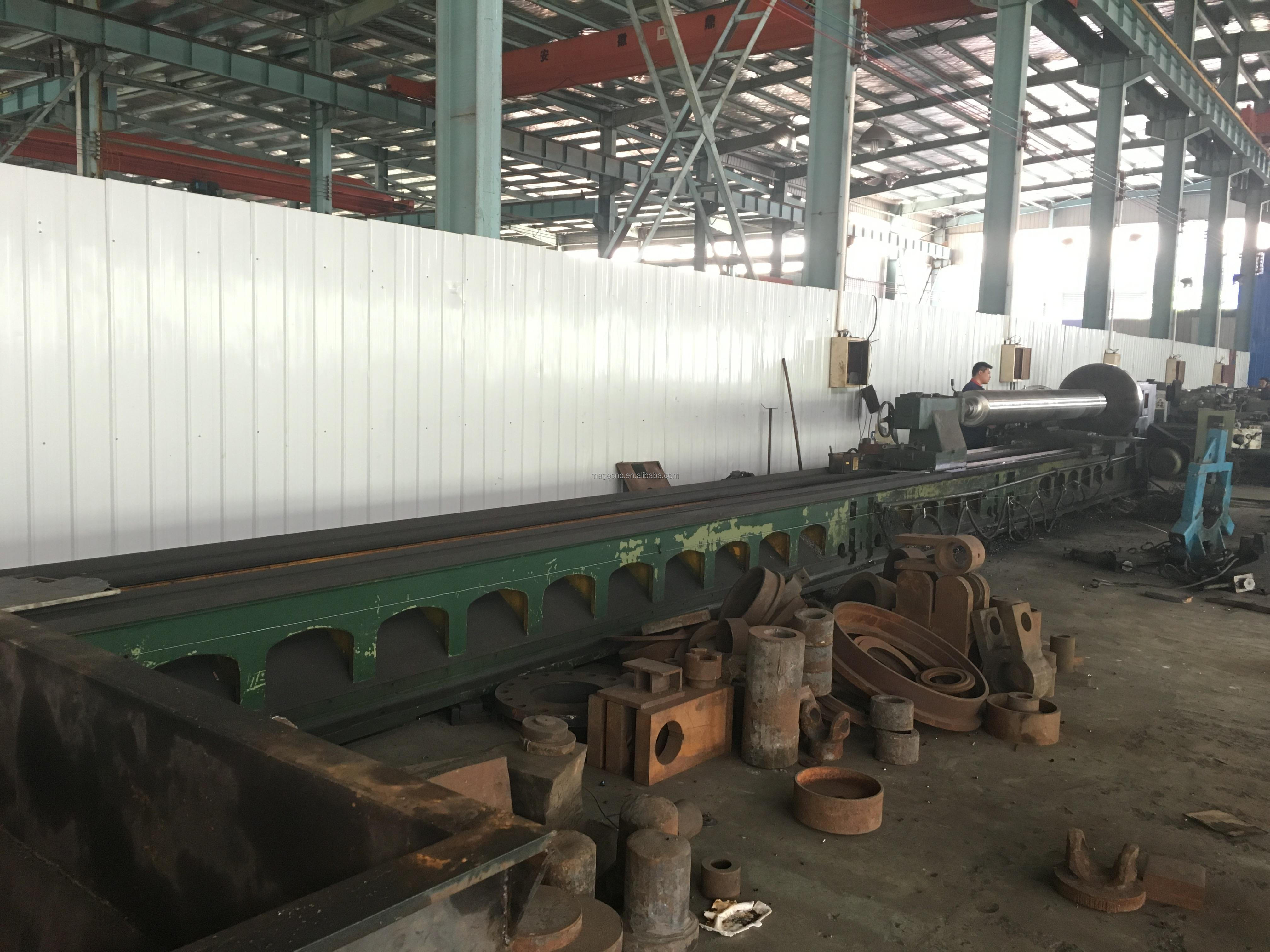

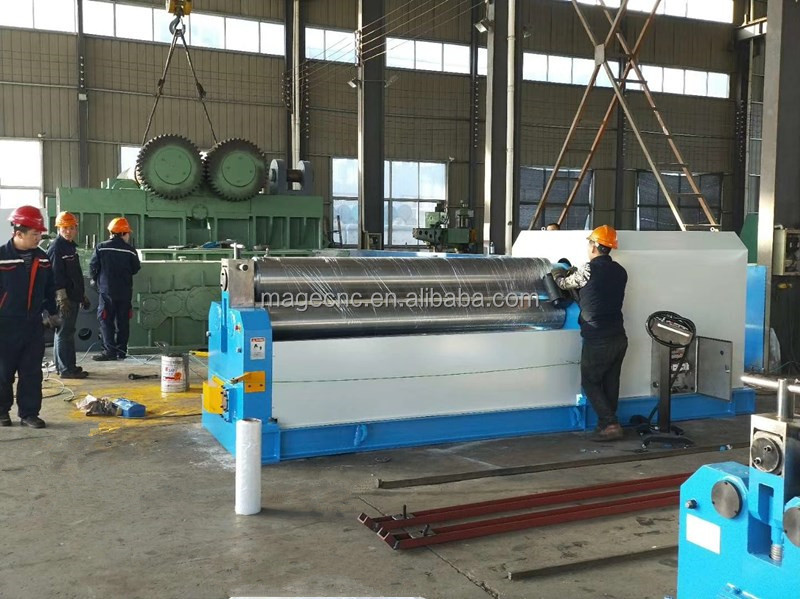

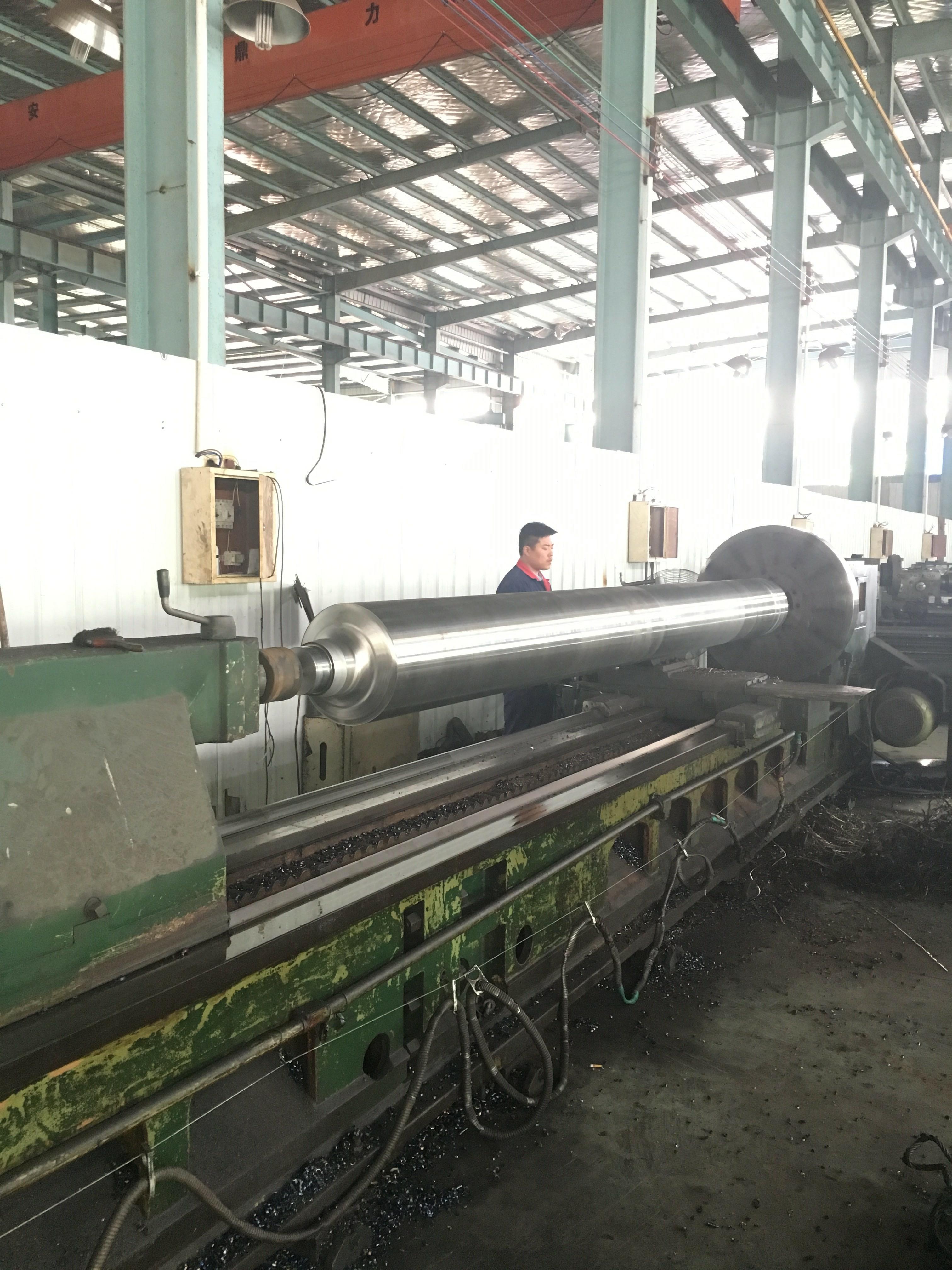

workshop

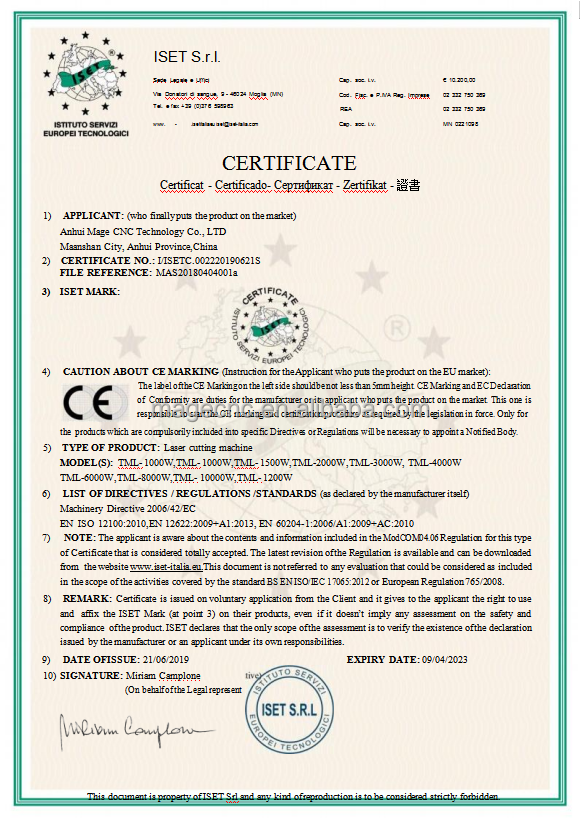

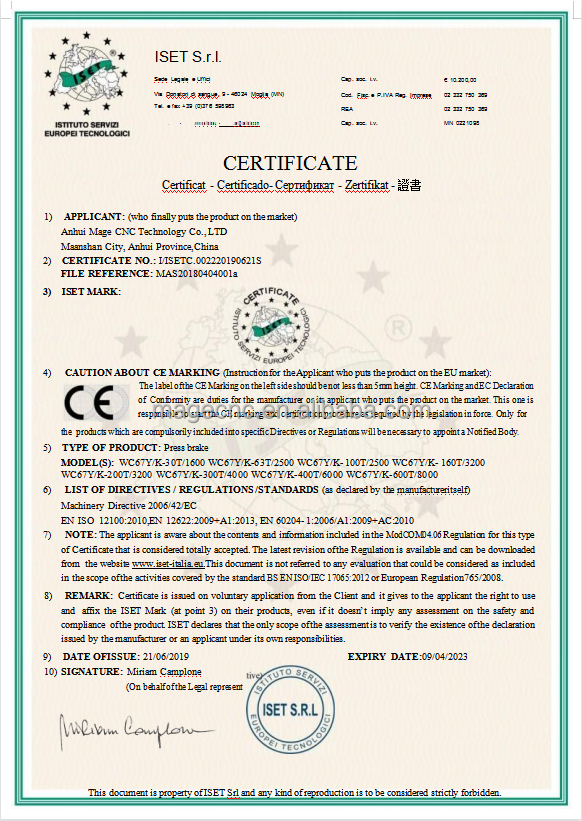

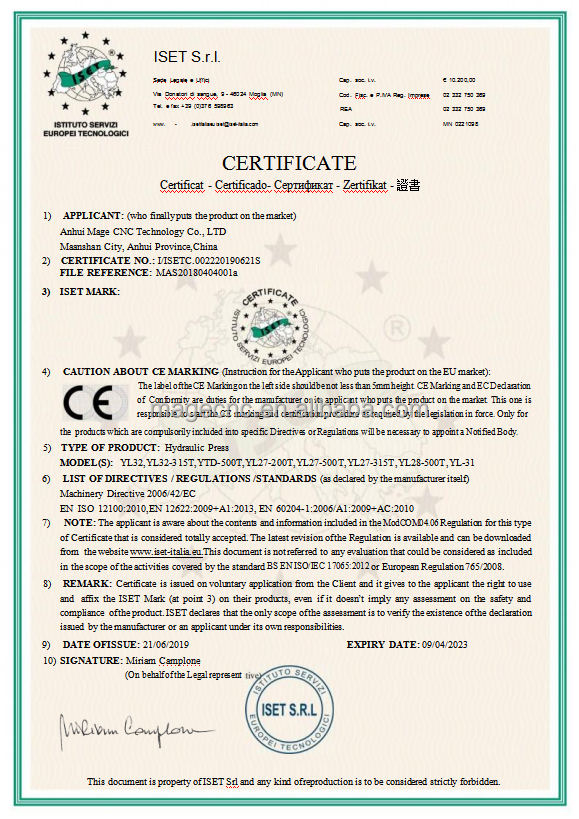

Certificate display

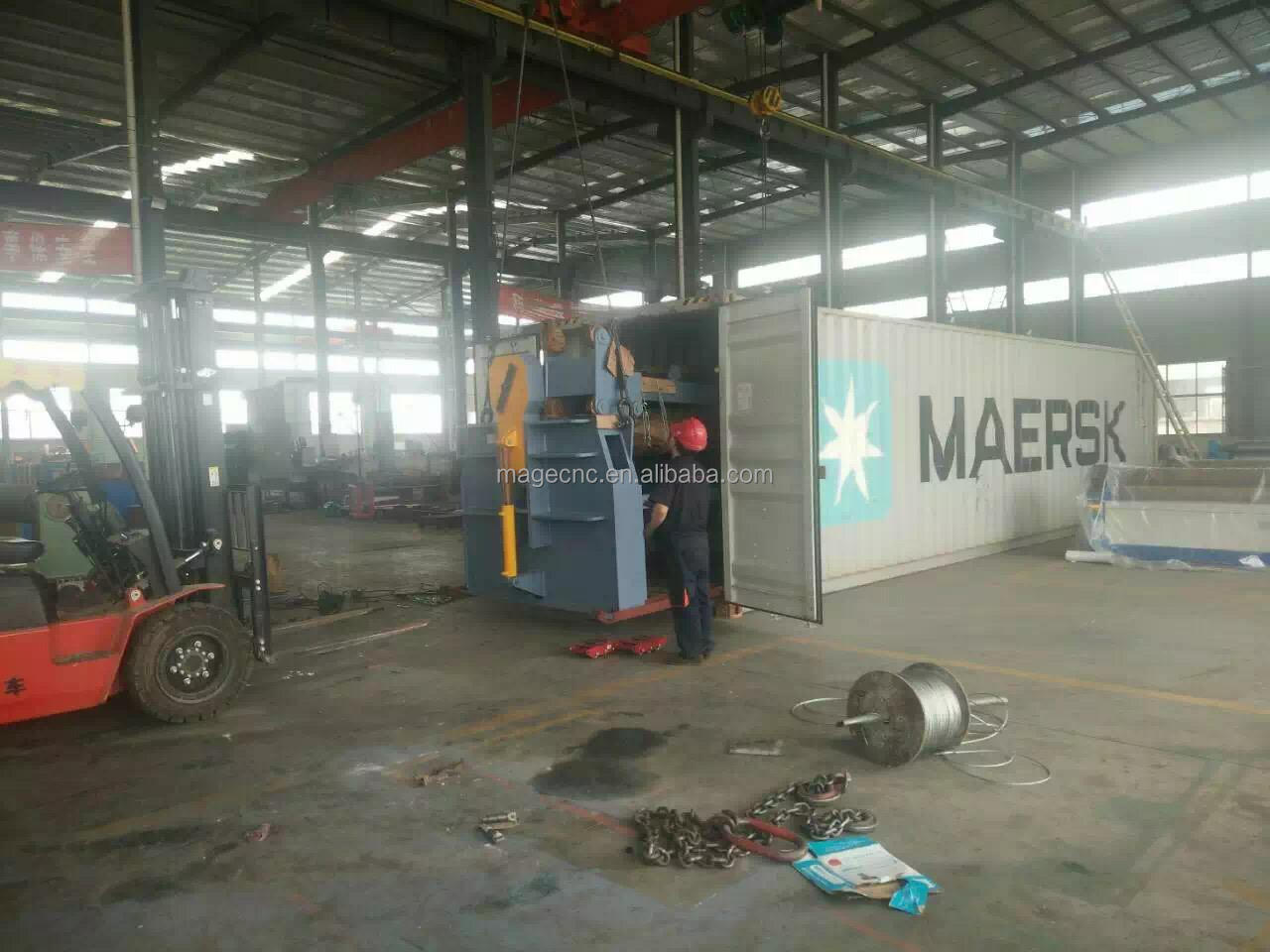

Customers and Packaging

Q&A

Q: Are you a manufacturer or a trader?
A: Our company is a large-scale manufacturing enterprise, headquartered in Anhui, with three production bases.

Q: What if we cannot operate your machine?
1. Provide overseas engineer services

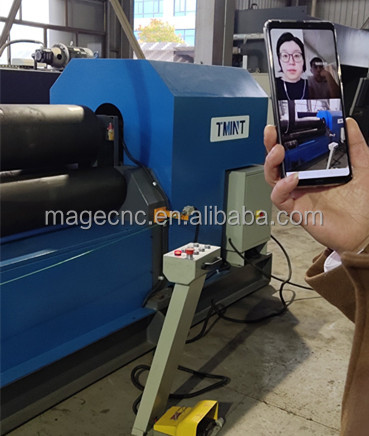

2. Support online video operation teaching
3. Provide installation and operation teaching video.

Q: How is the quality of your machines?
1. The main parts of the machine adopt international brands
2. Using advanced welding technology, the welding seam is firm and smooth.
3. The frame adopts high-strength steel, and adopts advanced technology for finite element analysis and tempering
Kiln treatment. The structure has a long service life.

Q: What is your delivery time?
A: Generally 25 to 35 working days, if you order urgently, please contact our sales staff in advance.

Q: Why choose our company?
1. Treat everything seriously and be responsible and keep improving
2. Provide a full range of after-sales service, and buy a machine without worry.
