Metal Sheet Slide Roller 4 Roller Portable Roll Forming Machine

Supplier: Henan Kellen Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Darcy chen
Price: $405.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	1000 sets per month	Marketing Type:	normal product
Bottom roll diameter:	240mm	maximum. Working length (mm):	2200 mm
options:	Three volumes	automation:	manual
Type of machine:	plate rolling machine	Number of rollers:	3

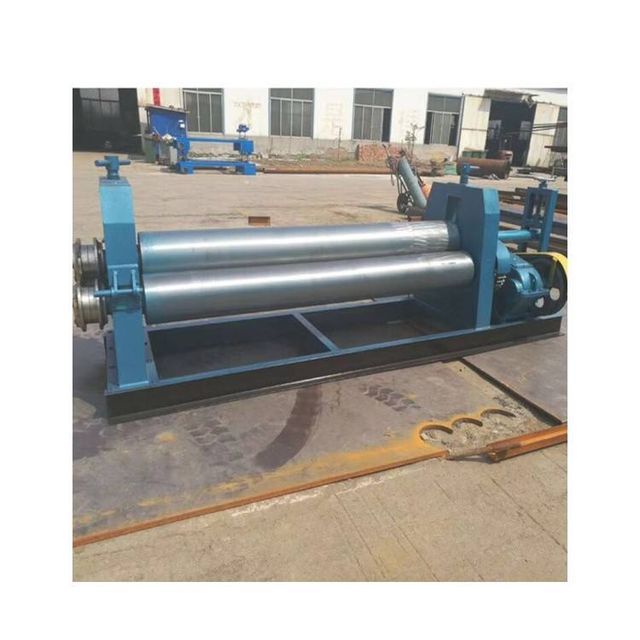

Name:	Small Electric Three-Roll Plate Bending Machine	Model:	KL-2200
size:	380015001500 mm	application:	steel rolling
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Packaging Details:	Wholesale price high reputation standard export wooden box packaging
Applicable industries:	Building Materials Store, Manufacturing Plant, Machine Repair Shop, Farm, Home, Retail, Construction, Energy & Mining, Other	Motor power (kW):	18.5 kW
Upper roller diameter:	280 mm	Showroom location:	not any
Core component warranty:	1 year	Mechanical test report:	not available
maximum. Plate thickness (mm):	20 mm	Health status:	new
Warranty:	1 year	deliver goods:	Fast rolling machine
Origin:	China	Weight (kg):	100 kg
Material/Metal Processing:	Aluminum, carbon steel, brass/copper, stainless steel	Rolling speed (m/min):	1 - 8
Steel coil minimum diameter:	400mm	Video outbound inspection:	not available
Core components:	Gearboxes, motors, rollers	port:	Qingdao, Tianjin, Shanghai
Package preview:		Main selling points:	multifunctional

Metal plate rolling machine Plate rolling machine Steel rolling machine

Product Description

A plate rolling machine is a device that uses work rolls to bend and shape metal sheets. It can form cylindrical parts, conical parts and other parts of different shapes. It is a very important processing equipment.

The working principle of the plate rolling machine is to move the work roll through the action of external forces such as hydraulic pressure and mechanical force, so that the plate is bent or bent into shape. According to the rotary motion and position change of the work rolls of different shapes, it can process oval parts, arc parts, cylindrical parts and other parts.

Mechanical plate rolling machine

Conical plate rolling machine

Electric plate rolling machine

Hydraulic plate rolling machine

Product use effect display

Specification

* Maximum thickness of rolled steel plate	20 mm
* Maximum width of rolled steel plate	2200mm
* Minimum diameter of steel coil	400 mm
* Main drive motor power	18.5 kW
* Auxiliary drive motor power	7.5 kW
* Feed rate	8m/min

* Maximum thickness of rolled steel plate	8mm
* Maximum width of rolled steel plate	1.5 mm
* Minimum diameter of steel coil	500-70 mm
* Swing motor power	7.5 kW
* Motor power of hydraulic oil station	4 kW
* Feed rate	8m/min
