Roller size: | 160 (120) * L320 (350) mm | heating: | oil heating |
Power (kW): | 2.2 | Roll ratio: | 1:1.25 |
Dimensions (L*W*H): | 1100*700*1200mm | Warranty: | 2 years |
Roll diameter(mm): | 16 mm | Voltage: | 380V |
Local service location: | not any | Roller Spacing: | 0~5mm |
place of origin; place of origin: | Guangdong, China | cooling method: | water cooling (option) |
Certification: | CE/ISO | Roll length(mm): | 35 mm |
Temperature Accuracy: | ±1℃ | Main selling point: | High security level |
brand: | ZL | motor: | 5HP*1 station |
Video external inspection: | if | Mixing capacity: | 1-2 kg |
Packaging Preview: | port: | Shenzhen | |
After Warranty Service: | Video technical support, online support | Cylinder temperature: | 250℃ |
Core Components Warranty: | 2 years | Showroom location: | not any |
Mechanical test report: | if | year: | custom |
Packaging Details: | Open mill rubber mixer is packed in plastic bags and then packed in export safe wooden boxes | Weight (kg): | 380kg |
Supply capacity: | 50 units/month open-milling rubber mixer | After-sales service provided: | Free spare parts, on-site maintenance and repair services, video technical support, on-site installation and commissioning training, online support |
Marketing Type: | Hot Products of 2019 | Roll ratio (front/rear): | 1:1.25 |
Model: | open mill rubber mixing machine | Health status: | new |
Applicable industries: | Manufacturing plants, construction works, rubber and plastics industries | Core components: | PLC, engine |
Front roller speed (rpm): | 1 - 19 turns | Roller speed: | 18 rpm |
payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Open Mill rubber mixer is suitable for any payment method |
introduce:

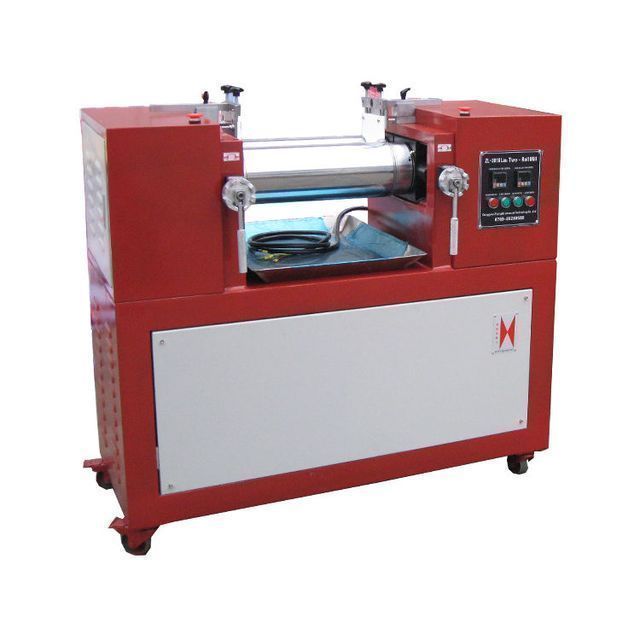

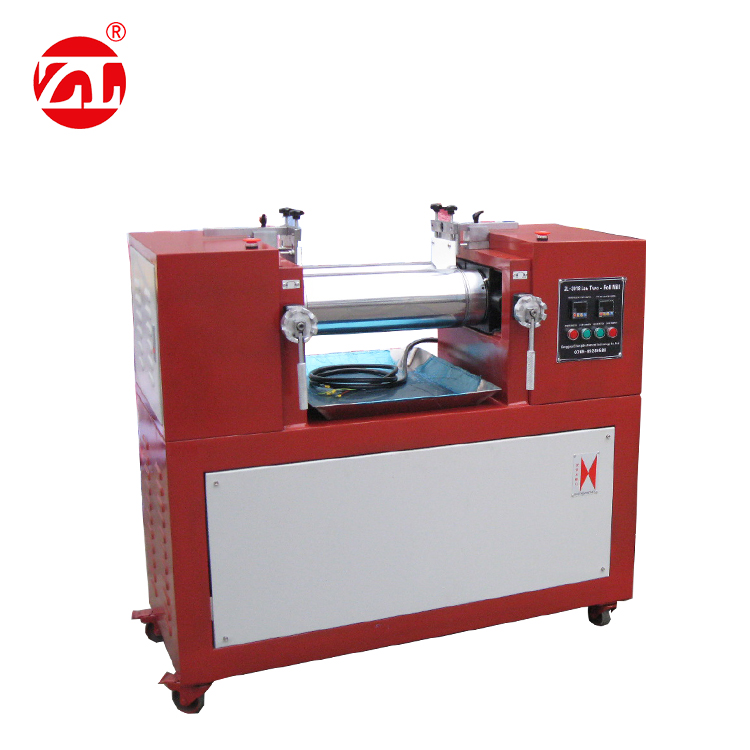

open mill rubber mixing machine
It is specially designed to provide unparalleled performance for the mastication and kneading of natural rubber, synthetic rubber, EVA or PVC particles and various chemical materials. This machine is mainly used for plastic, thermal grinding and mixing of natural rubber and synthetic rubber in rubber products factories. machine
application:
open mill rubber mixing machine
Widely used in polymer blending in the rubber and plastic industries, such as PVC, masterbatches. It consists of rolls, bearings, gap adjustment devices, electronic control systems, safety devices, etc.
technical parameter:
Model
|
|
ZL-3018-76 |
ZL-3018-120 |
Zl-3018-160 |
ZL-3018-200 |
Zl-3018-230 |
Zl-3018-300 |
ZL-3018-400 |
Reel diameter |
mm |
76 |
120 |
160 |
200 |
230 |
300 |
400 |
Roll surface length |
mm |
300 |
350 |
350 |
500 |
650 |
650 |
900 |
mixing capability |
Kilogram |
0.002-0.6 |
0.002-2 |
0.002-2.8 |
0.002-5 |
0.005-10 |
1-15 |
5-30 |
Front roller surface speed |
number of revolutions |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
friction ratio |
|
1:1.30 |
1:1.35 |
1:1.35 |
1:1.35 |
1:1.27 |
1:1.27 |
1:1.27 |
Roll gap range |
mm |
0-3 |
0-6 |
0-6 |
0-8 |
0-12 |
0-12 |
0-15 |
driving force |
kilowatt |
1 |
1.5 |
2.2 |
7.5 |
11 |
30 |
37 |
heating mode |
Electric heating, oil heating (optional) |
|||||||
cooling method |
water cooling (option) |
|||||||
roll temperature |
Room temperature - 300℃ |
|||||||
Roll hardness |
HRC 50 ~ 60 |
|||||||
temperature accuracy |
±2℃ (we use high precision PID microcomputer controller) |
|||||||
safety equipment |
It has 6 safety buttons and safety guards are optional |
|||||||
machine weight |
Kilogram |
160 |
460 |
660 |
860 |
1960 |
2960 |
3800 |
Dimensions |
mm |
1100x400x1180 |
1100x550x1380 |
1200x650x1380 |
2200x750x1380 |
2200x950x1580 |
2600x950x1580 |
5295x1789 x170 |
strength |
380V three-phase 50-60hz |
feature:
1. Roll structure: drilling roll, drilling roll, groove roll
2. We can design the speed ratio according to the customer's formula and processing requirements.
3. Frame, frame cover and base are welded and annealed to relieve stress.
4. The roll material is chilled alloy cast iron with a hardness of 70HB.
5. Brake and emergency stop device to ensure the safety of personnel and equipment.
6. Automatic oil or grease lubrication, easy to maintain and protect the machine.
7. Humanized design control system to ensure labor safety.
8. Roll gap adjustment method: manual or electric
Intelligent control panel and PLC control system:
1. Real-time data recording and export of kneading time, temperature (mixing chamber and front and rear rotors), plunger pressure, current, torque and recipe code.
2. The control system can set up to 20 mixing steps, saving 20 recipe spaces.
3. The control system can remotely import process recipes and data monitoring, and communicate with MES through the Ethernet communication interface.
4. Reserve the Ethernet communication interface and 20% of the control points. A touch screen is available.
Color customization:
