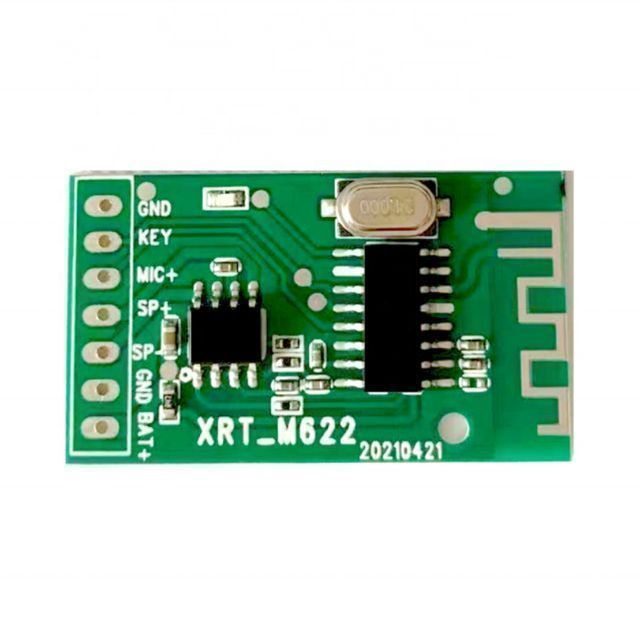

Wireless Low Power 5.0 Solution Mono Power Amplifier Board XRT-M622 Bluetooth Module

Supplier: Shenzhen Junbaoxiang Technology Co., Ltd.
Region: Guangdong, China
Price: $0.10 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

port:	Shenzhen	payment terms:	Western Union, Wire Transfer, Paypal
Country of Birth:	China	Packaging Details:	Standard export packaging
model:	XRT-M622	Card:	The original
type:	Bluetooth 5.0	Supply capacity:	10000 pieces per month

Product Description

model	XRT-M622
pack	module
date code	new
place of origin; place of origin	China
type	module
application	circuit board
Shipping method	DHL\UPS\Fedex\EMS\Hongkong Post
pay	money transfer
Bale	Standard export packaging
payment method	Paypal

Advantages: 1. Stable performance, strong signal reception, straight-line distance of more than 10 meters 2. Input voltage: 3.3-5V 3. Output power: 4 ohms 3W 4. Bluetooth and power amplifier functions are two-in-one, connect the power supply and speakers to use, Can be used in small spaces. Reduce production wiring and assembly hassles and improve production yields. 5. If you need to customize the startup voice and Bluetooth connection name, please contact customer service for large quantities.

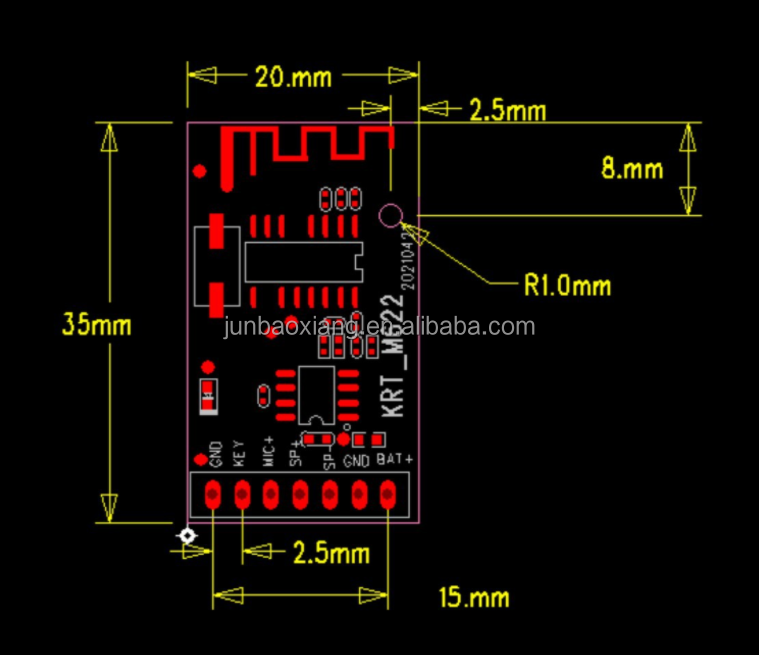

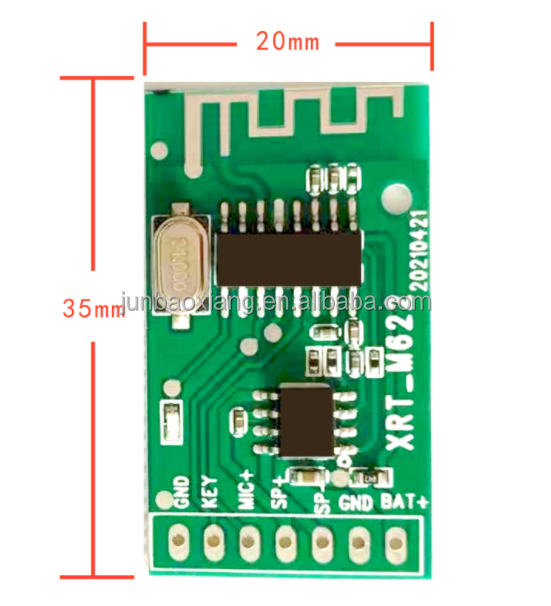

Function introduction 1. Bluetooth version: V5.1 2. Mono output 3. Support call function (optional) 4. Support button function (customization) 5. Bluetooth working distance: ≤10 meters 9. Input and output interface: a, Power input: 3.2-5V 1.5A b, speaker output interface: external 4Ω3W speaker c, button interface: up to four buttons d, Bluetooth call MIC interface e, Bluetooth indicator (blue), 10, output power: 4Ω2W 11. Signal-to-noise ratio: ≥75DB 12. Working voltage: DC: 3.2V-5V 13. Working current: ≤1A 13. Working temperature: 0℃+80℃ 14. Storage temperature: -20℃-+105℃ 15 . Product size: 20mm×35mm
