2022 Develop Bluetooth 4.0 5.0 Power Amplifier I2S Analog Stereo Bluetooth Audio Transmitter and Receiver Bluetooth Audio Module

Supplier: Shenzhen Feasycom Co., Ltd
Region: Guangdong, China
Contact: Mr Andy Hu
Price: $6.50 / 2 - 99999999 pieces
$1.00 / >=100000000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Application products:	Bluetooth speakers, headphones, intercom equipment	Business terms:	Factory in Shenzhen
Packaging Details:	Carton pallet packaging	type:	Audio transmission and reception, Bluetooth 5.2
port:	Shenzhen	range of working temperature:	-20°C to +85°C
brand:	Flyto	audio port:	Analog I/O, I2S, PCM, SPDIF, USB
protocol:	A2DP AVRCP HFP HSP HOGP PBAP SPP	model:	FSC-BT1036B
aspect:	13mm (W) X 26.9mm (L) X 2.4mm (H); pad spacing 1mm	country of origin:	Guangdong, China
payment terms:	Western Union, T/T	Supply capacity:	100000000 pieces per month
Package preview:		application:	Audio Transmitter and Receiver
power supply:	3.1V~4.35V	Storage temperature:	-40°C to +85°C

Product Description

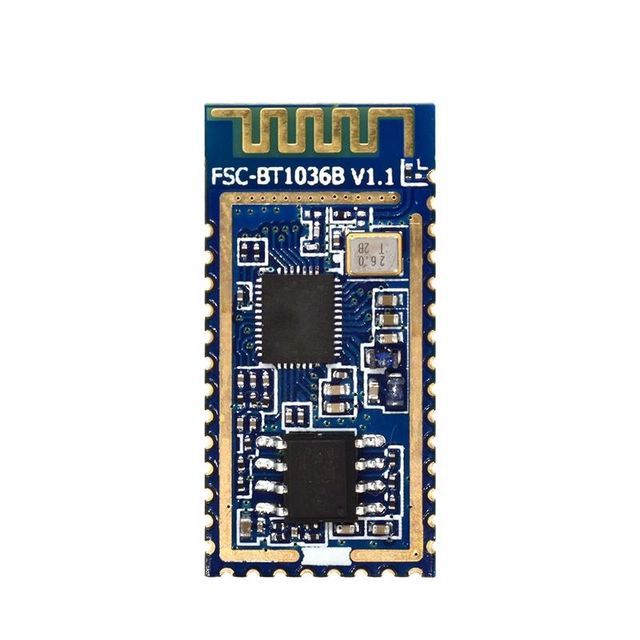

FSC-BT1036B is a Bluetooth 5.2 dual-mode transceiver module. It supports Bluetooth Low Energy and compatible systems for audio and data communications. FSC-BT1036B integrates ultra-low power DSP and application processor with embedded flash memory, high-performance stereo codec, power management subsystem, I²S, LED driver and ADC I/O in a SOC IC. By default, the FSC-BT1036B module is equipped with powerful and easy-to-use Flytocom firmware. It's easy to use and fully encapsulated. The Feasycom firmware enables the user to send simple ASCll commands to the module over the serial interface to access the Bluetooth functionality - just like a Bluetooth modem.

FSC-BT1036B is a Bluetooth audio module newly developed in Bluetooth 5.2 version, which can

Compatible with Bluetooth 5.0 Bluetooth 4.0. Can be used for amplifiers and other bluetooth

equipment. It supports analog and stereo audio, supports audio transmission and reception.

FSC-BT1036B can be used as Bluetooth audio transmitter module and Bluetooth audio receiver

module. Feiyi Communication developed this module to solve the problem that the supply of CSR8670 and CSR8675 chips is in short supply.

Bluetooth module model	FSC-BT1036B
size:	Small, Medium to Large. Support customization
bluetooth version	Bluetooth 5.2 dual mode (BR/EDR+BLE)
frequency	2.402 - 2.480 GHz
feature	High Quality Audio Transceiver
Introduction	HFP, A2DP, AVRCP, PBAP, HID, SPP
aspect	13mm26.9mm2.2mm
transmit power	+10dBm
antenna	Built-in PCB antenna, support external antenna
certified	BQB, FCC, IC, CE, RCM, TELEC
