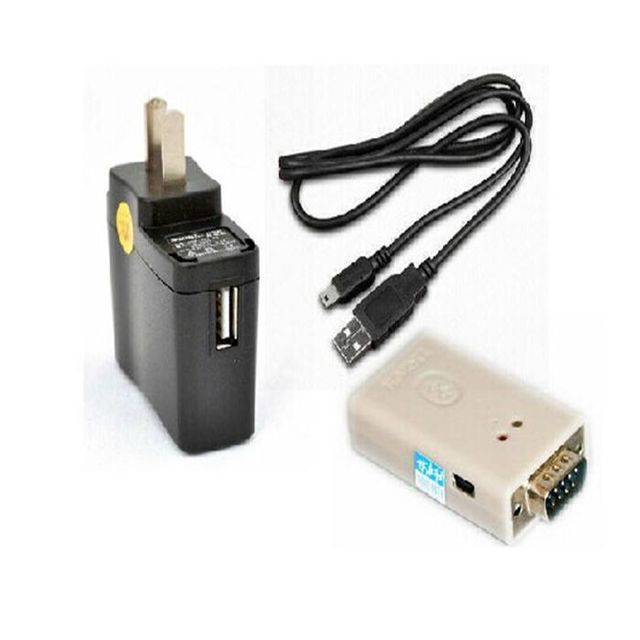

BT5701 serial port BLE adapter module total station electronic scale printer RS232 with lithium battery

Product name: BT5701 serial port BLE adapter module total station electronic scale printer RS232 with lithium battery

This product has built-in BLE protocol software, no need to install additional drivers. It can be used in the operating system with an operation interface, and can also be used in any device without an operation interface but with a standard RS232 serial port.
The wired serial port to wireless serial port is automatically completed inside the adapter. For users, it is ordinary serial port communication. It's no different than the previous serial cable connections. Application developers do not need to understand the details of BLE technology. Just write the serial communication code. This is called transparent serial communication.
Support BLE Serial Port Profiles (SPP), and can communicate with BLE-supporting laptops, desktop computers equipped with USB BLE adapters, handheld BLE PDAs, BLE GPS and other devices that support BLE SPP protocol.
Built-in high-quality 400mA lithium battery can provide nearly 24 hours of working power for the adapter. Users can supply power to the adapter through the MiniUSB interface on the adapter to charge the internal lithium battery.
Users can set eight different baud rates from 1200bps to 115200bps through AT commands (the default value is 9600, n, 8, 1), and can also set a more personalized BLE name for the device, or modify the default BLE pairing password.
The transmission power complies with the BLE Class2 standard, built-in high-sensitivity PCB printed antenna, and the stable communication distance can reach 15 meters. It can pass through the wall for wireless serial communication.
The CSR BLE chip adopts the BLE 2.0 standard, its enhanced bit error rate performance and automatic frequency hopping technology can ensure efficient and safe communication, and it has stronger anti-interference ability to ensure the stability and reliability of communication.

Market and Application
The purpose of using BT5701 is to replace the original serial cable connection, but how to replace it, users should have a clear plan before purchasing the product. The following are some typical usage methods of BT5701 products.
BT5701 slave connects BLE master devices, such as BLE laptop, USB BLE adapter, BLE PDA, etc. This is the most common way to use the BT5701. The slave is installed on the serial device and waits for the BLE master to discover it. When the master device finds the BT5701 slave device, it sends a pairing request to the master device, and enters the correct slave device pairing password on the master device for verification (BT5701 factory default pairing password is 0000). After the pairing connection is completed, the system of the BLE master device will allocate a BLE virtual serial port number for this BLE connection. The application program running on the master device only needs to use this serial port number to communicate with the BT5701, and then communicate with the serial device connected to the serial BLE adapter.
BT5701 slave and BT5701 master are used in pairs. The master and the slave are respectively connected to the two serial ports connected by the original serial cable. After the host is powered on, it will automatically search for the slave and complete the pairing connection with the slave. After the connection is successful, the BLE status indicators of the master and slave will no longer flash and become steady on. The master and slave are connected, even if the baud rates of the two are different, they can also transmit data to each other. There is no need to set up master and slave in pairs. After both modules are powered on, serial communication can be performed. If the connection distance between the master and slave is too far and the connection is interrupted, the BLE status indicator of the master and slave will return to the blinking state before no connection. When they get closer again, they automatically go back to connected.
The BT5701 host connects to the BLE slave device. At present, the common BLE GPS and BLE printers on the market generally use BLE slave. AT command is used to set the same pairing code of master and slave, they can be connected together.
main specifications
Executive standard: BLE SIG v2.0,
BLE Protocol: BLE Serial Port Profile (SPP)
Communication rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
Modulation method: 2.4G direct sequence frequency hopping (FHSS)
Communication distance: 15 meters in the open
Transmitting power: 3 dBm, Class2
Receiving sensitivity: -80dBm
Working current/pairing current: 8mA/25mA (this product has no sleep mode)
Dimensions and weight: 62x34x14mm 25g (without battery)
