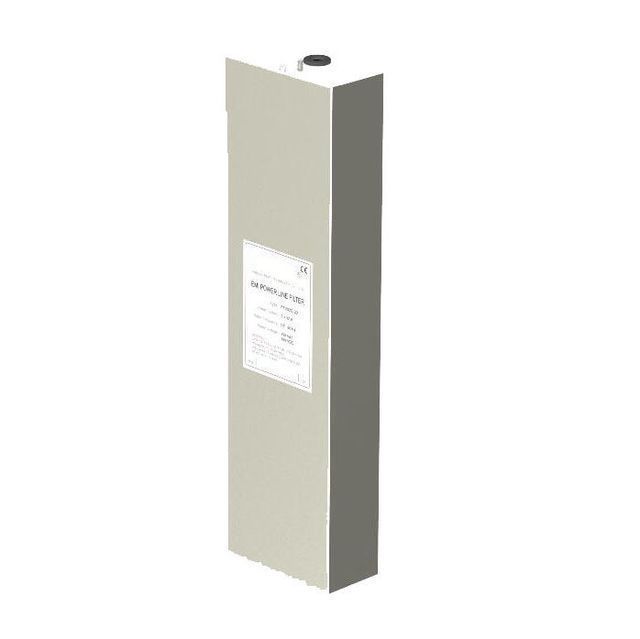

MJK Series PF401A power line filter for antenna anechoic chamber

Product details
Supply capacity:100000 pieces/yearport:Shanghai
Voltage - Rated:440VAC/250VACPackage:Carton
Insertion Loss:100dB, 150kHz-40GHzPower Line Frequency:0-60Hz
current:16/32/63/100type:Power Line Filter
Model Type:PF401A seriesFrequency - Action:0-60Hz

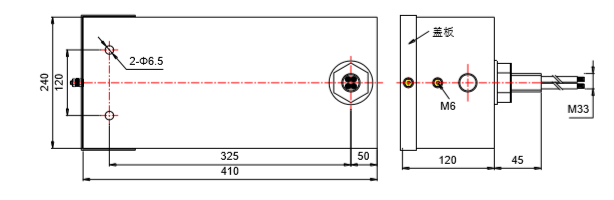

Rated current (max):100Border size:410*160*120(mm)
Installation type:through holeplace of origin; place of origin:Jiangsu, China
Filter Type:Power and signal linesClimate category:25/085/21
Voltage - Rated AC:440VAC/250VACRated Voltage - AC:440VAC/250VAC
Packaging Details:Carton packaging, custom packaging is accepted.Shielding Effectiveness:100dB, 150kHz-40GHz
payment terms:letter of credit, wire transferRows:2/4
brand:Nanjing MJKshape:cuboid
model:PF401A
Product Description




















Company Profile

Nanjing Meijiakai Electronic Engineering Co., Ltd. is a high-tech enterprise specializing in the research and production of microwave radio frequency absorbing materials. Our company has the ability to provide a variety of RF absorbers, including our patented ZXB absorbers, foam absorbers, ferrite RF absorbers, honeycomb absorbers and RF absorbers.



We have technical strengths and extensive experience in the design and construction of anechoic chambers, near-field and far-field antenna measurement systems. Over the past decades, we have produced 100,000 square meters of various RF absorbers, designed and built 310 anechoic chambers and 66 near-field and far-field antenna measurement systems. Nanjing MJK also owns 26 related patents and 18 self-developed operating systems.



Our company is the largest supplier of patented non-flammable radio frequency absorbers (Zhang Jigang, the inventor of ZXB absorber). ZXB absorbers are optimized for high temperature, high frequency microwave anechoic chambers. Features: good water absorption, no pollution, environmental protection, odorless, durable material, anti-bend, can withstand high power output.



Application areas: antenna near-field and far-field measurement rooms, target RCS measurement rooms (including compact field rooms), RF simulation rooms and large EMC rooms, electromagnetic noise suppression for radar and telecommunication systems, anti-electromagnetic interference, etc.



We welcome friends from all over the world to discuss potential business cooperation.

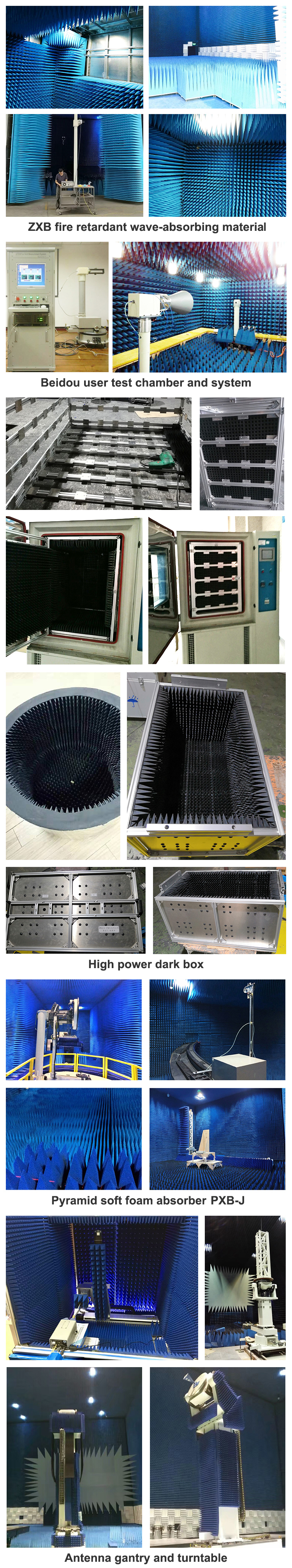

Case show
