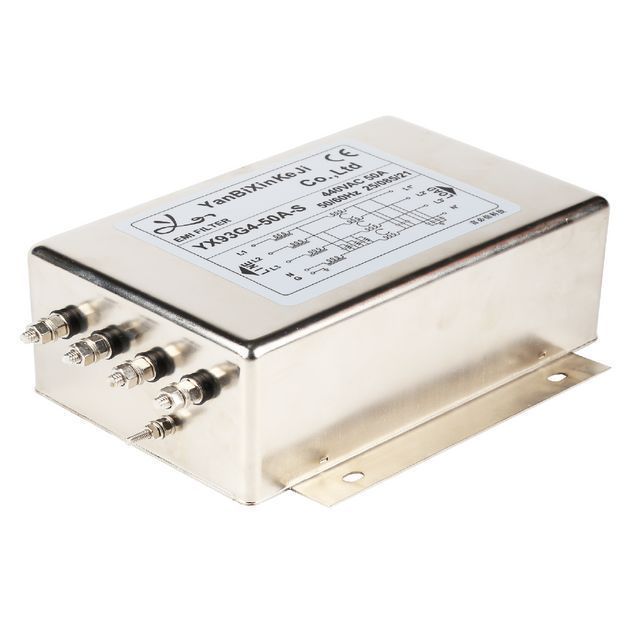

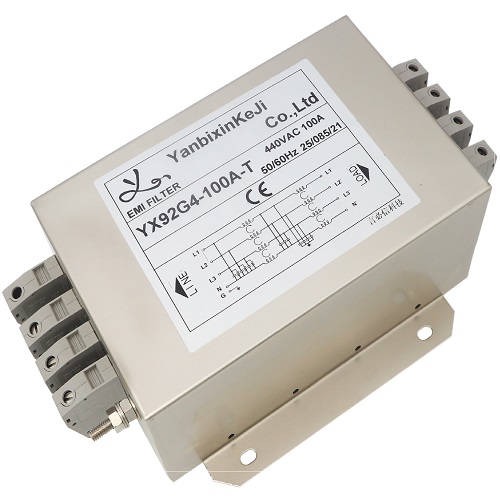

Yanbixin AC power filter three-phase four-wire 40A 50A 100A 150A 200A terminal or locking screw

Supplier: Shenzhen Yanbixin Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms krystal chen
Price: $0.68 /piece
Min. Order: 1 piece

Click here to contact

Product details

Conversion function:	Lowpass	thing:	Low pass EMI filter
Supply capacity:	500,000 low-pass EMI filters per month	input resistance:	50Ω
Stop Band Attenuation:	20-80 dB	brand:	YBX
port:	Shenzhen	Certificate:	cUL TUV ISO9001 CE ROHS
type:	EMI filter	Rated voltage:	380V/440V
temperature range:	25/085/21	Minimum order quantity:	1
Ambient temperature:	40°C	Rated current:	1A-100A
model:	YX94G4	Nominal Center Frequency:	10KHz-30MHz
Line to ground:	2250VDC or 2000VAC	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
3dB bandwidth:	14K	Packaging Details:	CTN/10pcs NW:38KG GW:40KG Meas:0.5650.2850.205
working frequency:	50/60HZ	Line to line:	1450VDC
Insertion Loss:	0-100dB	place of origin; place of origin:	Guangdong, China

Yanbixin AC power filter three-phase four-wire 40A 50A 80A 100A 150A 200A terminal or lock screw

Our advantage

1. We are the manufacturer of emi filter, we have a professional R&D team.

2. Our products have obtained CUL, TUV, ENEC, CB, CQC, CE, ROHS certification. We have ISO to ensure product quality.

3. We are the designated supplier of the top 500 domestic enterprises.

4. We can provide emc rectification and several samples for free.

5. High quality and low price, technical production, fast delivery.

Product Description

physical size

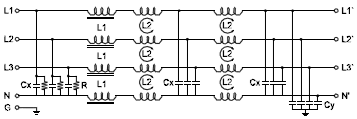

Electrical schematic

feature

(1) Rated voltage ................................................ ................................................................ .................250/440VAC

(2) Current class:

A.@115VAC................................................................ ...................................... 200A RMS max.

B.@250VAC...................................................... ...................................... 200A RMS max.

(3) Working frequency: 50/60Hz

(4) Leakage current: each line to ground

A. 250VAC/60Hz................................................................ ...................... 2.4 mA max.

B. 440VAC/50Hz................................................... .................................4.8 mA max.

(5) Pressure rating (one minute)

A. Line-to-Ground ................................................ ................................................................. .................2250VDC

B. Wire-to-Wire ..................................................... ..................................1450VDC

(6) IR: 50M ohm A 500VDC any input or output to ground

(7) Temperature range: -25℃~+85℃

our company

1. Customization: We have a professional R&D team; our goal is that we will not let customers

Spend any extra money.

2. Listed company: national high-tech enterprise, brand assurance, reliable quality,

We have relevant product certifications.

3. Rectification test: We cooperate with top scientific research laboratories and provide it for free

EMC rectification technical support, samples; and free conduction testing.

4. Large-scale production: automation technology, large-scale production, preferential price, excellent service,

Fast delivery! Free replacement within three months, free maintenance within six years,
