Plate material: | SS304/SS316/SS316L/Titanium; | Dimension(L*W*H): | DESIGNED; |
design pressure: | 1.0Mpa or 3.0Mpa; | Payment Terms: | L/C,T/T; |
Structure: | Plate Heat Exchanger; | Liquid Flow Rate: | 105 M3/h; |
Packaging Detail: | wooden case; | Delivery Detail: | Shipped in 12 days after payment; |
Power(W): | 2.2-400kw; | Port: | guangzhou; |
Maximum Working Pressure: | 40bar; | Application: | Refrigeration Parts; |
Supply Ability: | 1000 Piece/Pieces per Month; | Color: | Silver; |
After-sales Service Provided: | No overseas service provided; | Brazing material: | copper; |
Place of Origin: | Guangdong China (Mainland); | Product name: | brazed plate heat exchanger; |
Weight: | 7-105kgs; | Feature: | High Efficiency,pressure; |
Gasket material: | NBR.EPDM.VITON; | Voltage: | 220V/380V; |
Design temperature: | -160℃ --200℃; | Model Number: | QL-xx; |
Type: | plate heat exchanger; | Warranty: | 12 Months; |
Brand Name: | QingLi; | Condition: | New; |
Can be utilized for heating and cooling of clean liquids.
Furthermore, our brazed plate heat exchangers are suitable as evaporator and condenser units.
Typical Applications are follow:
• District heating/heating and ventilation
• Solar heating and air-conditioning units
• Heating pumps and heat recovering units
• Hydraulic oil units
• Refrigeration
• Compress air units

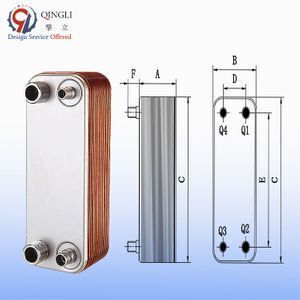

Design sketch of plate heat exchanger

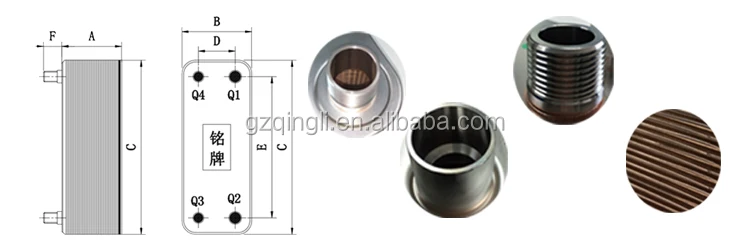

Specification of plate heat exchanger ’s connector
PT/PNT/GB Outer teeth | PT/NPT/GB | |
Nipple joints | 1/2",3/4",1",1-1/4" | 1/2",3/4",1" |
Welded joints | 9.73,12.9,16.15,19.25,22.36,25.6,28.8,32.5 |

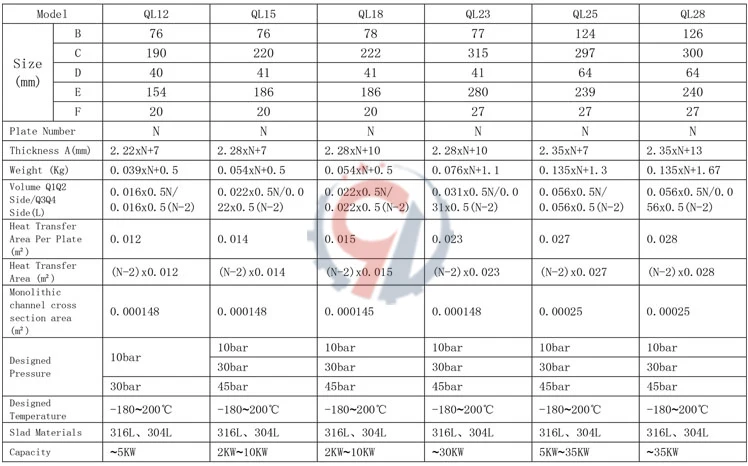

The dimension of plate heat exchanger
contact us,know more.

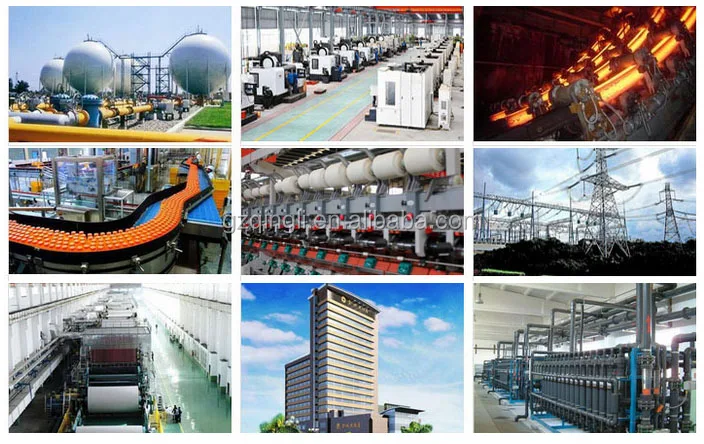

Applications of plate heat exchanger
Refrigeration,HVAC,chemical industry,metallurgical industry,mechanical industry,power industry,paper industry,textile industry,food industry,oil industry ,central heating,oil ,medicine,shipbuilding,desalination,geothermal,etc.
Thank you for viewing our products, your feedback will be highly appreciated.
Established in year 2007,GuangZhou QingLi Thermal Energy Equipment Co.,Ltd is an integrated modern enterprise which includes the research and development,production ,sales.Estabished in 2007 and is the manufacturer of standard and nonstandard radiator or heat exchanger.The fin tube material of radiator is including stainless steel,carbon steel,copper,aluminum.Our factory have imported bimetal,we have estabished friendly and stable business relationship with almost 20 countries and regions in the world.
Q:Worry about your money?
A: Trade Assurance can protect your money. (more information, pls contact me)
A: We are factory.specilizing in heat exchanger for over 10 years.
A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.
Working Conditions | ||||
Items | Unites | Hot side | Cold side | Remarks |
Fluid name | ||||
Flow rate | m³/h | |||
Temperature (In/Out) | ℃ | |||
Pressure drop (Designed/Actual) | Kpa | |||
Heat exchange | Kw |
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T&L/C in advance ,balance before shippment.
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
