CHINZ small and small extraction and concentration unit series system mechanical equipment machine

Supplier: Wenzhou Chinz Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms CHINZ Ye
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Mechanical test report:	if
Extraction type:	liquid extraction	model:	Small extraction and concentration unit
Supply capacity:	60 sets per quarter	Packaging Details:	Pack in tarpaulin first, then in wooden case
Key words:	Small extraction and concentration unit	process:	supercritical extraction
Core Components Warranty:	1 year	Warranty:	1 year
port:	Ningbo or Shanghai	Function:	Extraction and concentration
usage:	Food/herb/beverage/chemical	Weight (kg):	1100
Marketing Type:	New Products 2022	Packaging Preview:
Main selling point:	long lasting	Applicable industries:	Food and Beverage Factory
Material:	304/316L Stainless Steel	Power (kW):	2.5
place of origin; place of origin:	Zhejiang, China	Core components:	pressure vessel
Video external inspection:	if	brand:	Chinese
product name:	Small extraction and concentration unit	Health status:	new
Local service location:	China	Showroom location:	Thailand, America
application:	Herbs/Plants, Liquid	Dimensions (LWH):	custom made
Name:	Small extraction and concentration unit

Product Description

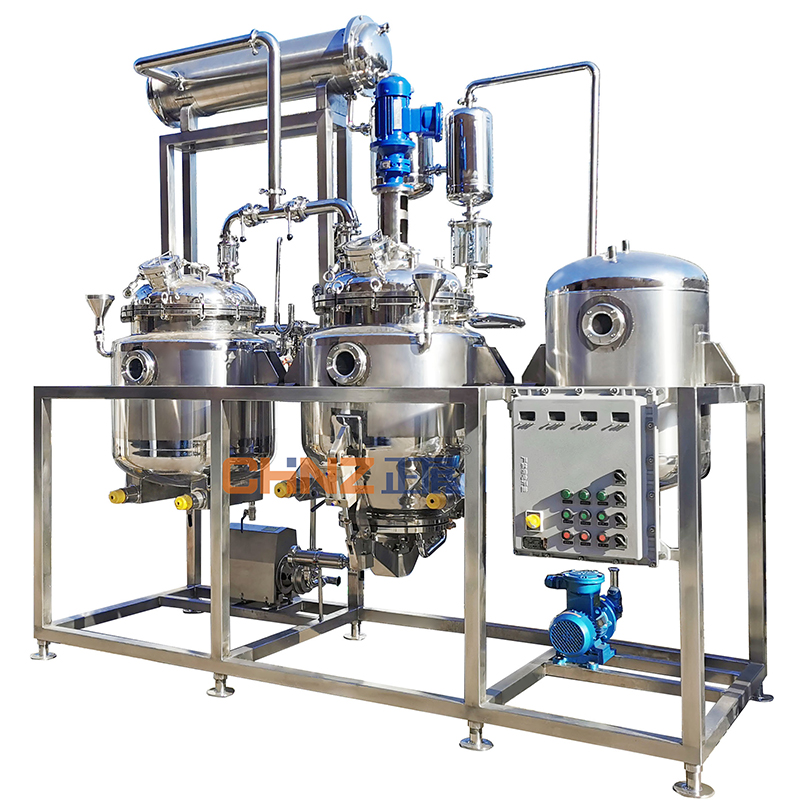

Micro extraction and concentration unit

The multi-functional ultrasonic extraction and concentration equipment for medicinal materials is suitable for extraction at room temperature and pressure, ultrasonic extraction, ultrasonic circulation extraction and ultrasonic countercurrent extraction in the industries of medicinal materials, health products, biopharmaceuticals, cosmetics, and food. This device can perform ultrasonic dynamic continuous countercurrent circulation extraction, and is suitable for multiple varieties, production and use in pharmaceutical, biological product enterprises, enterprises, laboratories and pharmaceutical factory R&D departments.

detailed picture

Product parameters

Model	CTN-50	CTN-100	CTN-200	CTN-300
Volume (L)	50	100	200	300
Evaporation (kg/h)	20	50	80	100
Motor power (kw)	0.55	0.75	0.75	1.1
Steam consumption (kg/hour)	25	60	90	120
System vacuum (Mpa)	-0.06 to -0.08
Jacket pressure (Mpa)	0.09~0.03	0.09~0.03	0.09~0.03	0.09~0.03
Compressed air (Mpa)	0.5~0.6	0.5~0.6	0.5~0.6	0.5~0.6
Steam temperature (℃)	100~125

Product packaging

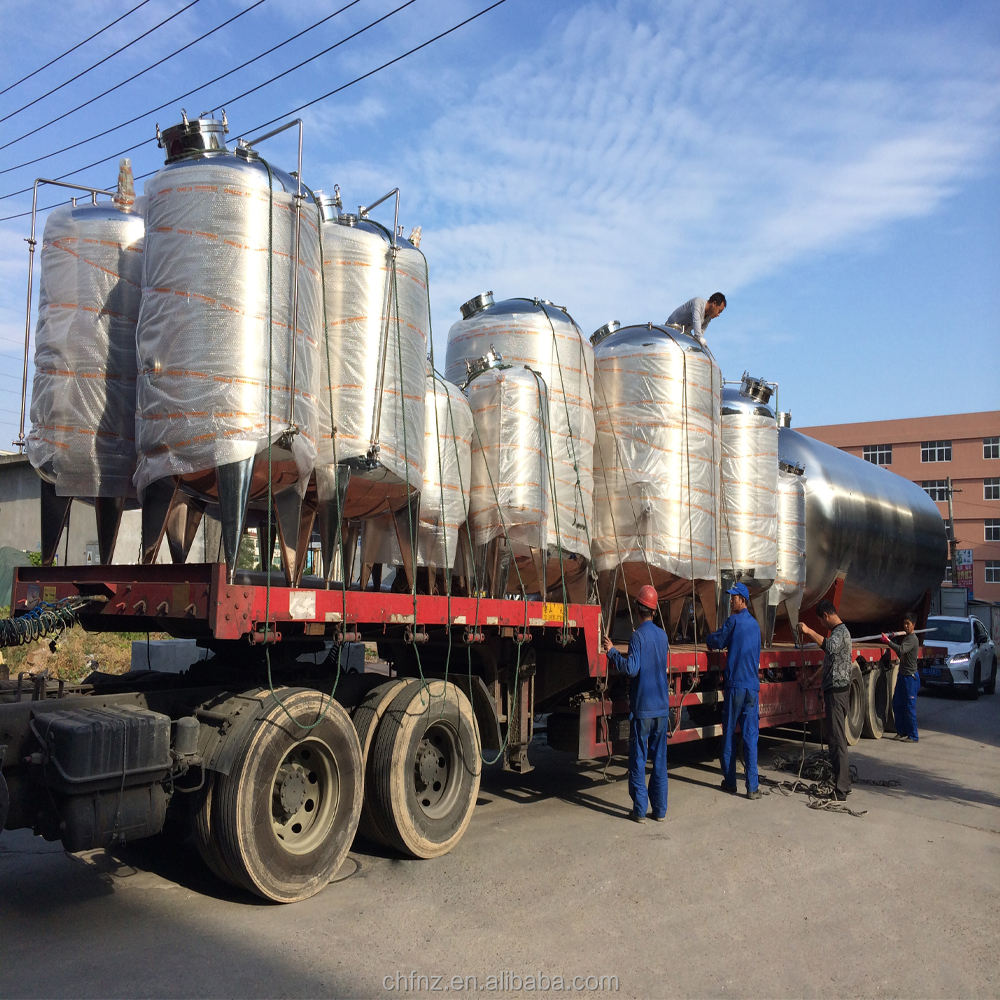

Sturdy seaworthy wooden case/wood stand/iron stand

♦ LCL (Less container load) is first packed with waterproof plastic film, and then packed with plywood ♦ FCL (Full container load) is fixed on a wooden support with steel wire ♦ If it is a large container, first wrapped with waterproof plastic film, and then fixed with a wooden support steel wire
